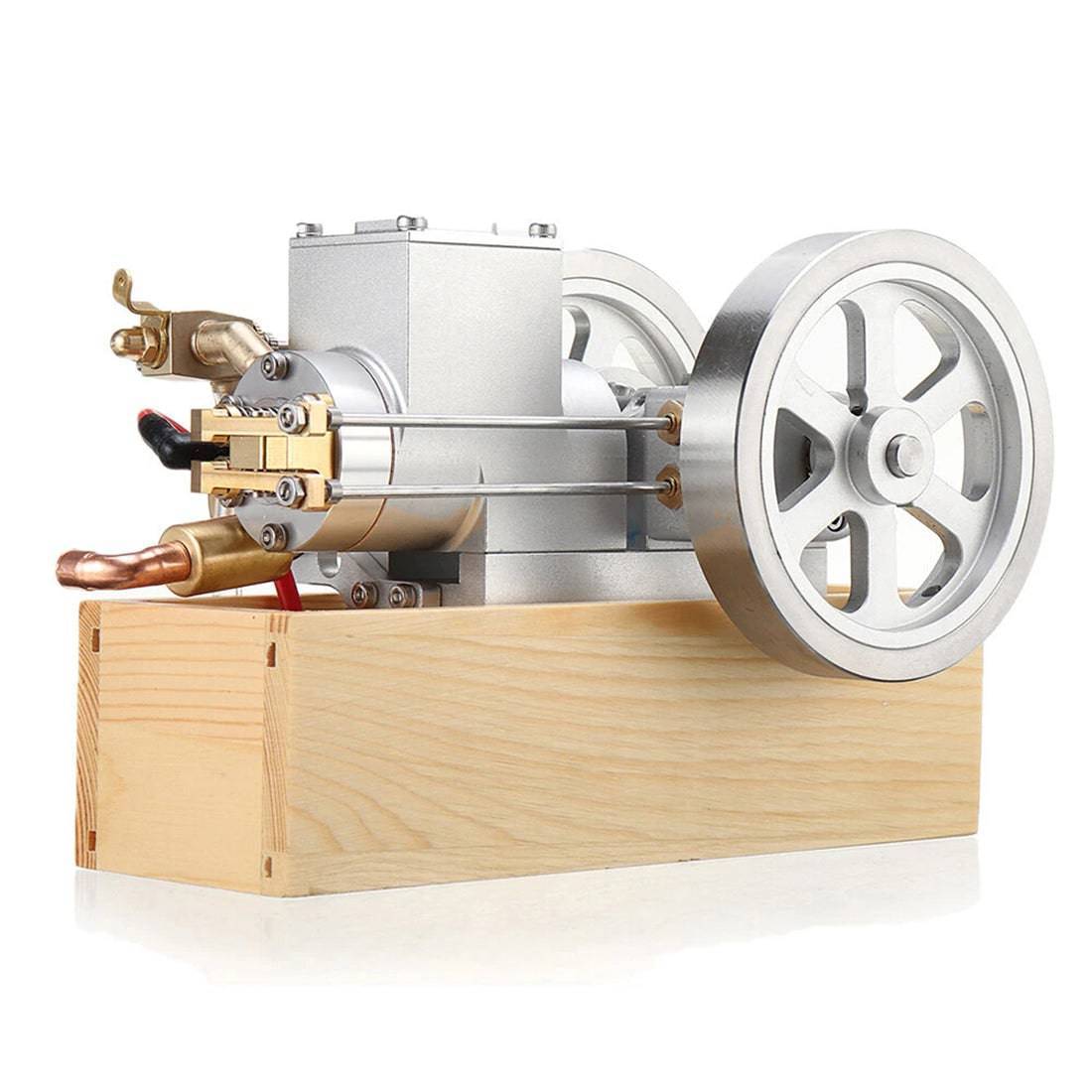

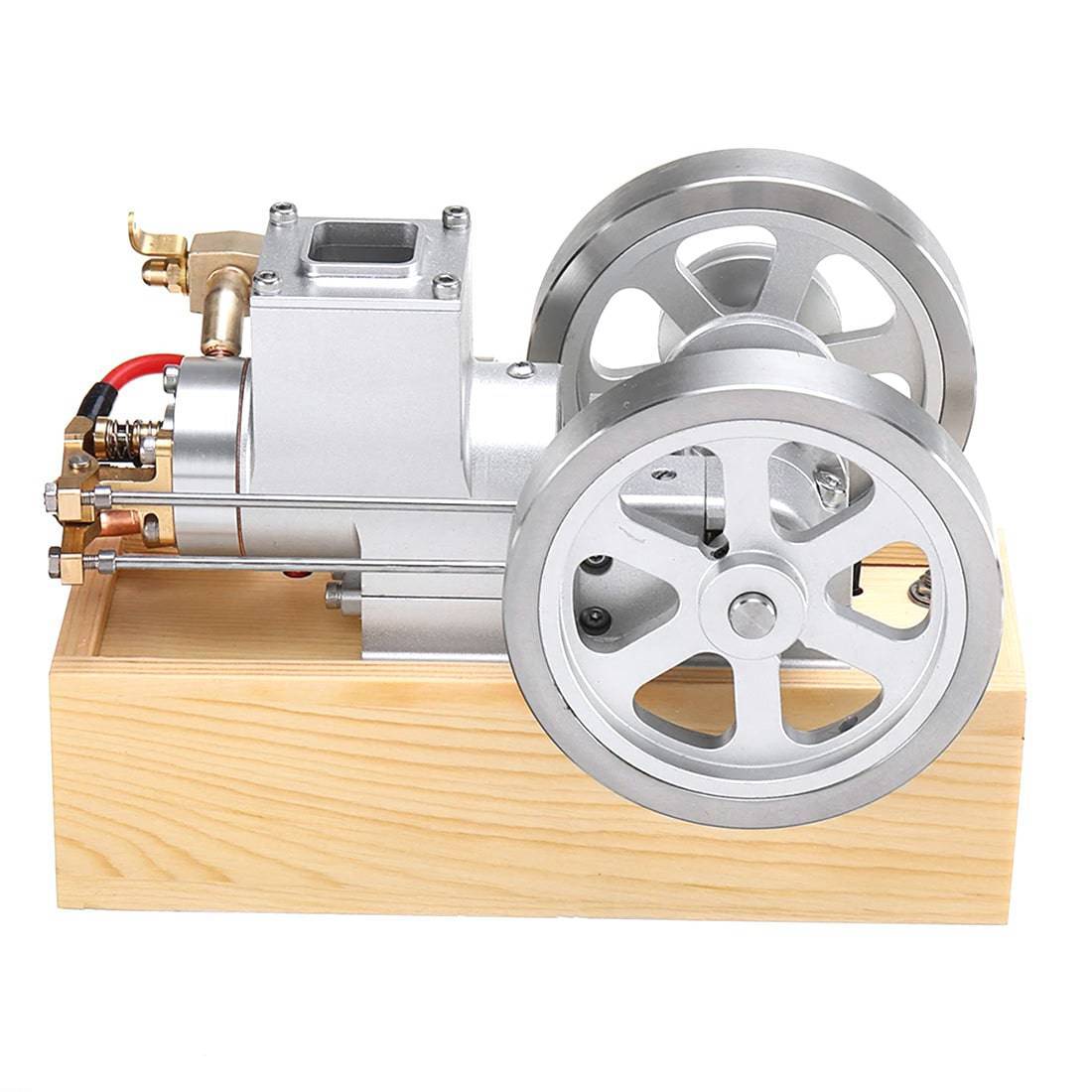

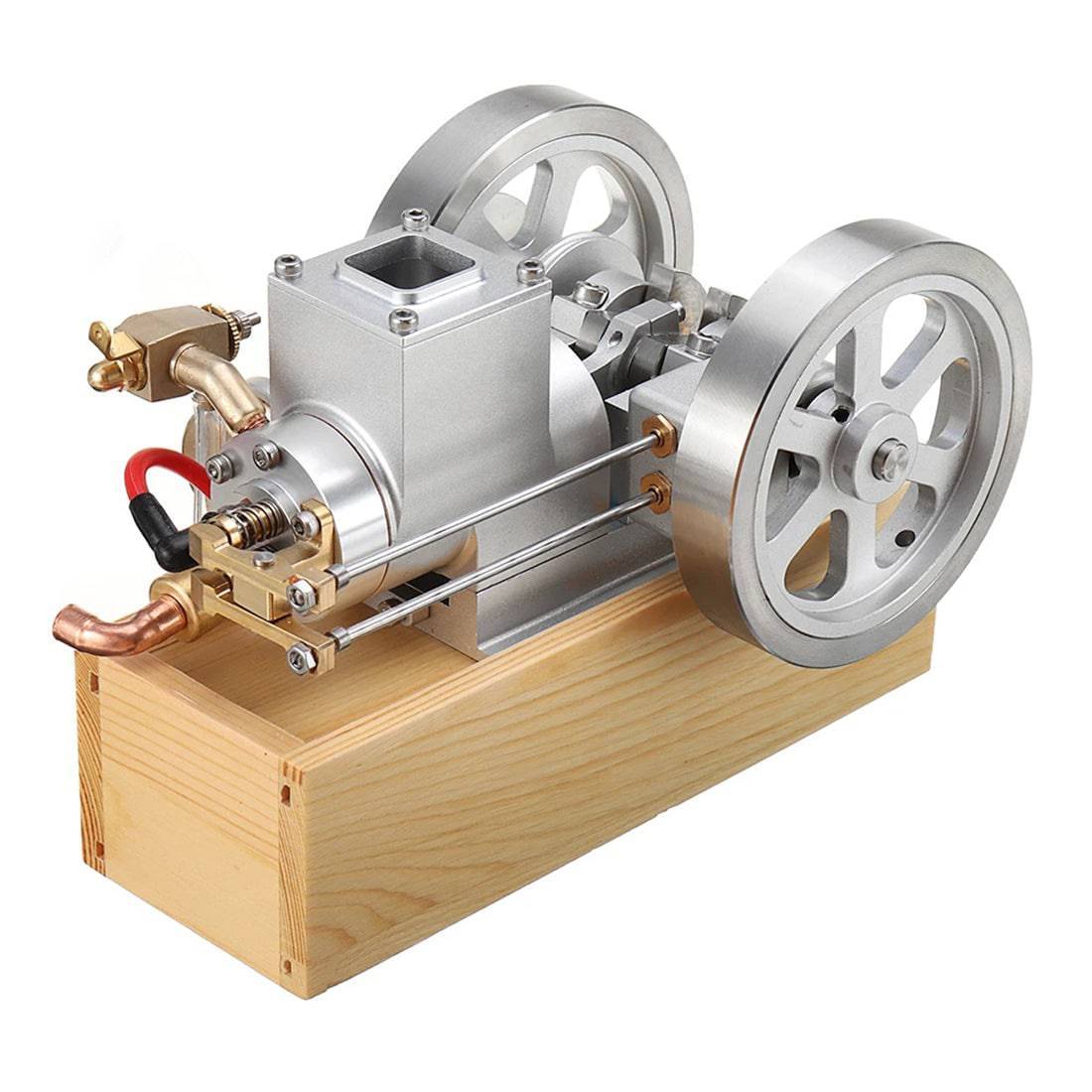

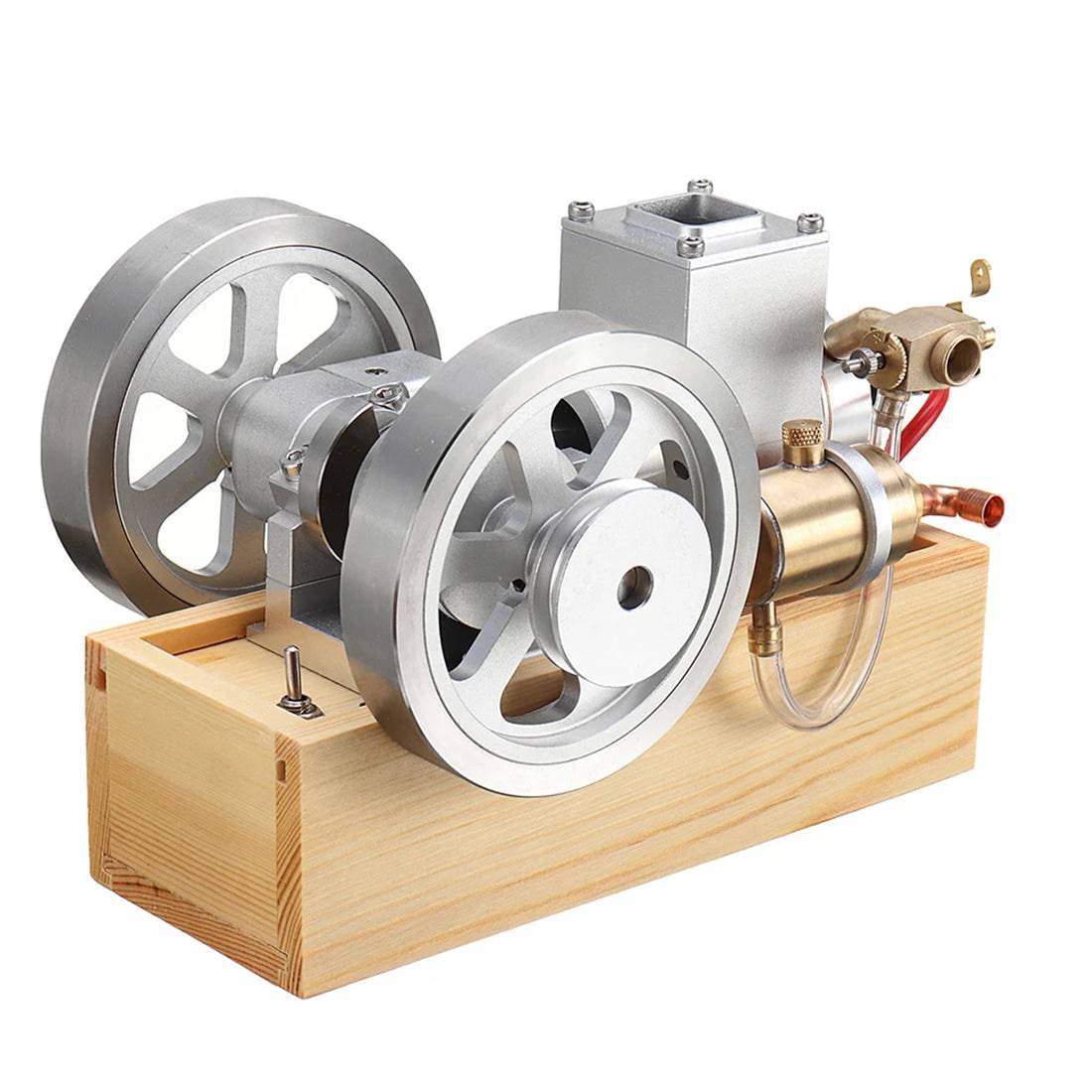

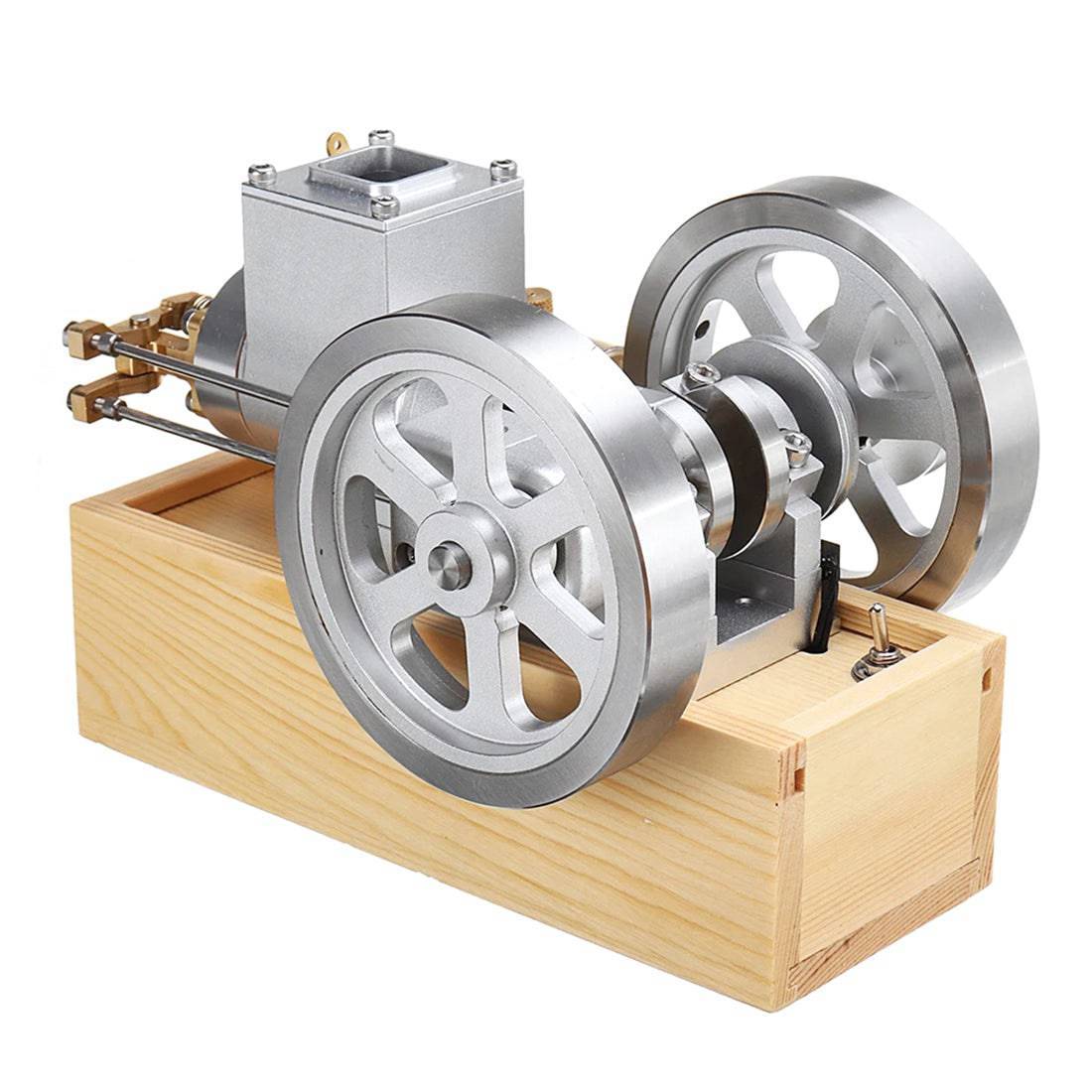

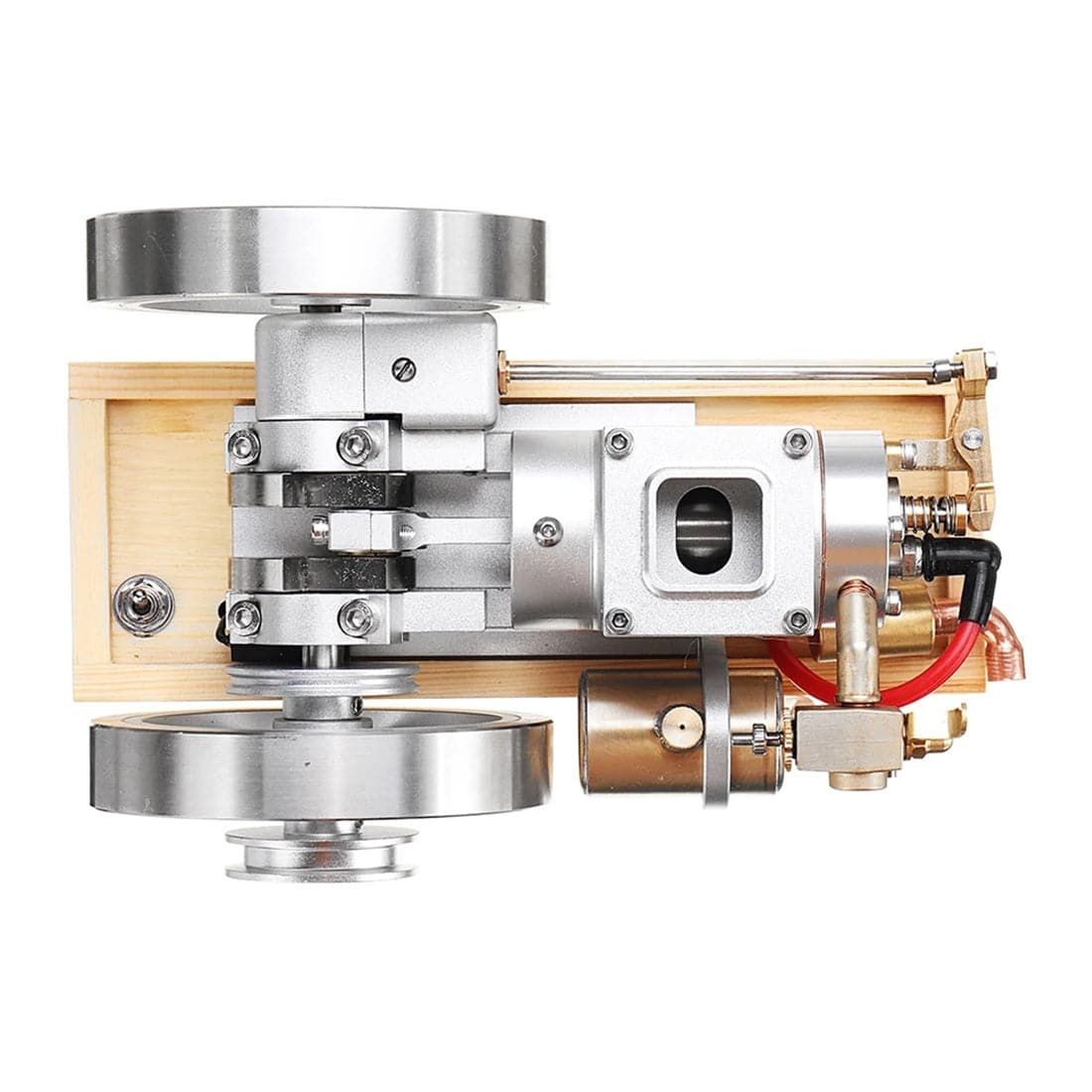

M93 Upgraded Horizontal Hit and Miss Engine Model Water Cooled 6cc Gasoline Motor with Governor
Hero Section: The Evolution of a Classic
The M93 is not just a replica; it is a refined tribute to the engines that powered the turn of the century. This upgraded horizontal model takes the beloved Hit and Miss design and enhances it with improved structural stability and a precision speed governor. Crafted from a stunning combination of brass, aluminum alloy, and stainless steel, it sits on a polished wooden base, ready to bring the sights and sounds of early industrial history to your workbench. It’s heavy, it’s mechanical, and it’s mesmerizing.
Why Choose the M93 Upgraded Engine?
- Functional Speed Governor: The heart of this engine is its visible flyball governor. Watch as the weights spin and flare, mechanically regulating the exhaust valve to control the engine's speed. It’s a brilliant, hands-on lesson in analog control systems.

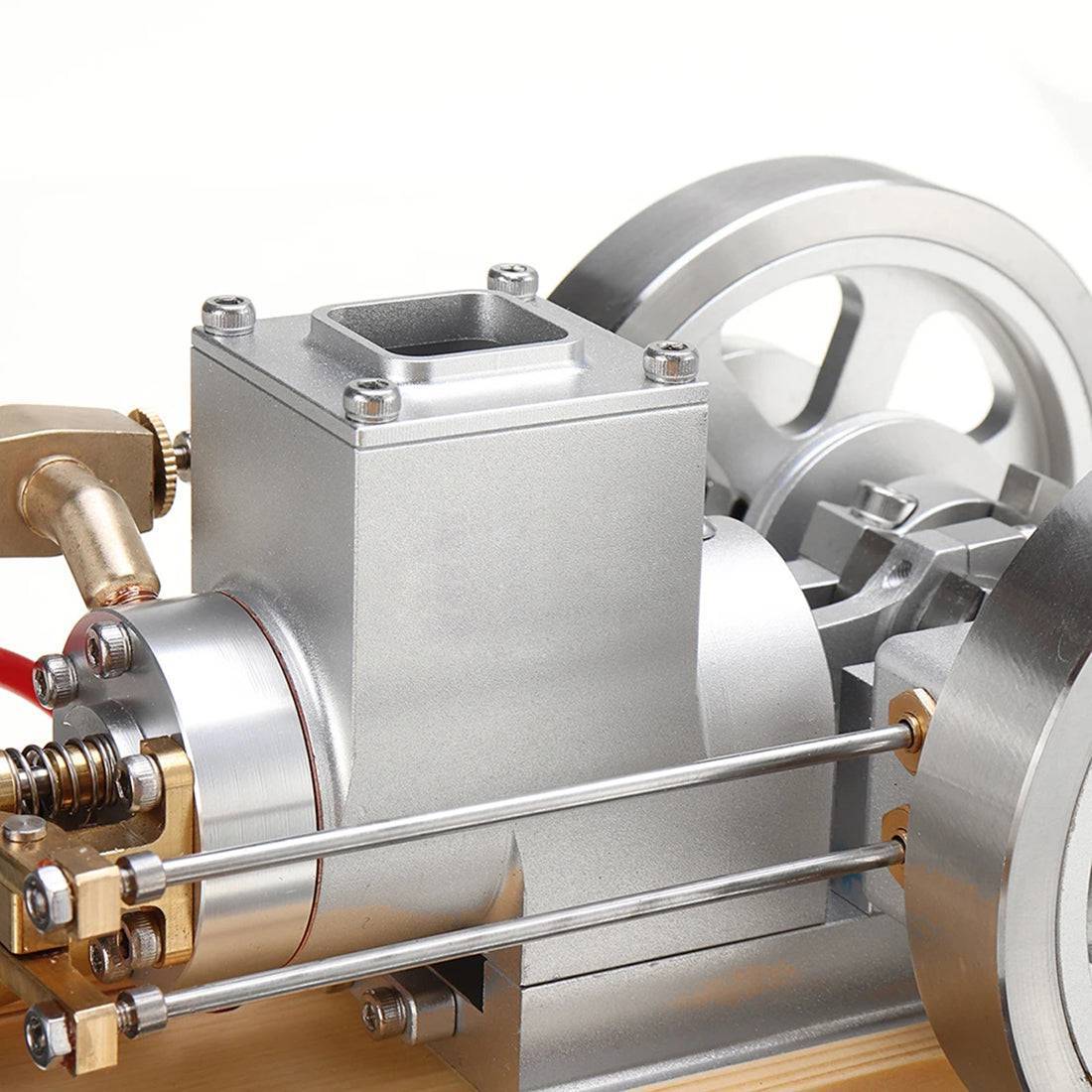

- Authentic Water Cooling: Featuring a classic open water hopper, this engine manages heat just like the full-sized originals. As it runs, the water absorbs heat, allowing for longer, more reliable operation sessions without overheating.
- Premium Material Blend: We’ve used the best materials for both durability and aesthetics. The brass fittings gleam against the aluminum body and stainless steel components, creating a model that looks as good on a shelf as it does running on a bench.
- Upgraded Reliability: This version features a more stable structural design and an improved carburetor, making it easier to start and tune than previous iterations. It’s the perfect entry point for new collectors and a worthy addition for veterans.
Technical Highlights: Expert Analysis
- 6cc Displacement: With a substantial 22mm bore and 20mm stroke, the M93 generates a deep, rhythmic exhaust note and plenty of torque to spin the large 88mm flywheel.

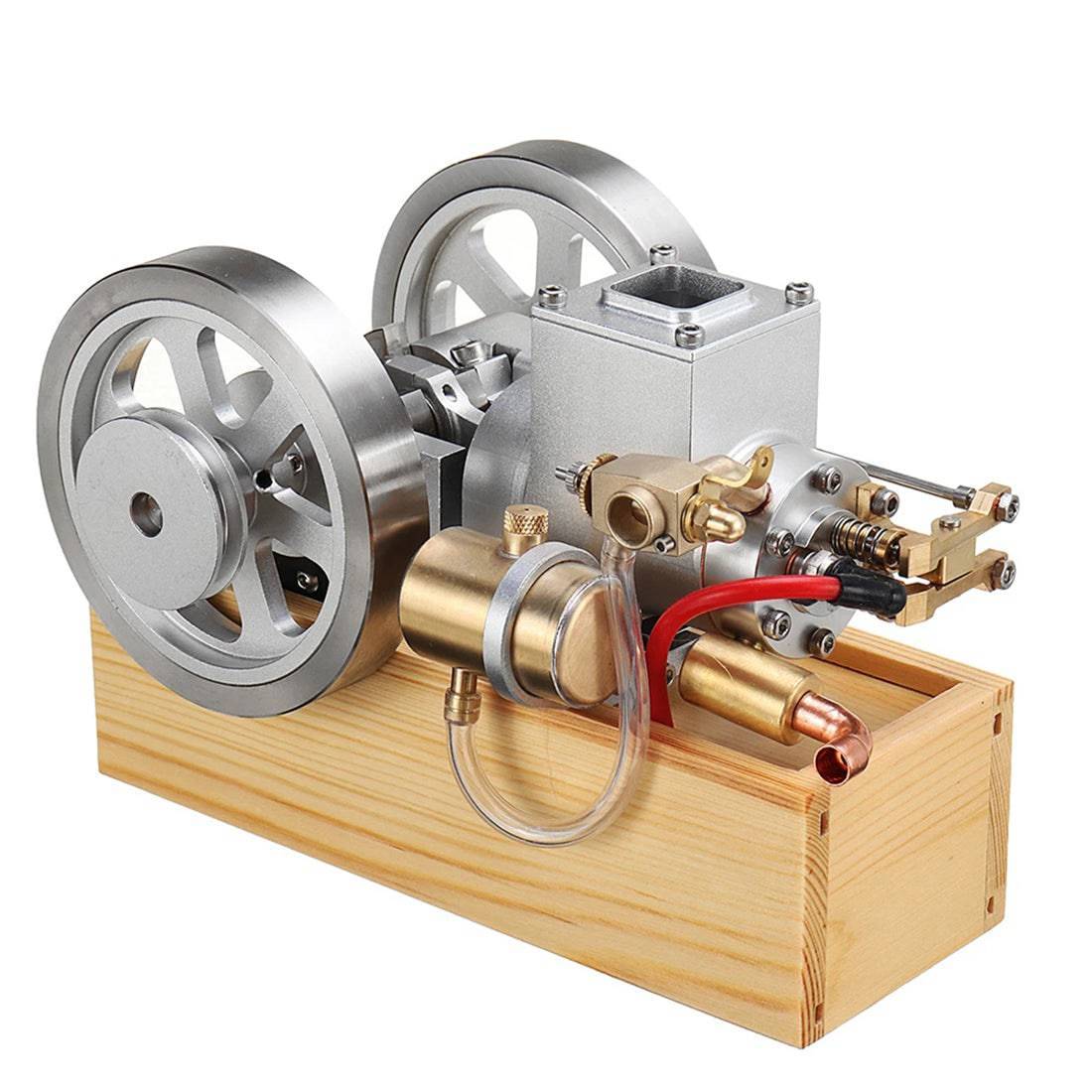

- Adjustable Carburetion: The precision carburetor allows you to fine-tune the air-fuel mixture. Finding that perfect "sweet spot" where the engine runs at a slow, steady "hit-and-miss" cadence is a deeply satisfying experience.
- Electronic Ignition: Powered by 3x AA batteries (4.5V), the modern ignition system ensures a strong, consistent spark, eliminating the frustration often associated with vintage-style engines.
Specifications
- Model: M93 Upgraded Horizontal Engine
- Type: Single Cylinder 4-Stroke Hit & Miss
- Displacement: 6cc
- Bore / Stroke: 22mm / 20mm
- Flywheel Diameter: 88mm
- Material: Brass / Aluminum / Stainless Steel / Wood Base
- Cooling: Evaporative Water Cooling
- Ignition: Electronic (Requires 3x AA Batteries)
- Fuel: 95# Gasoline
- Dimensions: 180mm x 125mm x 75mm
- Weight: ~1610g
Usage Scenario

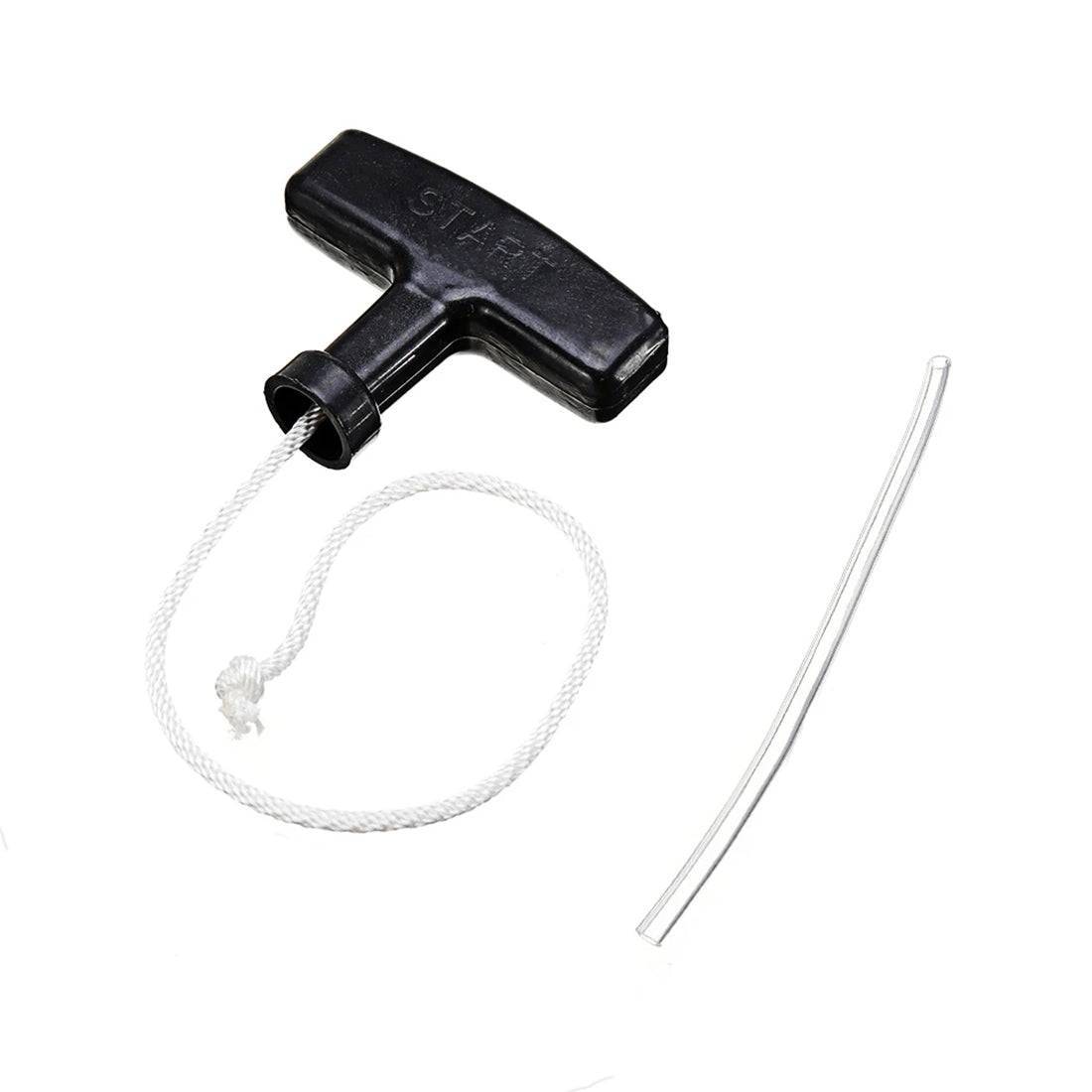

It’s a Saturday afternoon. You place the M93 on your desk and fill the hopper with water. You check the fuel lines and flip the switch. With a firm pull of the starter cord, the engine coughs to life. It settles into a slow, hypnotic rhythm—Pop... coast... coast... Pop. You watch the governor weights dance, regulating the speed perfectly. It’s a moment of pure mechanical connection, a break from the digital noise of modern life.
Important Tips
- Tuning: If the engine has compression but won't start, adjust the carburetor needle. Tighten it gently, then loosen by 1/4 turn. This is usually the ideal starting point.
- Priming: Before starting, rotate the flywheel clockwise manually a few times to draw fuel into the cylinder and remove air bubbles.
- Lubrication: Ensure all moving parts are oiled before use.
- Safety: Operate in a well-ventilated area. The engine gets hot; handle with care.
