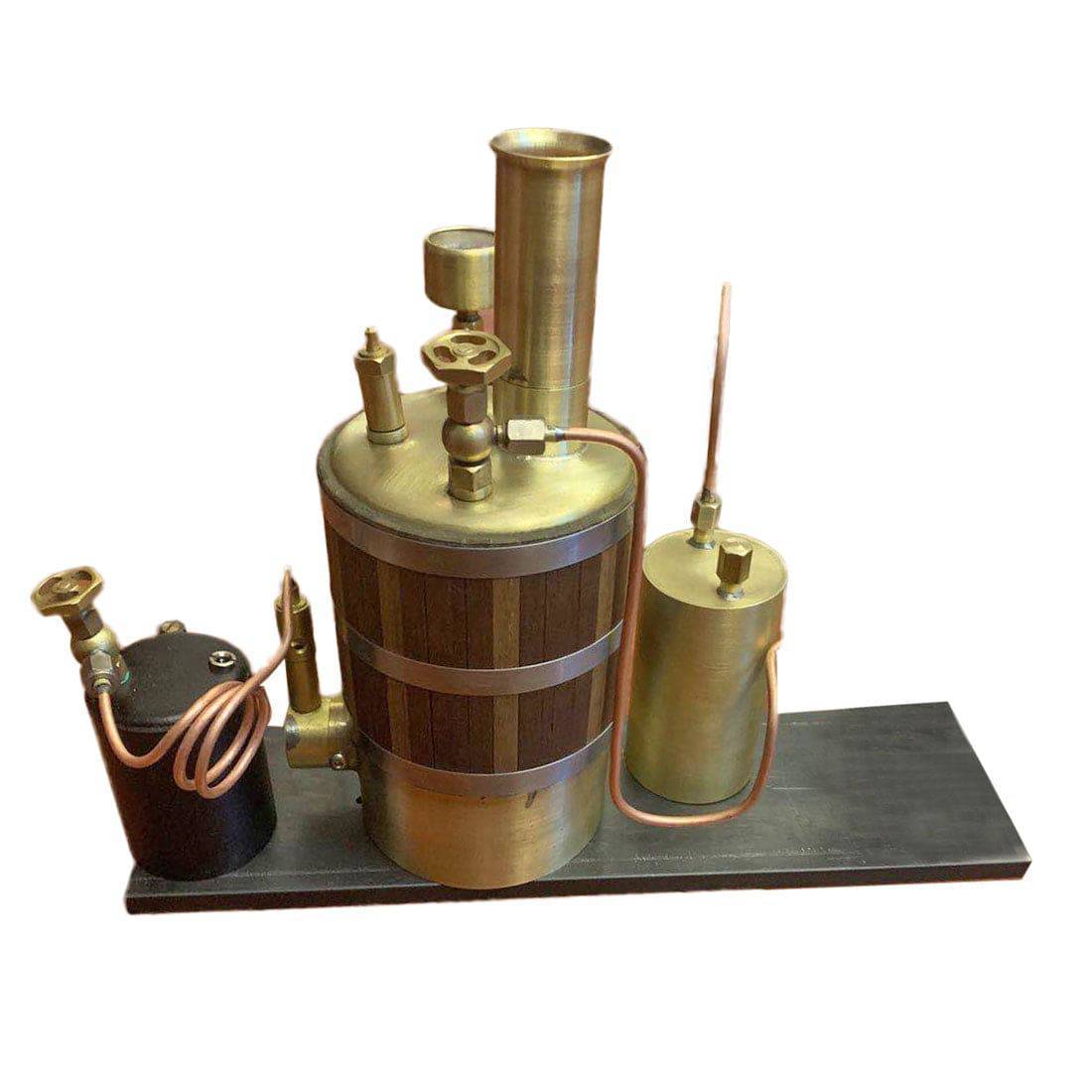

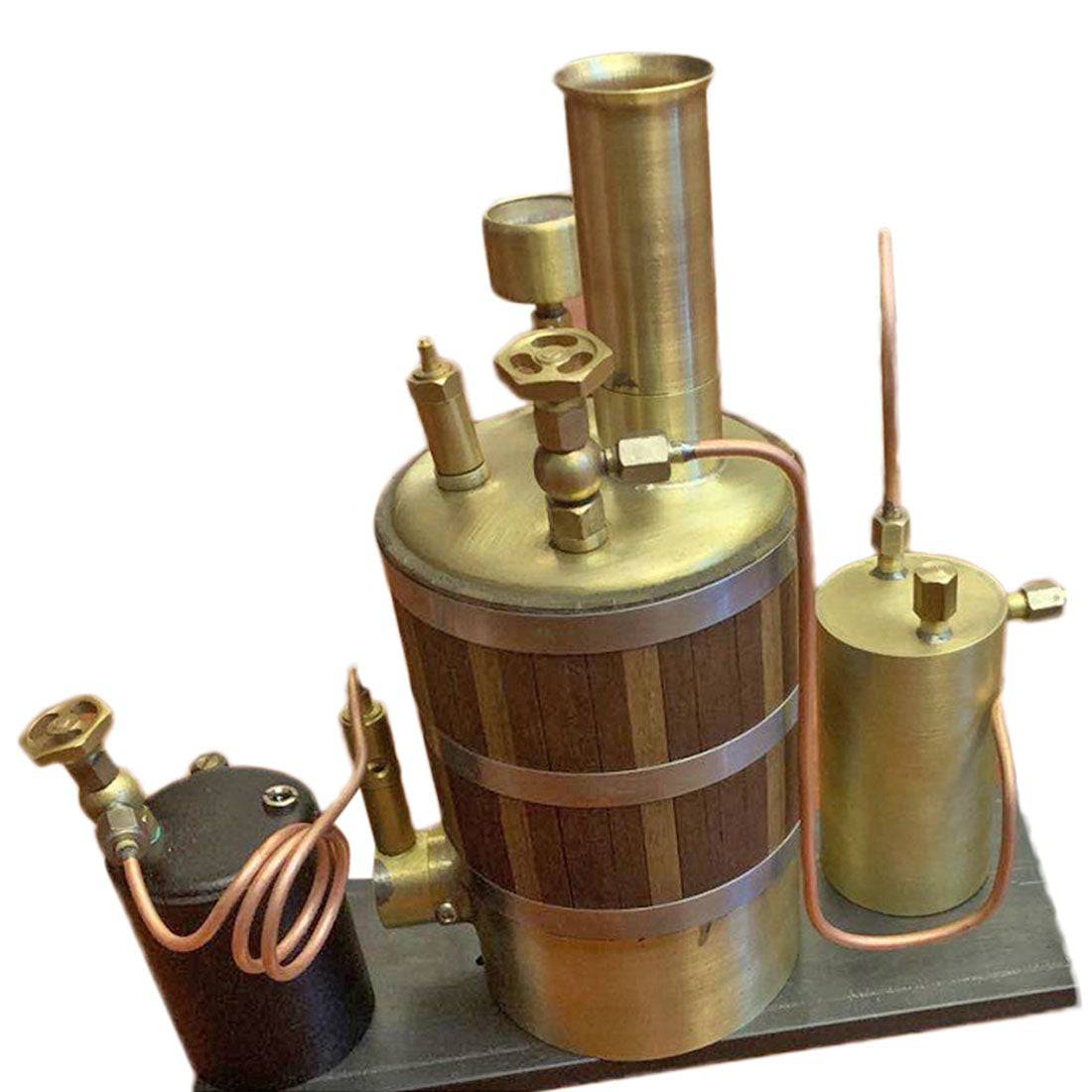

Vertical Steam Boiler 550ml Capacity for Model Ships Brass & Wood Insulated Live Steam Kit
Hero Section: The Beating Heart of Your Steam Vessel
A steam engine is only as good as the boiler that feeds it. This Vertical Steam Boiler isn't just a water tank; it is a high-capacity power plant designed to keep your model ship sailing longer and stronger. Wrapped in a beautiful wooden thermal insulation layer and finished with high-temperature paint, it combines the rugged aesthetics of the 19th century with modern thermal efficiency. Whether you are building a classic tugboat or a river paddle steamer, this boiler provides the consistent, powerful steam pressure needed to bring your vessel to life on the open water.
Why Choose This Vertical Boiler?
- Massive 550mL Capacity: Size matters when you are out on the pond. With a generous 550mL water capacity, this boiler offers extended run times, allowing your ship to complete longer voyages without the need for frequent refueling and refilling.
- Superior Thermal Insulation: We’ve encased the brass core in a layer of insulating wood. This serves a dual purpose: it gives the boiler a stunning, authentic retro look, and it drastically reduces heat loss, keeping the water boiling efficiently while keeping the exterior cooler.
- Optimized Steam Output: The design features a renovated steam output pipe system aimed at heat recovery. This ensures that the steam delivered to your engine is hot and consistent, maximizing the power output of your attached engine (engine not included).
- Easy Solid Fuel Operation: Designed for simplicity, it uses a copper shovel system for solid fuel alcohol. This makes ignition and refueling safe and straightforward, perfect for hobbyists of all experience levels.
Technical Highlights: Engineering Insight
- High-Temperature Coating: The surface is treated with specialized high-temperature paint that resists peeling and discoloration, ensuring the boiler maintains its visual appeal even after repeated heating cycles.
- Brass & Wood Construction: The core pressure vessel is robust brass for thermal conductivity and corrosion resistance, while the wooden cladding acts as a natural thermal barrier, improving energy efficiency.
- Vertical Architecture: The vertical design creates a smaller footprint, making it easier to fit into the hulls of various model ships where horizontal space might be limited.
Specifications
- Type: Vertical Steam Boiler
- Material: Brass + Wood + High-Temp Paint
- Dimensions: 80mm (Diameter) x 130mm (Height)
- Capacity: Approx. 550mL
- Fuel Type: Solid Fuel Alcohol (Not included)
- Product Weight: 1000g
- Package Dimensions: 30 x 15 x 20 cm
- Package Weight: 1500g
- Packing: Protective Box
Usage Scenario: The Maiden Voyage
It’s a crisp morning at the local model boat pond. You open the hatch of your steam launch. You fill the boiler with distilled water and load a block of solid fuel onto the copper shovel. You strike a match and slide it under the boiler. For a minute, you hear the water begin to sizzle. Then, steam pressure builds. You flick the flywheel of your connected engine, and the propeller churns the water. Your ship glides away, leaving a trail of steam and ripples, powered by the reliable heart you installed.
Important Tips from the Expert
- Water Selection: Always use Distilled Water. Tap water contains minerals that will cause scale buildup inside the boiler, reducing efficiency and eventually blocking the pipes.
- Safety Valve: Ensure your setup includes a safety valve (usually on the boiler or added to the system) to prevent over-pressurization.
- Fuel Handling: This boiler is designed for Solid Fuel Alcohol (Hexamine tablets). Do not use liquid alcohol unless you have a specialized burner, as it can be dangerous in a ship hull.
- Note: This listing is for the Boiler Only. The steam engine shown in some contexts is for demonstration and must be purchased separately.
