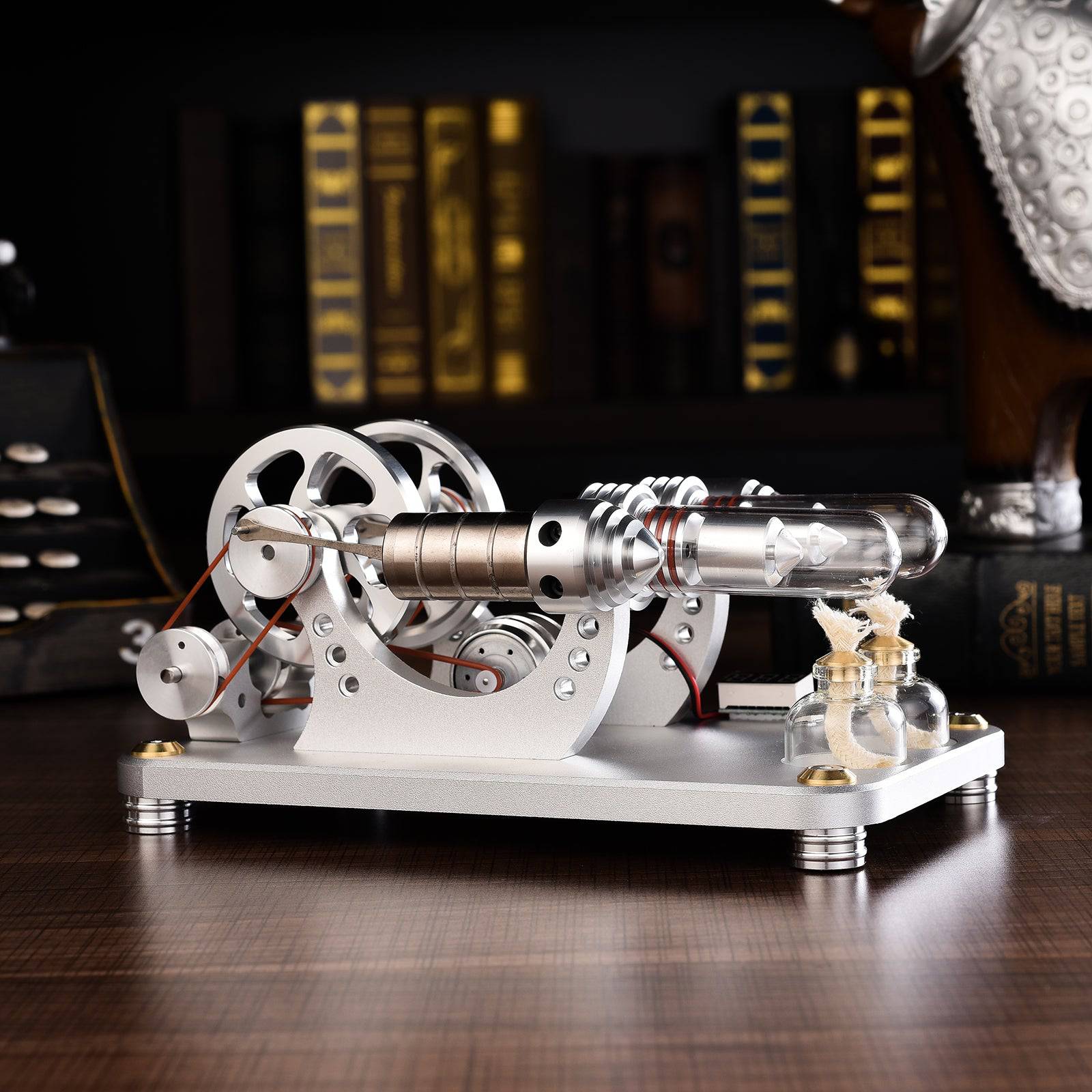

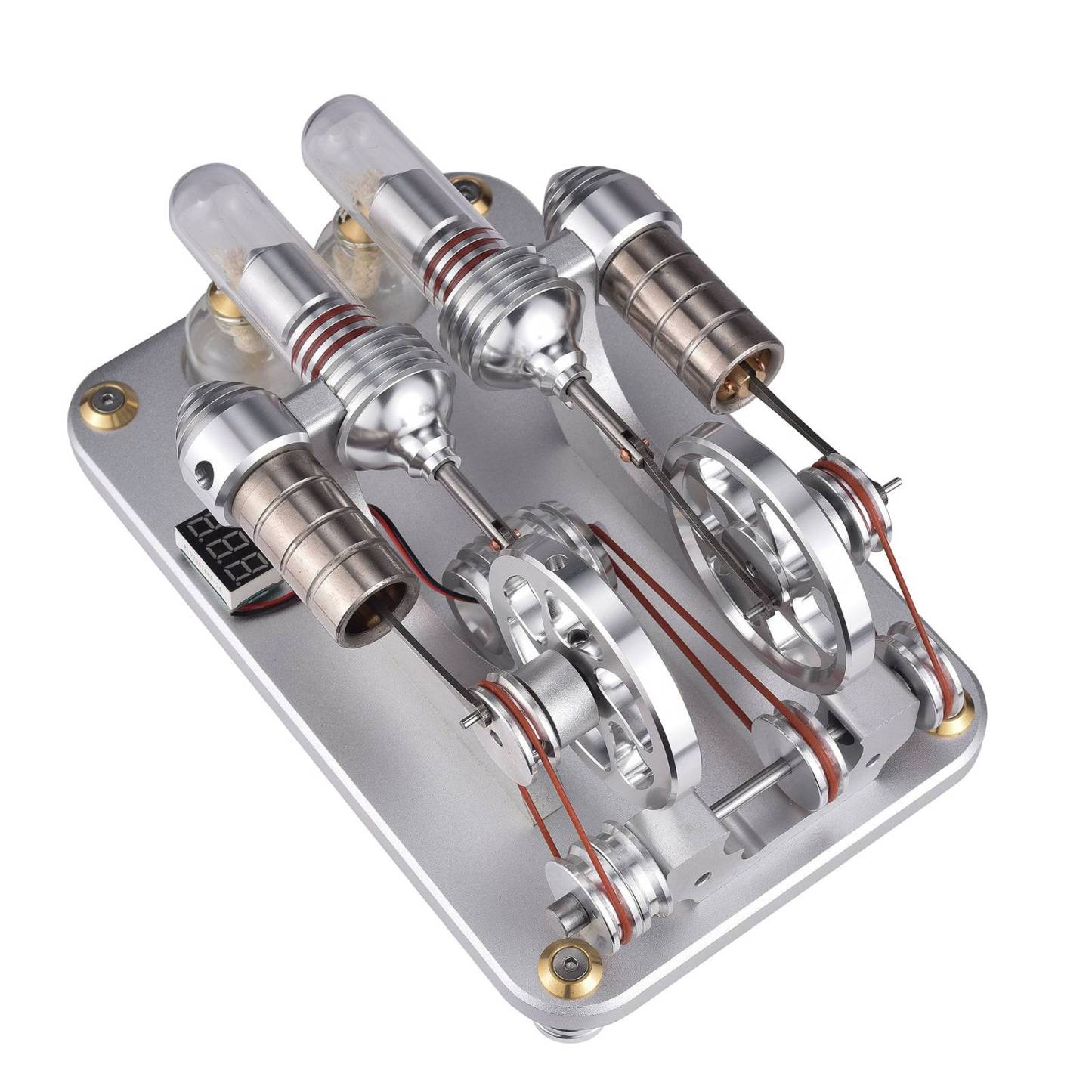

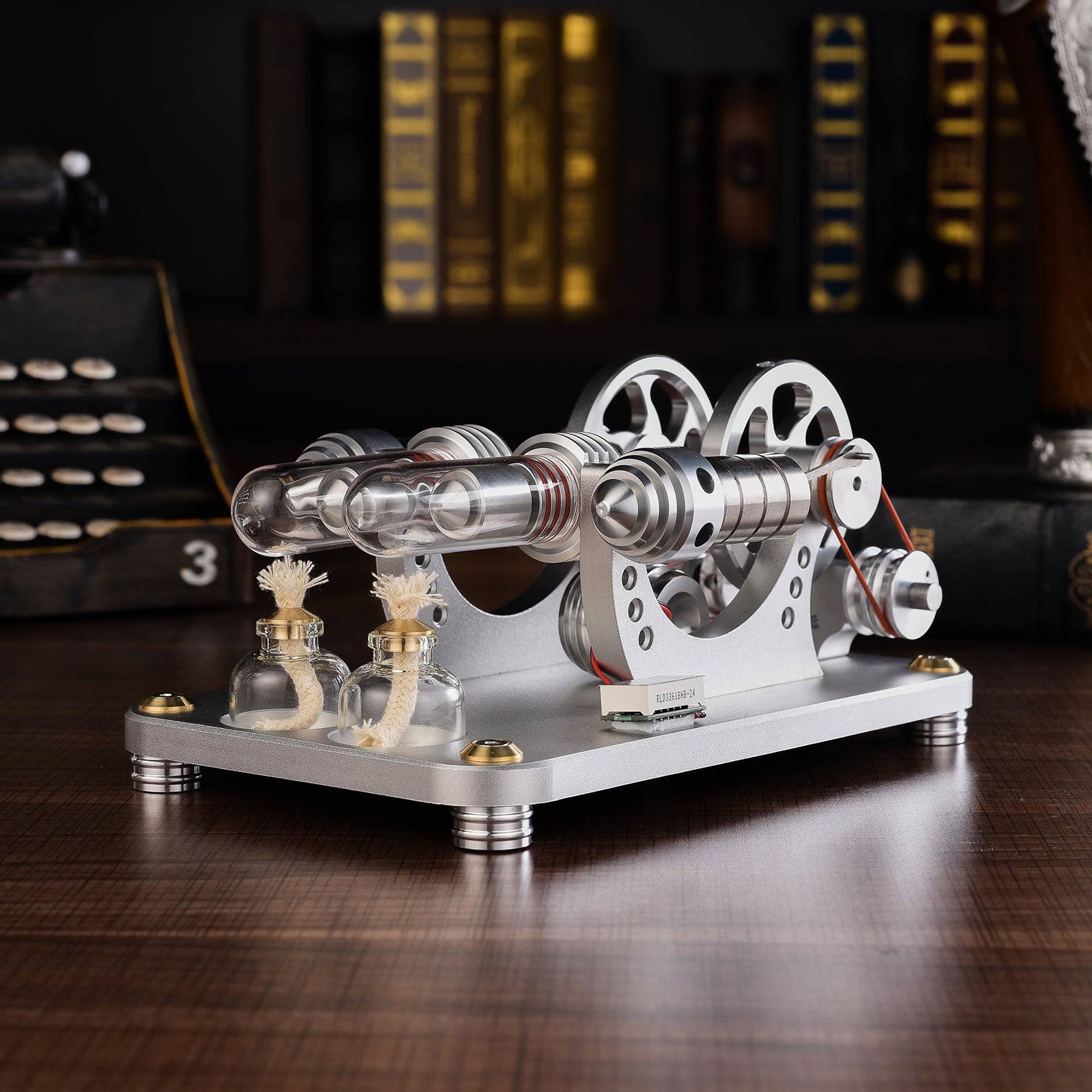

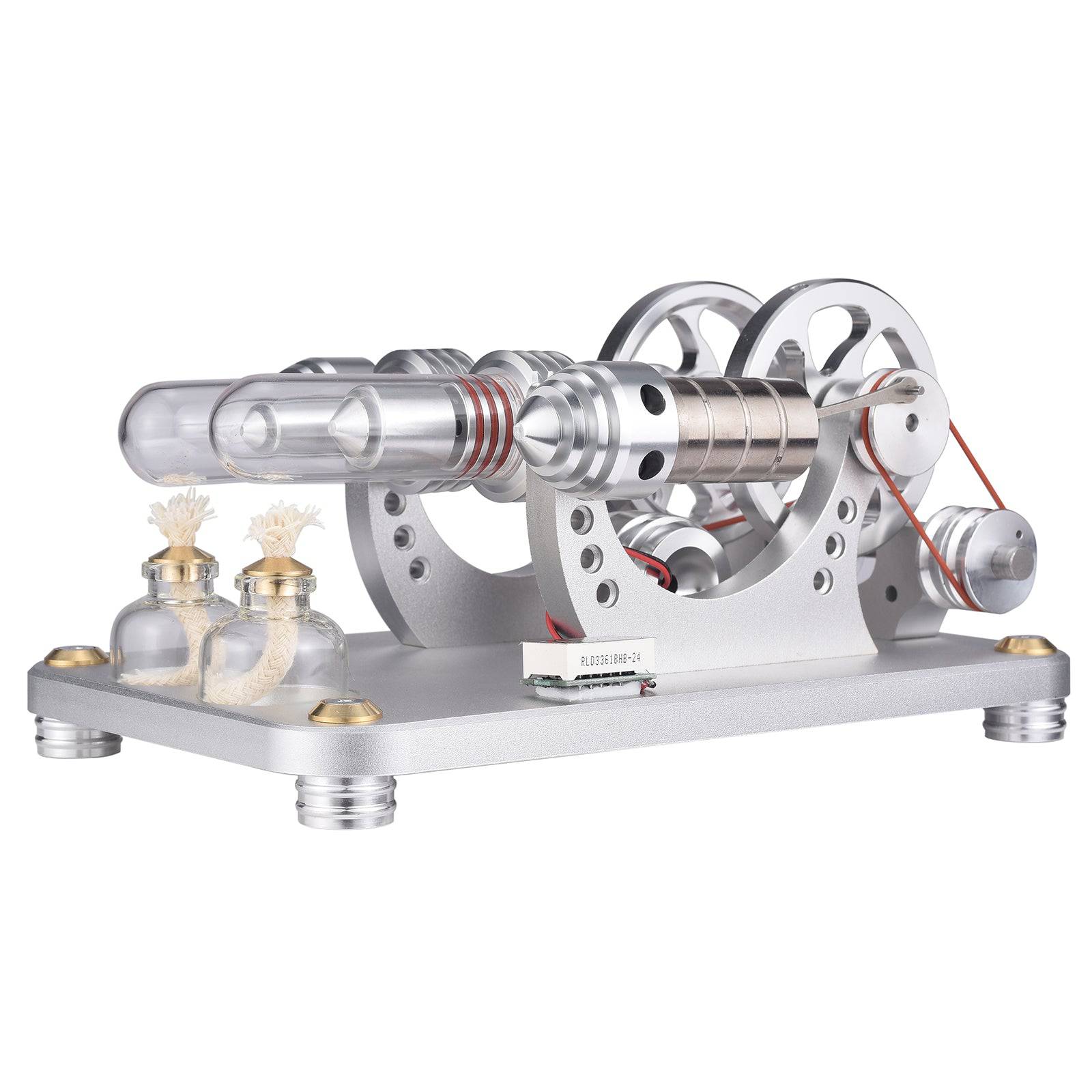

Custom Twin Cylinder Stirling Engine Generator Model with Digital Voltage Meter & LED
Hero Section: The Science of Power, Quantified
There is a difference between seeing a machine run and seeing it perform. The Custom Twin Cylinder Stirling Engine takes desktop engineering to a new level by adding a real-time digital voltage meter. This isn't just a kinetic sculpture; it is a quantifiable power plant. Watch as the dual cylinders pump in perfect harmony, driving the generator to light up the LED, while the digital display climbs, giving you immediate, numerical proof of your thermal energy conversion. It is the ultimate fusion of mechanical beauty and electrical precision.
Why Choose the Twin Cylinder Generator Model?
- Real-Time Data (Voltage Meter): This is the standout feature for the data-driven enthusiast. The integrated digital voltmeter allows you to monitor the engine's output in real-time. Tune the flame, adjust the position, and watch the voltage numbers change. It turns a passive display into an interactive experiment.
- Dual-Cylinder Powerhouse: Two is better than one. The side-by-side twin-cylinder configuration provides double the displacement and smoother torque delivery compared to single-cylinder models. The visual symmetry of the two pistons working together is mesmerizing.
- Industrial Grade Materials: We spared no expense. The main body is machined from 6061 Aluminum Alloy (aerospace grade), while the power pistons and cylinders are crafted from SUJ Alloy Steel—a high-hardness bearing steel known for extreme wear resistance and low friction.
- A Complete Energy System: From the heat of the alcohol lamps to the mechanical motion of the flywheel, to the electrical output driving the LED and meter—this model demonstrates the entire chain of energy conversion in one compact unit.
Technical Highlights: Precision Engineering
- SUJ Alloy Steel Pistons: The power pistons are made from SUJ bearing steel. This material is incredibly hard and ground to a mirror finish, ensuring an airtight seal and ultra-low friction without the need for liquid lubricants.
- Anodized Durability: The aluminum body undergoes a rigorous anodizing process. This not only gives it a rich, metallic luster that catches the eye but also protects the surface from oxidation and corrosion for decades.
- High-Output Generator: Driven by a large 65mm flywheel, the generator is capable of producing between 4V and 8V, providing ample power to drive the LED bead and the digital display simultaneously.
- Thickened Quartz Glass: The heating cylinders use 19mm diameter thickened quartz glass, designed to withstand the high thermal stress of dual-flame operation without cracking.
Specifications
- Material: 6061 Aluminum Alloy / SUJ Alloy Steel / Quartz Glass
- Configuration: Twin Cylinder (Side-by-Side)
- Heating Tube ID: 19mm
- Piston Diameter: 16mm
- Piston Stroke: 16mm
- Flywheel Diameter: 65mm
- Output Voltage: 4V - 8V DC (Displayed on Meter)
- Dimensions: 21 x 13.2 x 10cm
- Weight: 1650g
- Fuel: 95% Alcohol (Not included)
Usage Scenario: The Late-Night Lab
It’s late. You dim the lights in your study. You fill the dual alcohol lamps and ignite them. The quartz tubes begin to glow orange. You give the heavy flywheel a spin. The engine roars to life with a deep, rhythmic thrum unique to twin-cylinder engines. The LED flickers on, casting a shadow on your desk. You lean in and watch the red digits on the voltmeter climb—3.5V... 4.2V... 5.0V. It’s a moment of pure satisfaction, where you are the engineer of your own power grid.
Important Tips for Best Performance
- Fuel Purity: Use 95% alcohol (ethanol). The twin cylinders require significant heat to run efficiently. Low-purity fuel (70%) contains water and will not generate enough thermal energy to drive the generator to high voltages.
- Zero Lubrication: The SUJ alloy steel pistons are self-lubricating via air cushion. Never add oil to the pistons or cylinders. Oil will carbonize and seize the engine.
- Preheat is Vital: Because of the large metal mass and dual cylinders, allow a full 30-second preheat before starting.
- Safety: The quartz tubes get extremely hot. Do not touch them during operation.
Customer Support
We are dedicated to high-performance modeling. If you have questions about maximizing voltage output or maintenance, please contact our support team at service@helloworld7.com.
