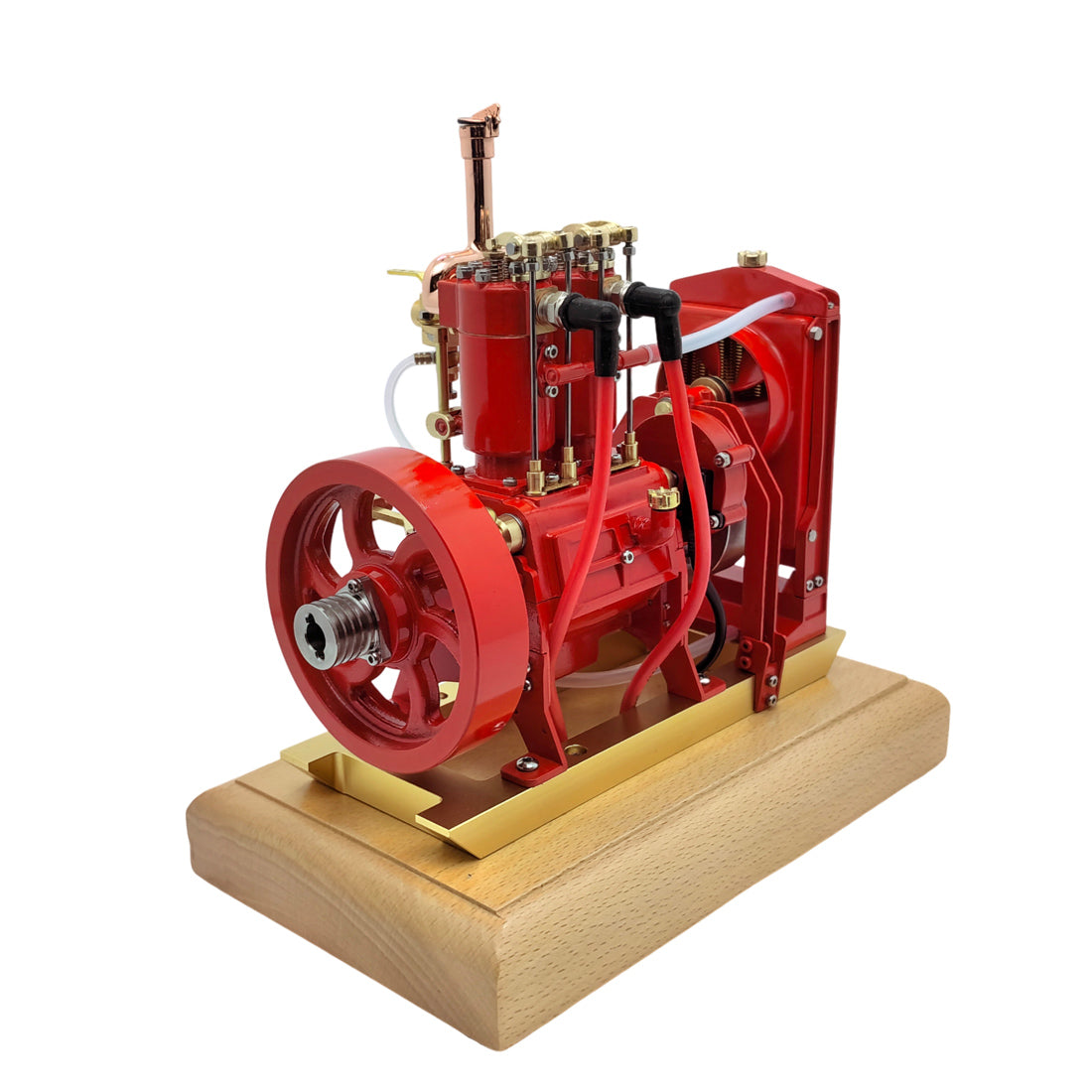

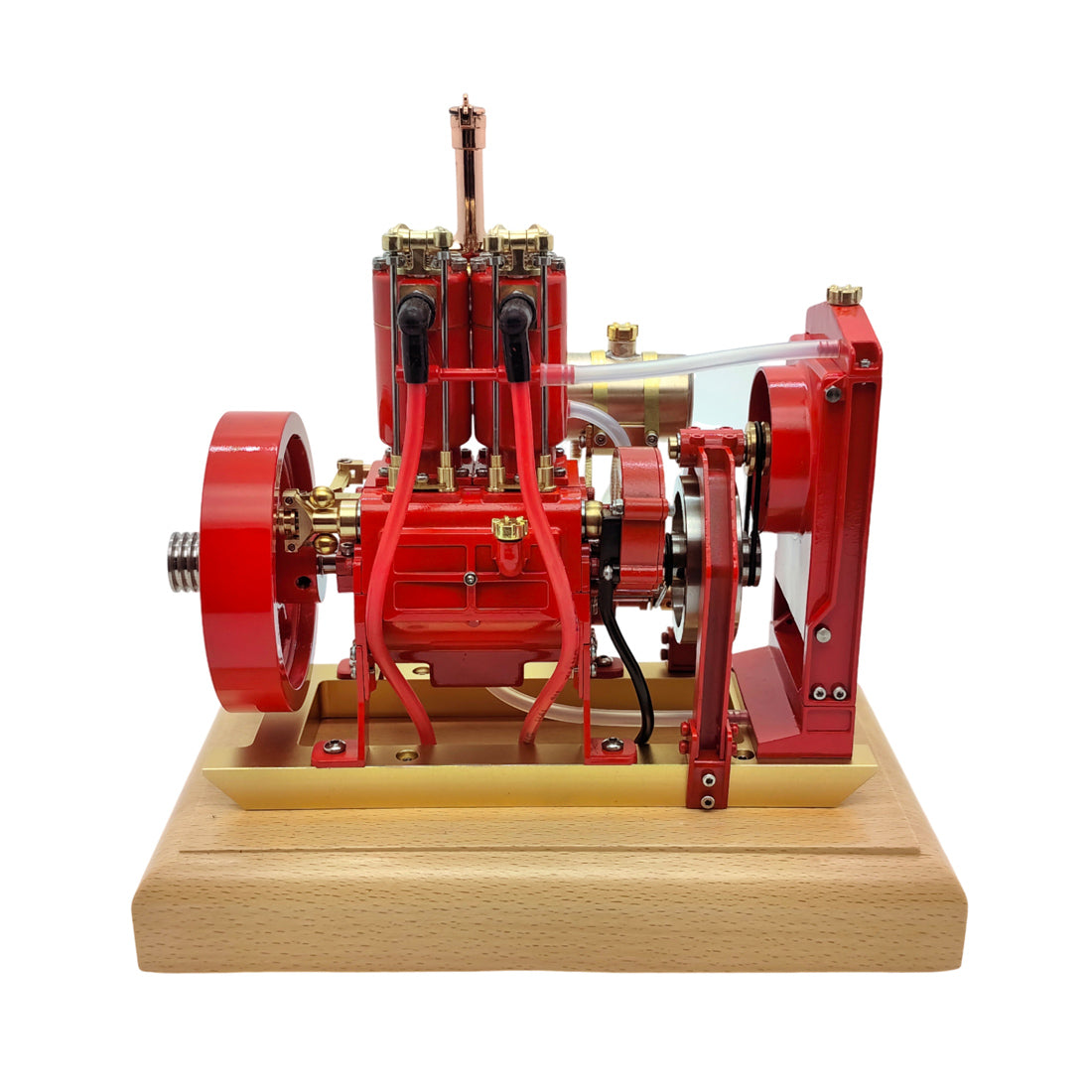

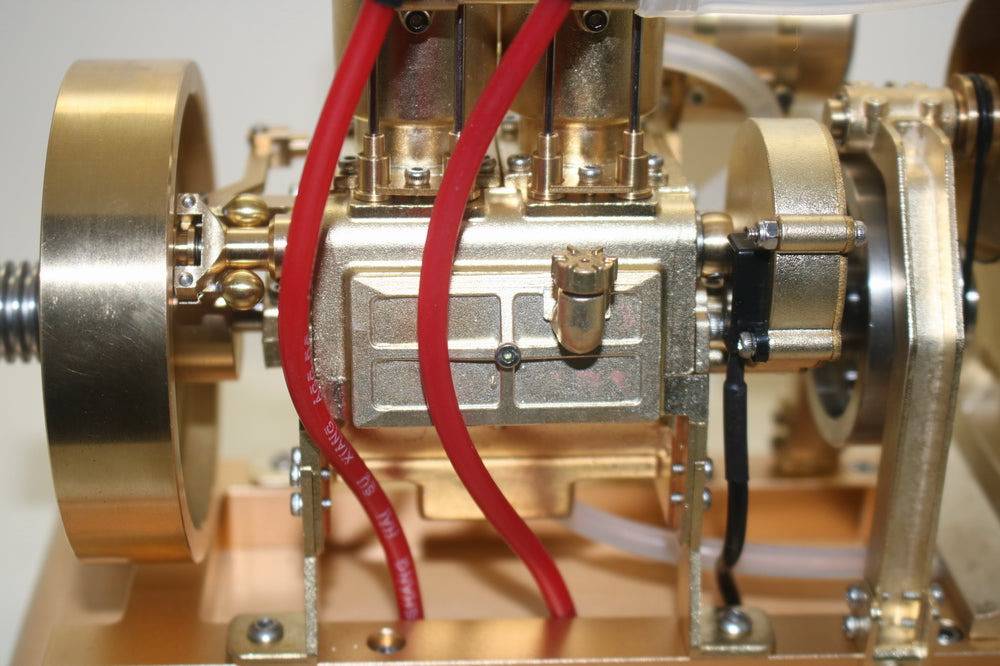

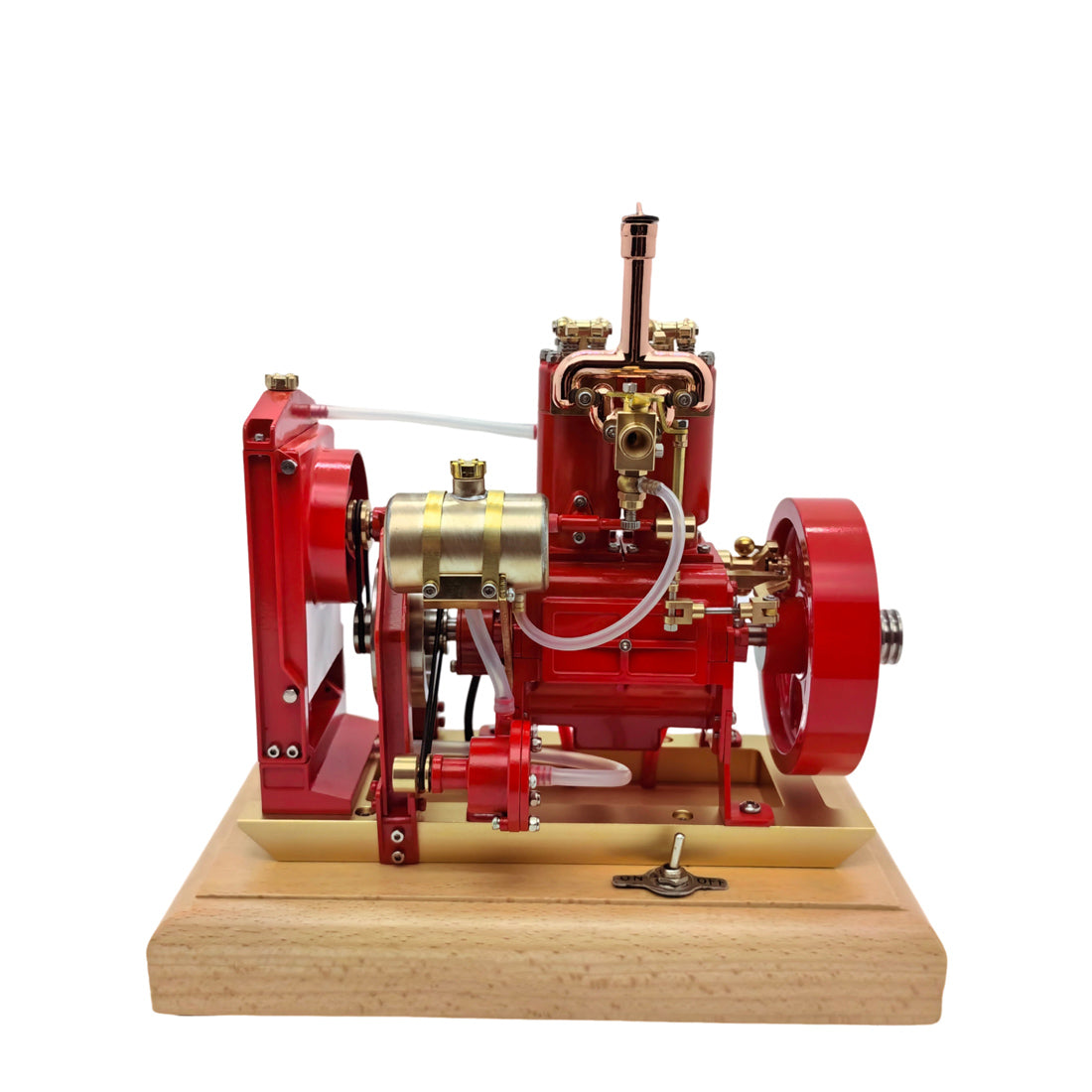

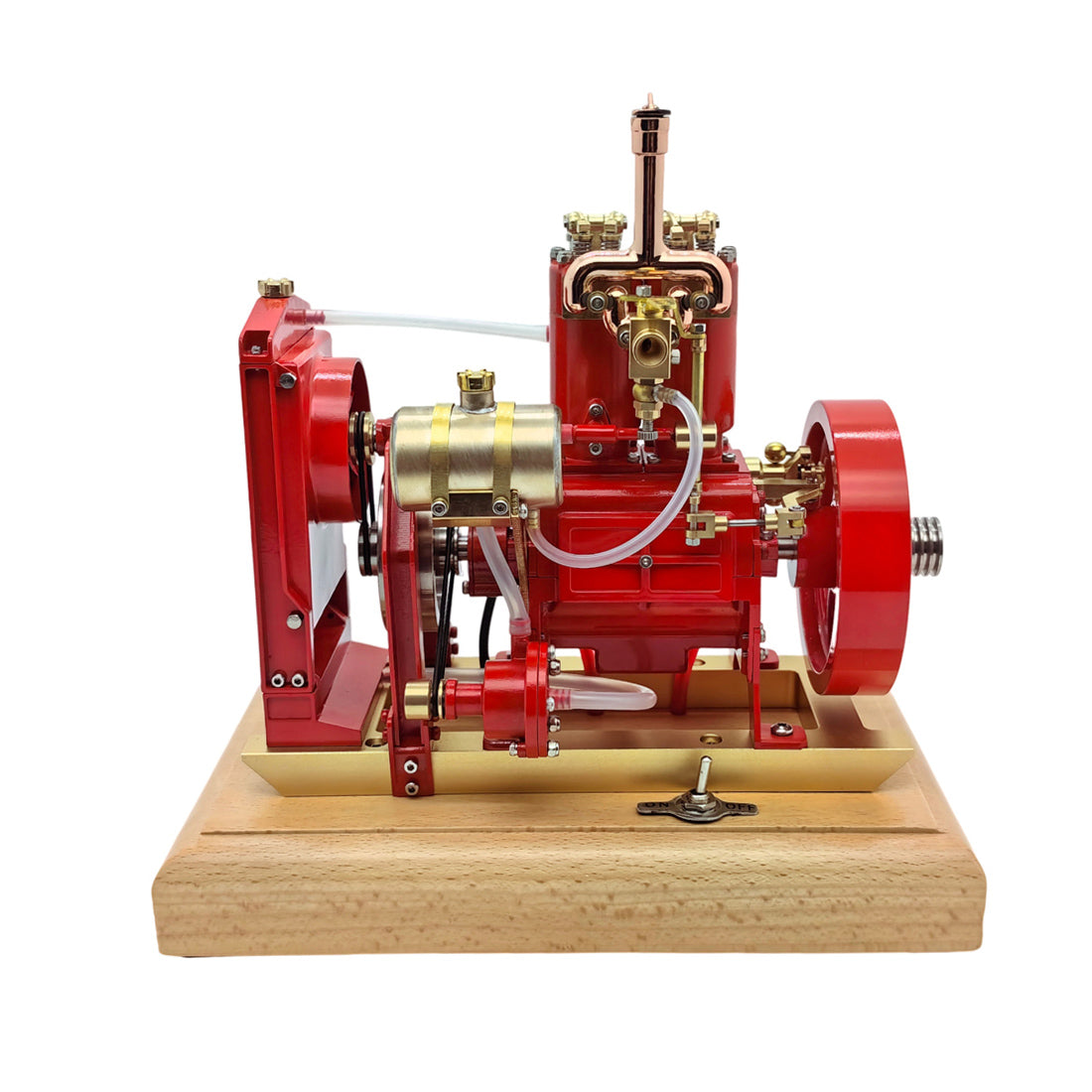

H74 5cc Vertical Twin Cylinder 4 Stroke Water Cooled Gasoline Engine Model with Governor
Hero Section: A Mechanical Symphony in Brass
There is something mesmerizing about a twin-cylinder engine. Unlike the staccato pop of a single cylinder, the H74 produces a rhythmic, mechanical harmony. This isn't just a model; it is a fully functional miniature power plant. Standing tall with its vertical architecture, gleaming brass piping, and a functional flyball speed governor, the H74 captures the essence of the steam and industrial age, updated with internal combustion power. It is a kinetic sculpture that demands to be run, watched, and admired.
Why Choose the H74 Twin Cylinder Engine?
- The Magic of the Governor: The standout feature of the H74 is its mechanical centrifugal speed governor. You can physically watch the brass flyballs spin outward as RPMs increase, automatically adjusting the throttle to stabilize the speed. It is a captivating visual demonstration of early automation logic.
- Twin-Cylinder Torque: With a total displacement of 5cc (2.5cc x 2), this engine offers smoother power delivery and a richer, more complex exhaust note than single-cylinder counterparts. The alternating firing order creates a satisfying mechanical "heartbeat."

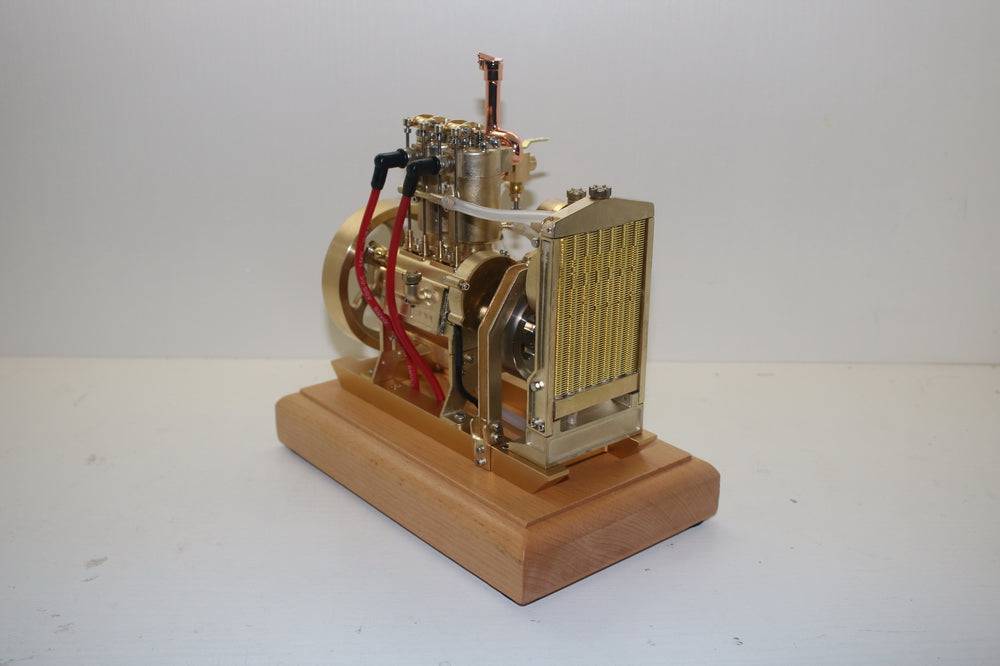

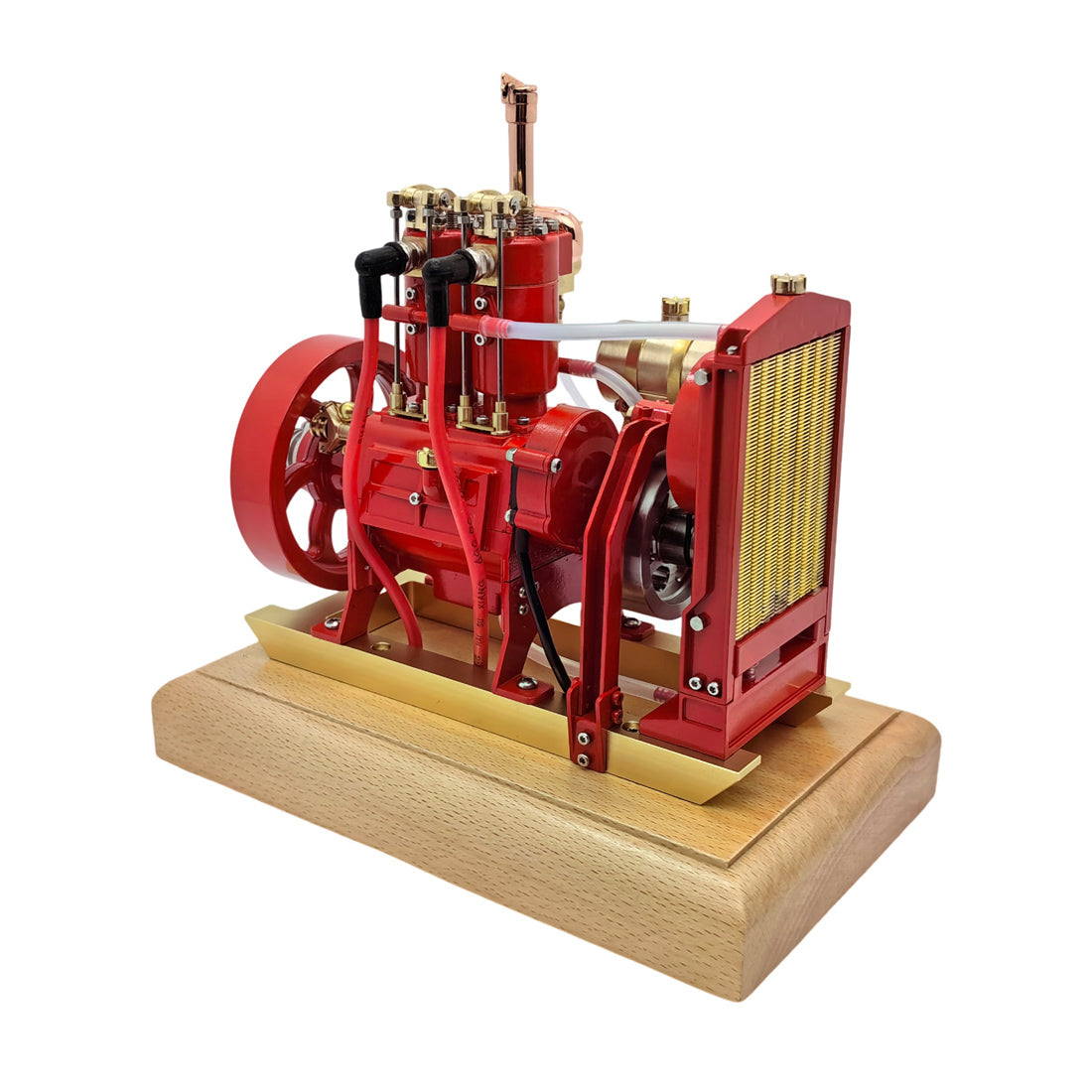

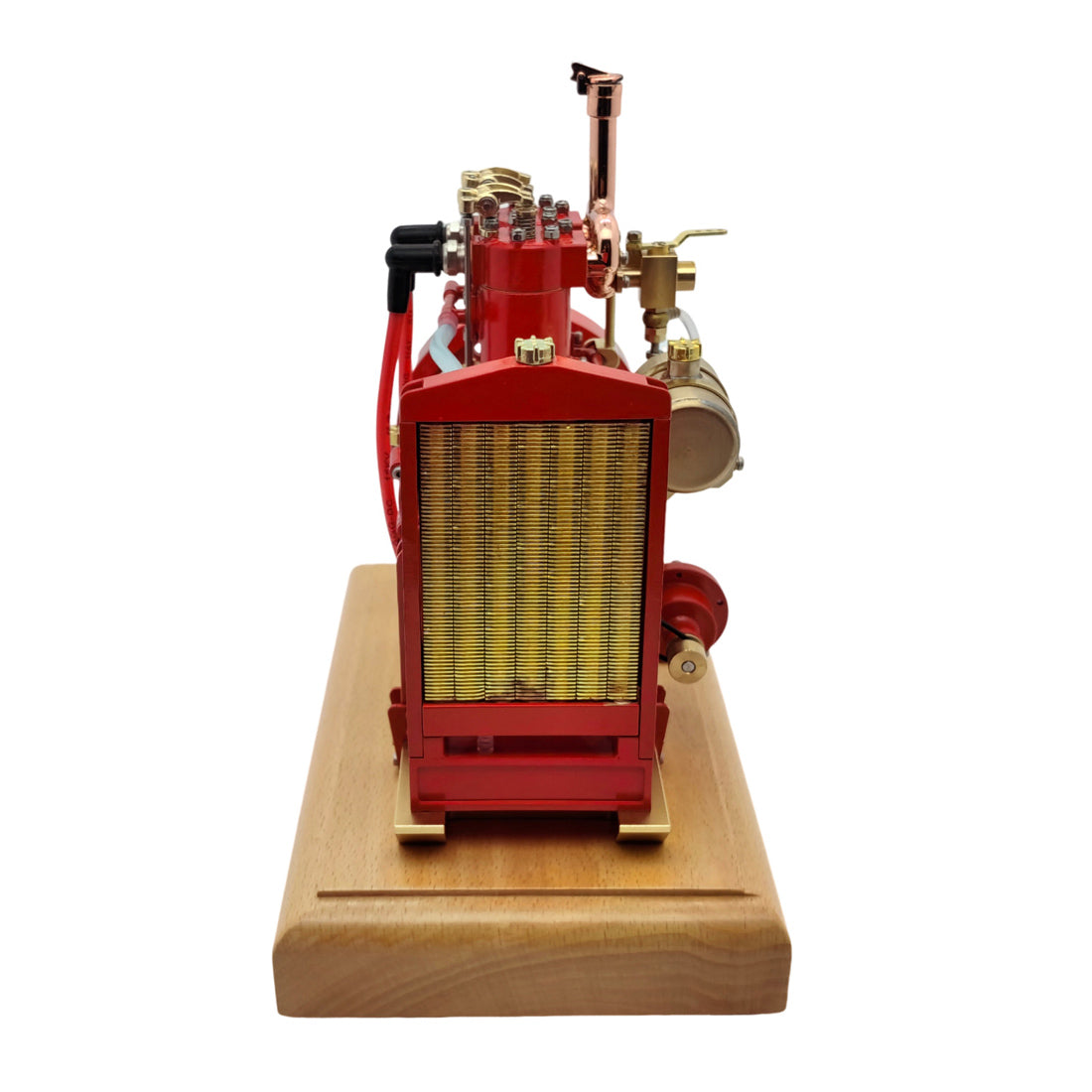

- Complete Cooling Ecosystem: This model features a sophisticated, active water-cooling system. It includes a radiator, a belt-driven cooling fan, and a water pump. Watching the water circulate and the fan spin adds another layer of realism and ensures the engine runs cool during extended sessions.
- Heirloom Quality: Constructed primarily from brass and stainless steel and mounted on a solid wood base, the H74 feels substantial (2.5kg). It lacks the cheap plastic feel of toys, making it a serious collectible for mechanical enthusiasts.
Technical Highlights: Engineering Deep Dive
- Vertical OHV Design: The upright cylinder layout with overhead valves mimics the design of early stationary engines used in factories. This layout provides excellent visibility of the valve train and spark plugs.
- Active Water Circulation: Unlike simple evaporative hoppers, this engine uses a closed-loop system. The pump forces water through the cylinder jackets to the radiator, where the fan dissipates heat—a perfect miniature of a modern vehicle's cooling system.
- Dual Carburetor Tuning: While governed, the engine allows for fine-tuning. Mastering the air-fuel mixture to get both cylinders firing in perfect unison is a rewarding challenge for any mechanic.
- Ready-to-Run: The engine arrives assembled on a wooden base with the ignition system and battery holder pre-wired. You focus on the fuel and the fun, not the fabrication.
Specifications
- Model: H74
- Type: Vertical Twin-Cylinder 4-Stroke Gasoline Engine
- Displacement: 5cc (2.5cc x 2)
- Bore: 13mm
- Stroke: 20mm
- Cooling: Active Water Cooling (Radiator + Pump + Fan)
- Speed Control: Mechanical Centrifugal Flyball Governor
- Material: Brass / Stainless Steel / Wood
- Dimensions: 200 x 120 x 210mm
- Weight: 2500g
- Ignition: 4.5V (Requires 3 x AA Batteries)
- Starting Method: Manual Flywheel or Electric Drill
Usage Scenario: The Engineer’s Evening
The workshop is dim. You flip the switch on the H74. You give the flywheel a sharp turn. The engine roars to life, the fan blurs into motion, and the brass governor weights spin up, stabilizing the idle. You sit back, listening to the steady chug-chug-chug of the twin cylinders, watching the water flow through the clear tubes. It’s a moment of pure connection with the machine—a perfect way to unwind and appreciate the history of power.
Important Tips from the Workshop
- Lubrication (Q&A Answered): This engine utilizes a splash lubrication system. We recommend adding about 20ml of high-quality 4T (4-stroke) engine oil directly into the crankcase through the oil filler port. Additionally, for the first few runs, mixing a small amount of oil into your gasoline helps lubricate the top end during break-in.
- Water is Mandatory: Never run this engine without water. Before starting, fill the radiator tank. As the engine runs, air pockets may burp out; top up the water level to ensure the pump is always priming.
- Carburetor Tuning: If the engine starts but stalls, the mixture is likely too lean. Tighten the carburetor needle gently until it stops, then back it out 1/4 to 1/2 a turn. This is the baseline setting.
- Governor Maintenance: Keep the linkage of the flyball governor clean and lightly oiled to ensure it moves freely and controls the speed accurately.
Customer Support
We are dedicated to keeping your twin-cylinder engine running in perfect harmony. If you need assistance with tuning, spare parts, or maintenance advice, please contact our expert support team at service@helloworld7.com.
