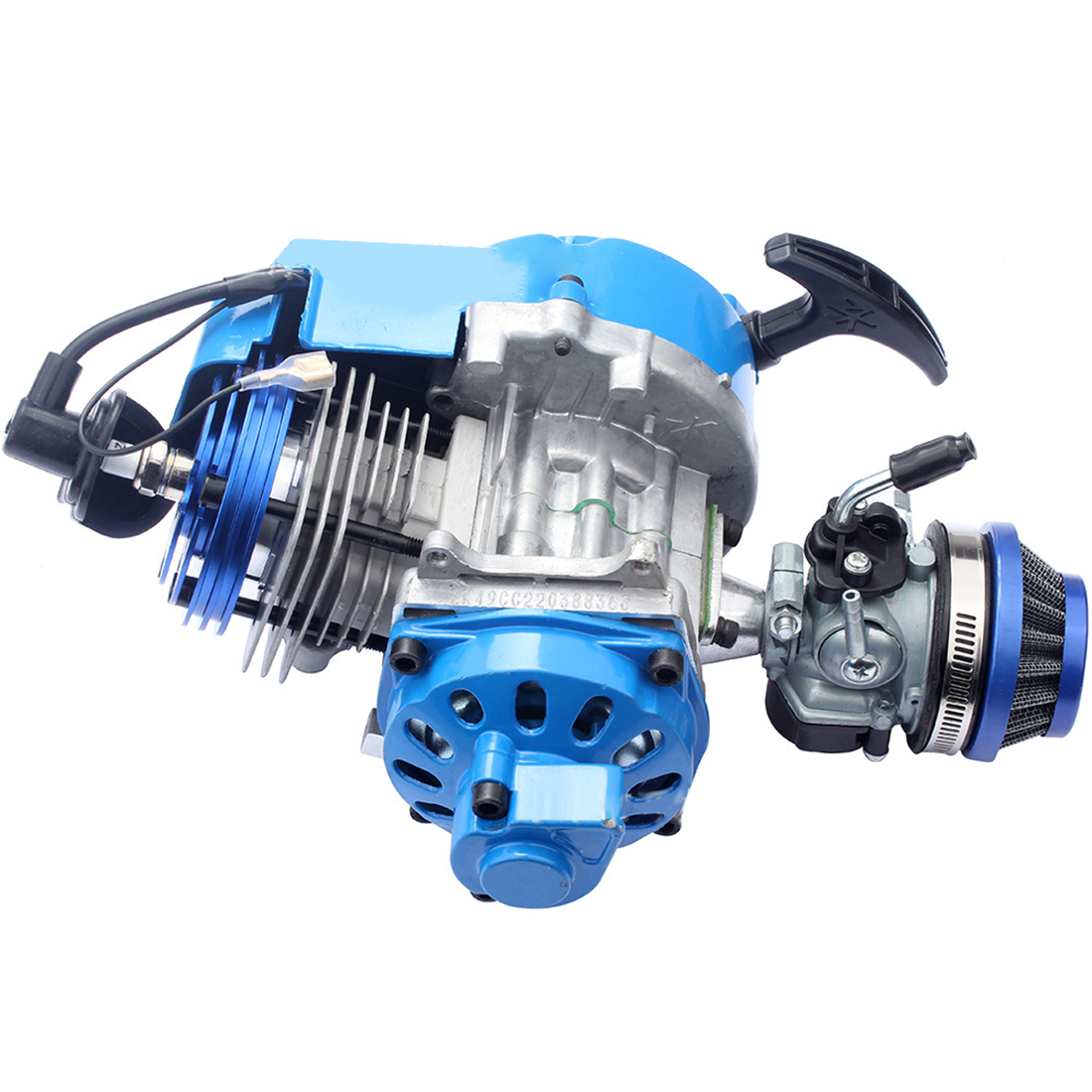

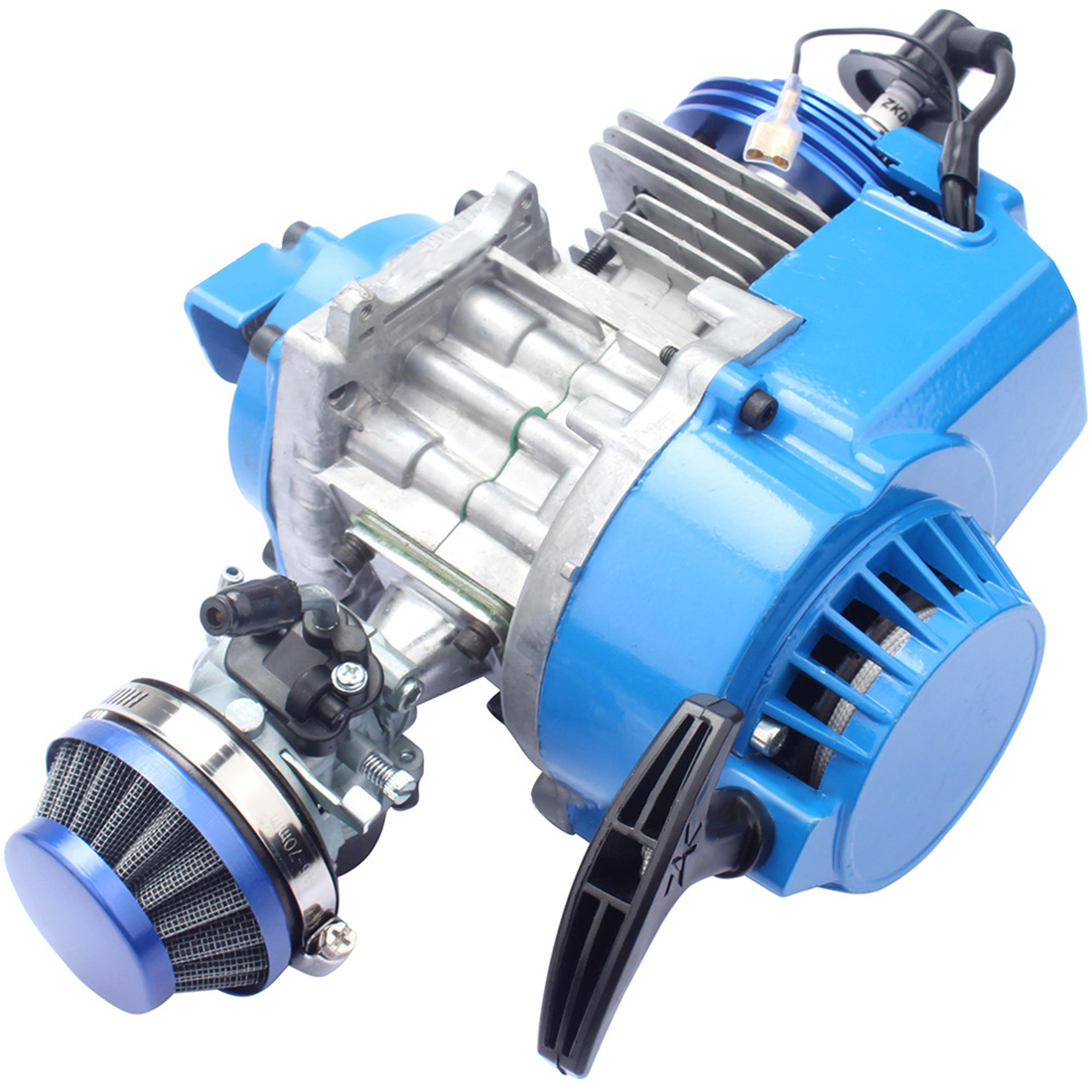

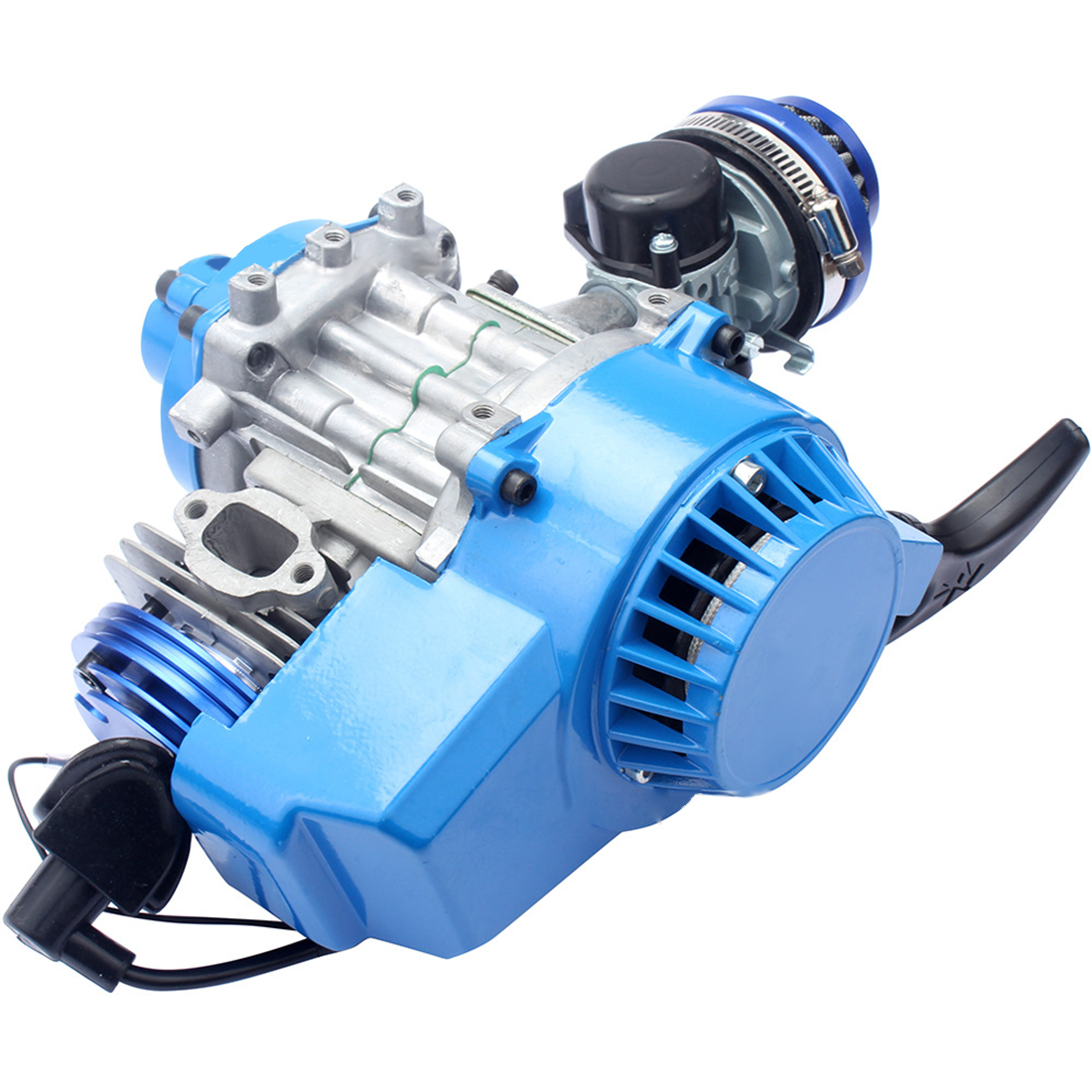

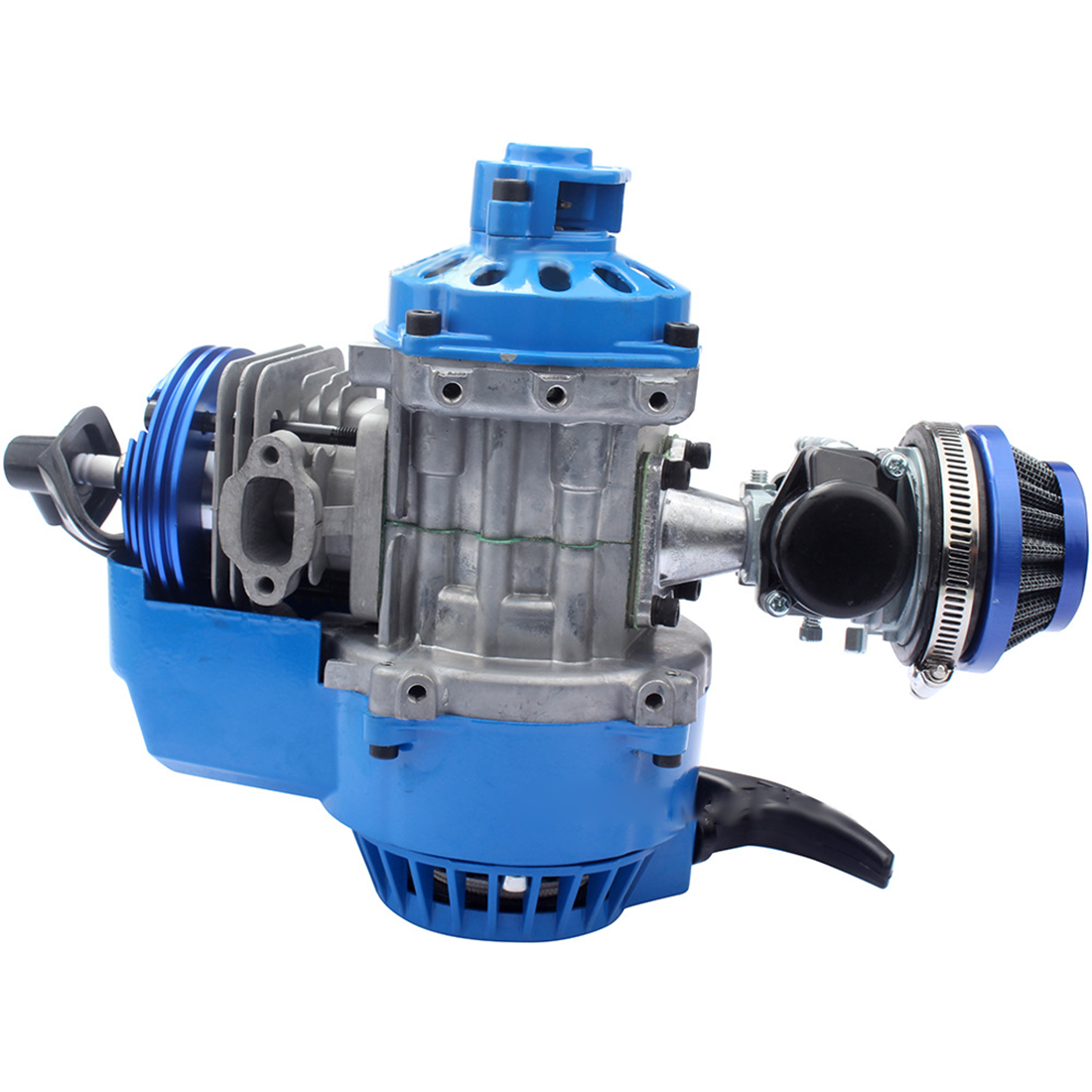

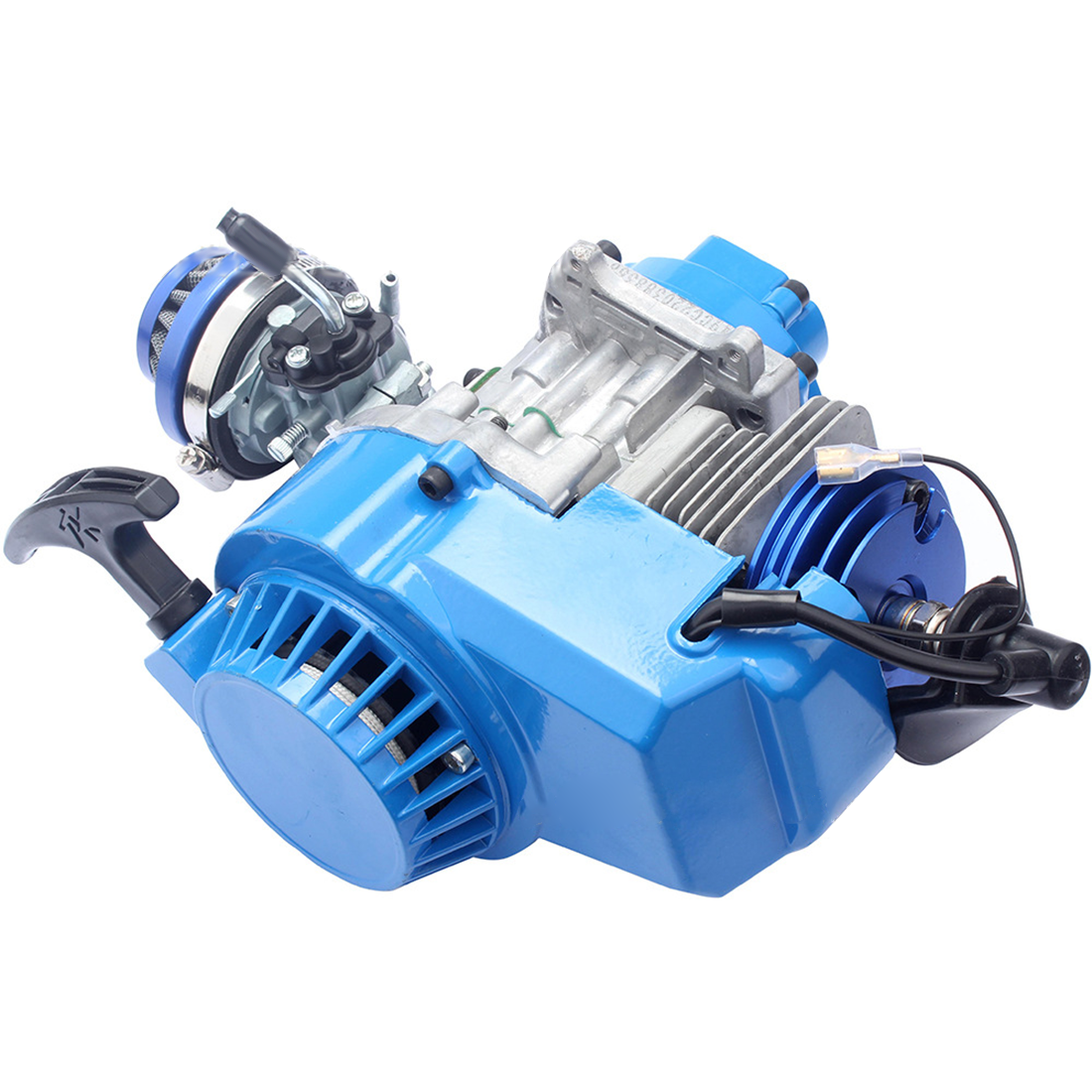

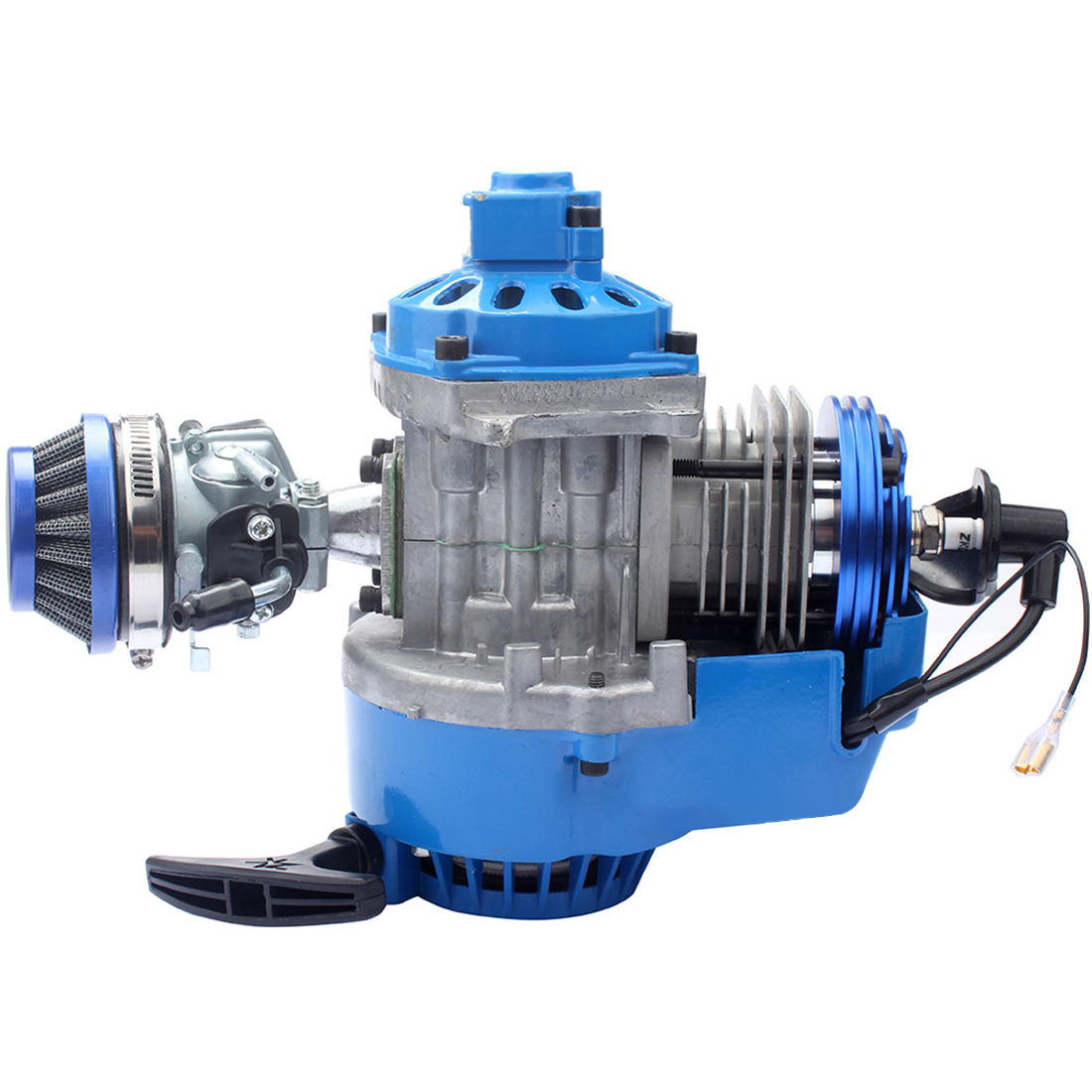

49cc 2-Stroke High Performance Gas Engine Motor Kit for Mini Dirt Bike ATV Quad
Hero Section: Build Your Own Pocket Rocket
There is a unique thrill in building a machine that moves you. Whether you are restoring a vintage mini-bike, upgrading a sluggish pocket quad, or building a custom go-kart from scratch, the 49cc 2-Stroke Engine is the ultimate turnkey powerplant. This isn't just an engine; it's a complete "Ready-to-Run" package. With 2.6 horsepower packed into a compact, rugged frame, it delivers the raw, high-revving excitement that only a 2-stroke can offer. Stop dreaming about that garage project and start building it today.
Why Choose This 49cc Engine Kit?
- Complete "Turnkey" Solution: Forget hunting for missing parts. This kit comes fully equipped with an air filter, intake manifold, carburetor, spark plug, coil, pull starter, and a clutch case with a 7-tooth sprocket. It is ready to mount and run.
- High Power-to-Weight Ratio: Weighing just over 3kg but delivering 2.6HP at 7000 RPM, this engine punches above its weight class. It provides the snap and acceleration needed for mini off-road vehicles and beach ATVs.
- Rugged Simplicity: The air-cooled, 2-stroke design is legendary for its reliability and ease of maintenance. With fewer moving parts than a 4-stroke, it’s durable, easy to tune, and produces that classic 2-stroke sound enthusiasts love.
- The Modder’s Dream: This engine is the standard for DIY modification. It is the perfect base for custom projects, allowing mechanics and hobbyists to adapt it to bicycles, scooters, or custom-welded frames.
Technical Highlights: Engineering Deep Dive
- Centrifugal Clutch System: The included clutch case features a standard 7-tooth sprocket. This allows the engine to idle without the vehicle moving, engaging smoothly as you apply the throttle—essential for safe operation.
- Optimized Carburetion: The redesigned carburetor ensures a consistent fuel-air mixture, providing easier starting and a linear throttle response across the RPM range.
- Recoil Pull Start: The integrated pull starter is robust and easy to use, ensuring you can fire up the engine anywhere without needing external battery packs or starters.
- High-Torque Output: With a peak torque of 2.8 N.m at 5500 RPM, this engine offers excellent low-end grunt to get you moving off the line quickly.
Specifications
- Type: Single-Cylinder 2-Stroke Gasoline Engine
- Displacement: 49cc
- Bore: 43.5mm
- Stroke: 38mm
- Max Power: 2.6hp / 7000rpm
- Max Torque: 2.8 N.m / 5500rpm
- Cooling: Air-Cooled
- Starting: Recoil Pull Starter
- Ignition: CDI Electronic Ignition
- Lubrication: Mixed Fuel (Gasoline + 2T Oil)
- Mix Ratio: 25:1
- Drive: Centrifugal Clutch with 7-Tooth Sprocket
- Dimensions: 300 x 250 x 170mm
- Weight: 3200g
Usage Scenario: The Garage Transformation
It’s a Saturday afternoon. You have an old mini-quad frame sitting in the corner. You bolt on this 49cc engine. You connect the throttle cable and the kill switch. You mix up a fresh batch of fuel. One sharp pull of the starter cord, and the garage fills with the angry, exciting buzz of a 2-stroke. You’ve just turned a pile of metal into a working vehicle.
Important Tips from the Workshop
- Fuel Mix is Non-Negotiable: This is a 2-stroke engine. You must mix 2-stroke engine oil with 92# gasoline at a ratio of 25:1. Running straight gasoline will destroy the engine instantly.
- Modification Skills Required: While the engine is RTR, installing it into a vehicle requires mechanical skill. You may need to fabricate mounts, adjust chain tension, or modify throttle linkages depending on your specific frame.
- Break-in: For the first few tanks of fuel, avoid holding wide-open throttle for extended periods. Let the piston rings seat properly for long-term durability.
- Tuning: If the engine struggles to start, a minor adjustment to the carburetor idle screw or mixture screw is often all that is needed.
Customer Support
We support the builders and the makers. If you have questions about dimensions, fuel mixing, or troubleshooting, our technical team is here to help. Contact us at service@helloworld7.com.
