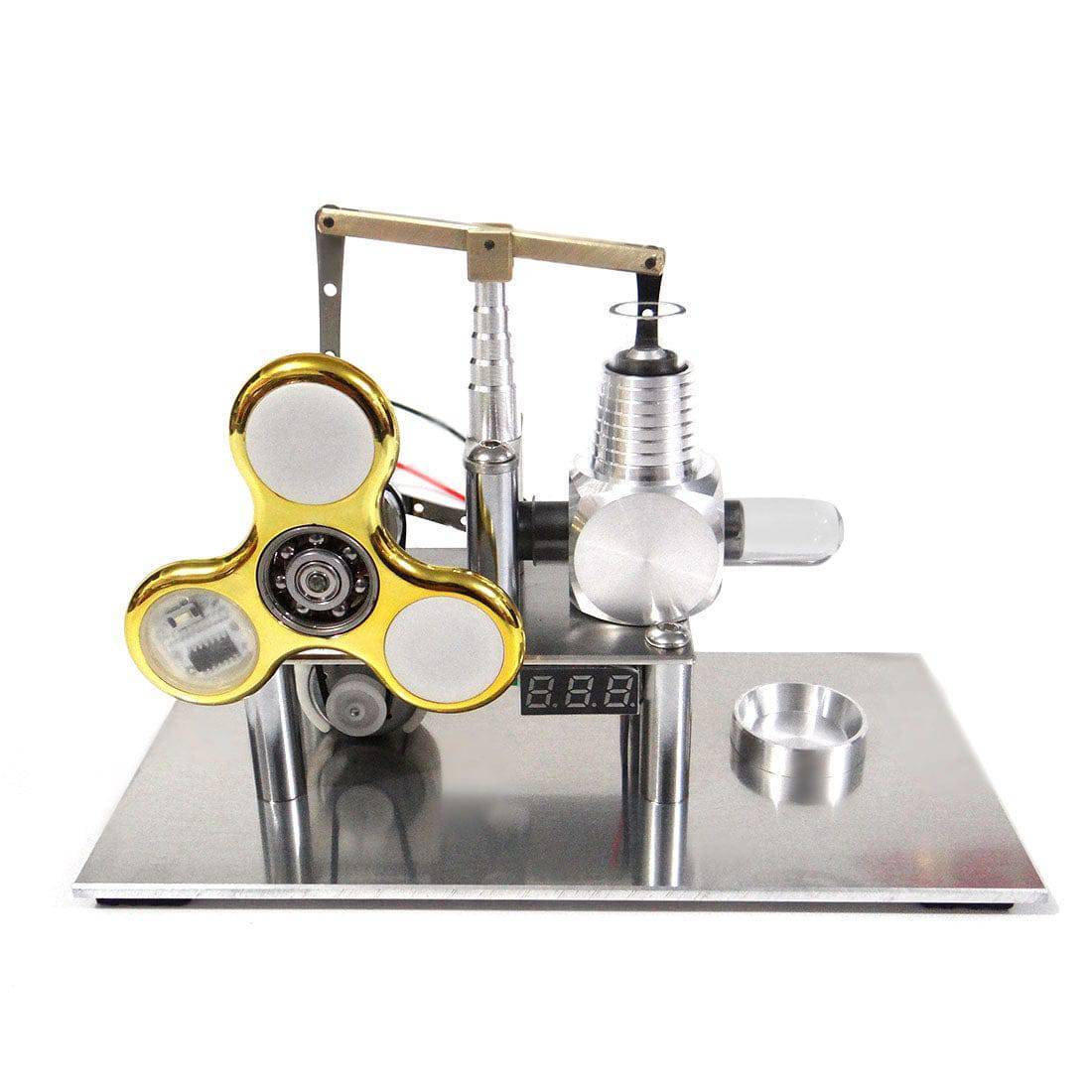

Balance Type Stirling Engine Generator Model with Luminous Gyroscope and Voltmeter
Hero Section: A Kinetic Light Show Powered by Physics
Forget everything you know about standard engines. The Balance Type Stirling Engine is a radical departure from the norm, replacing the traditional flywheel with a dazzling, multi-colored luminous gyroscope. It doesn't just spin; it dances. With its rhythmic "rocker arm" motion resembling an industrial oil derrick, combined with a real-time voltage display and a glowing light show, this model is the ultimate fusion of mechanical engineering and visual art. It is designed for those who appreciate the beauty of complex machinery and the thrill of generating their own power.
Why Choose the Balance Gyroscope Engine?
- The Gyroscope Revolution: Instead of a plain metal wheel, this engine drives a high-speed gyroscope equipped with three-color LED lights. As the engine revs up, the gyroscope creates a stunning ring of color, making this model look spectacular in low-light conditions.
- Real-Time Power Data: Science is about measurement. This model features an integrated analog voltmeter that displays the generated voltage in real-time. Watch the needle jump as the engine accelerates, giving you immediate visual feedback on the engine's performance.
- Unique "Rocker" Mechanics: Unlike standard crank-slider engines, this "Balance Type" uses a lever-based rocker arm mechanism. The mesmerizing see-saw motion offers a completely different mechanical aesthetic that is fascinating to watch.
- Triple-Output Demonstration: This single unit demonstrates three forms of energy output simultaneously: Kinetic (the spinning gyroscope), Electrical (the voltmeter reading), and Light (the external bulb and internal gyro LEDs).
Technical Highlights: Engineering Deep Dive
- Quartz Glass Heating Tube: The heart of the engine is a high-purity quartz glass cylinder. It offers superior thermal shock resistance, allowing it to withstand the intense heat of the alcohol flame without cracking, while providing a clear view of the piston's movement.
- Precision Metal Construction: The chassis is a blend of stainless steel and aluminum alloy, while the balance bar is machined from solid brass. This mix of metals not only ensures durability but provides a rich, industrial color palette.
- Dry Lubrication System: The power piston is designed for a precision fit that requires no liquid oil. This advanced design prevents the common issue of oil gumming up due to heat, ensuring the engine runs smoothly for years with minimal maintenance.
Specifications
- Material: Aluminum Alloy / Stainless Steel / Brass / Quartz Glass
- Type: Balance (Rocker Arm) Stirling Engine
- Dimensions: 18 x 9 x 12 cm
- Weight: 528g
- Instrumentation: Analog Voltmeter
- Visual Effects: Luminous Gyroscope + External Bulb
- Fuel: 95% Industrial Alcohol (Ethanol)
- Start Method: Manual Gyroscope Spin
Usage Scenario: The Night Shift
Turn down the lights in your office or workshop. You light the alcohol lamp and slide it into the base groove. After 30 seconds of preheating, you give the gyroscope a flick. The brass rocker arm begins its rhythmic dance—up and down, up and down. The voltmeter needle climbs, the external bulb flickers on, and suddenly, the gyroscope blurs into a halo of red, green, and blue light. It’s a hypnotic mechanical symphony that turns a simple physics experiment into a captivating performance.
Important Tips from the Workshop
- Lubrication Secret: Never use oil on the piston or inside the cylinder. Oil will carbonize and seize the engine. If the piston feels sticky, crush a pencil lead into fine powder (graphite) and apply it to the piston. Graphite is the only lubricant this engine needs.
- Fuel Purity: Use 95% alcohol (ethanol). Lower purity fuels contain water, which creates steam and cools the cylinder, preventing the engine from running.
- Heat Management: Do not touch the quartz tube or the metal heating head during or immediately after operation. They reach extremely high temperatures.
- Starting Technique: Patience is key. Allow the flame to heat the cylinder for a full 30 seconds before attempting to start.
Customer Support
We are dedicated to providing unique and high-quality mechanical models. If you have questions about the voltmeter, need maintenance advice, or require spare parts, please contact our support team at service@helloworld7.com.
