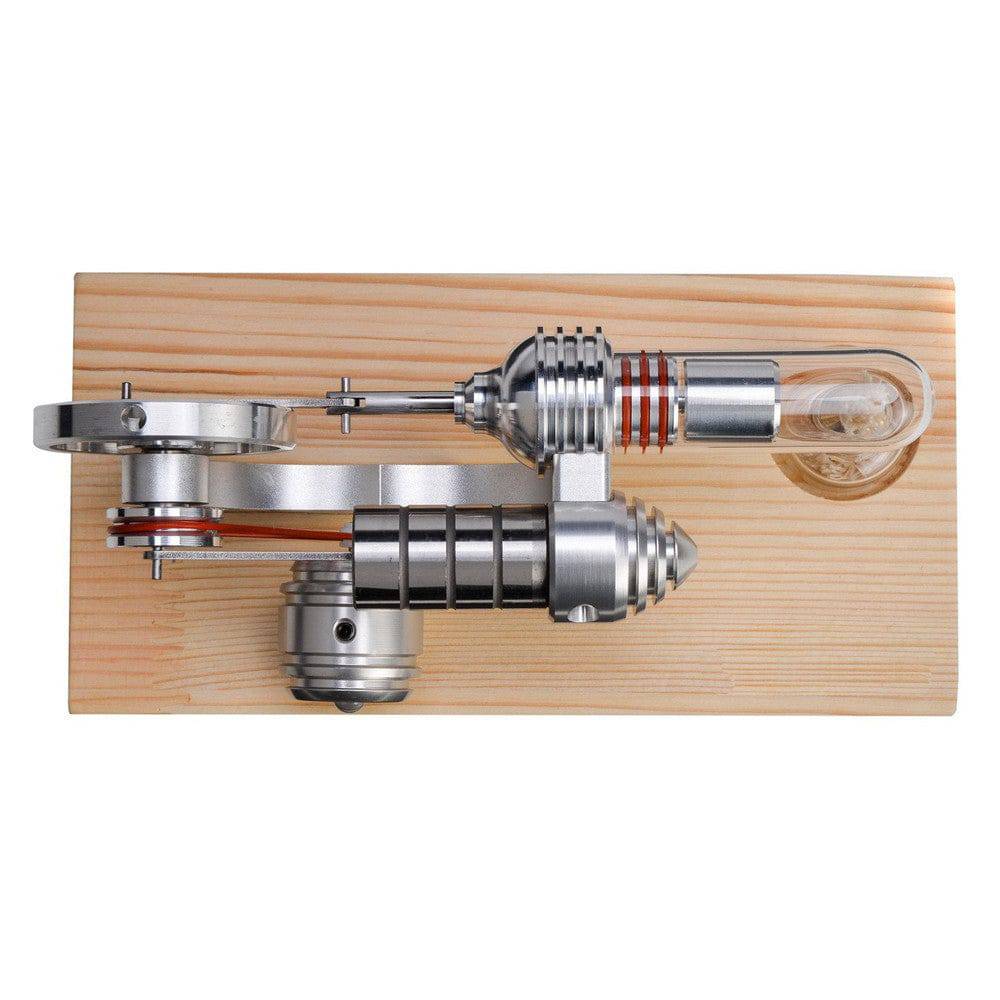

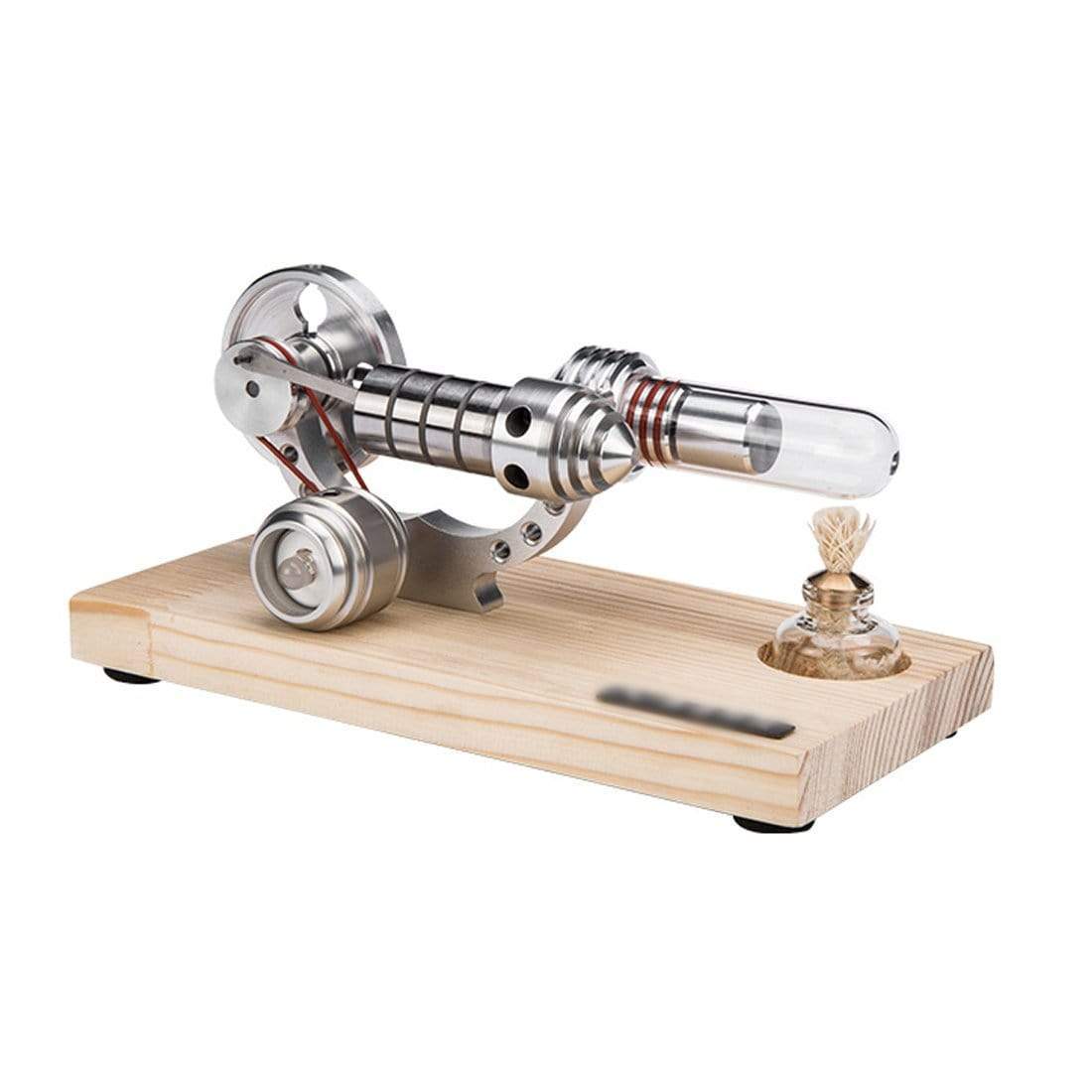

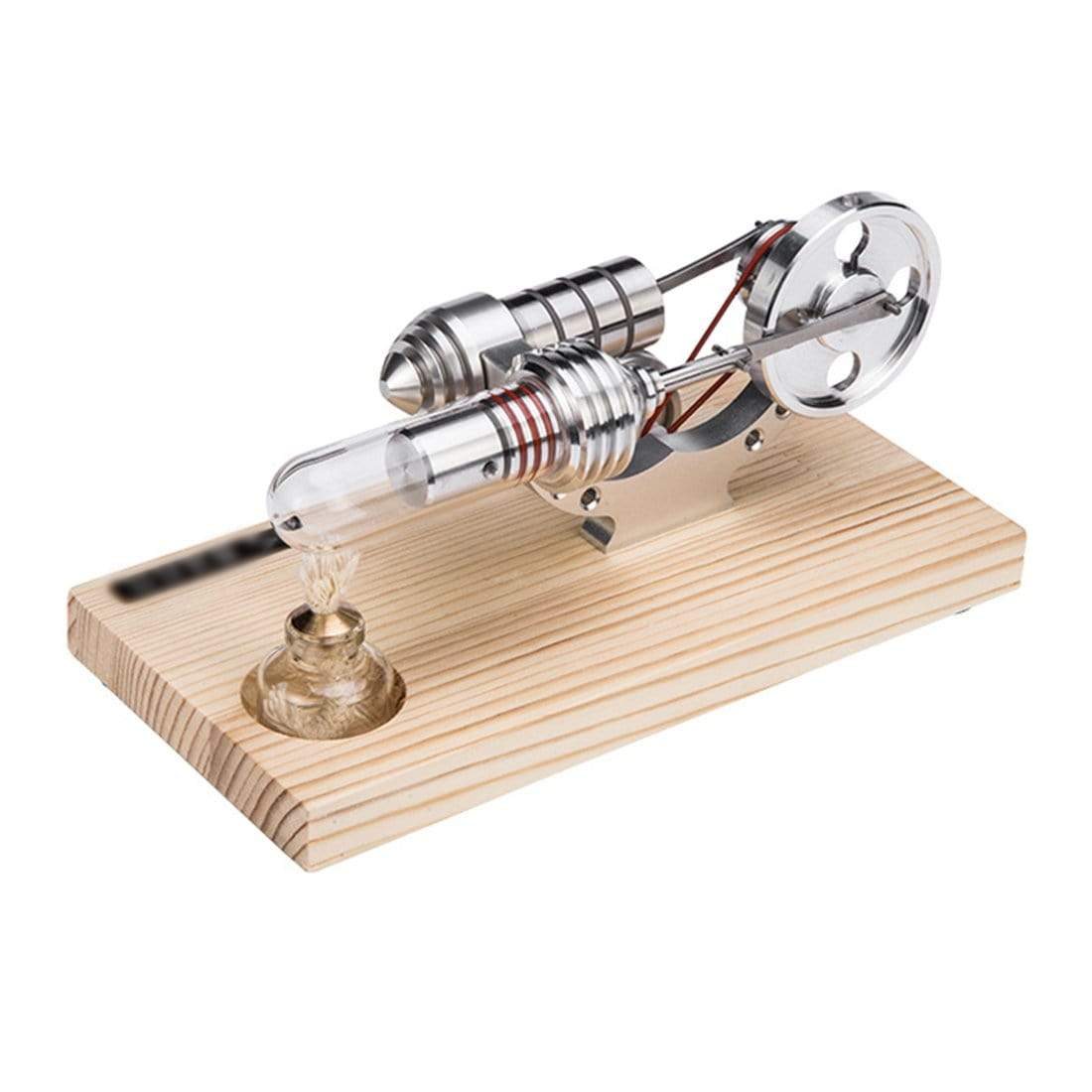

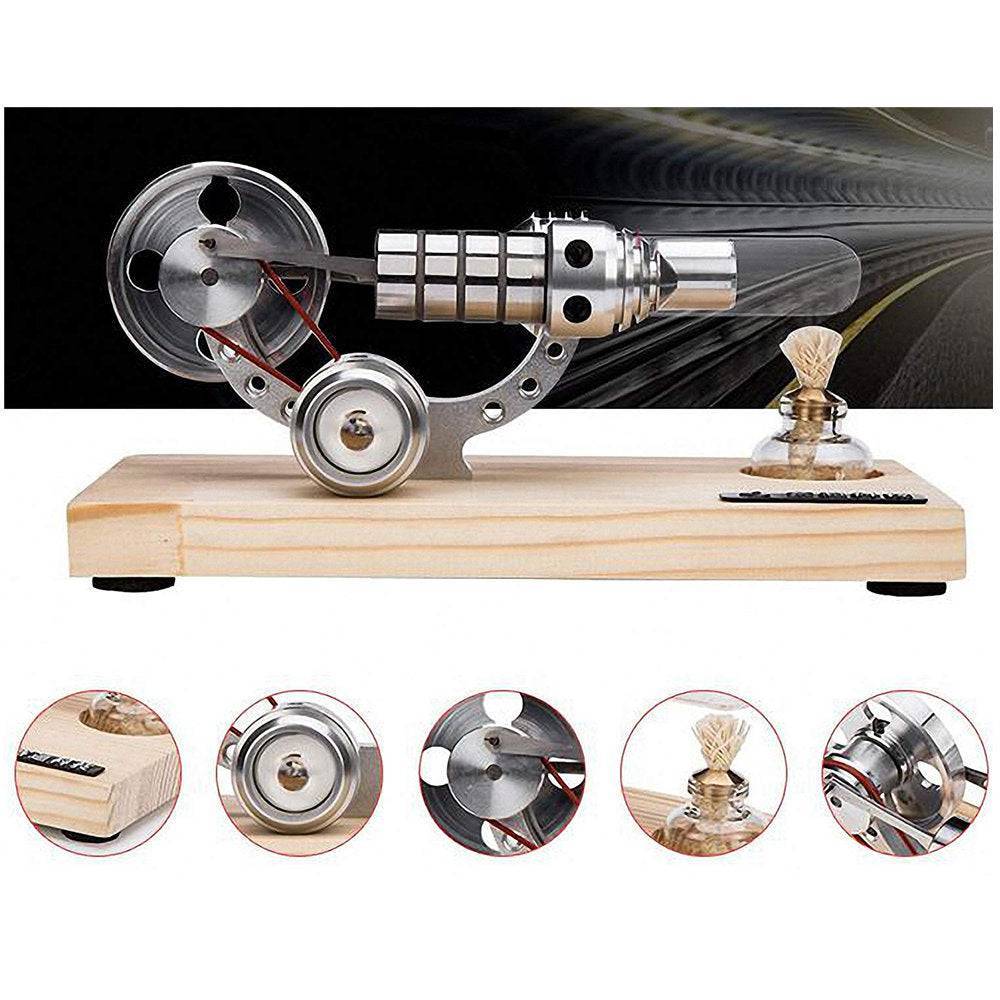

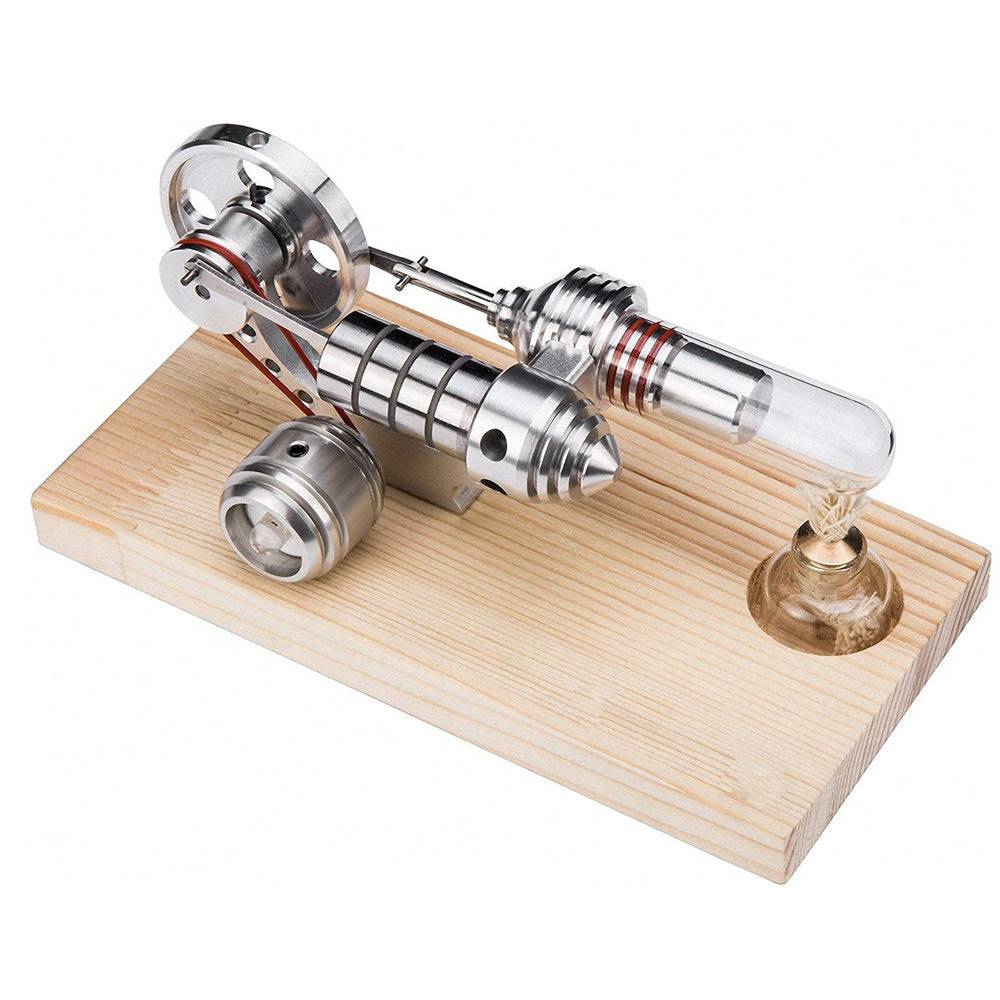

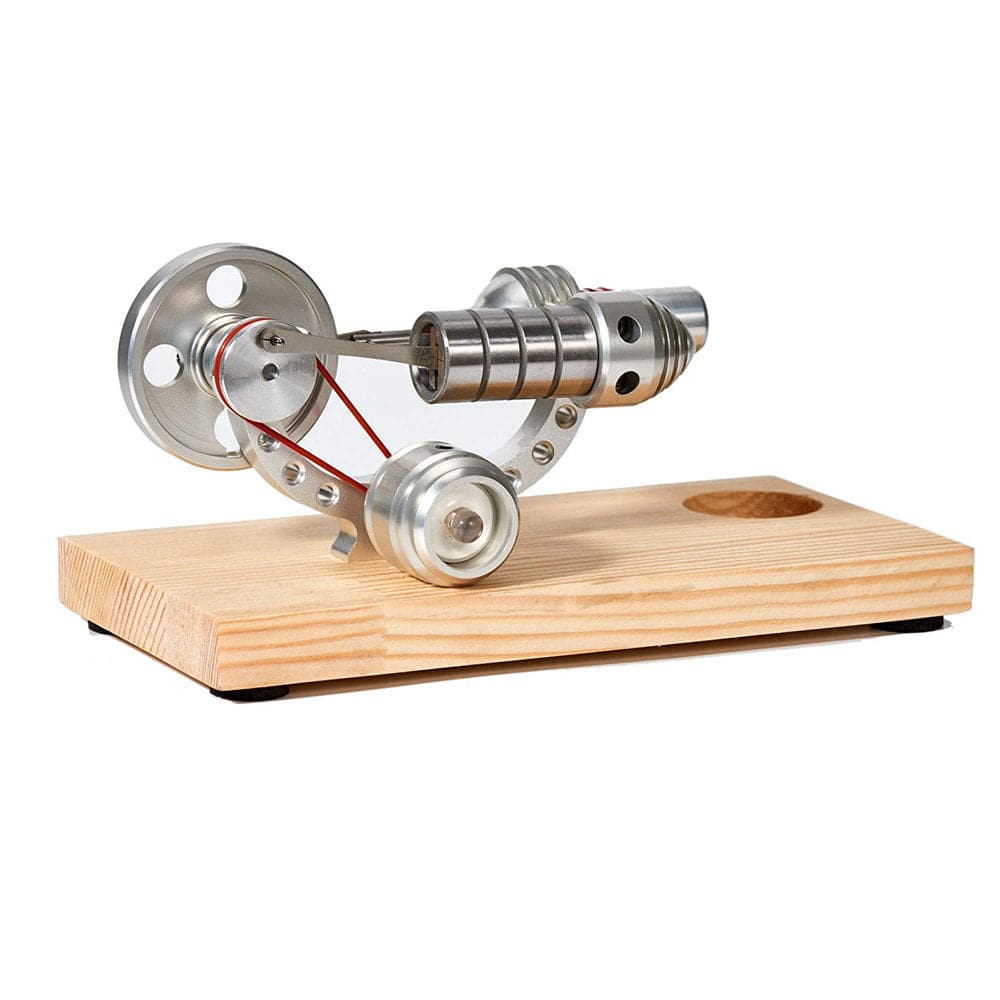

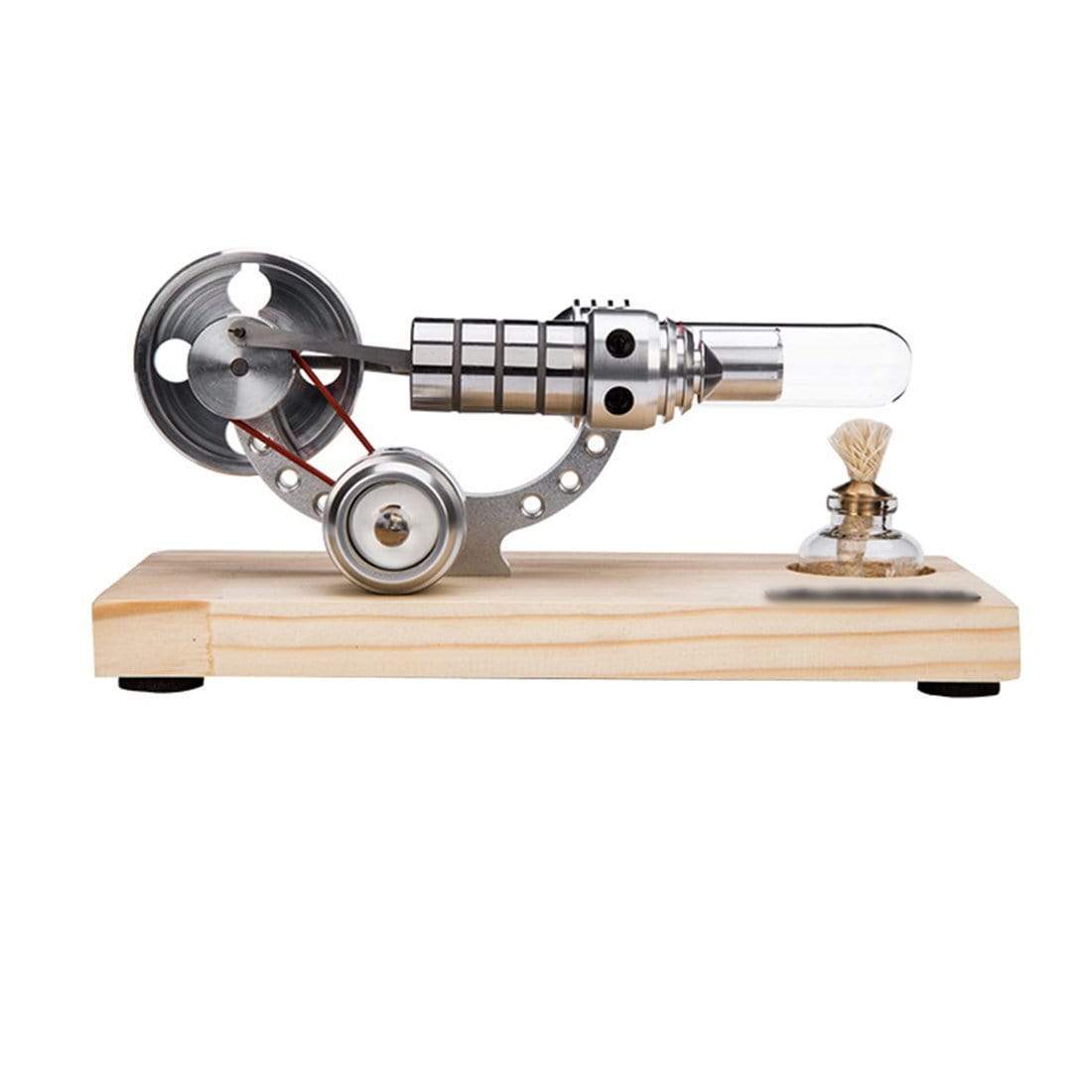

M14 High Speed Stirling Engine Kit Hot Air Motor Model with Colorful LED Generator
Hero Section: Ignite the Light of Science
Imagine a machine that runs on nothing but a tiny flame and the laws of physics. The M14 Stirling Engine is not just a model; it is a captivating demonstration of energy conversion. Watch as thermal energy transforms into mechanical motion, spinning the flywheel at over 1300 RPM, and finally into electricity that lights up a brilliant, multi-colored LED. It is a mesmerizing desktop companion that brings the magic of the Industrial Revolution into your home or office, serving as a constant reminder of human ingenuity.
Why Choose the M14 Stirling Engine?

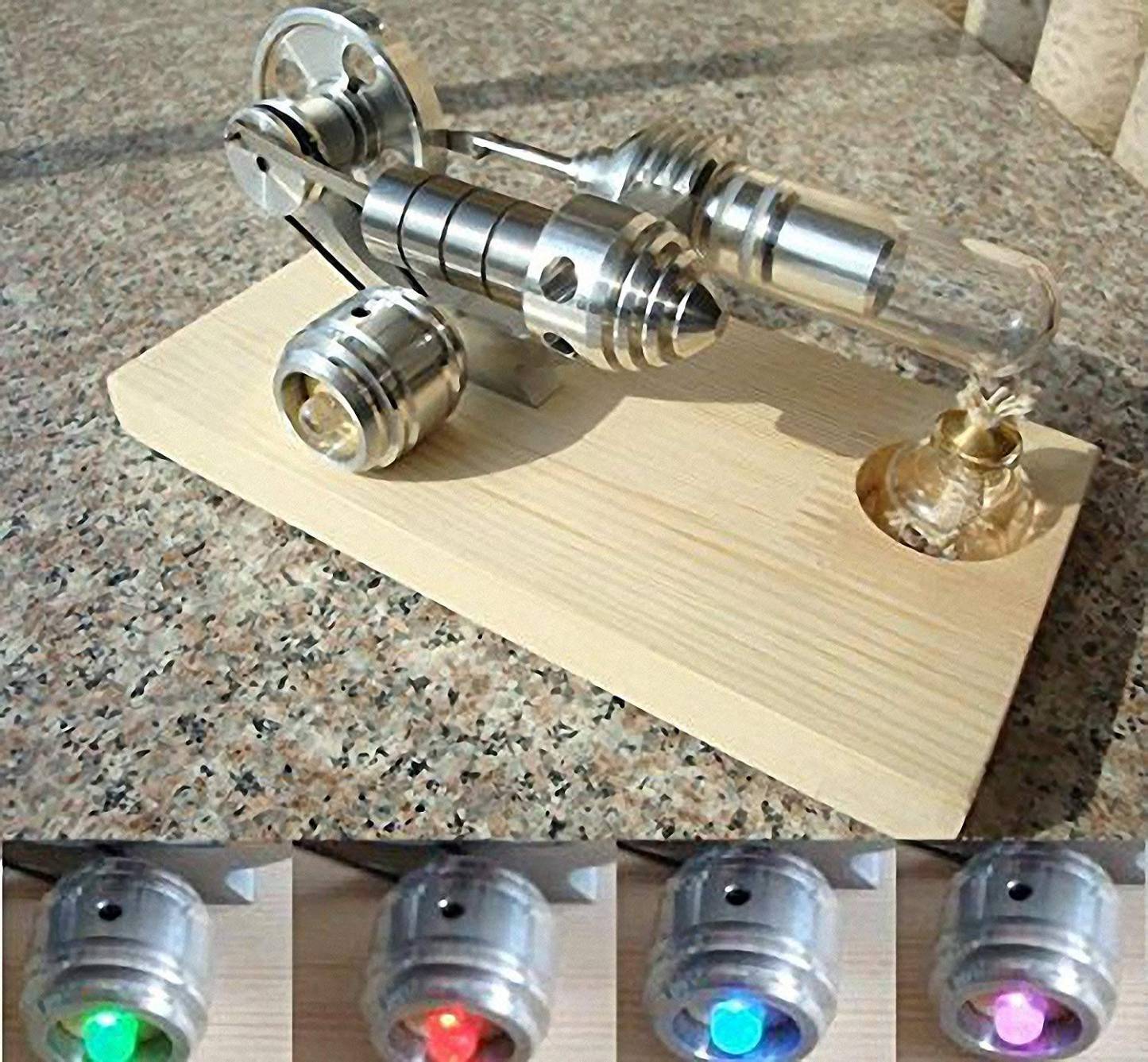

- A Visual Spectacle: This isn't a static display. Once heated, the engine roars to life, driving a generator that powers a color-changing LED. In a dimly lit room, it creates a stunning light show driven purely by heat.
- Built for Endurance: Unlike fragile toys, this engine is engineered for performance. It features a power piston made from SUJ2 alloy steel (bearing steel), treated for high hardness and wear resistance. It has been tested to run continuously for over 8 hours without degradation.
- Customizable Craftsmanship: The base is crafted from solid Russian Pine and left unpainted. This offers a natural, minimalist aesthetic, or serves as a blank canvas for you to stain or paint, making the model truly your own.
- The Ultimate Ice-Breaker: Whether on an executive desk or a living room shelf, this kinetic sculpture draws attention. It sparks conversations about physics, mechanics, and history, making it a sophisticated gift for anyone with a curious mind.
Technical Highlights: Precision Engineering
- SUJ2 Steel Piston: The heart of the engine uses SUJ2 material, precision-ground to create a perfect, low-friction fit within the aluminum alloy cylinder. This ensures high-speed operation without the need for liquid lubricants.
- High-Speed Performance: With a well-tuned design, this engine reaches speeds between 1300 and 1500 RPM, creating a satisfying mechanical hum that enthusiasts love.
- Solid Construction: The support stents are manufactured from mold steel for rigidity, while the flywheel and ventilation pistons are precision-turned from aluminum alloy, combining texture with durability.
- External Combustion Principle: This model perfectly demonstrates the Stirling cycle—a closed-cycle regenerative heat engine. It uses a temperature difference to compress and expand air, converting heat energy into mechanical work.
Specifications
- Model: M14-03-S
- Base Material: Russian Pine (Unpainted/Natural)
- Metal Materials: Aluminum Alloy, Stainless Steel, SUJ2 Alloy Steel
- Speed: 1300 - 1500 RPM
- Dimensions: 205 x 100 x 90mm (8.07 x 3.93 x 3.54 in)
- Weight: 480g (17.74oz)
- Flywheel Diameter: 54mm
- Power Cylinder Bore: 14mm
- Piston Stroke: 16mm
- Output: Mechanical Rotation + Colorful LED Light
- Fuel: 95% Industrial Alcohol (Not included)
Usage Scenario: The Spark of Inspiration
It’s a quiet evening. You place the M14 on your desk, fill the burner with alcohol, and strike a match. For twenty seconds, the flame licks the glass cylinder. You give the flywheel a gentle nudge. Suddenly, the engine catches—whirrr-whirrr-whirrr. The LED flickers and then glows steady, cycling through colors. It’s a moment of pure focus, a tangible connection to the physical world that helps clear your mind and spark new ideas.
Important Tips from the Workshop
- Fuel is Key: You must use 95% purity alcohol. Lower purity fuels (like 70% rubbing alcohol) contain too much water, which creates steam and cools the cylinder, preventing the engine from running. Candles are also not hot enough.
- No Oil Needed: Never lubricate the power piston or cylinder. The SUJ2 steel is designed for a dry, precision fit. Oil will mix with dust to form a sticky sludge that will stop the engine.
- Safety First: The glass heating cylinder becomes extremely hot during operation. Do not touch it until it has completely cooled down.
- Break-in: If the engine feels stiff initially, a few runs will help the piston ring seat perfectly, improving speed and performance over time.
Customer Support
We stand behind the quality of our educational models. If you need spare parts (like replacement glass tubes) or have questions about tuning your engine, please contact us at service@helloworld7.com.
