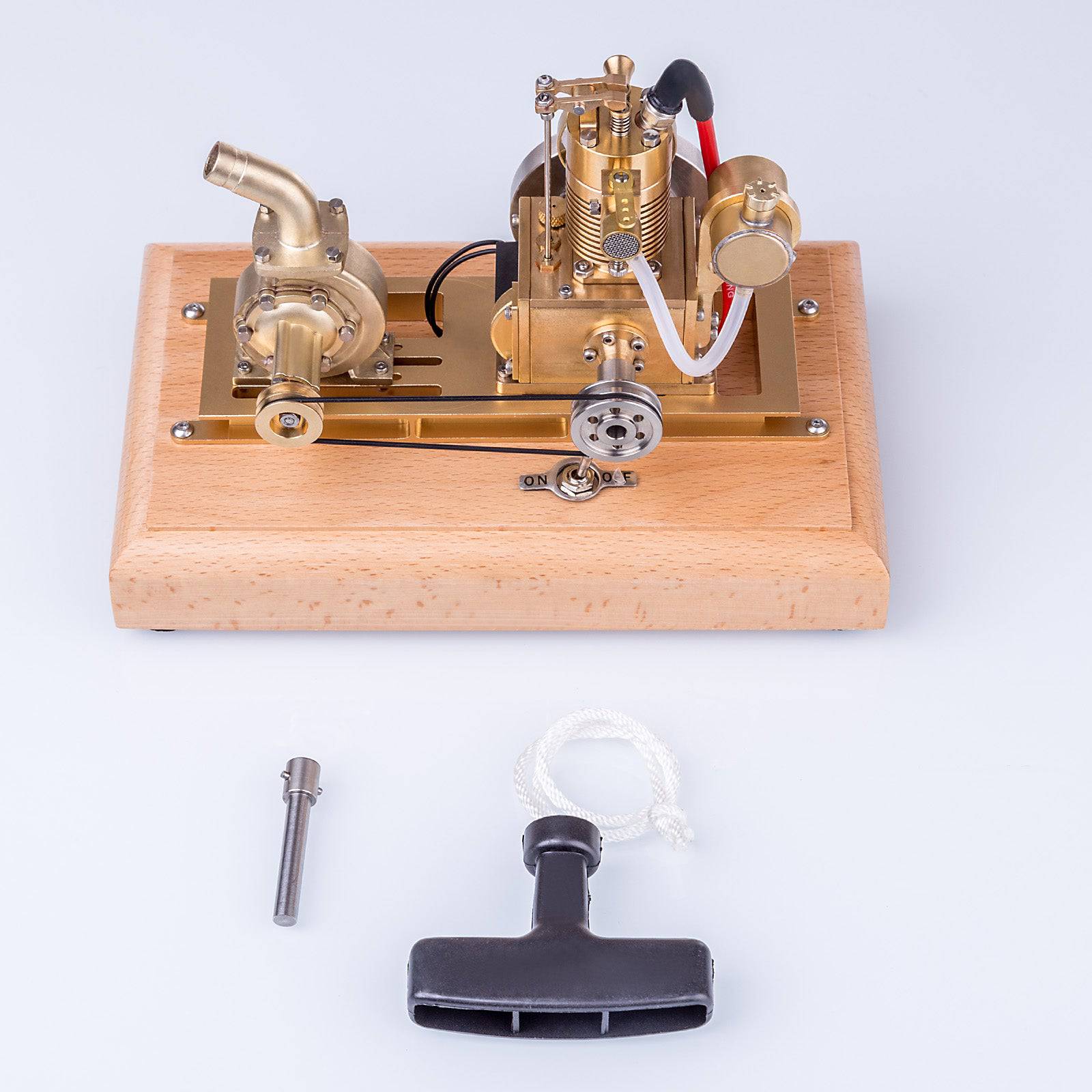

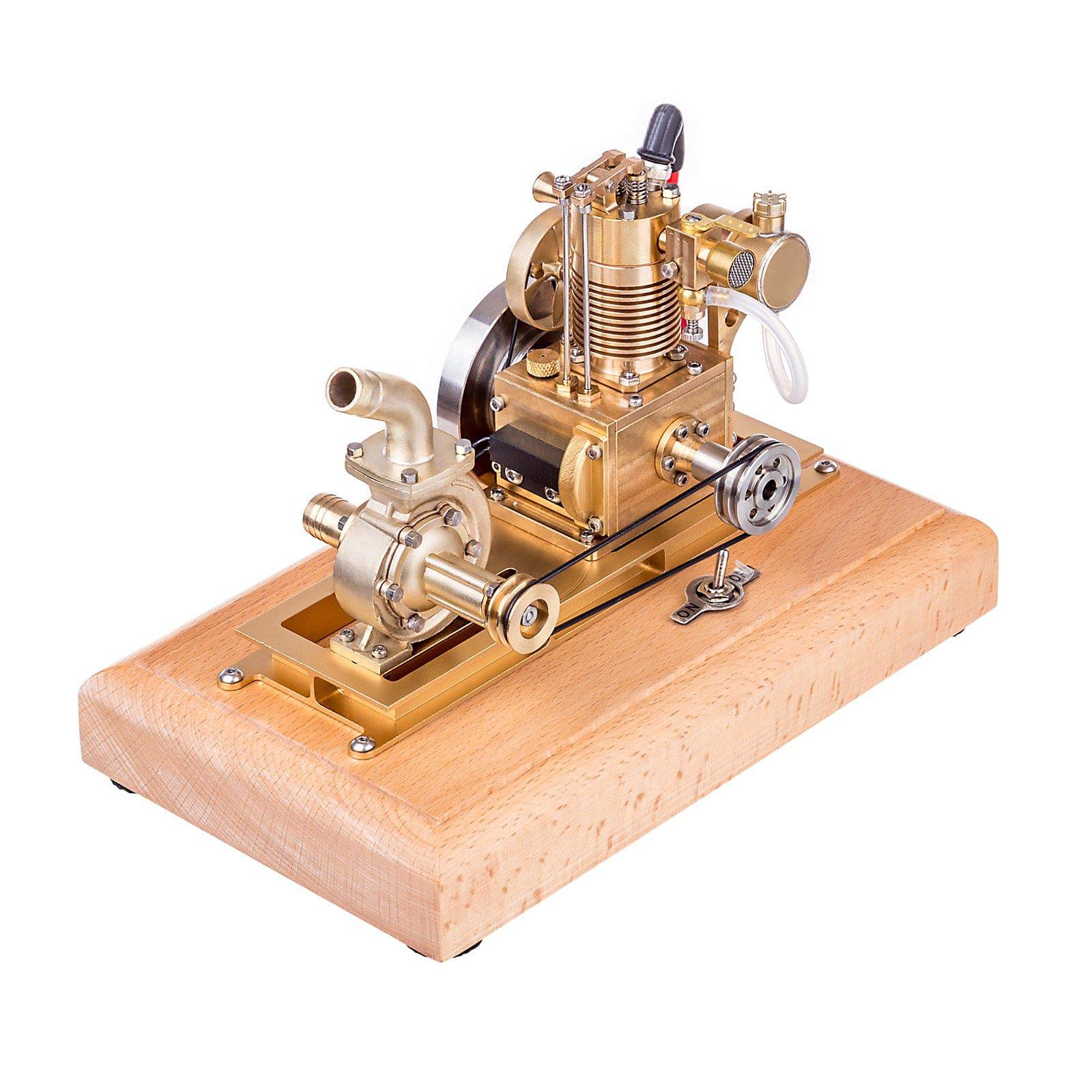

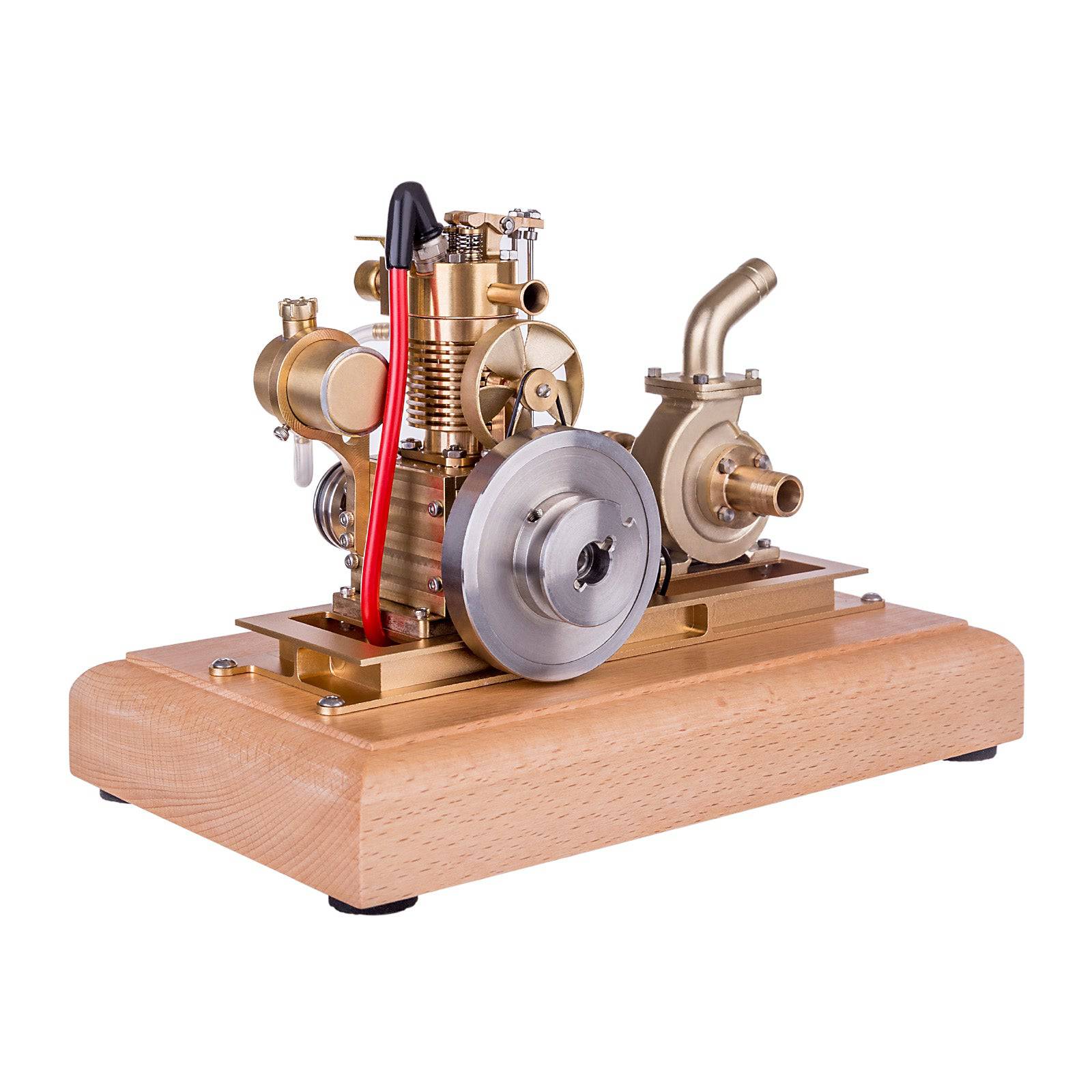

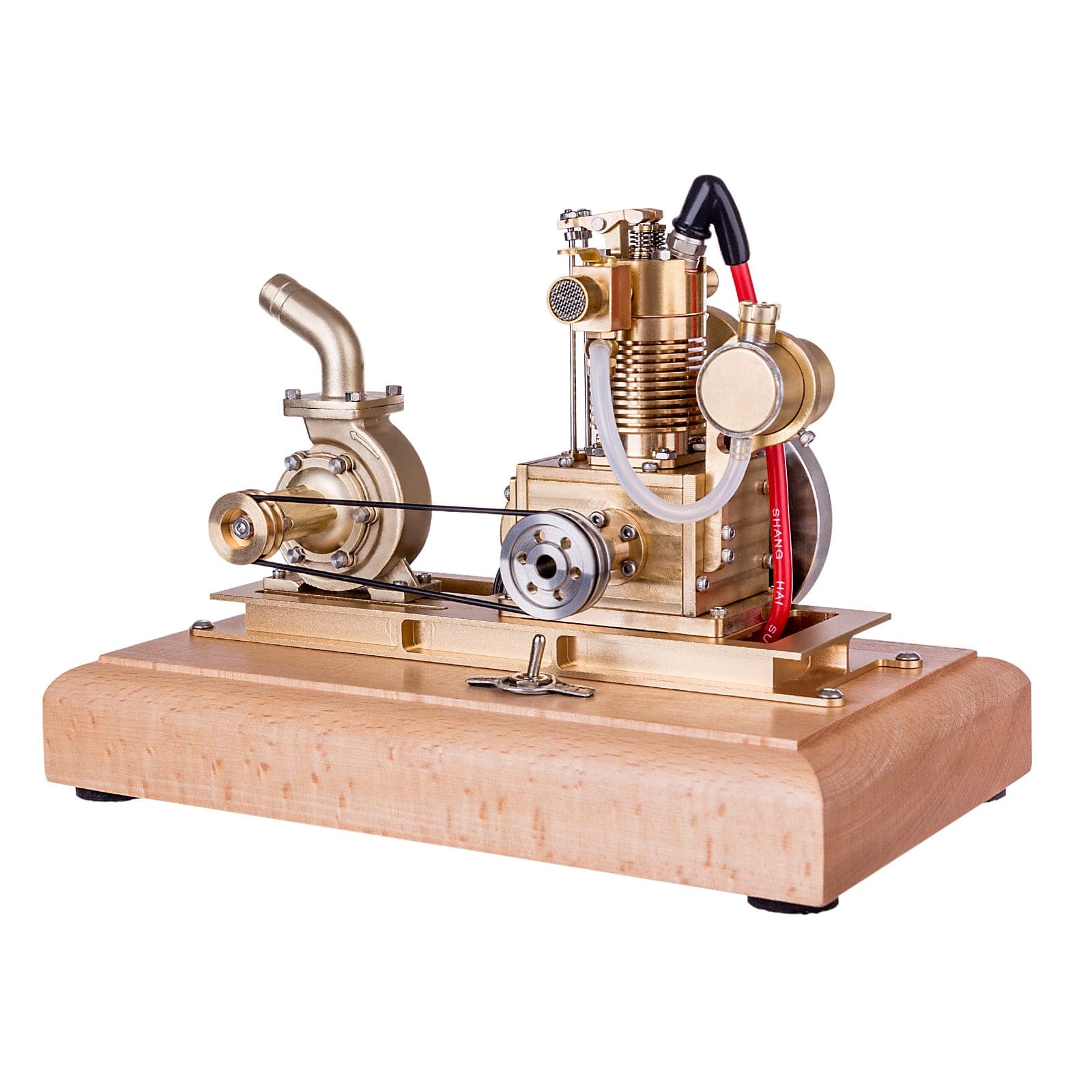

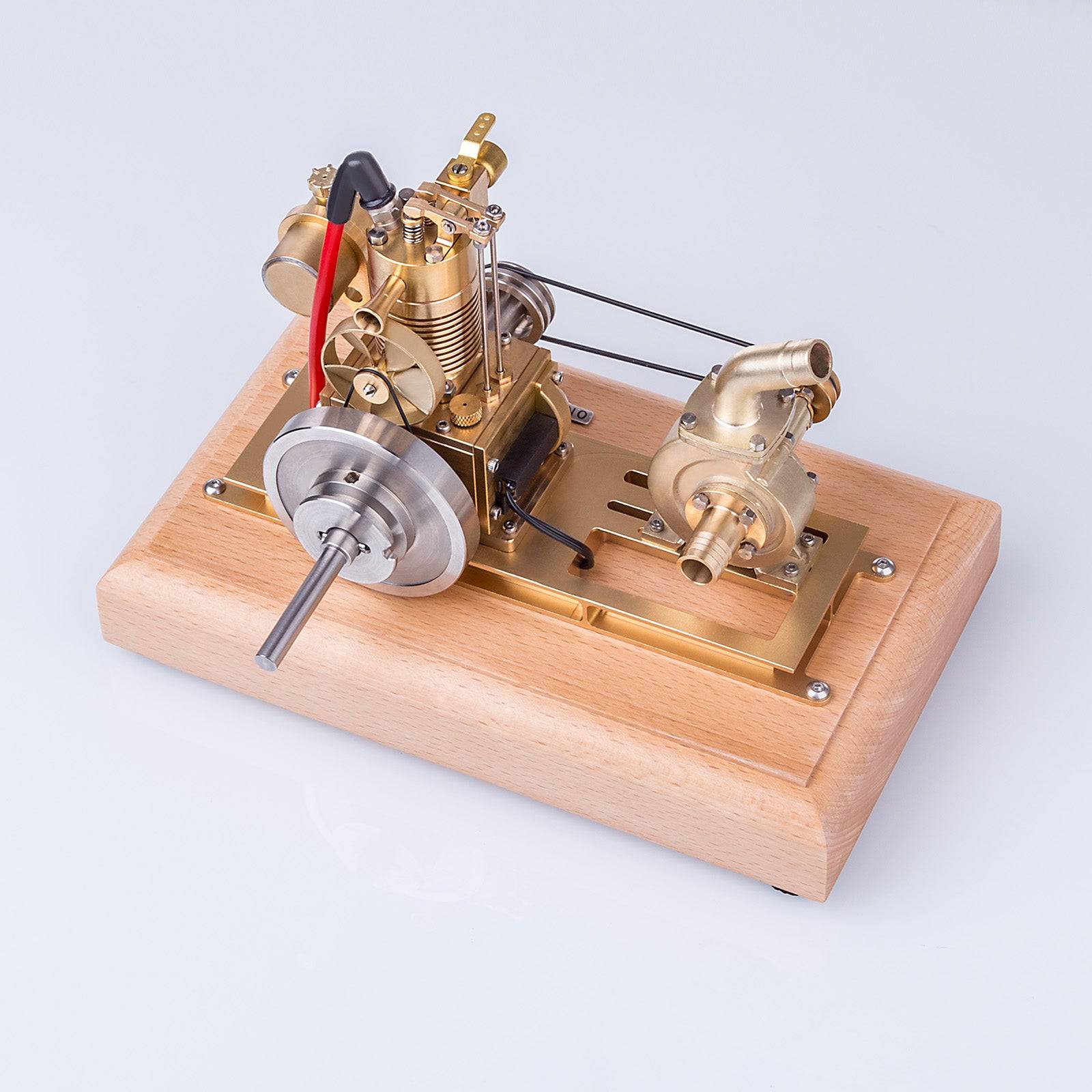

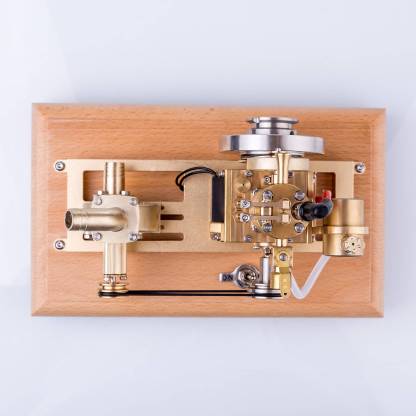

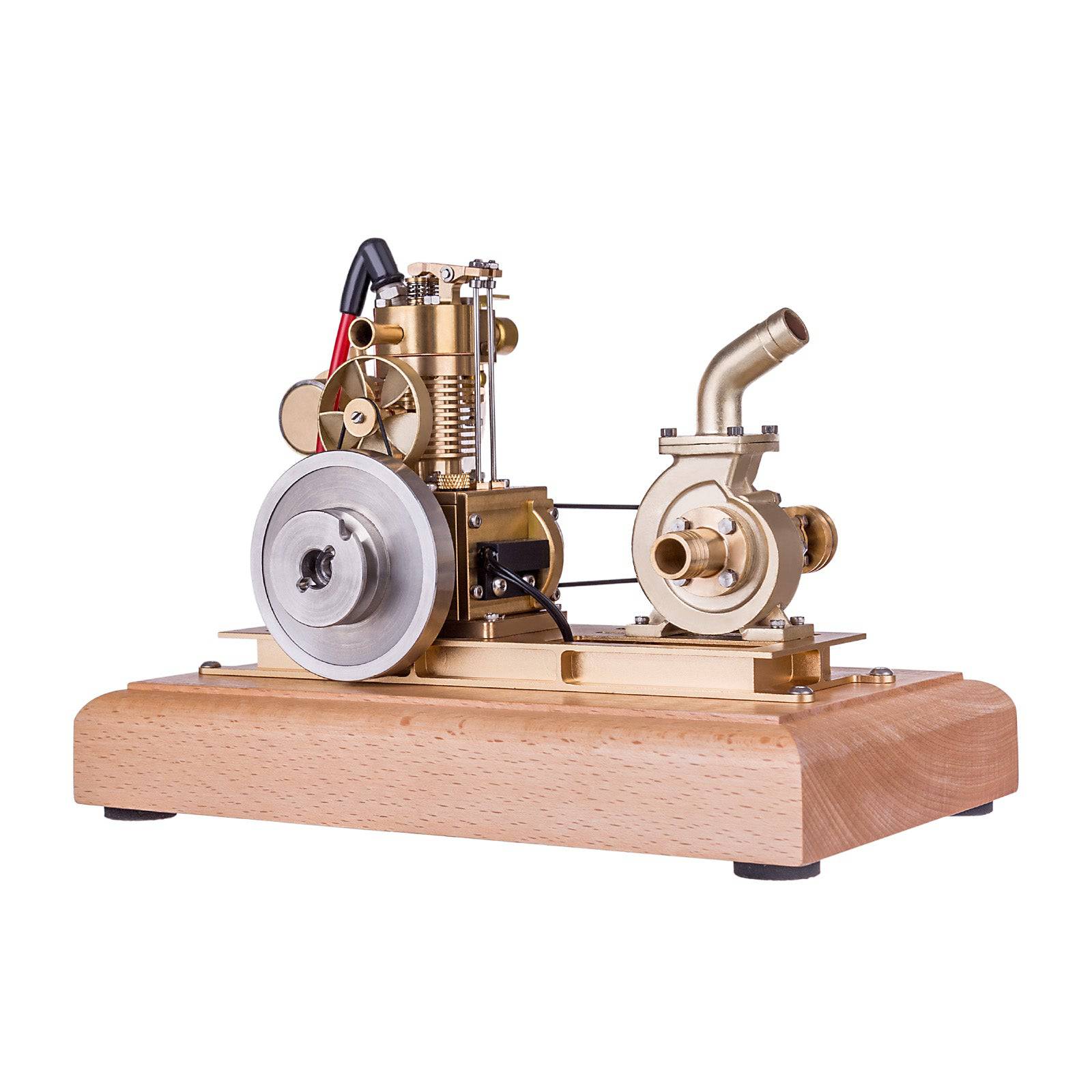

M16C Vertical 4 Stroke Gasoline Engine Model with Water Vane Pump 1.6cc Mini IC Engine
Hero Section: A Miniature Power Plant on Your Desk

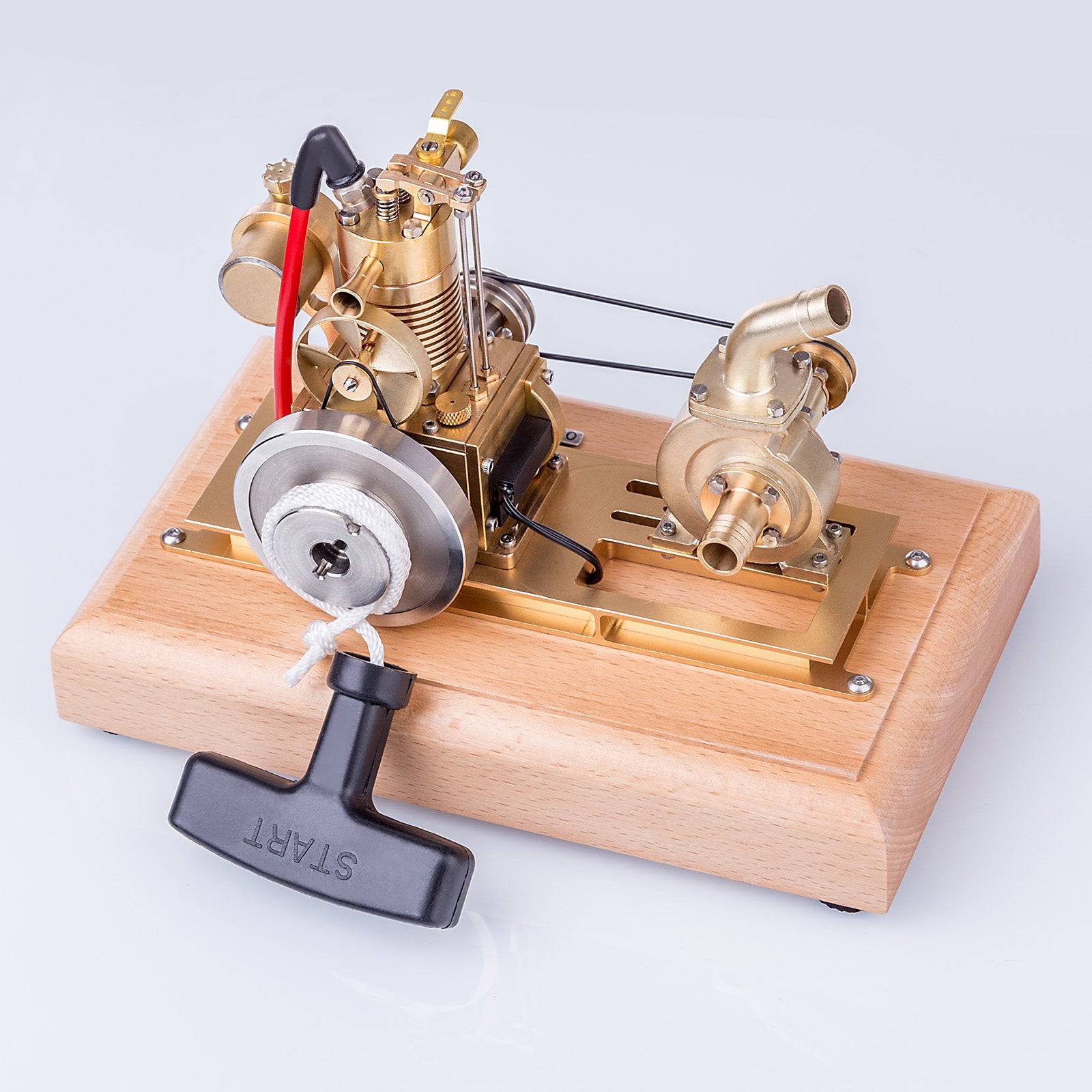

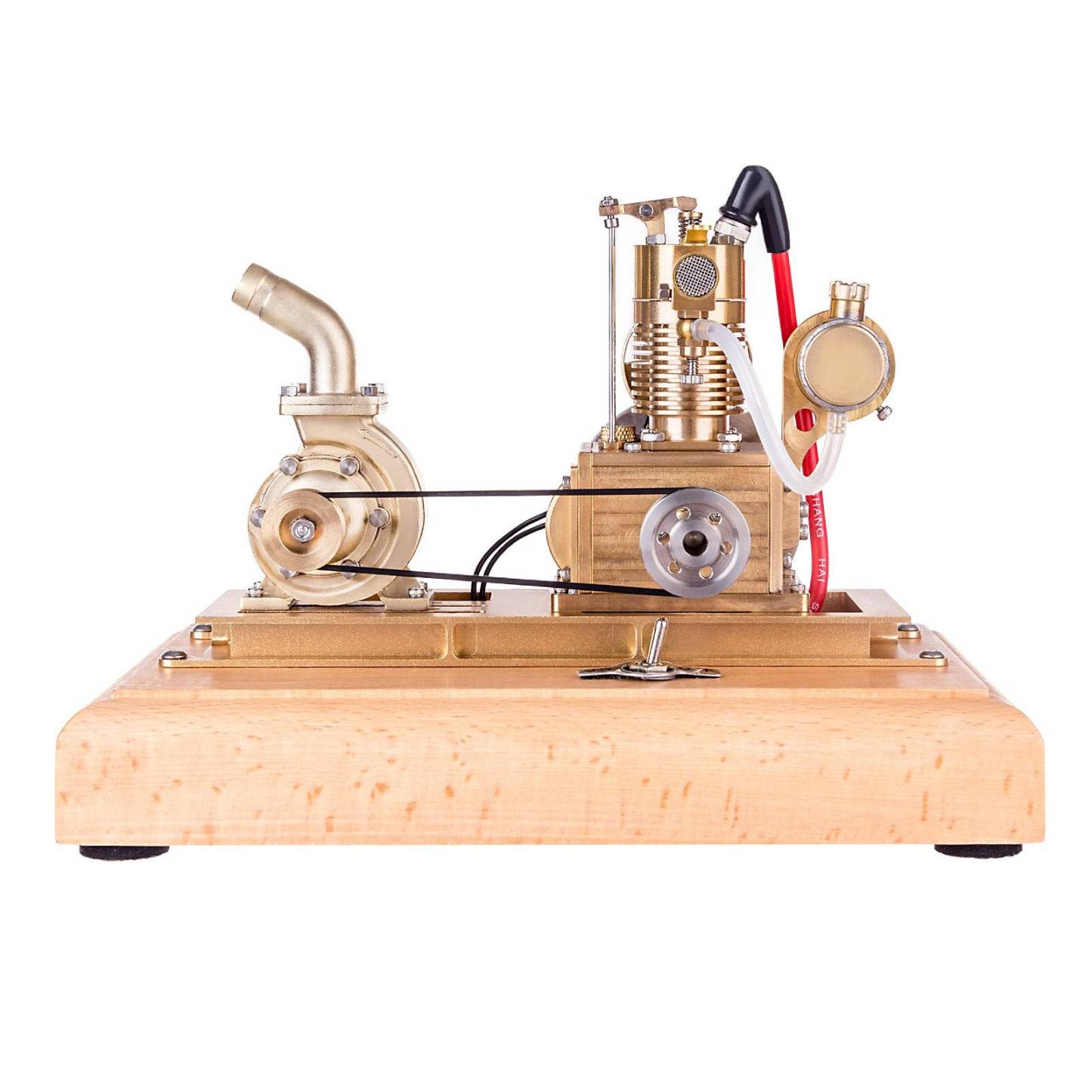

The M16C is more than just an engine; it is a fully functional pumping station in miniature. Building on the success of the classic M16, this upgraded vertical model features a working Water Vane Pump driven directly by the engine's power. Crafted from gleaming brass and stainless steel, it stands as a testament to mechanical utility. Watch as the 1.6cc engine roars to life, spinning the flywheel and driving the pump impeller—a perfect demonstration of how internal combustion changed the world.
Why Choose the M16C Vertical Engine?
- Functional Water Pump: The standout feature is the integrated impeller pump. It’s not just for looks; it mechanically connects to the engine, demonstrating real-world application. It transforms the engine from a spinning toy into a working machine.
- Vertical Architecture: Standing tall, the vertical cylinder design offers a compact footprint and a clear view of the overhead valve mechanism. The rhythmic up-and-down motion of the pushrods is mesmerizing to watch.
- Upgraded Base & Stability: We’ve reinforced the structure with an upgraded wooden base and a thicker metal base plate. This ensures the engine remains stable even when pumping, reducing vibration and noise.
- Precision Carburetion: The adjustable speed carburetor allows you to fine-tune the RPM. Whether you want a slow, rhythmic idle or high-speed pumping action, you have full control over the throttle.
Technical Highlights: Expert Analysis
- 4-Stroke Cycle: Despite its small 1.6cc size (13mm bore x 12mm stroke), this engine performs a complete intake, compression, combustion, and exhaust cycle. It produces a realistic exhaust note and sufficient torque to drive the pump load.
- Air-Cooled Efficiency: The deep cooling fins on the cylinder head effectively dissipate heat, allowing for extended run times without the need for a water jacket on the engine itself.
- Electronic Ignition: Powered by 3x AA batteries (4.5V), the ignition system provides a consistent spark, making starting easier and more reliable than vintage flint systems.
Specifications
- Model: M16C (Vertical with Pump)
- Type: Single Cylinder 4-Stroke Gasoline Engine
- Displacement: 1.6cc
- Bore / Stroke: 13mm / 12mm
- Flywheel Diameter: 56mm
- Material: Brass / Stainless Steel / Wood Base
- Accessory: Integrated Water Vane Pump
- Fuel: 95# Gasoline or Aviation Kerosene
- Ignition: 4.5V (Requires 3x AA Batteries)

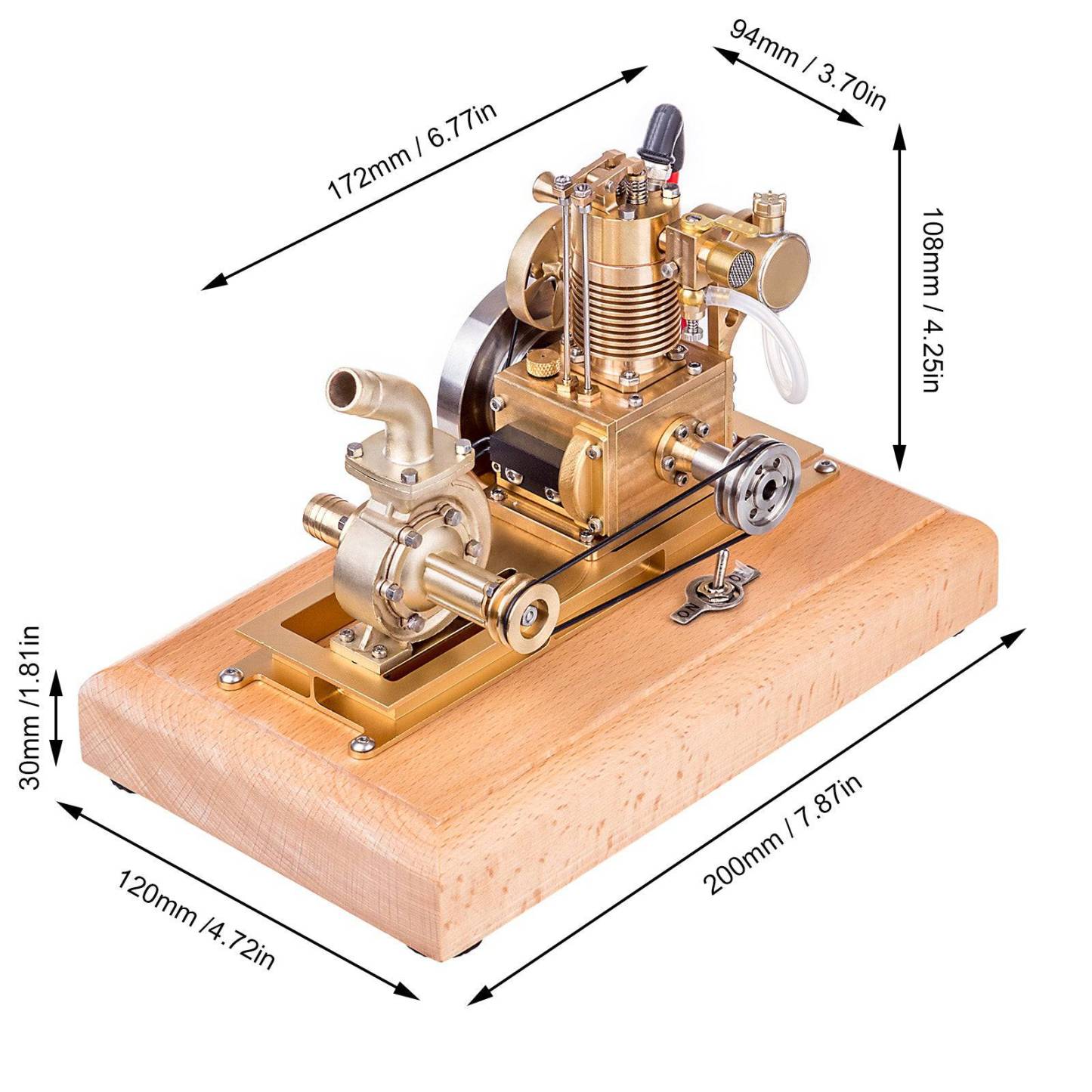

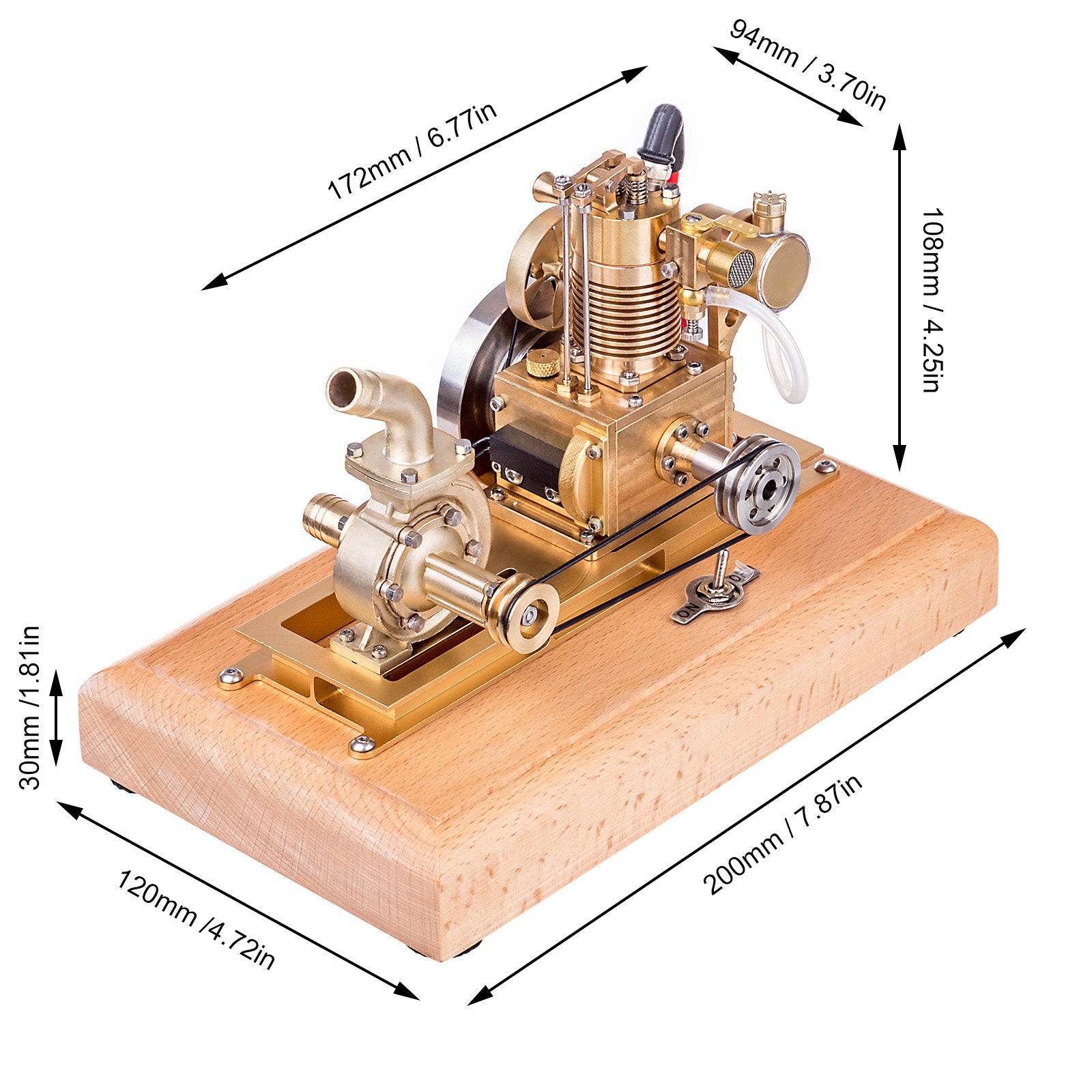

- Dimensions: 200mm x 120mm x 138mm
- Weight: ~1400g
Usage Scenario
It’s a sunny afternoon in the garden. You place the M16C on a table. You fill the tiny brass tank with fuel and check the lines. You flip the switch and give the pull-starter a sharp tug. The engine sputters to life, settling into a steady beat. The belt drive spins the water pump, and you watch the mechanics of fluid transfer in action. It’s a satisfying blend of power and utility.
Important Tips
- Carburetor Tuning: If the engine has compression but won't start, the needle valve likely needs adjustment. Tighten it gently, then loosen by 1/4 turn. This is the "sweet spot."
- Priming: Before starting, rotate the flywheel manually a few times to draw fuel into the cylinder and remove air bubbles.
- Lubrication: Ensure all moving parts are oiled before use.
- Safety: Operate in a well-ventilated area. The engine gets hot; handle with care.
