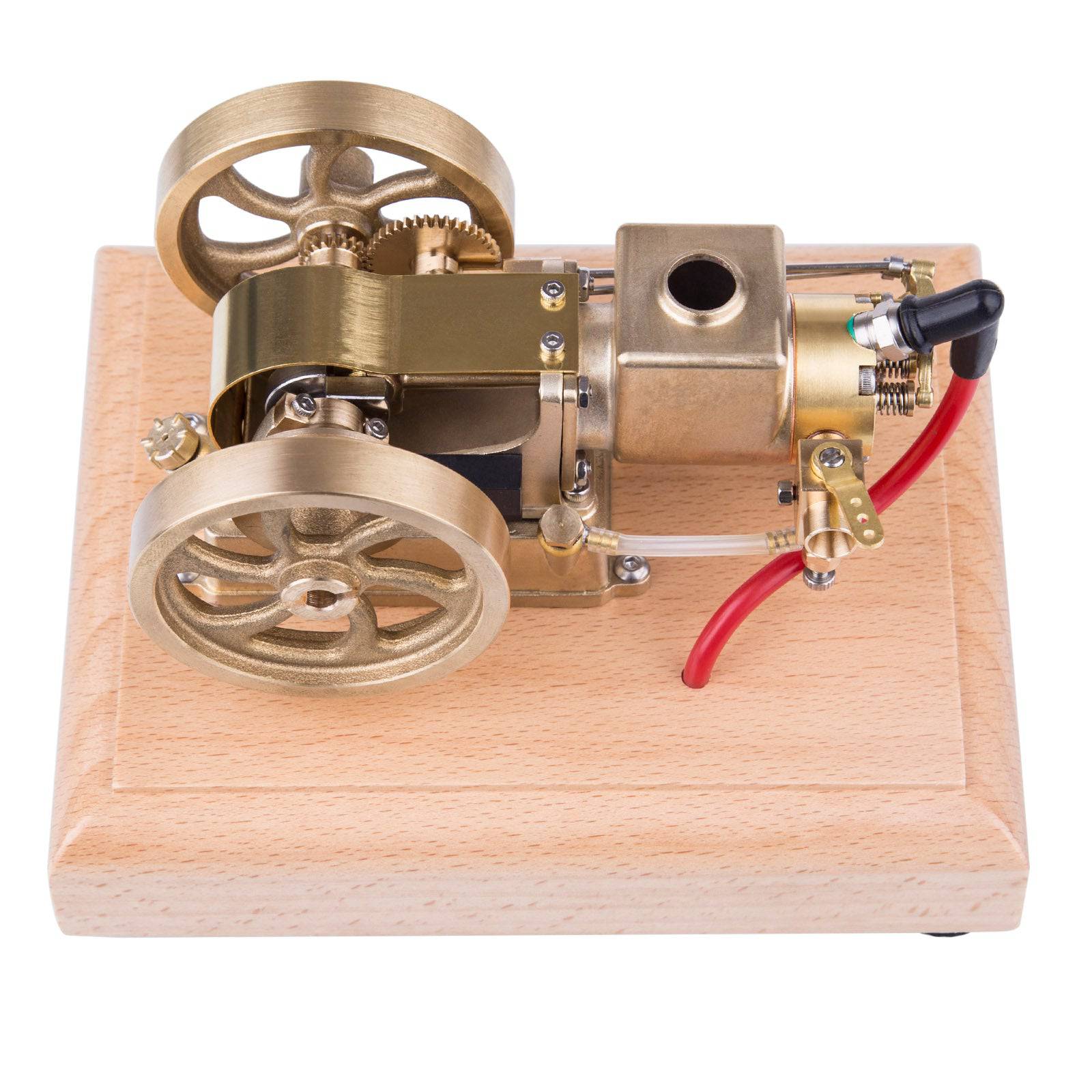

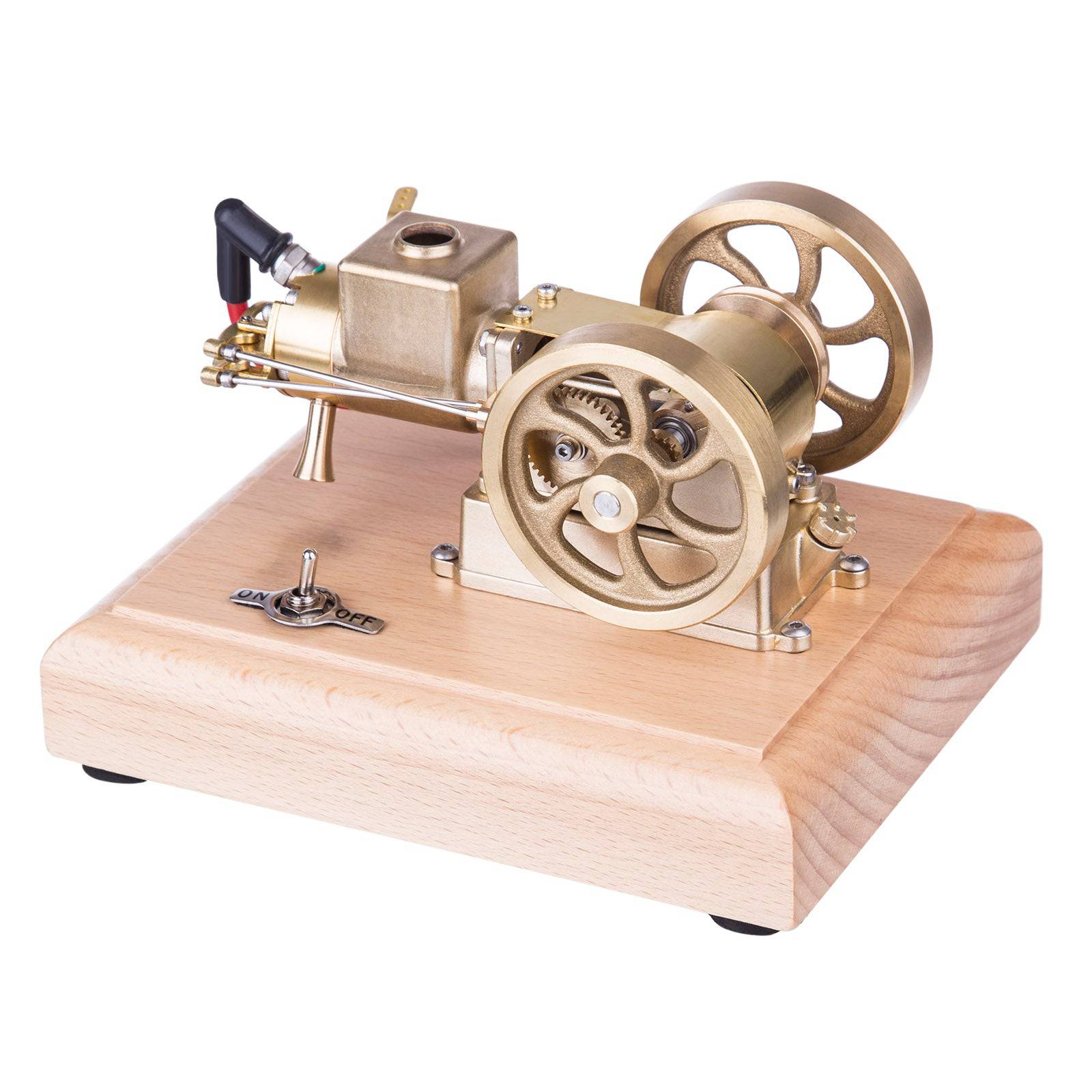

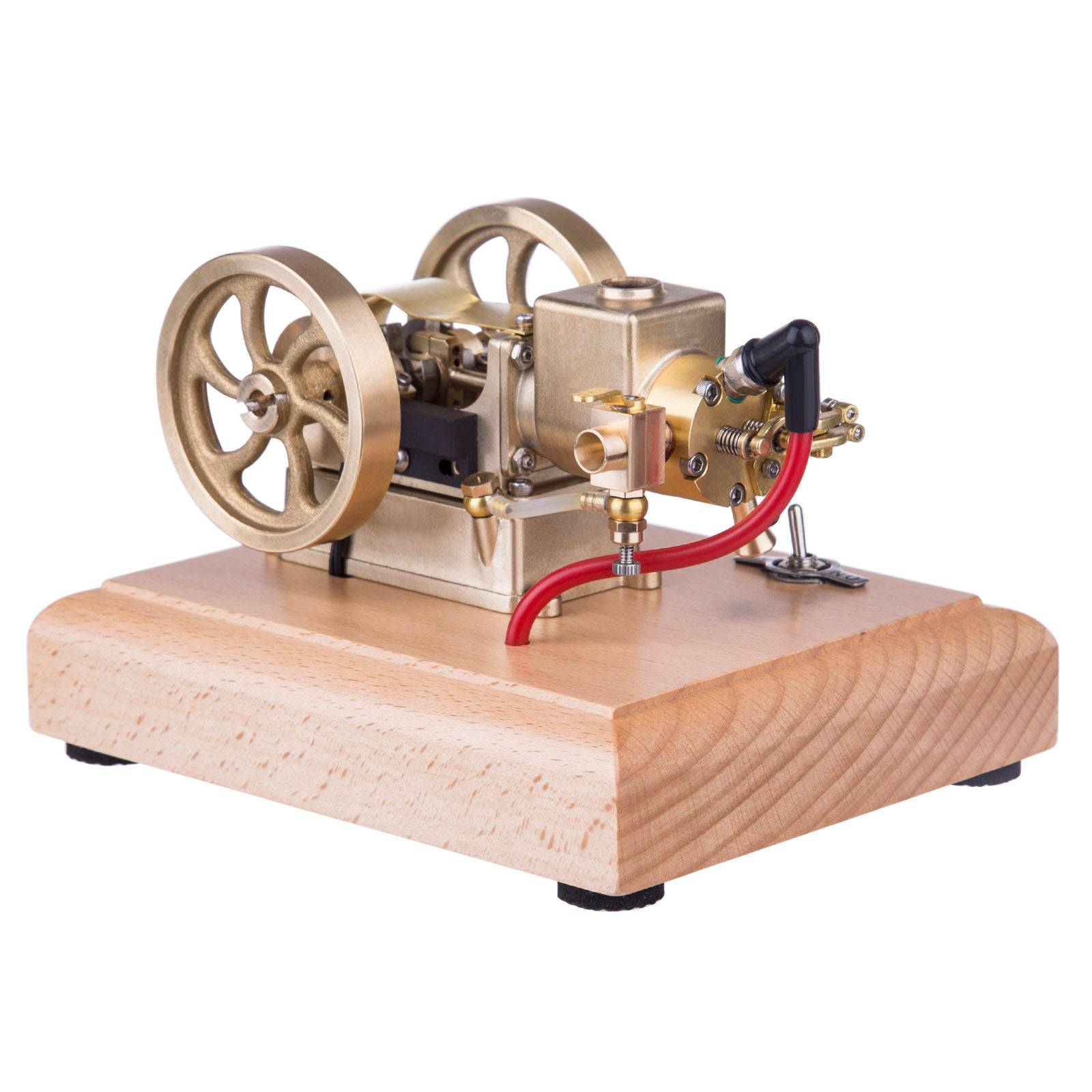

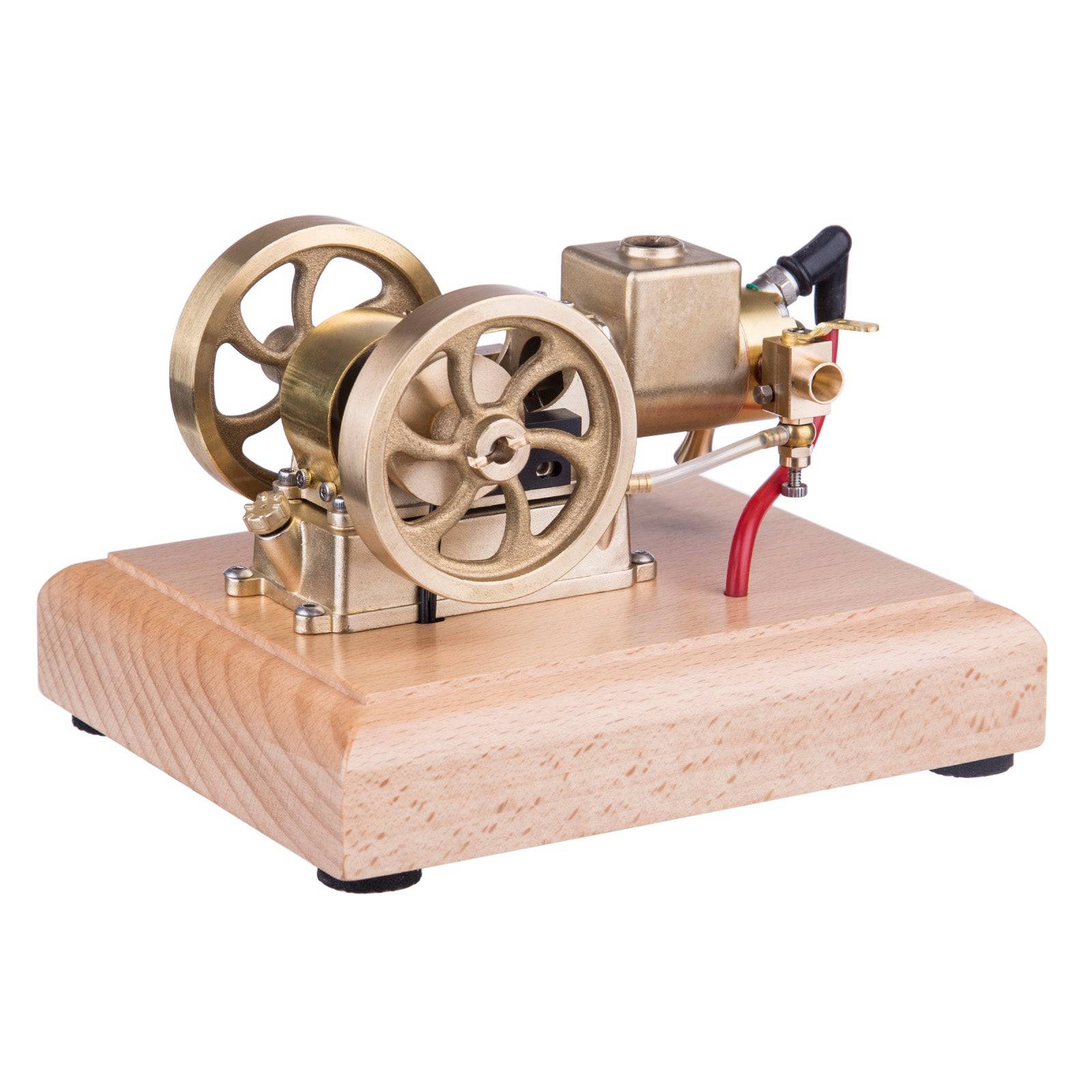

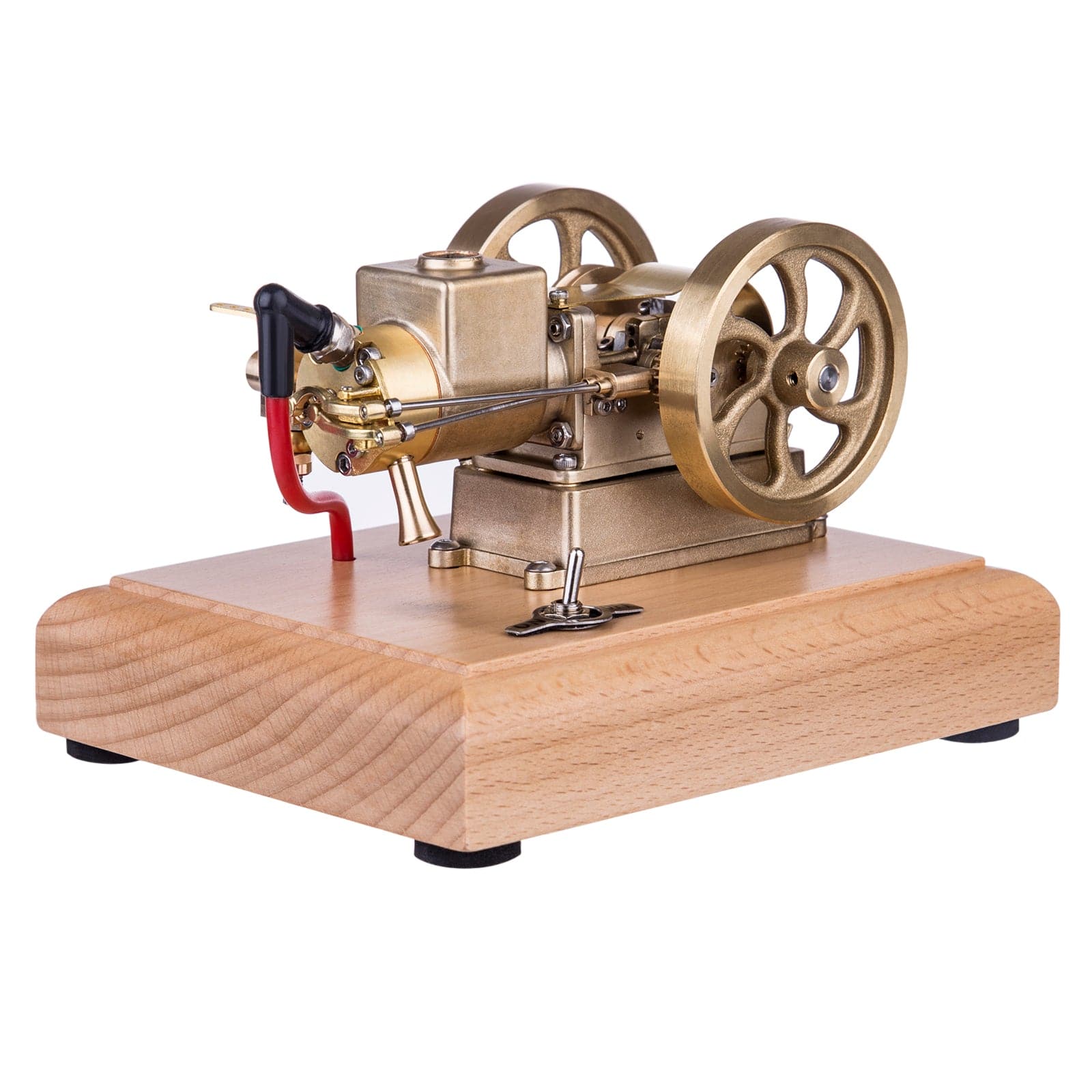

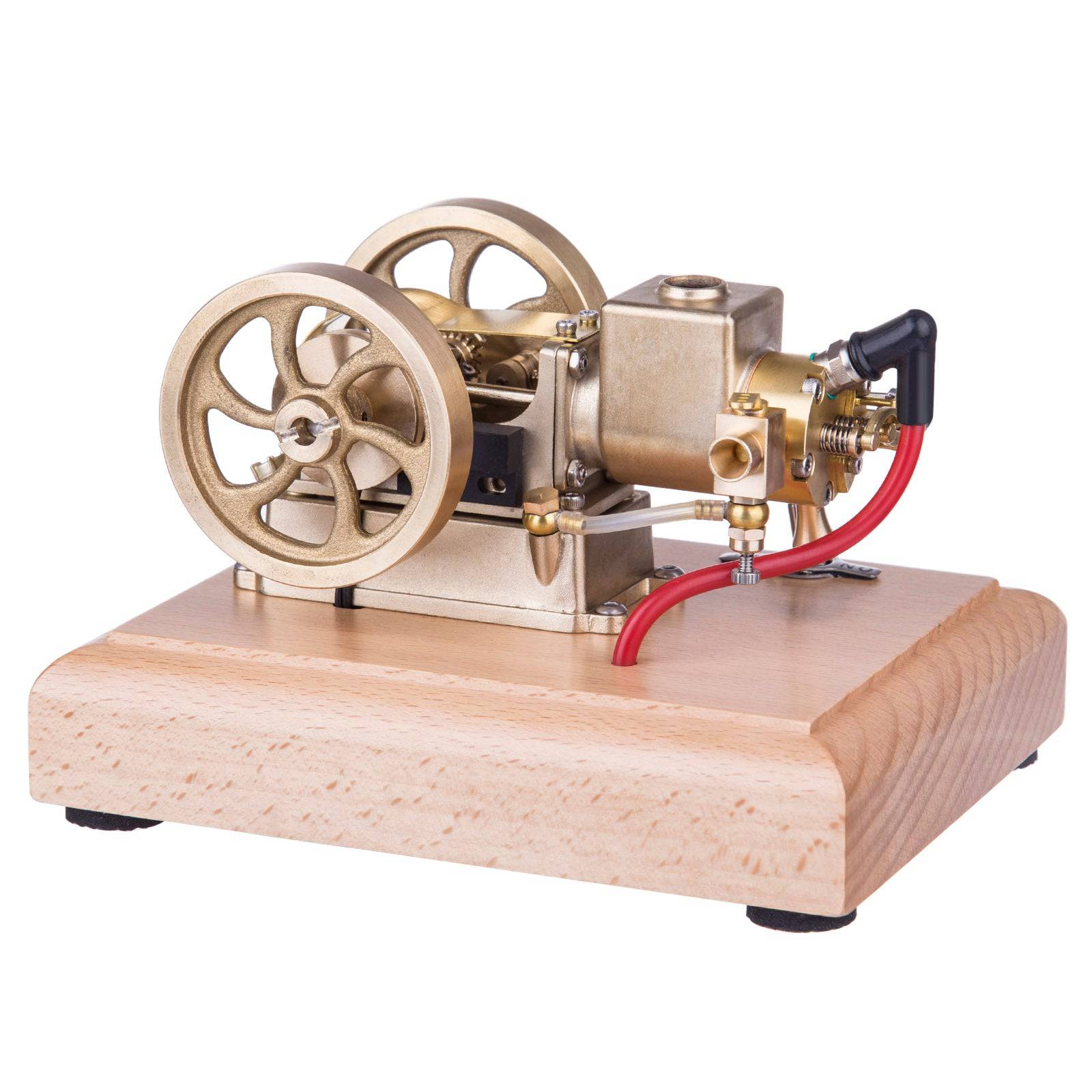

M17B 1.6cc Micro Horizontal 4 Stroke Water Cooled Gas Engine Model Gift
Hero Section: The "Toad" – A Mechanical Companion
In the world of vintage machinery, form follows function. The M17B, affectionately nicknamed "The Toad" for its squat, sturdy stance, is a tribute to the tireless horizontal engines that once powered oil fields and farms. Unlike static die-cast models, this is a living, breathing machine. It combines the nostalgic "chug" of a low-RPM engine with the gleaming elegance of brass and stainless steel. It is not just an engine; it is a kinetic sculpture that brings the history of the Industrial Revolution to your desktop.
Why Choose the M17B Engine?
- Unique "Throttle Governed" Design: While it shares the classic open-crank look of a "Hit and Miss" engine, the M17B offers something different: control. Instead of the erratic firing of a governor, this engine features an adjustable carburetor. This allows you to manually control the engine speed via the intake valve, giving you a smoother, more consistent rhythm that you can tune to your liking.
- Visual Evaporative Cooling: The engine features an open-top water hopper. As it runs, you can watch the water gently simmer and evaporate to cool the cylinder. It’s a fascinating display of thermodynamics in action, requiring no pumps—just physics.
- Premium Materials: There is no plastic here. The M17B is precision-crafted from yellow brass and stainless steel. The weight is substantial, the finish is exquisite, and it ages beautifully, developing a unique patina over time.

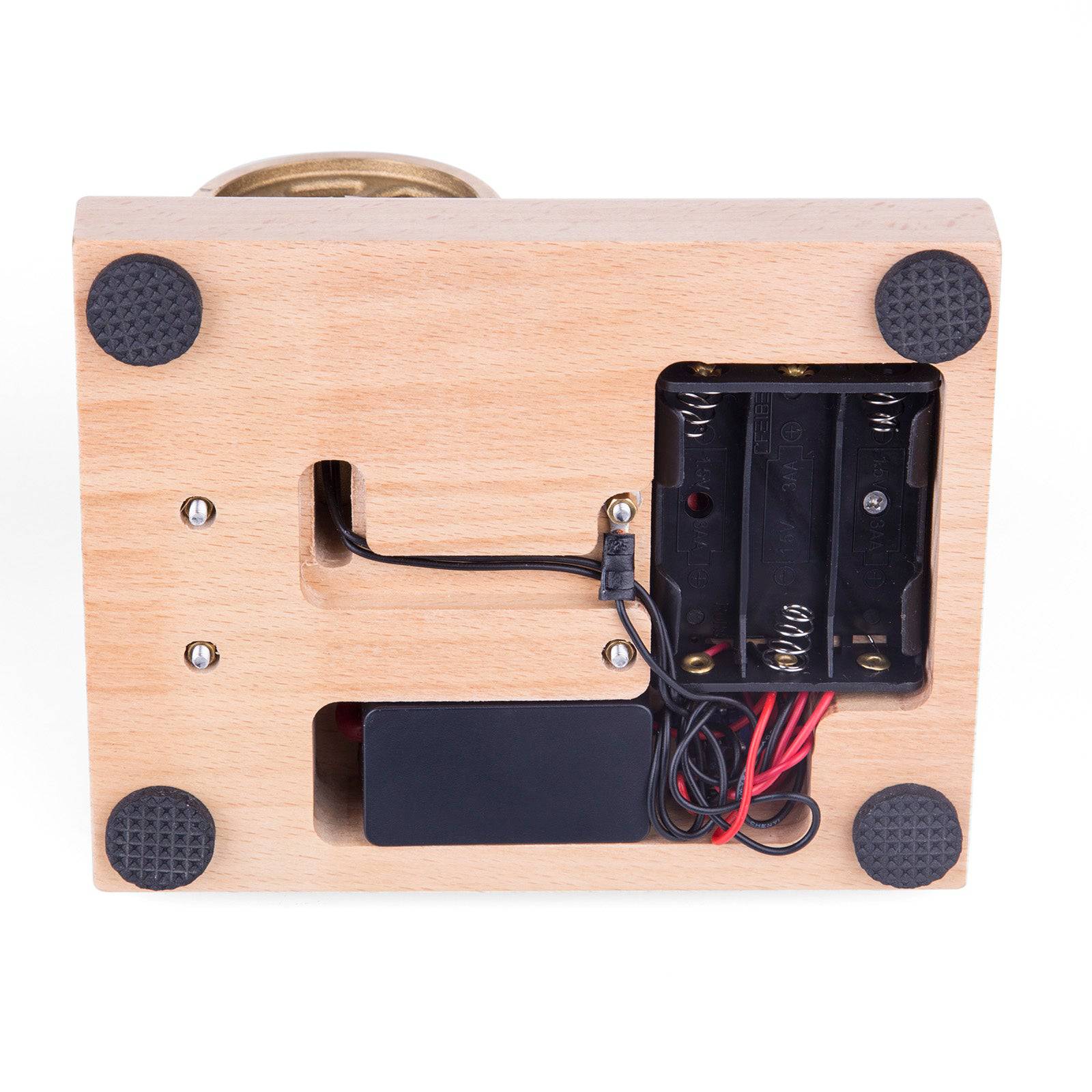

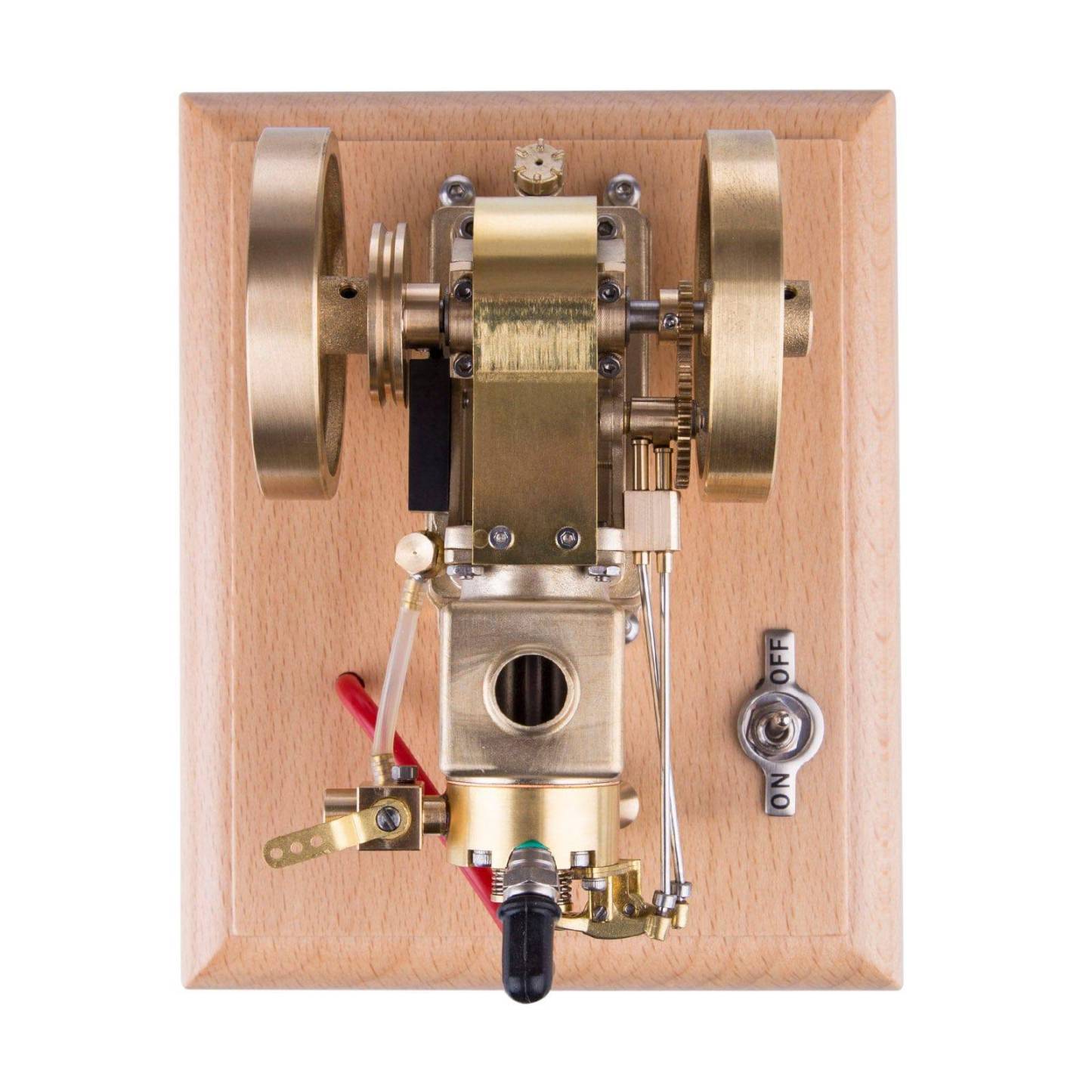

- Ready-to-Display: Mounted on a solid wooden base with the ignition system and battery holder neatly integrated, it solves the hassle of mounting. It’s ready to be the centerpiece of your collection right out of the box.
Technical Highlights: Engineering Deep Dive
- 1.6cc Displacement: Despite its palm-sized footprint, the 1.6cc displacement provides a surprising amount of compression and a distinct exhaust note.
- Horizontal Layout: The low center of gravity and horizontal cylinder design minimize vibration, allowing the engine to run smoothly on a desk without "walking" away.
- Simplified Mechanics: By using a carburetor for speed control rather than a complex flyball governor linkage, the M17B is mechanically simpler and more reliable for beginners, while still offering the vintage aesthetic.
- Electronic Ignition: Powered by 3 AA batteries (4.5V), the electronic ignition ensures a strong spark for easy starting, replacing the unreliable magnetos of the past.
Specifications
- Model: M17B ("The Toad")
- Type: Horizontal Single-Cylinder 4-Stroke
- Displacement: 1.6cc
- Bore: 13mm
- Stroke: 12mm
- Cooling: Evaporative (Open Hopper) Water Cooling
- Speed Control: Throttle Governed (Carburetor)
- Material: Brass / Stainless Steel / Wood

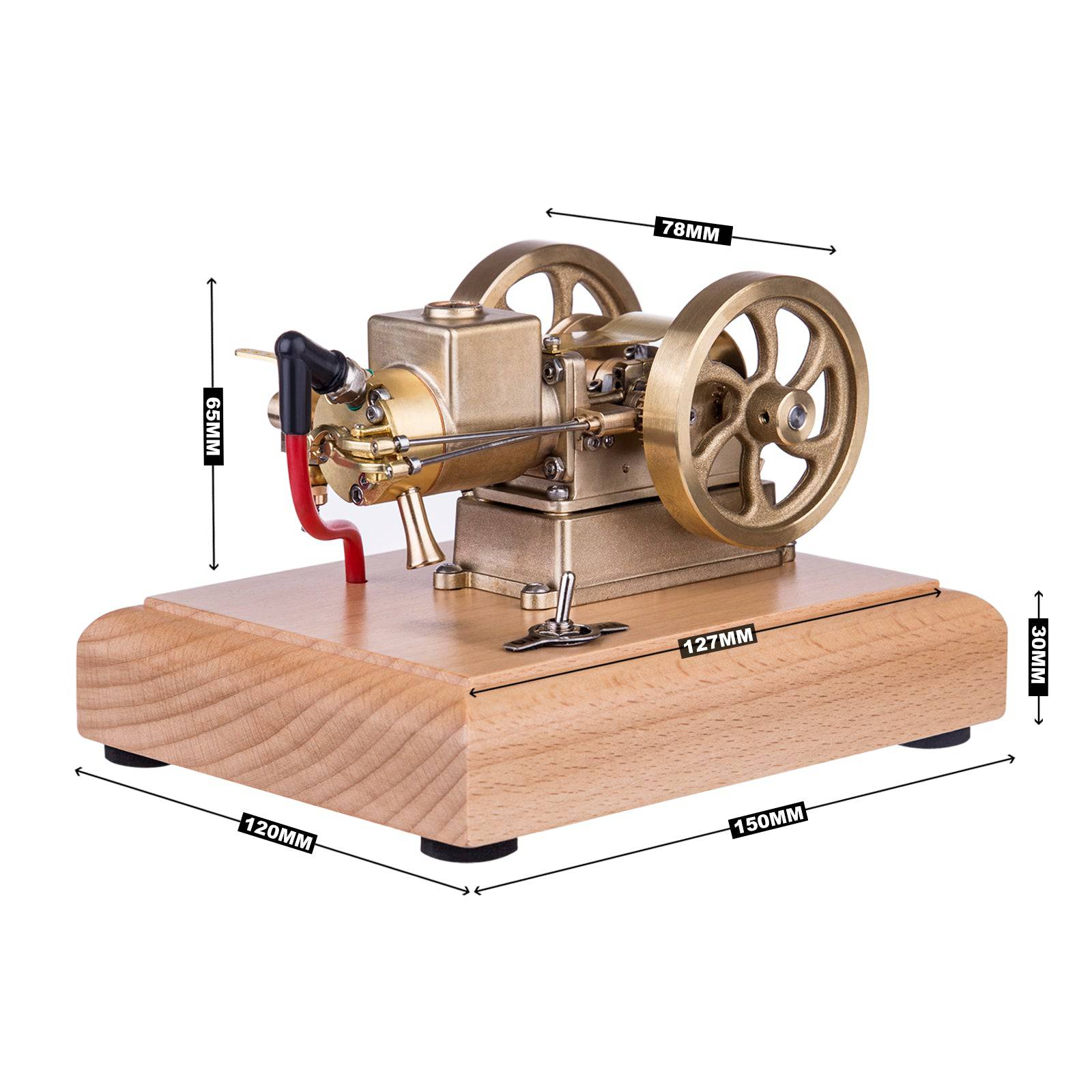

- Dimensions: 150 x 120 x 95mm
- Weight: 1100g
- Ignition: 4.5V (Requires 3 x AA Batteries)
- Fuel: 95# Gasoline + 4% Lubricating Oil
- Starting Method: Manual Flywheel or Electric Drill
Usage Scenario: The Desktop Zen
It’s a quiet afternoon. You fill the hopper with water and the tank with fuel. You flip the switch and give the brass flywheel a spin. The M17B springs to life—putt-putt-putt. You adjust the carburetor needle slightly, and the engine settles into a slow, hypnotic idle. Watching the flywheel spin and the valve rocker arm dance is a form of mechanical meditation, a perfect way to disconnect from the digital world.
Important Tips from the Workshop
- Fuel Mix is Crucial: Even though this is a 4-stroke engine, it is a micro-model without an oil sump. You must mix 4% lubricating oil into your 95# gasoline to protect the piston and cylinder walls.
- Priming the Line: Before starting, rotate the flywheel clockwise several times to draw fuel from the tank into the carburetor. If there is air in the fuel line, the engine will not start.
- Water Level: Always ensure the water hopper is filled before running. The evaporative cooling is essential to prevent the engine from overheating.
- Safety: Operate in a well-ventilated area. The exhaust is real!
Customer Support
We are dedicated to your mechanical passion. If you need assistance with tuning, spare parts, or maintenance advice, please contact our expert support team at service@helloworld7.com.
