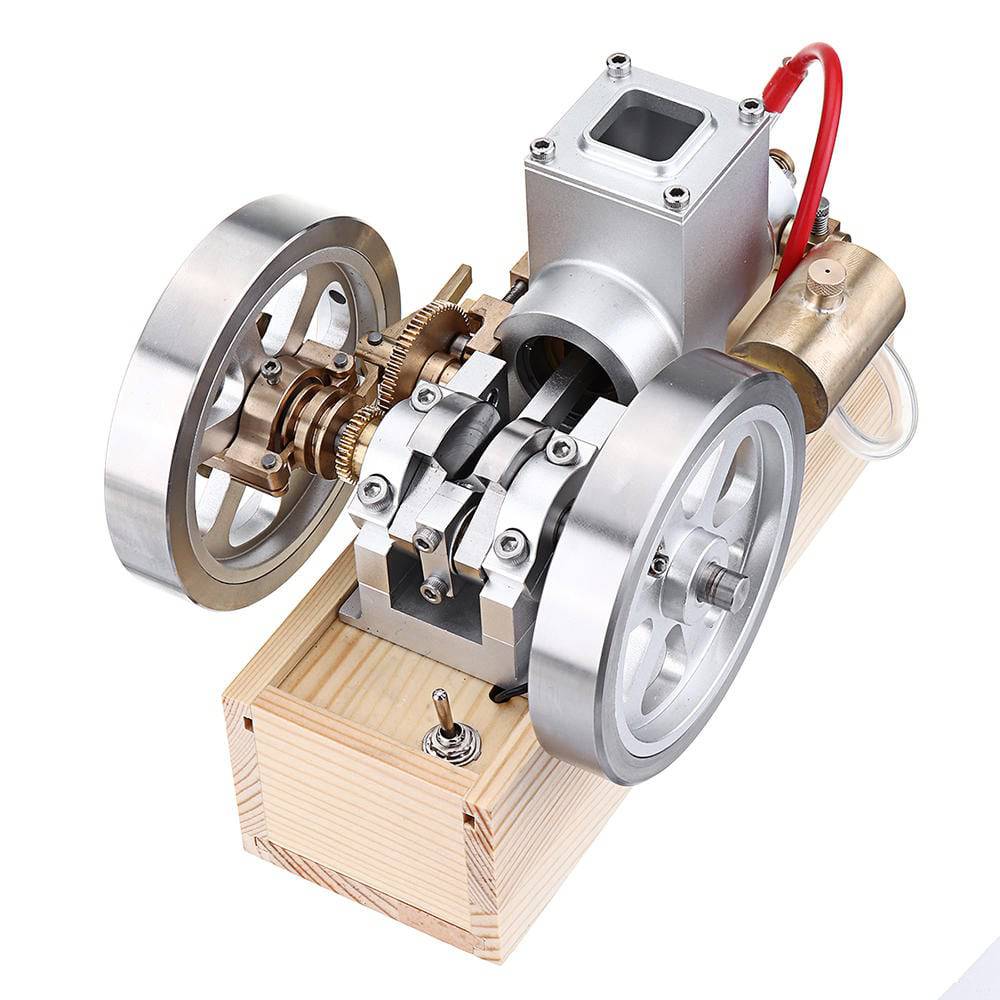

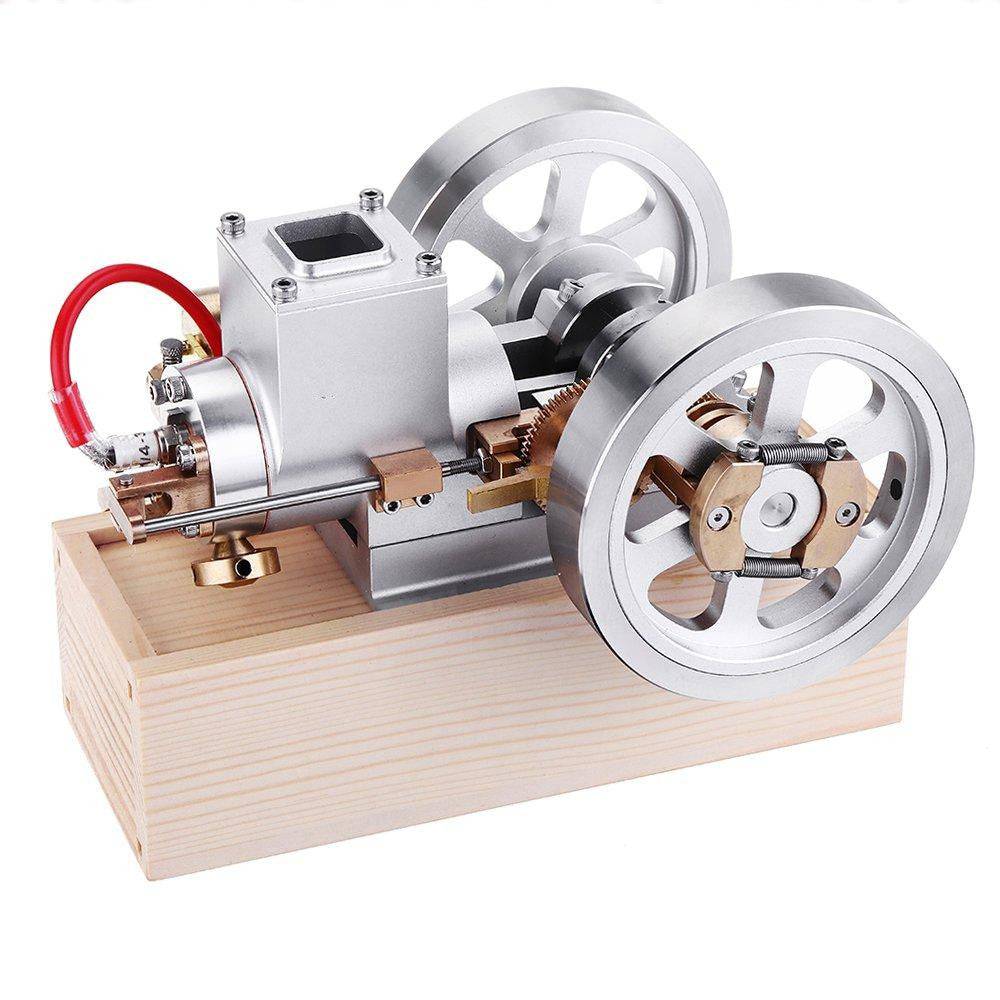

Upgraded Full Metal Hit and Miss Gas Engine Model with Wooden Base | 1200RPM Mechanical STEM Gift
Hero Section: The Rhythm of the Industrial Revolution
There is a distinct satisfaction in watching a machine "think." The Upgraded Hit & Miss Engine isn't just a model; it’s a tribute to the ingenuity of the 19th century. With its mesmerizing "flying hammer" governor spinning and the rhythmic "pop... coast... pop" sound of the combustion cycle, this engine transforms your desk into a living museum. Whether you are a veteran mechanic explaining the laws of physics to the next generation, or a collector seeking a centerpiece with a heartbeat, this silver aluminum masterpiece delivers an unforgettable mechanical experience.
Why Choose This Upgraded Model?
- Complete & Ready to Run

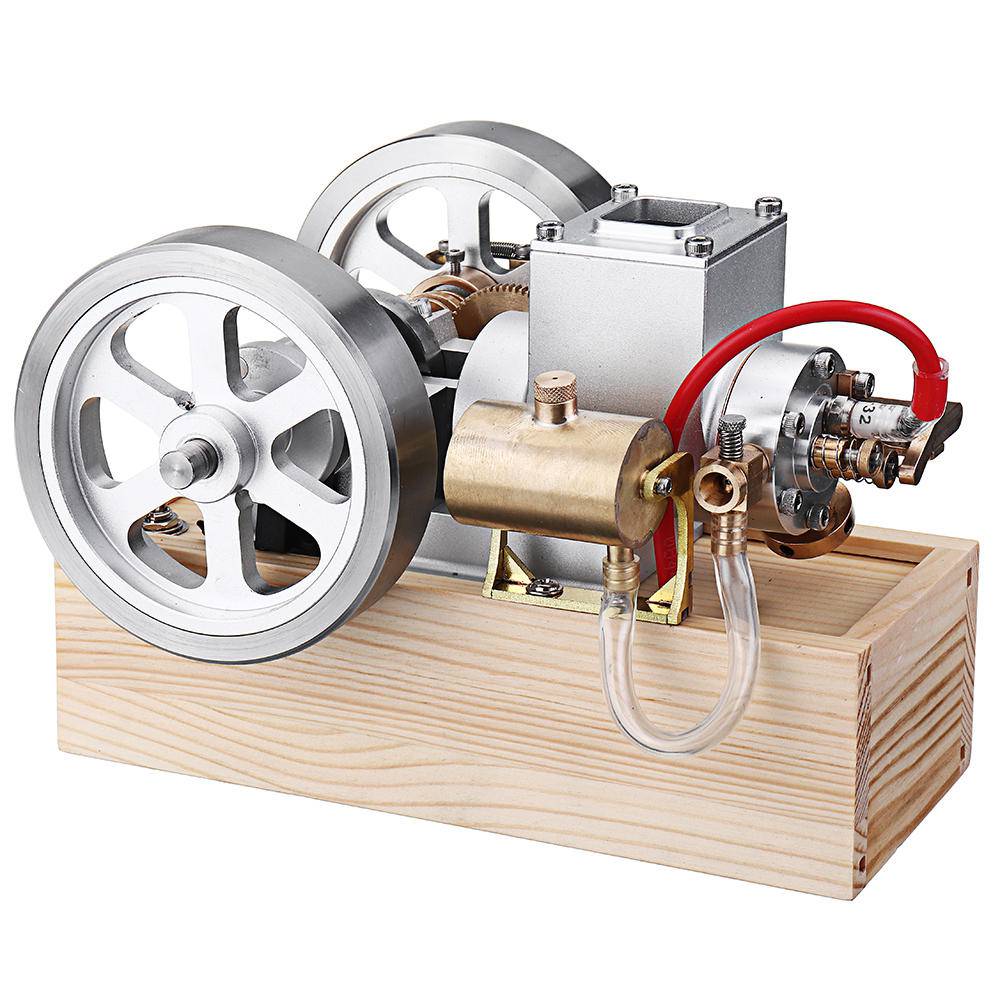

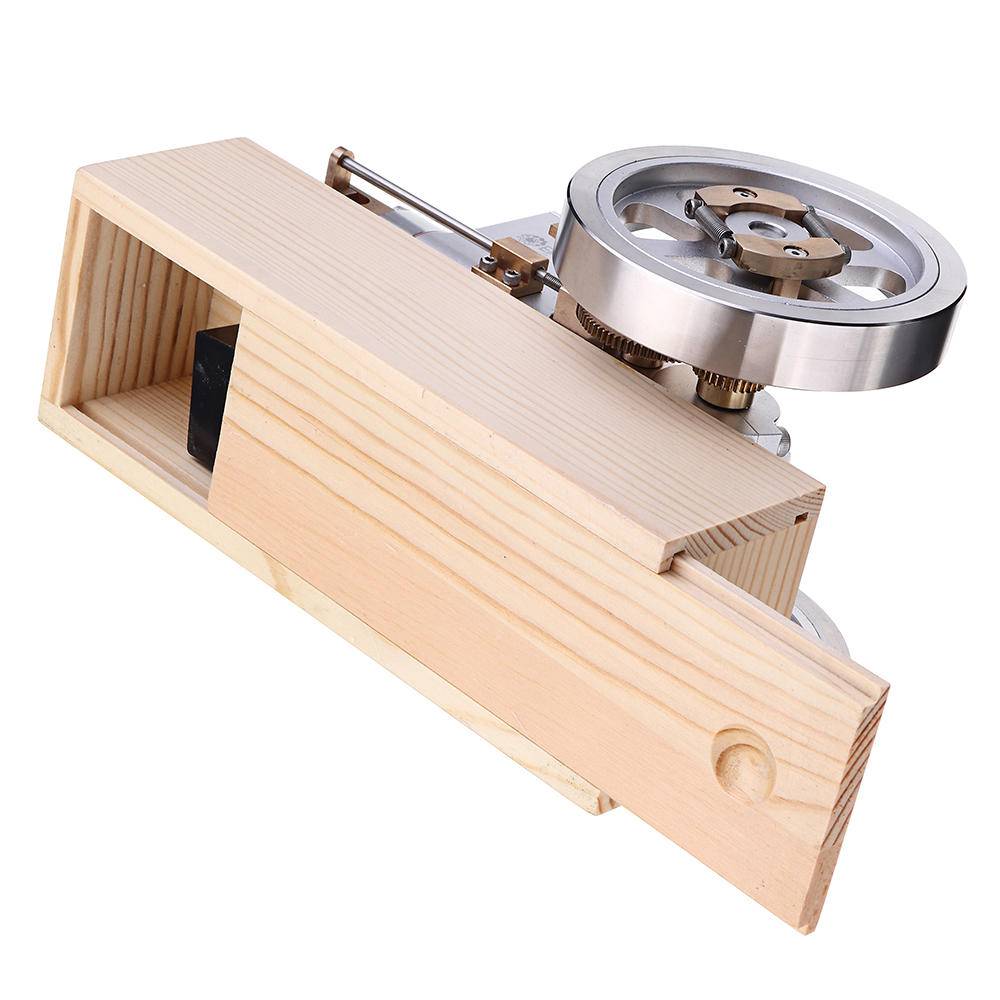

Unlike basic kits that require you to build your own mount, this upgraded version comes pre-installed on a premium wooden base. The contrast between the cold, industrial silver Aluminum Alloy and the warm wood grain creates a sophisticated aesthetic suitable for any office or workshop.
- Visible Mechanical Logic
This engine is the ultimate educational tool. The open design allows you to see everything: the spark ignition, the valve movement, and most importantly, the centrifugal governor (flying hammer). It demystifies how engines work, making it a captivating visual lesson for observers of all ages.
- Precision Performance
Weighing in at over 2kg, this is a substantial piece of machinery. The added stability allows it to reach speeds of up to 1200 RPM smoothly. It’s not a toy that rattles apart; it’s a precision instrument built to last.
Technical Highlights: The "Hit & Miss" Governor
What makes it special?

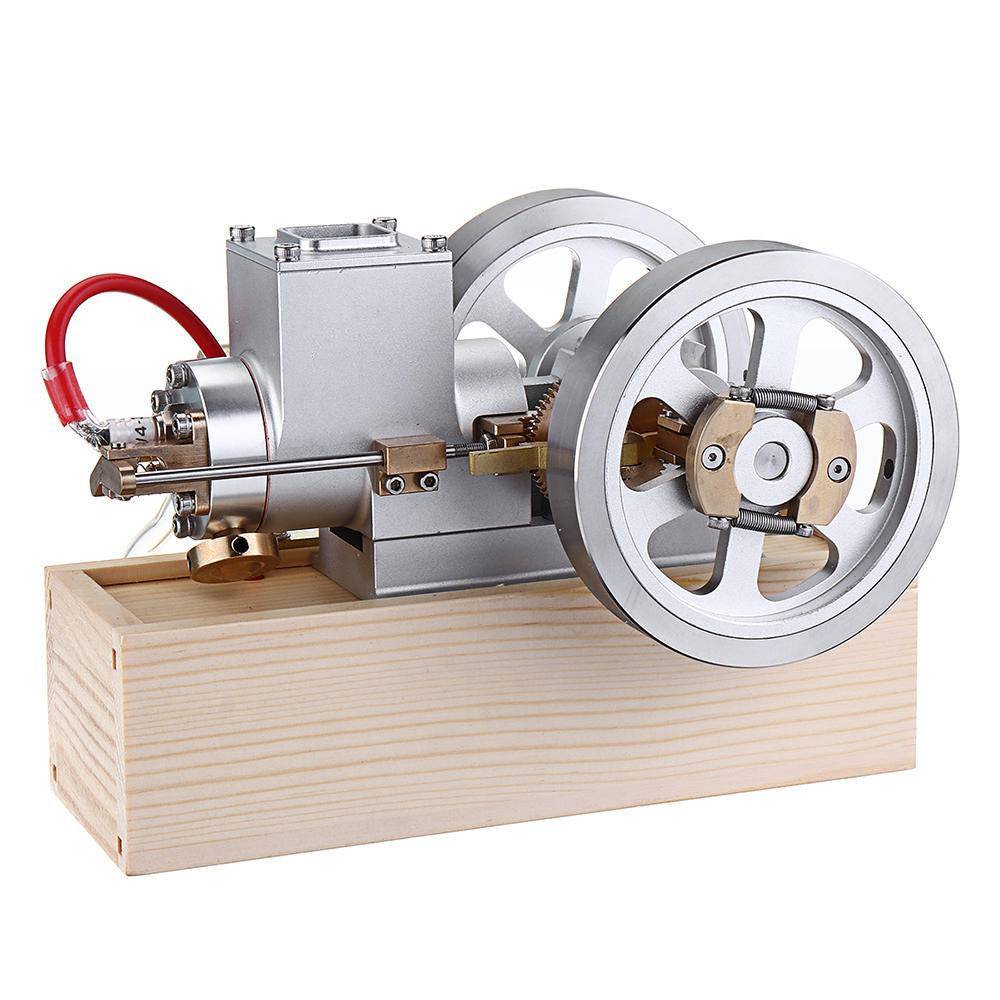

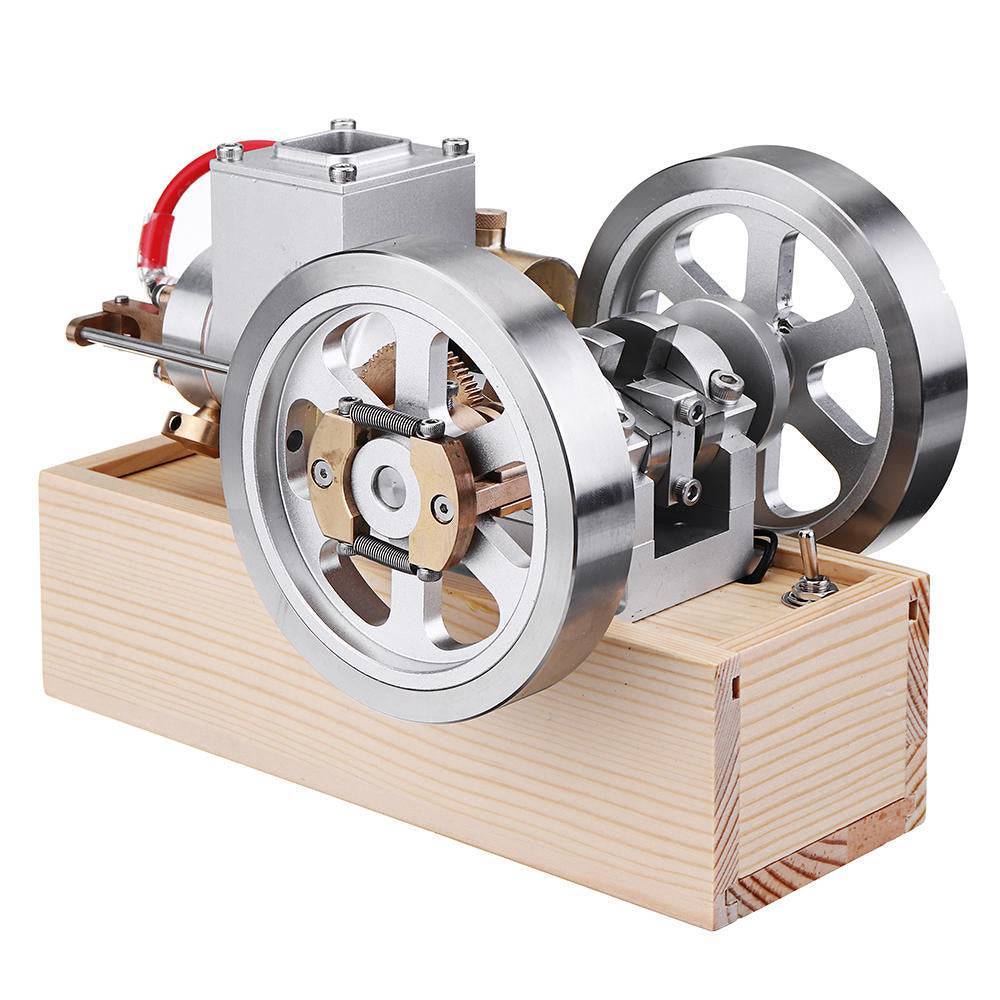

The defining feature of this engine is its speed control mechanism. You will see the "flying hammer" weights spin outward as speed increases. When the engine spins too fast, the governor cuts the ignition/fuel intake ("Miss"), allowing the engine to coast. When it slows down, it fires again ("Hit"). This self-regulating cycle is a joy to watch and explains the roots of automation control systems.
Specifications
- Product Name: Upgraded Full Metal Hit & Miss Gas Engine
- Material: Aluminum Alloy (Engine) + Solid Wood (Base)
- Total Weight: Approx. 2.2kg
- Dimensions (Engine): 180mm x 125mm x 75mm
- Dimensions (Base): 180mm x 66mm x 50mm
- Cylinder Diameter: 22mm
- Piston Stroke: 20mm
- Max Speed: Approx. 1200 RPM
- Fuel: 95# Gasoline or Kerosene
- Power Supply: 3.5V - 4.5V (Requires 3 x AA Batteries)
Usage Scenario: The Father-Son Project
Saturday morning. You place the heavy engine on the table. You show your son how to check the wiring and fill the tank with a precise amount of fuel. Together, you flip the switch. You explain that it might not start on the first spin—mechanics requires patience. You adjust the carburetor needle slightly. Then, a firm counterclockwise spin of the flywheel. The engine roars to life! The governor spins, the valves click. It’s more than just an engine running; it’s a shared memory of solving a problem together.
Important Tips from the Workshop
- The "Quarter Turn" Rule: If the ignition is sparking and compression is good, but it won't start, the fuel mixture is likely the issue. Gently screw the carburetor needle all the way in (don't over-tighten), then loosen it exactly 1/4 turn. This is usually the sweet spot for a cold start.
- Priming is Crucial: Before turning on the power, manually rotate the flywheel counterclockwise several times. This sucks the fuel mixture into the cylinder and clears air bubbles from the fuel line.
- Direction Matters: This specific engine is designed to run Counterclockwise (looking from the flywheel/governor side). Spinning it the wrong way will not start the engine.
Customer Support
We are dedicated to supporting your mechanical hobby. If you need assistance with tuning the governor, carburetor adjustments, or parts, please contact us: service@helloworld7.com
