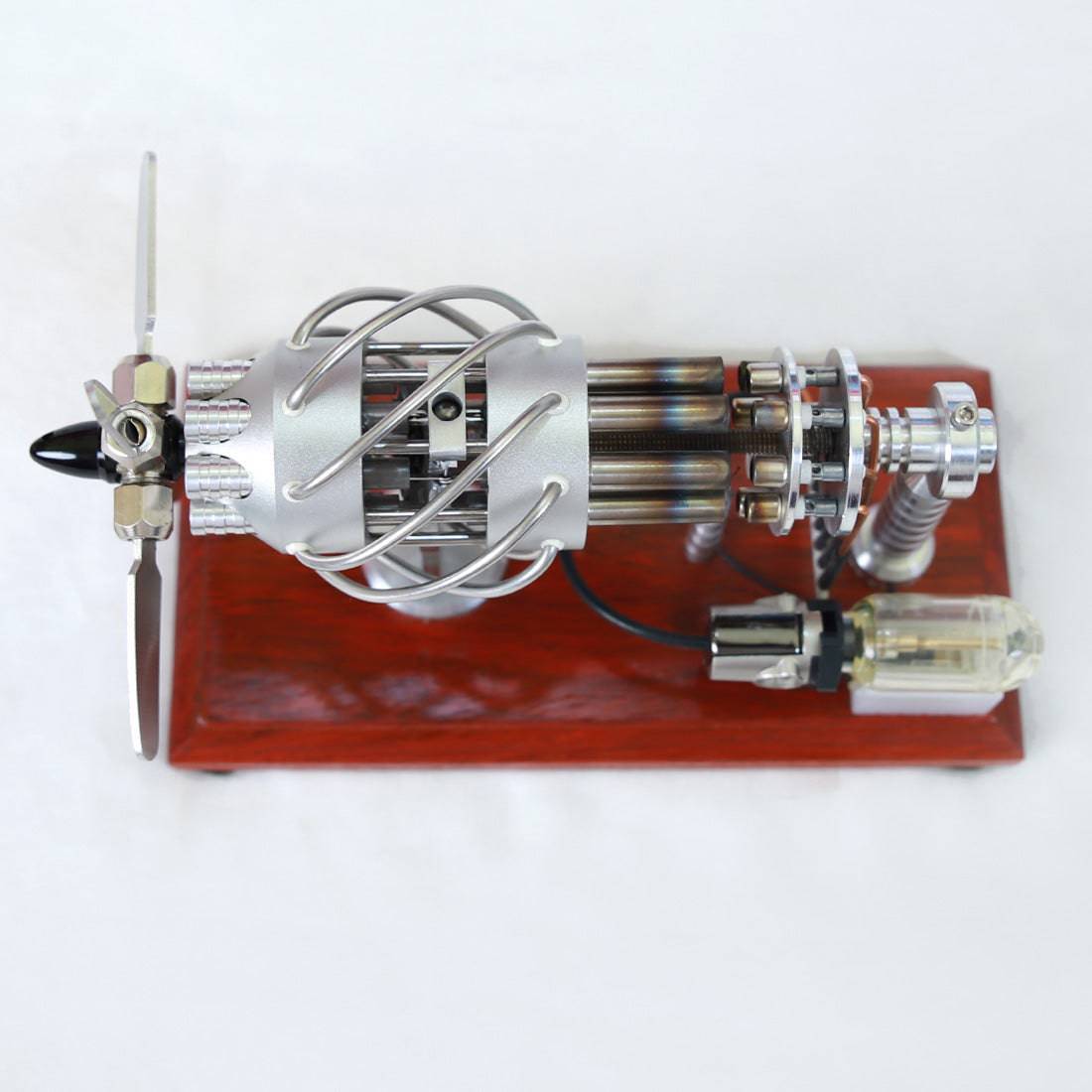

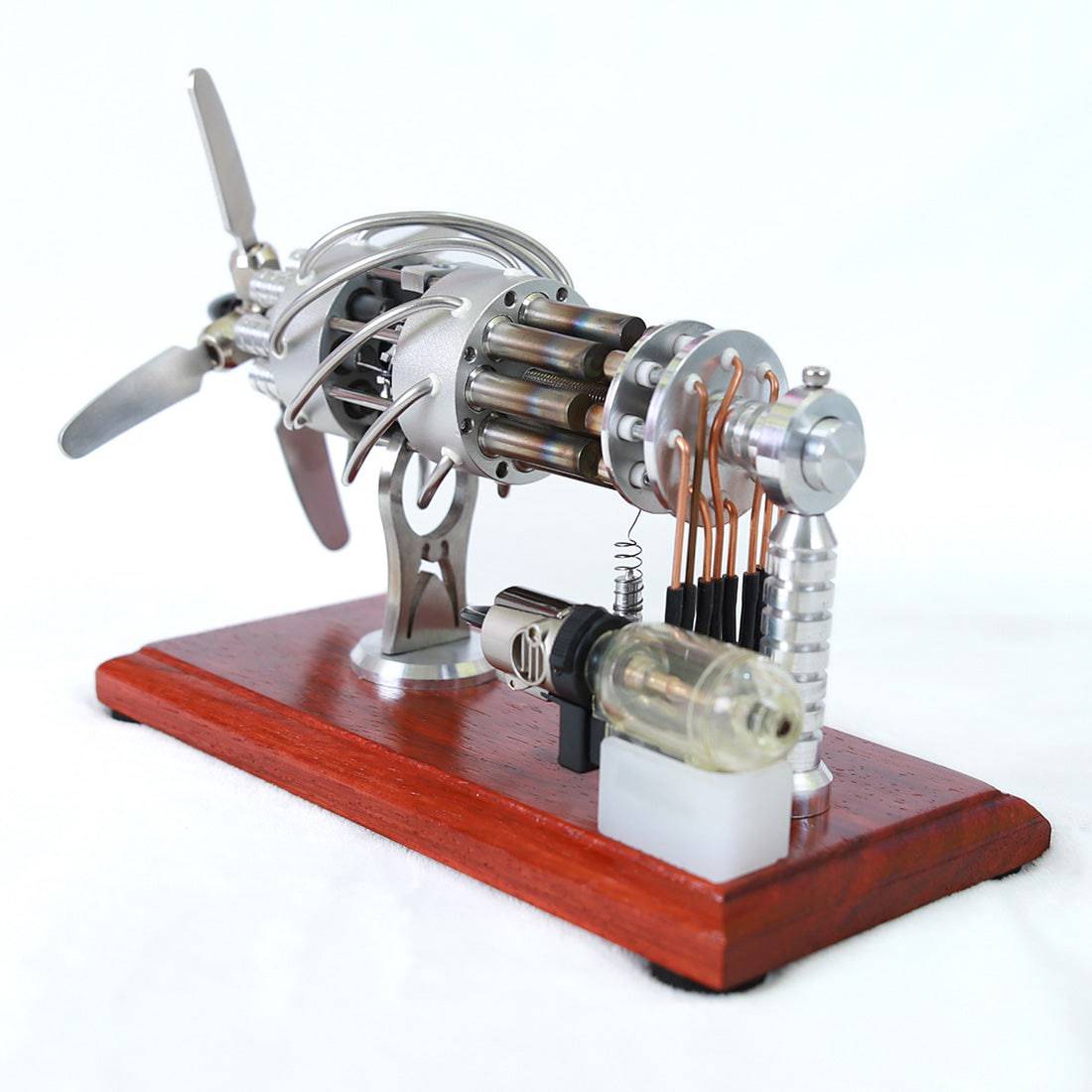

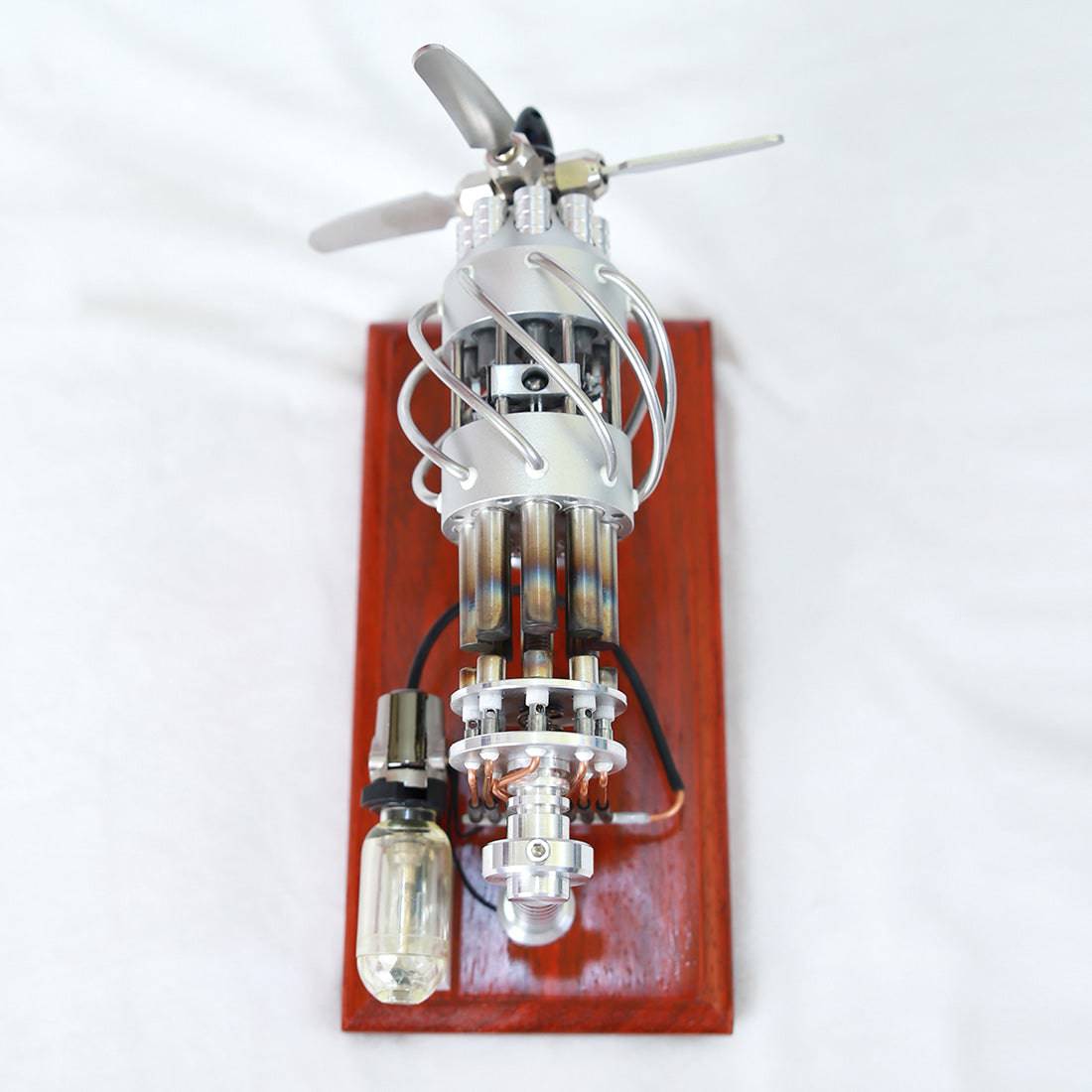

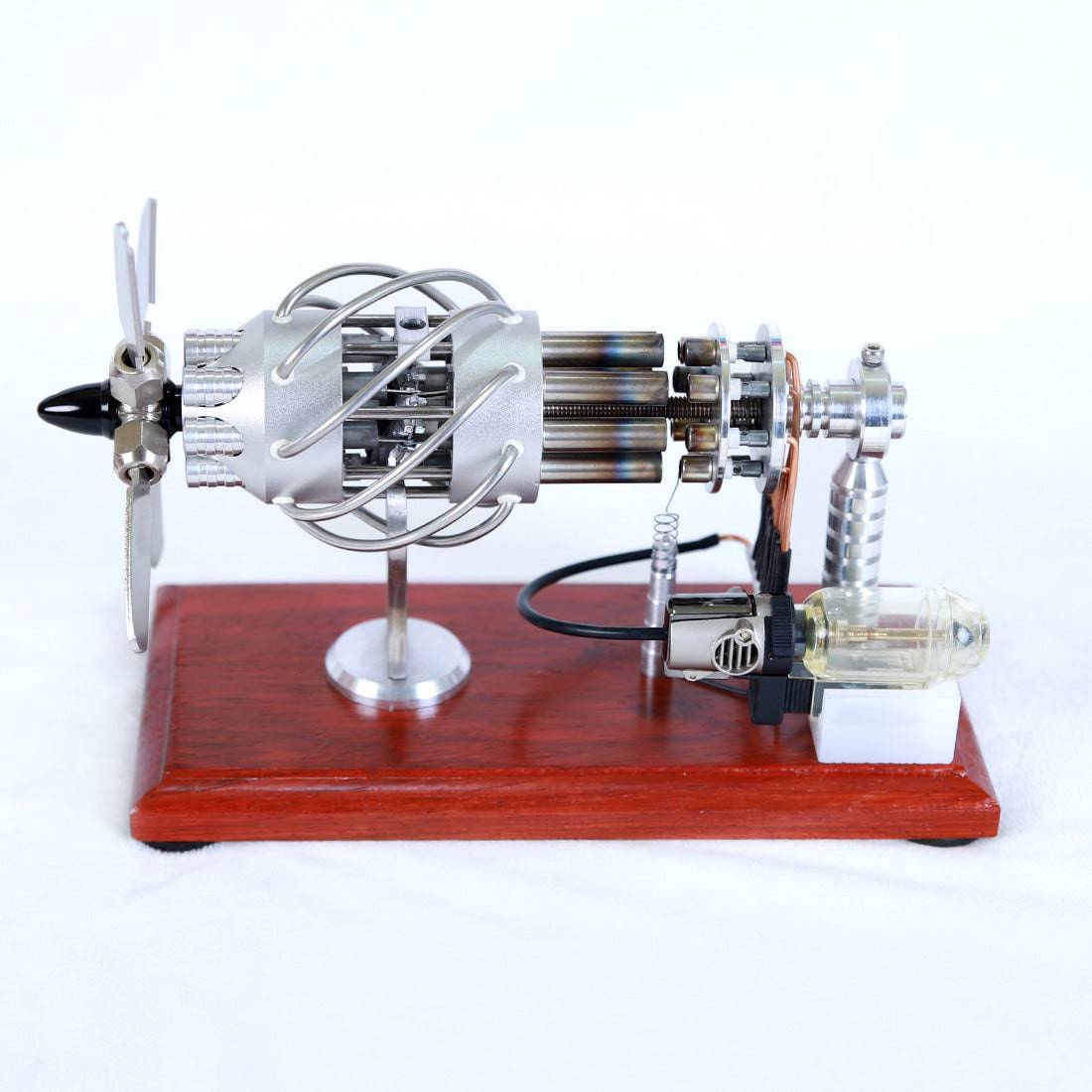

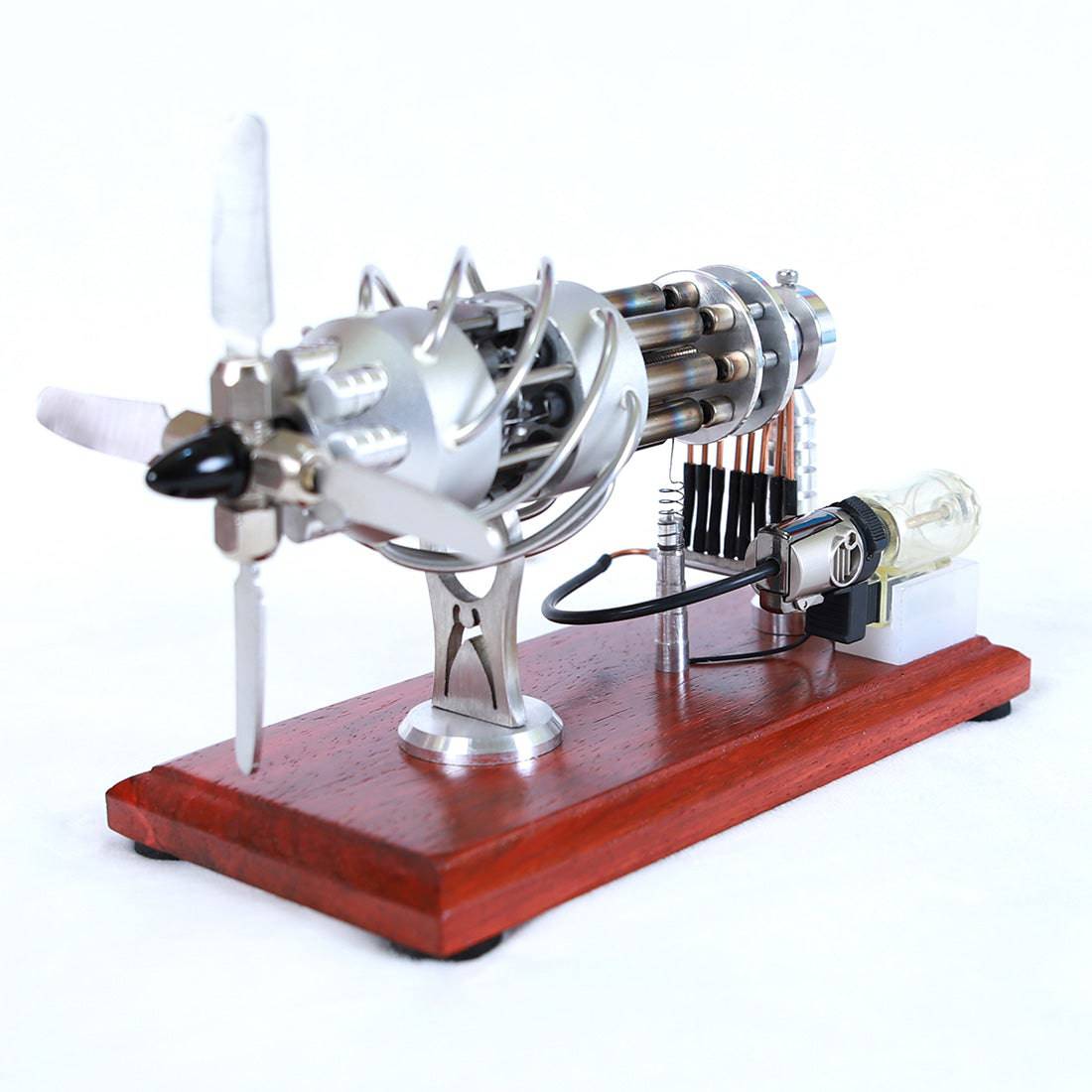

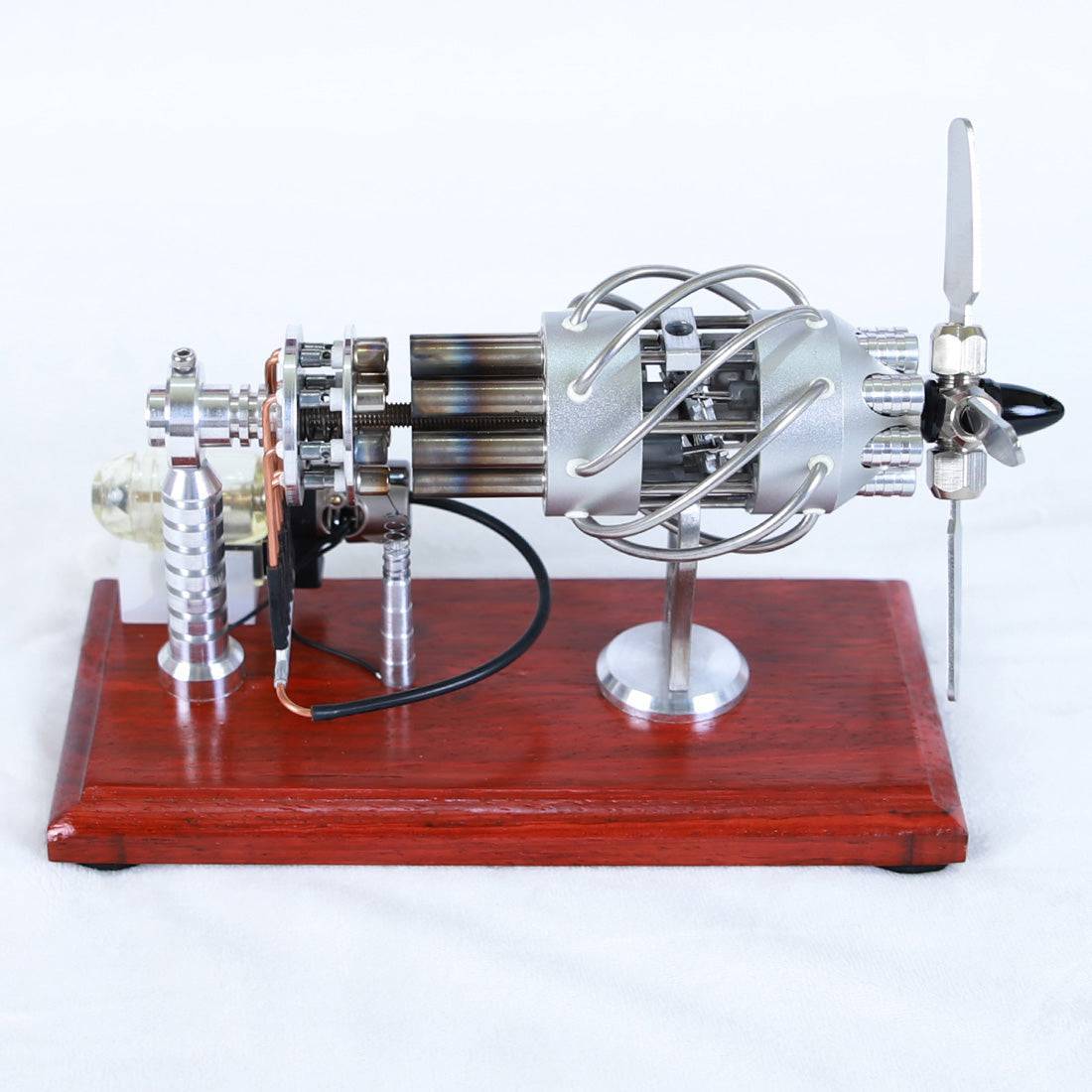

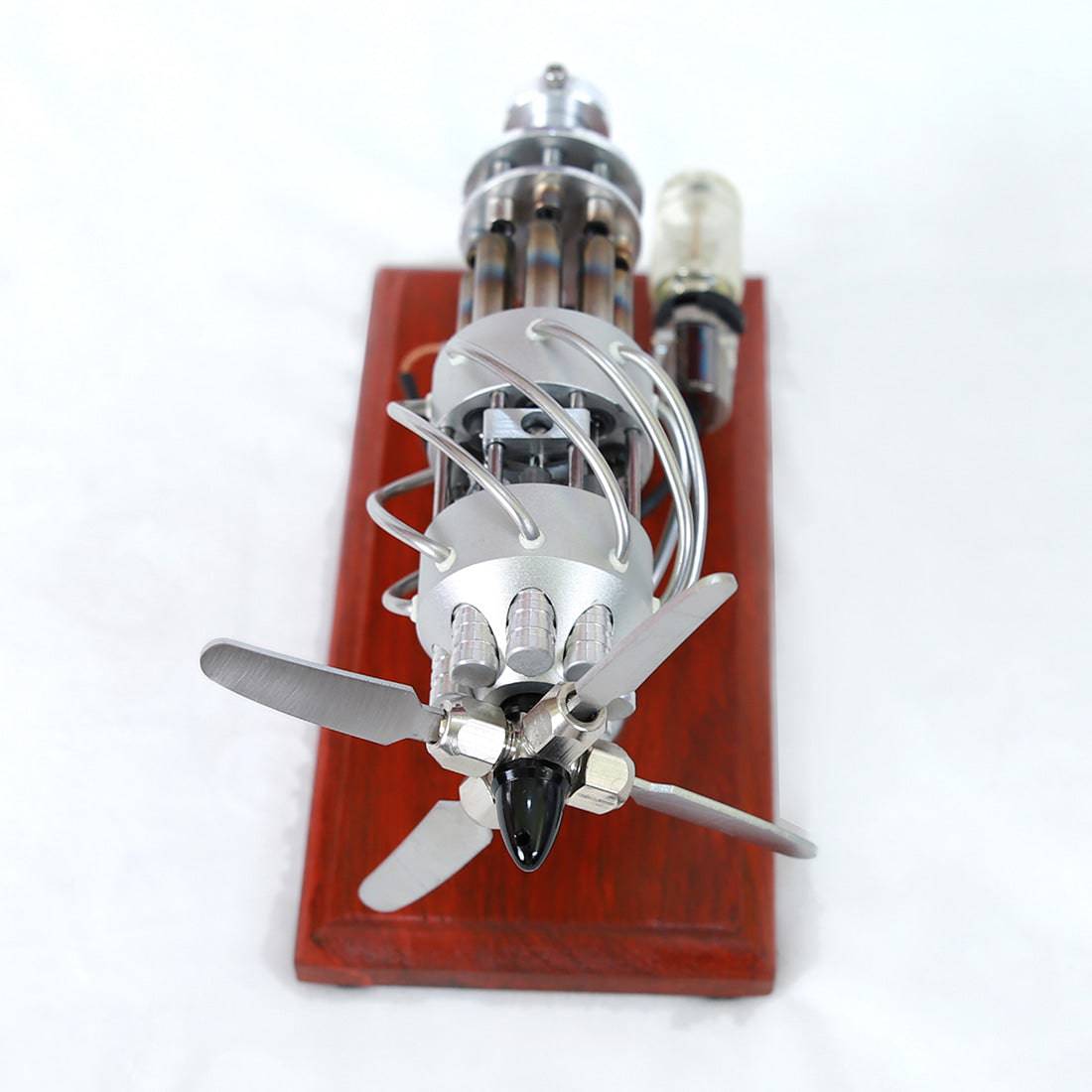

16 Cylinder Swash Plate Stirling Engine Model Stainless Steel Generator Physics Experiment Toy
Hero Section: A Mechanical Symphony of 16 Pistons
Prepare to witness the pinnacle of desktop engineering. This isn't just a model; it is a 16-cylinder radial masterpiece driven by a swash plate mechanism—a complex drive system rarely seen in model engines due to its engineering difficulty. Imagine the scene: you light the central lamp, and the flame distributes heat to 8 individual cylinders. As the thermal energy builds, the 16 pistons (8 hot, 8 cold) begin to pump in a mesmerizing, wave-like rhythm. It is fierce, elegant, and rigorously engineered. Whether you are a veteran collector or looking for the ultimate gift to honor a passion for mechanics, this engine delivers a sensory experience unlike any other.
Why Choose This 16-Cylinder Beast?
- The "Swash Plate" Spectacle: Unlike standard crankshaft engines, this model uses a central swash plate (floating bead link) to convert the reciprocating motion of 16 pistons into rotary power. Watching the pistons dance in perfect synchronization is a hypnotic experience that captivates engineers and novices alike.
- High-Power Output: With 8 heating cylinders and 8 cooling cylinders, this engine generates significant torque. It is powerful enough to drive the integrated generator interface, capable of lighting up LEDs to demonstrate energy conversion visually.
- Heirloom-Quality Construction: Weighing nearly 1kg, the engine is constructed from high-grade stainless steel and mounted on a solid wood base. It exudes a high-end, industrial aesthetic that makes it a stunning centerpiece for an executive desk or a collector's cabinet.
- Efficient Fire Distribution: The unique burner design features 8 fire-outlets that spark the flame directly to the stainless heating tubes. This ensures even heat distribution for a smooth, powerful run.
Technical Highlights: Engineering Insight
- Axial Piston Layout: The 16 cylinders are arranged axially, similar to the pumps used in heavy hydraulic machinery. This compact design allows for high power density and smooth operation without the vibration of single-cylinder engines.
- External Combustion Efficiency: Operating on the Stirling cycle, the engine uses the temperature differential to expand and compress air. The fuel burns continuously outside the cylinder, resulting in low noise and low pollution compared to internal combustion engines.
- Dry-Running Precision: The pistons are engineered for a precise fit within the stainless steel cylinders. They operate without liquid lubrication, relying on the low friction of the materials to maintain high speeds.
Specifications
- Structure: 16-Cylinder Swash Plate Drive (8 Heating / 8 Cooling)
- Material: Stainless Steel Body + Solid Wood Base
- Dimensions: 21.5 x 10 x 16.5 cm / 8.46 x 3.9 x 6.49 inches
- Product Weight: 950g
- Package Weight: 1000g
- Output: Generator Interface with LEDs
- Packing: Protective Carton Box
Usage Scenario: The Ultimate Workshop Centerpiece
It’s a Friday evening. You invite a few friends over to your workshop or study. You unveil this massive metal engine. You fill the lamp with alcohol and light it. The flames erupt from the 8 nozzles. After two minutes of preheating, you give the flywheel a gentle toggle. The engine roars to life—a low mechanical hum of 16 pistons working in unison. The LEDs light up. The conversation stops; everyone is mesmerized by the mechanical power on display. It is the ultimate expression of your passion for engineering.
Important Tips from the Expert
- Fuel Requirement: Use 95% purity alcohol (anhydrous industrial alcohol is best). Lower purity fuels contain water, which creates steam and prevents the engine from reaching the necessary temperature to run 16 cylinders.
- Zero Lubrication: The pistons are designed for a precision dry fit. Never add oil or grease to the cylinders or pistons. Oil will mix with dust to create a sticky sludge that will seize the engine. If it feels gritty, wipe gently with a clean tissue.
- Safety First: The heating tubes and metal body become extremely hot. Do not touch the heating zone during or immediately after operation.
Customer Support
We are dedicated to supporting your passion for high-end mechanics. If you need assistance with tuning, spare parts, or maintenance, please contact our expert support team at service@helloworld7.com
