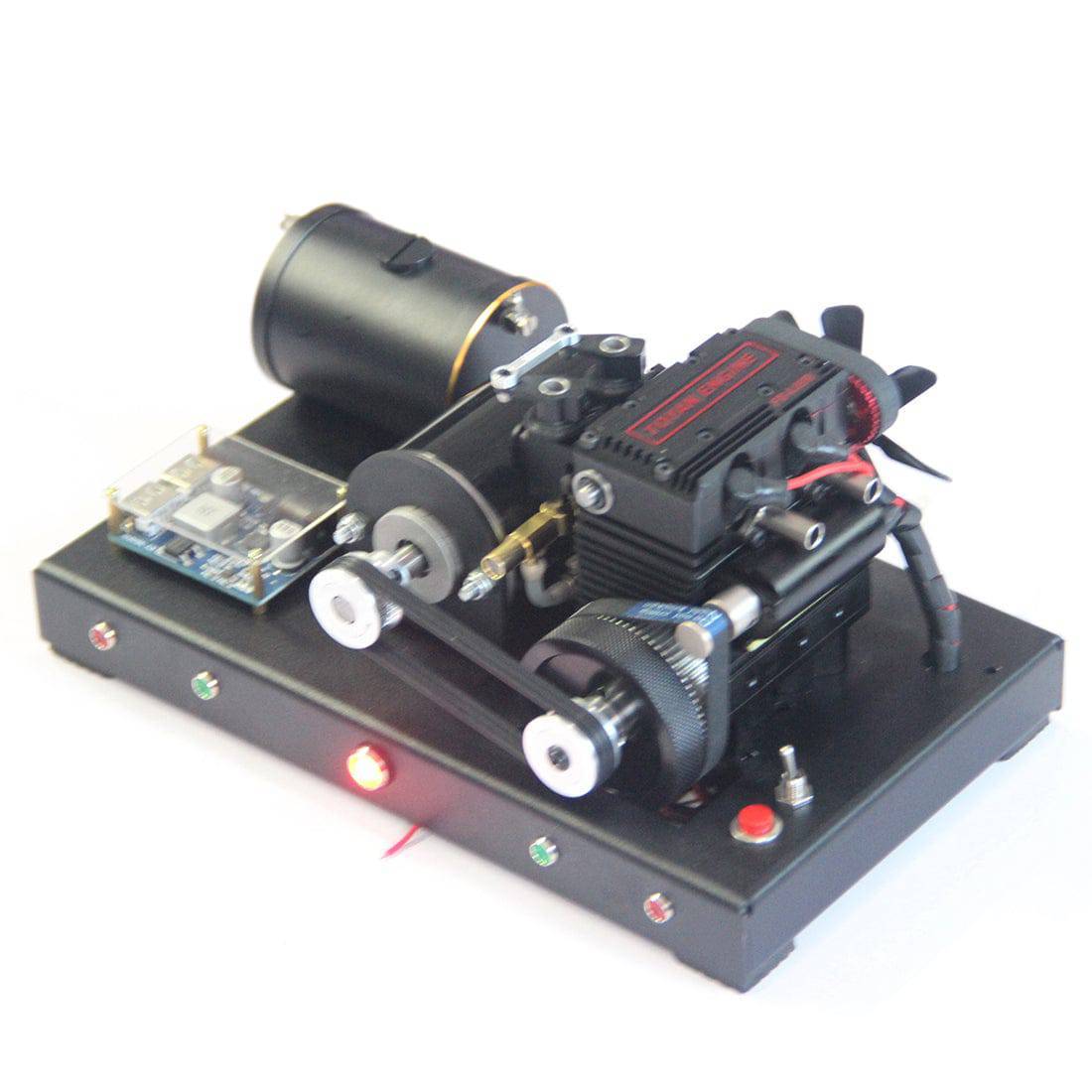

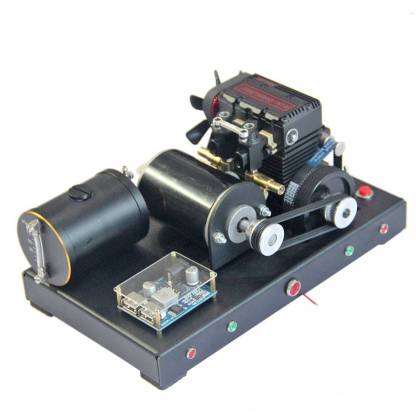

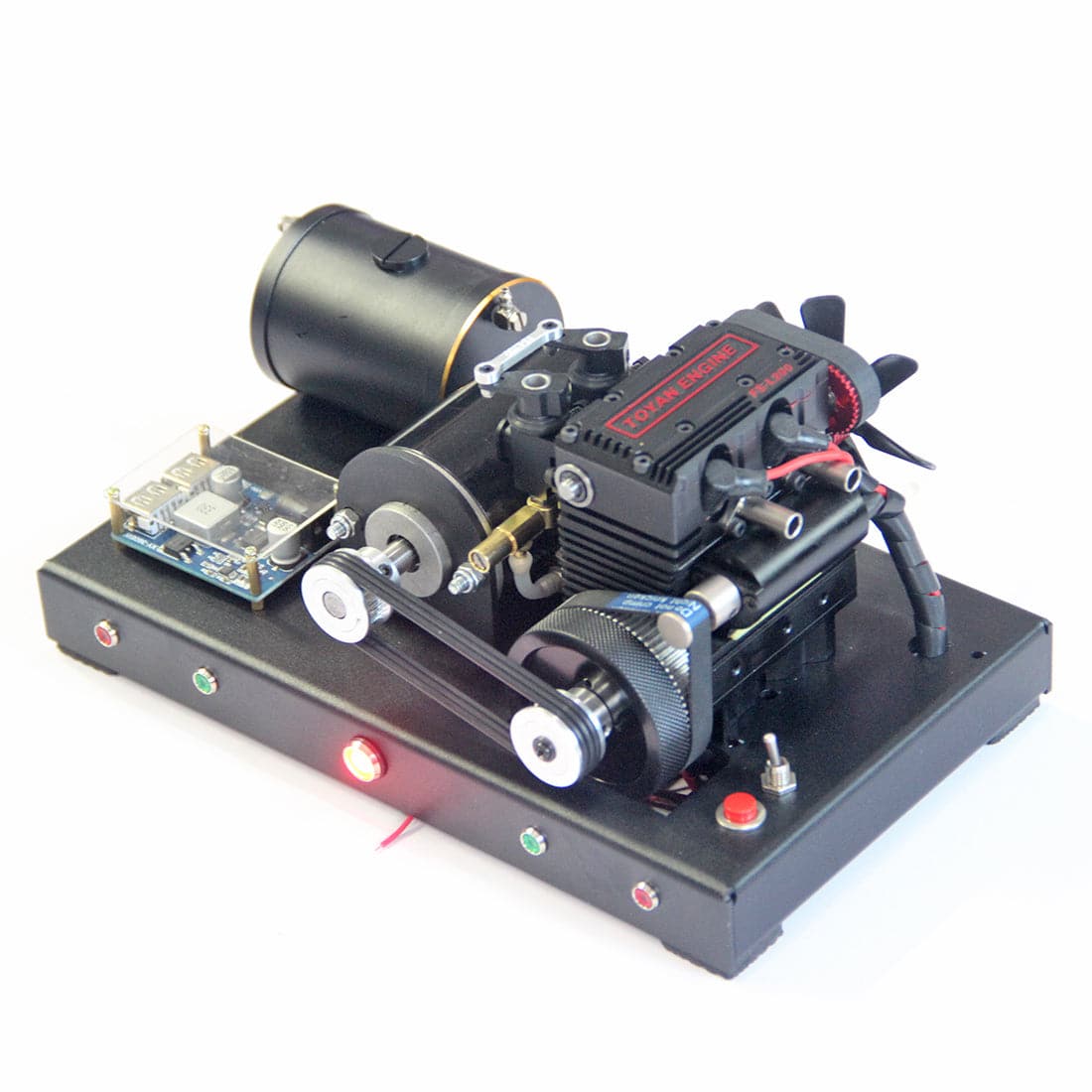

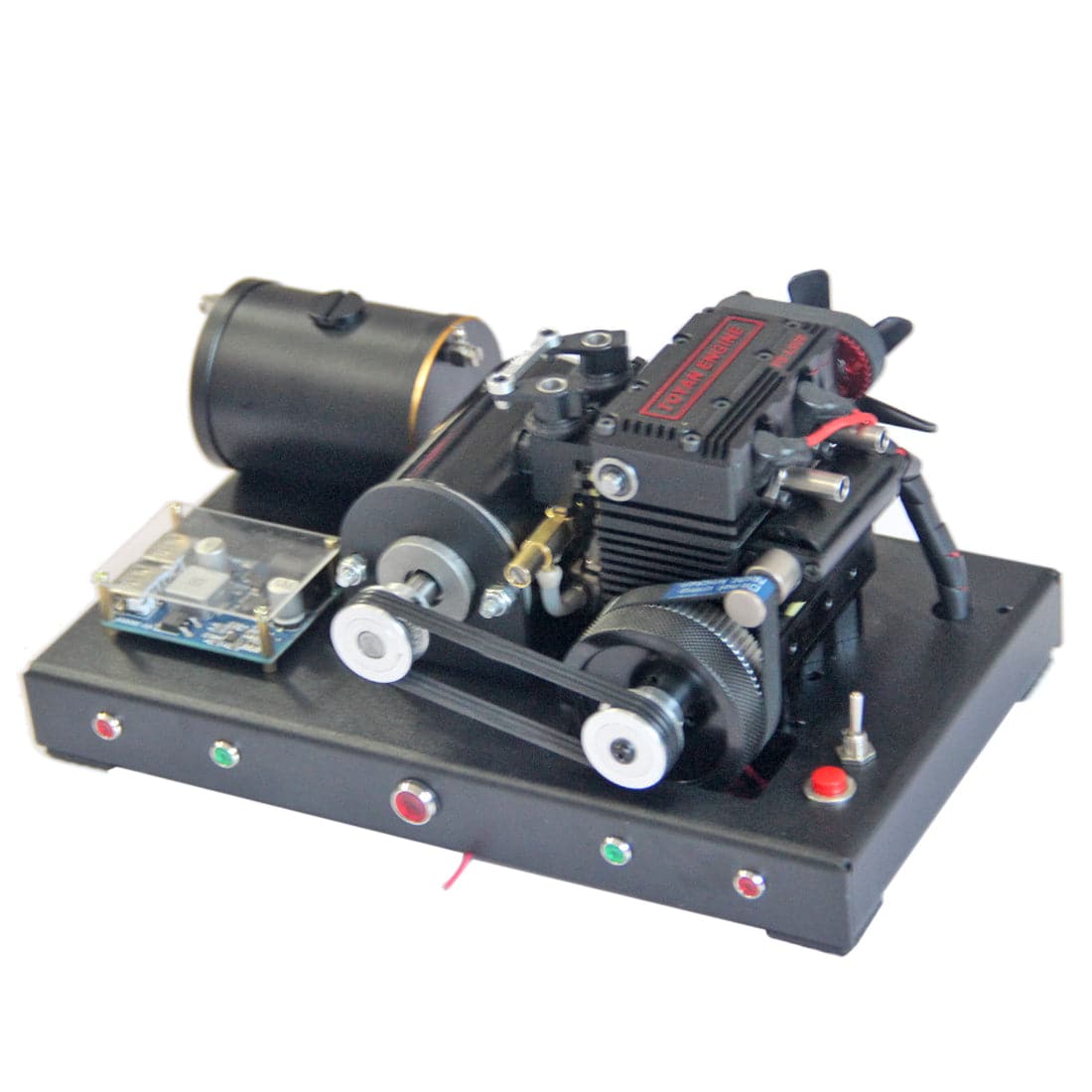

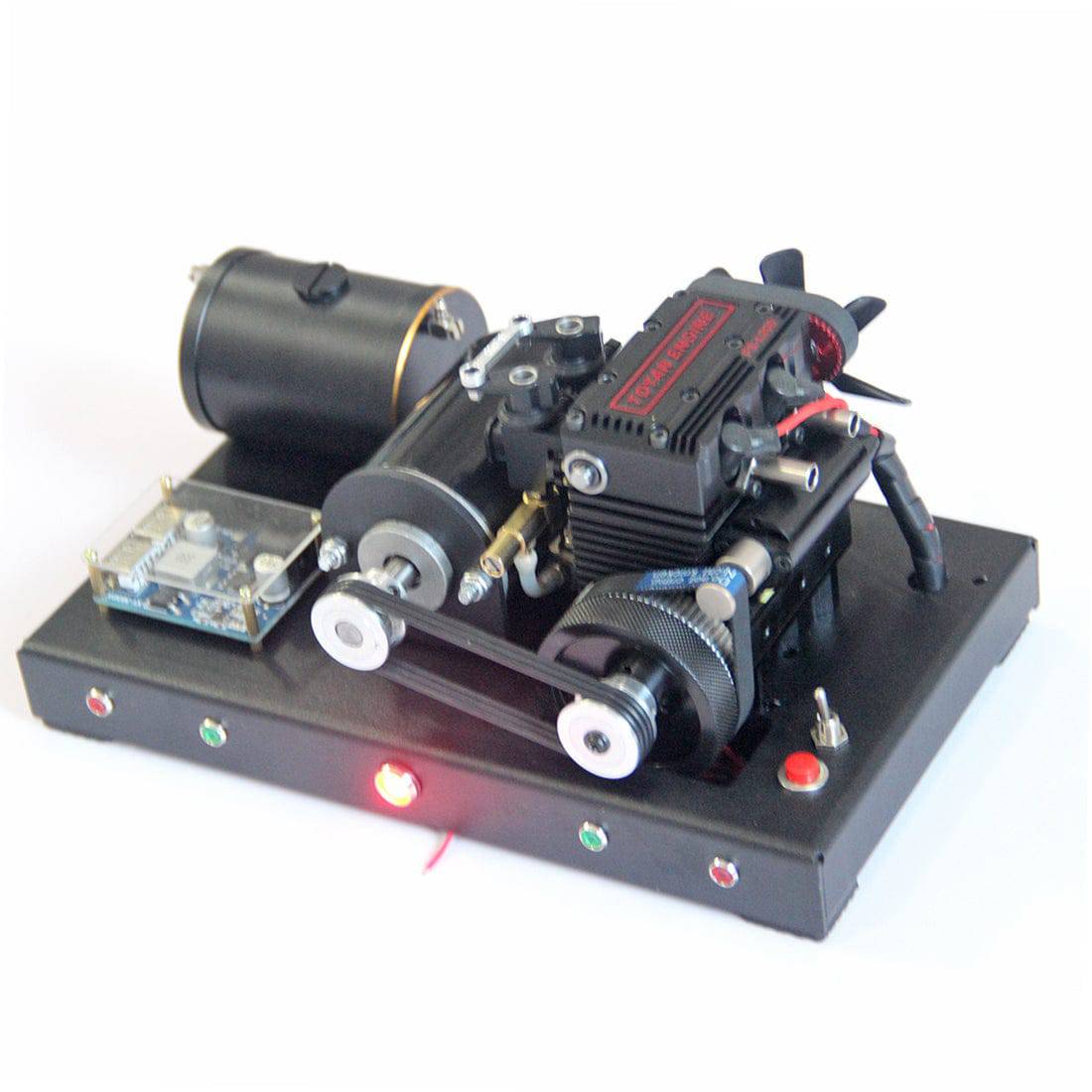

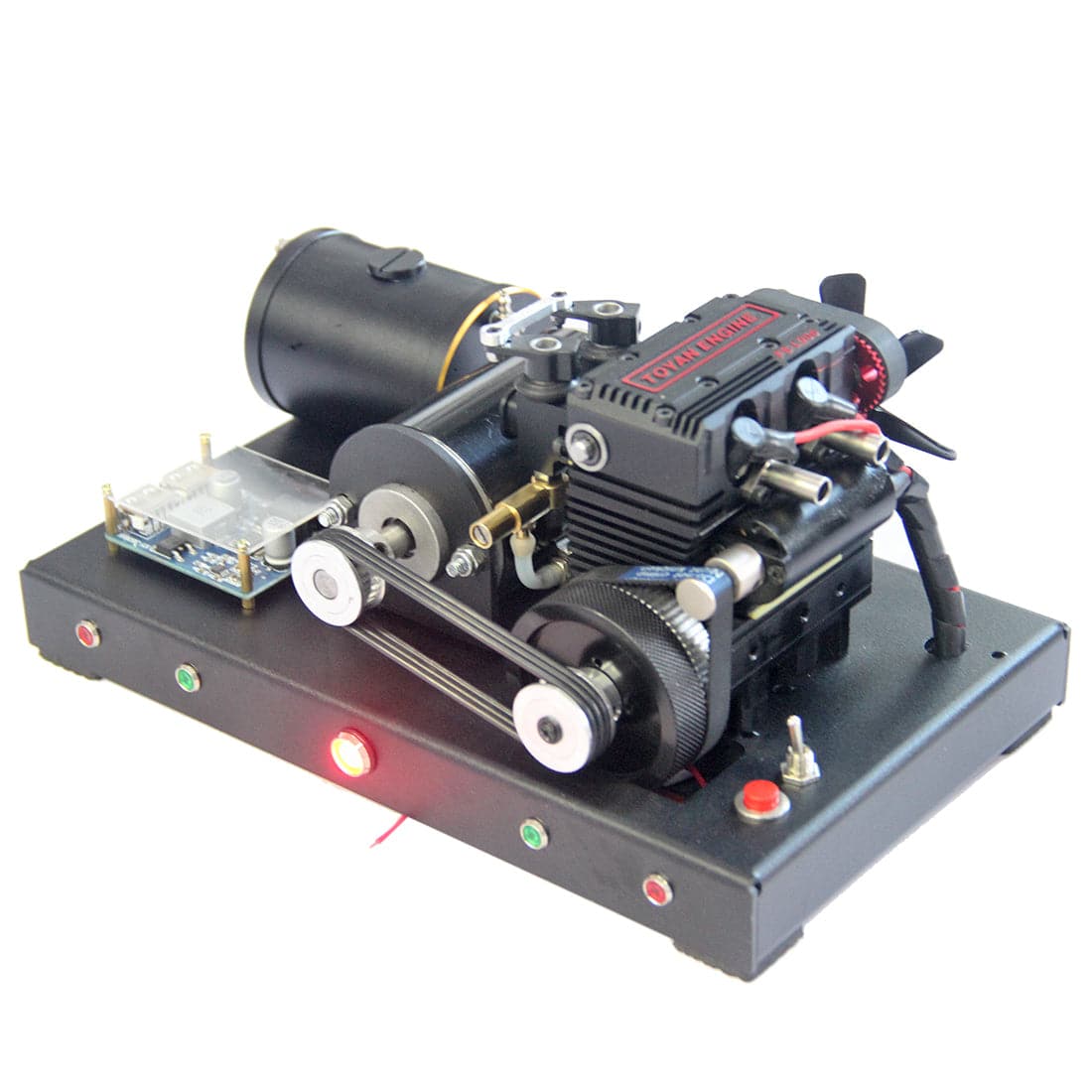

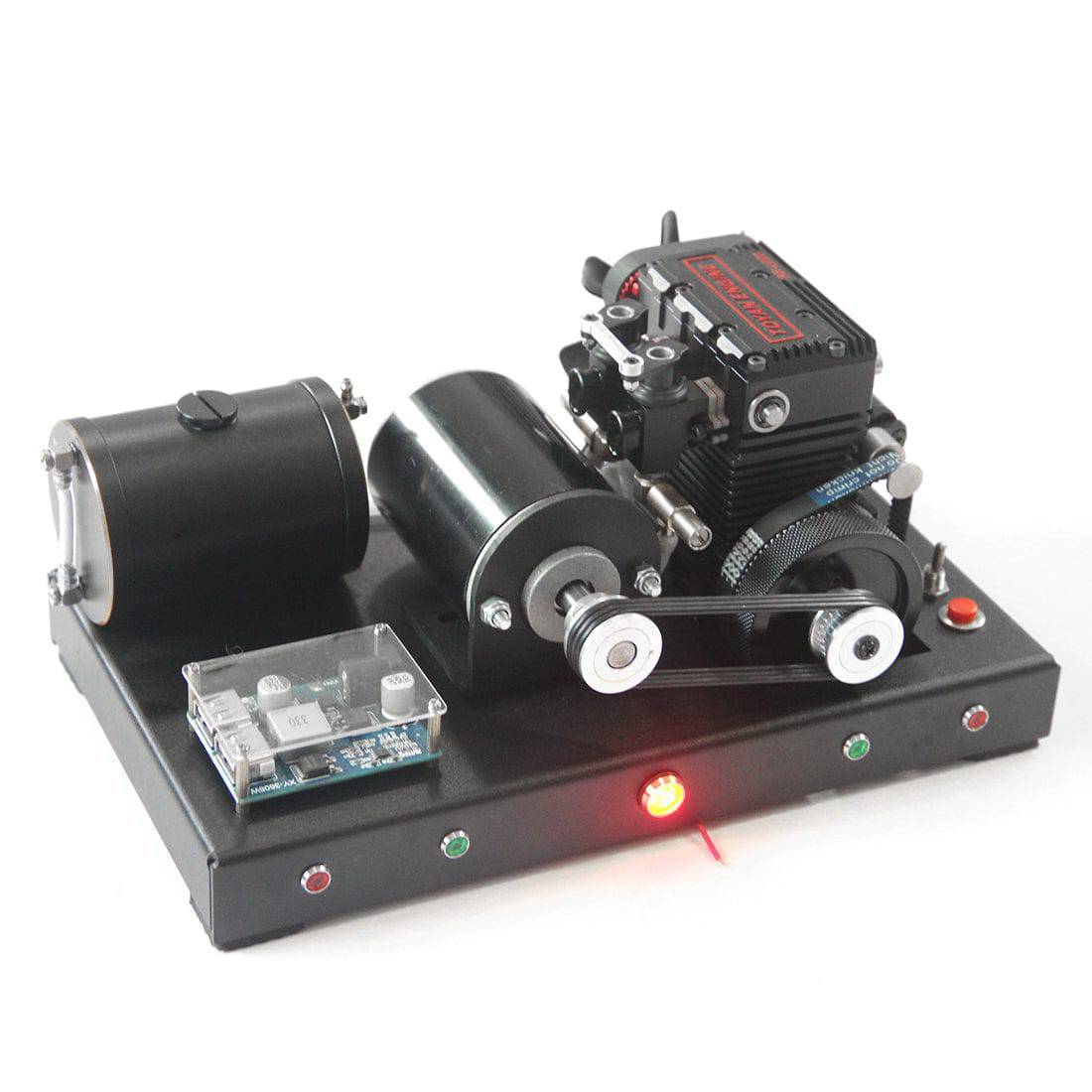

Modified TOYAN FS-L200 2-Cylinder 4-Stroke Nitro Engine Generator Model Kit 12V Output
Double the Power: TOYAN Twin-Cylinder Generator
This is the ultimate desktop power station. We have taken the acclaimed TOYAN FS-L200 Inline 2-Cylinder 4-Stroke Nitro Engine and transformed it into a fully functional, high-performance generator set.
Mounted on a premium metal base with a One-Key Electric Start, this unit combines the mesmerizing mechanical action of a twin-cylinder engine with real-world utility. Watch the dual carburetors breathe, hear the synchronized firing order, and see the voltage climb as it generates 12V electricity to power lights or charge devices.
Why Choose This Twin-Cylinder Generator?
1. The Power of Two Cylinders
Experience the difference. The FS-L200 features an asynchronous crankshaft structure that provides smoother operation and higher torque than single-cylinder models. With a redline of 16,000 RPM, the sound of the twin cylinders screaming in unison is pure mechanical music.
2. Functional 12V Power Generation
It’s not just for show. The engine drives a generator head to produce a regulated 12V DC output. Whether you are demonstrating energy conversion in a classroom or powering a campsite, this unit delivers reliable electricity for lighting, charging, and small electronics.
3. Ready-to-Run Engineering
No complex assembly required. The generator set ships fully assembled and mounted on a sturdy metal base (230x135mm). It includes the ignition system and starter motor. Simply add nitro fuel (20-25%), connect a battery, and press the start button.
4. Precision Tuning Potential
For the true enthusiast, the dual carburetor design allows for independent tuning of each cylinder. This offers a deep level of engagement, letting you optimize the air/fuel mixture for maximum performance and stability.
Technical Highlights: Engineering Excellence
- CNC Aluminum Construction: The engine is precision-machined from aluminum alloy, ensuring a lightweight yet durable structure that dissipates heat effectively.
- Short Rocker Arm Valve Train: This design ensures precise valve timing at high RPMs, maximizing efficiency and power output.
- One-Key Electric Start: The integrated high-torque starter motor makes firing up the twin-cylinder beast effortless. No more pull cords or glow plug heaters.
Specifications
- Engine: TOYAN FS-L200 Inline 2-Cylinder 4-Stroke Nitro
- Displacement: 7cc (3.5cc x 2)
- RPM Range: 2800 - 16000 rpm
- Power Output: 0.82ps
- Generator Output: 12V DC (Regulated)
- Start System: One-Key Electric Start
- Fuel: Nitro Methanol Fuel (20-25%)
- Base Dimensions: 23cm x 13.5cm x 2.5cm
- Total Weight: 2000g
- Battery Requirement: 2S-3S LiPo (for starter)
Usage Scenario: The Engineering Showcase
It’s a science fair or a hobby meet-up. You place the twin-cylinder generator on the table. You fill the tank. You press the start button. The starter whines, and then—VROOM!—the engine catches, settling into a smooth, multi-cylinder idle.
You rev it up, the sound deepening. You connect a 12V LED floodlight, and it blazes to life. The crowd gathers, fascinated by the visible valve movement and the sheer mechanical complexity of a working twin-cylinder power plant.
