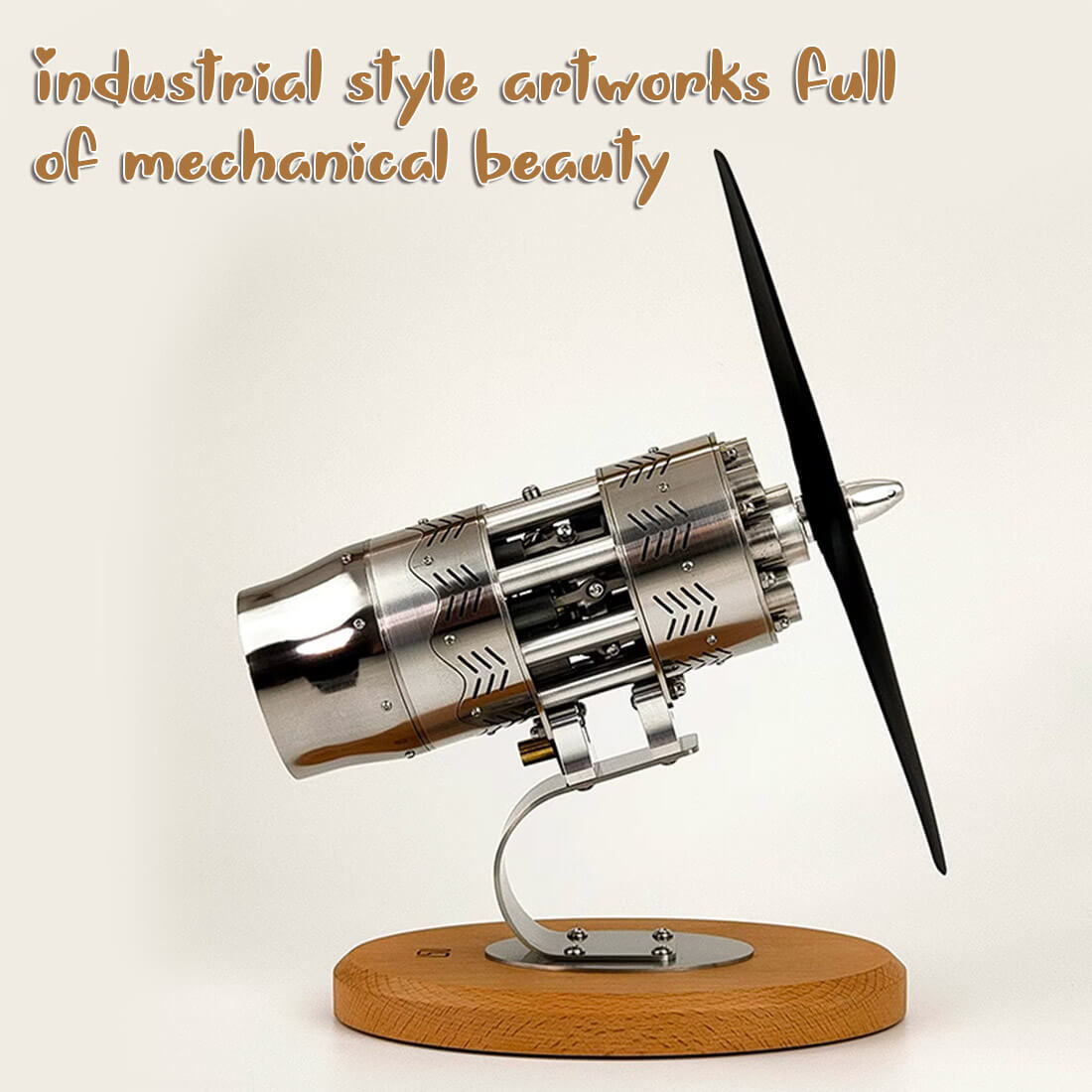

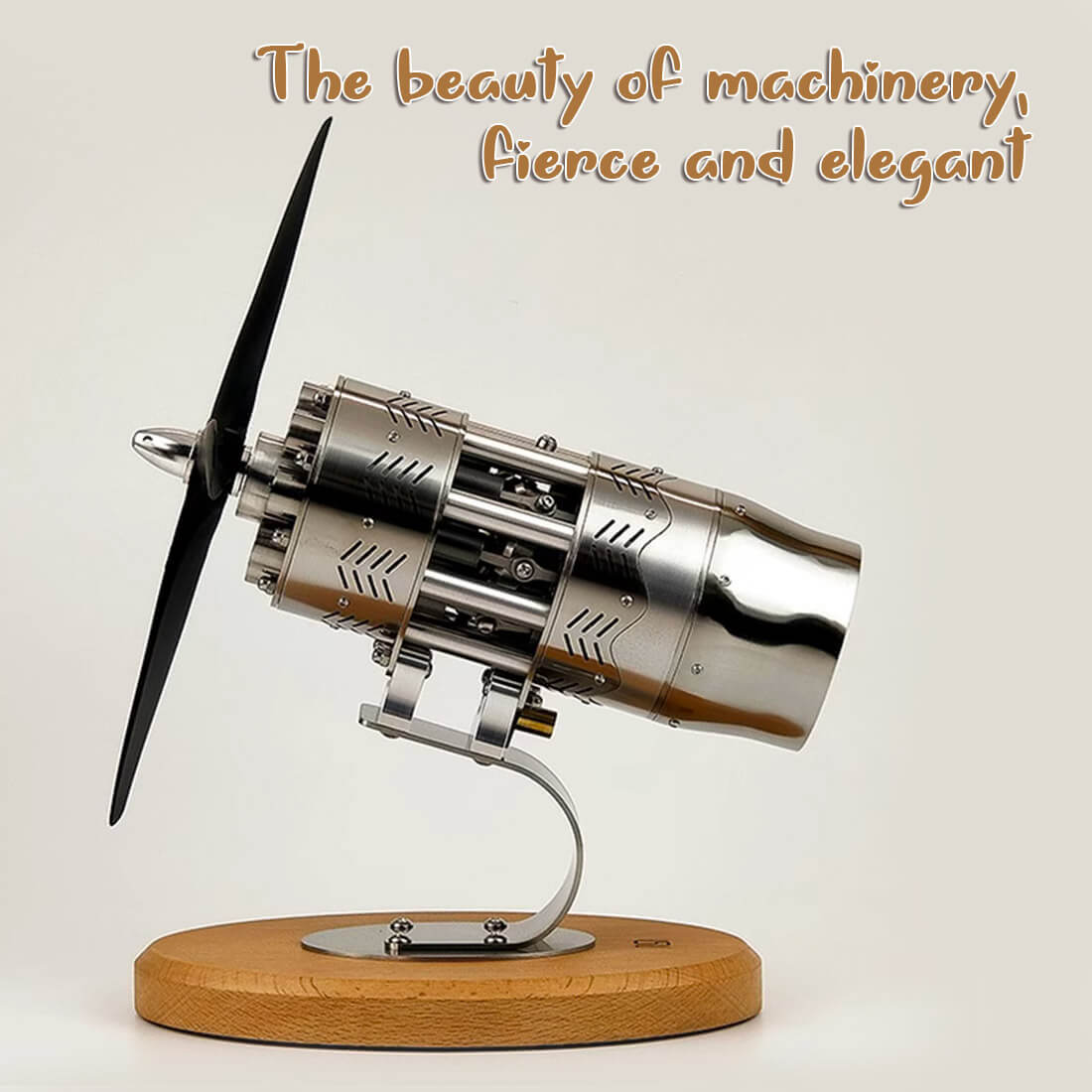

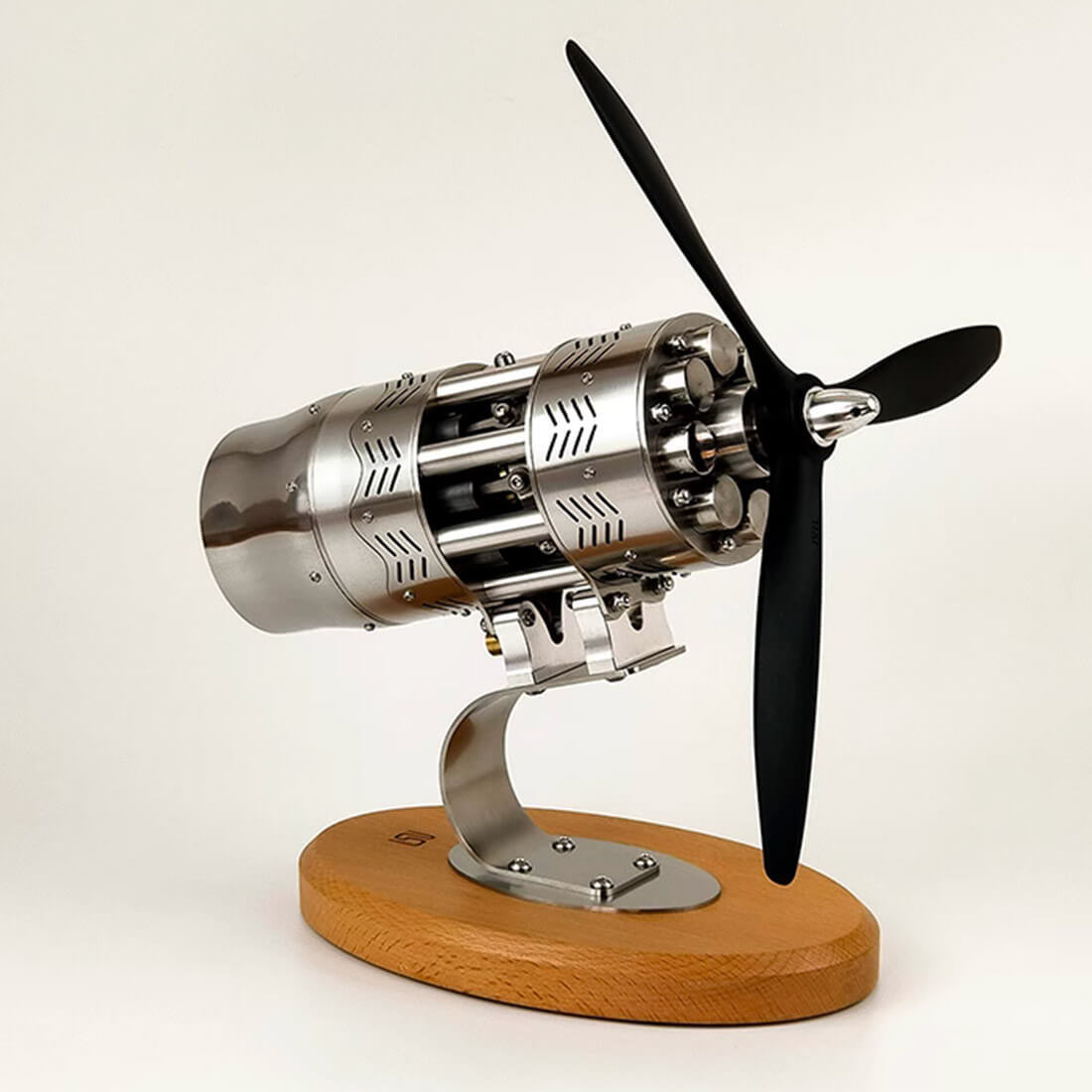

16 Cylinder Swashplate Stirling Engine Model Metal Butane Powered Kinetic Art Generator
Hero Section: A Symphony of Steel and Fire
Prepare to be mesmerized. The 16STL-2.0 is not merely an engine; it is a mechanical masterpiece that blurs the line between engineering and art. Imagine the sight of 16 pistons dancing in perfect, rhythmic unison, driven by the silent power of thermodynamics. When ignited, the rear nozzle erupts with a stunning "Blue Lotus" flame, while the propeller spins with a deep, resonant hum that sounds like a torrent of power. Whether displayed on an executive desk or in a workshop, this engine commands attention and respect. It is the ultimate expression of industrial aesthetics and mechanical freedom.
Why Choose the 16STL-2.0 Swashplate Engine?

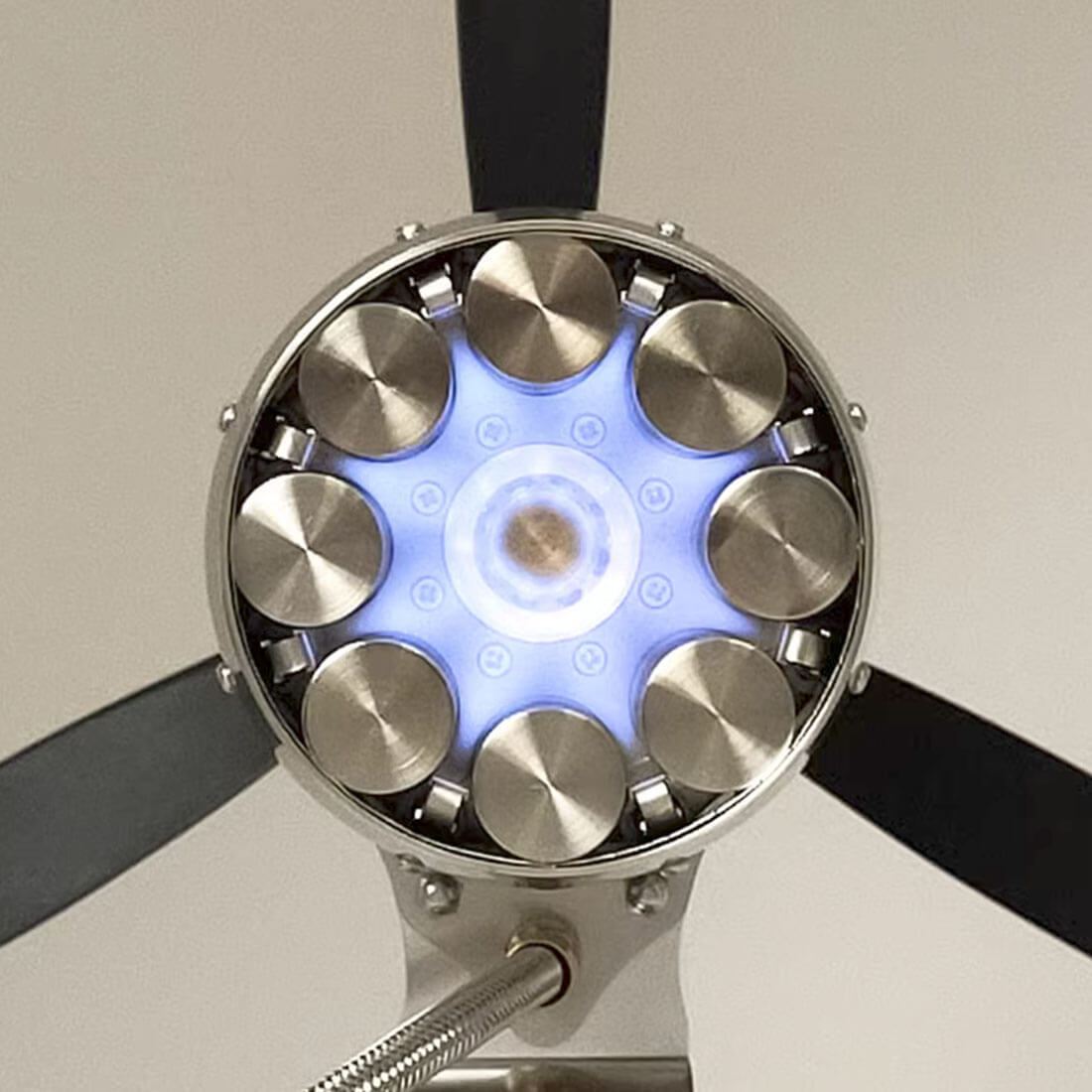

- The "Blue Lotus" Visual Spectacle: Unlike standard engines, the exhaust and heat source create a breathtaking visual effect. The butane flame blooms like a blue lotus flower at the tail, adding a dramatic flair to the mechanical motion.
- Rare Swashplate Mechanism: Most models use simple crankshafts. This beast employs a sophisticated swashplate design (often used in real helicopters and torpedoes) to convert reciprocating motion into rotary power. It’s a complex, fascinating mechanism to watch in action.

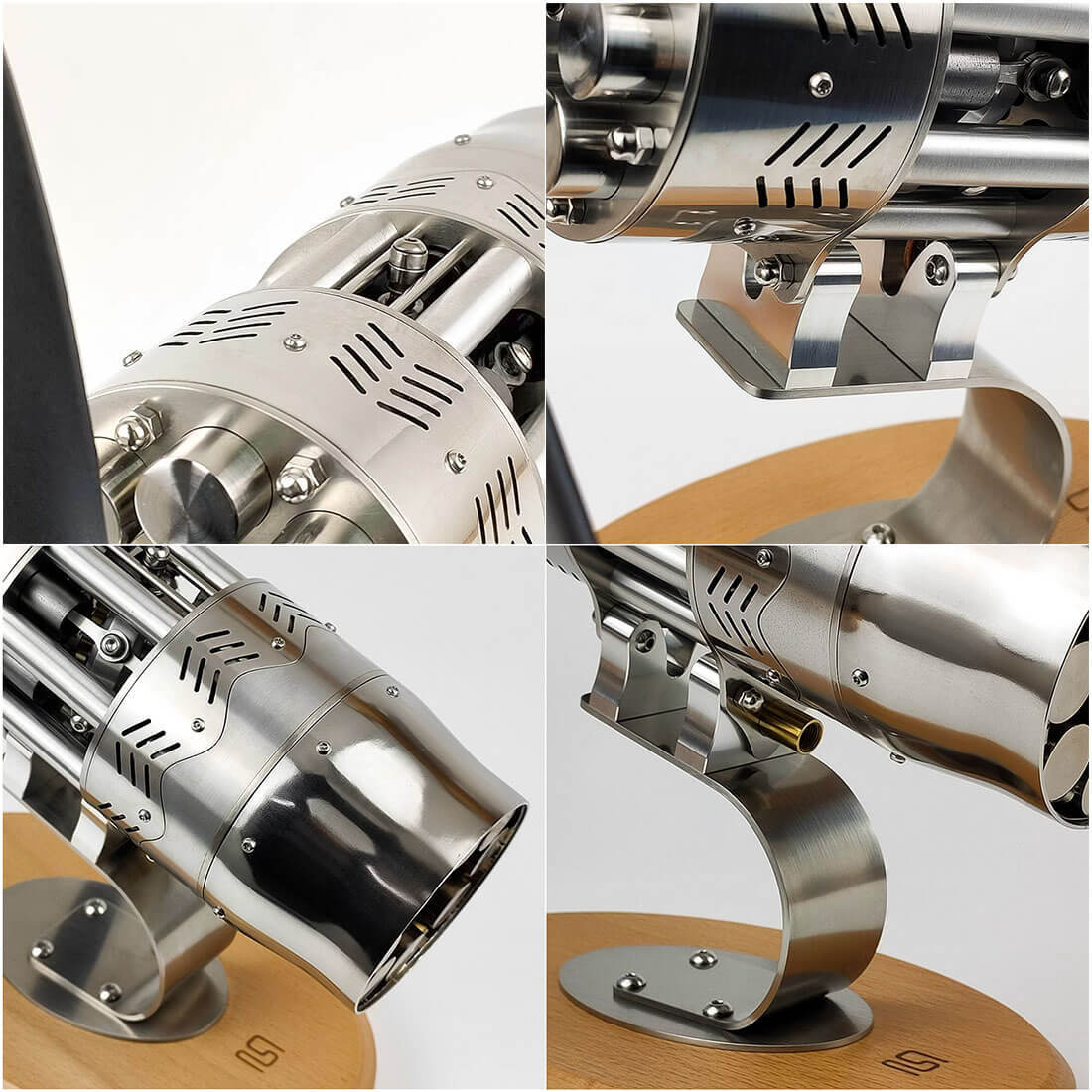

- Unmatched Complexity & Precision: With 16 cylinders working in harmony, the manufacturing precision required is immense. Made from stainless steel and aluminum alloy, it exudes a sense of robustness and luxury. It’s heavy, solid, and built to last.
- The Ultimate Gift for the Man Who Has Everything: Struggling to find a gift for an engineer, a mechanic, or a technology enthusiast? This is it. It’s not a toy; it’s a collectible kinetic sculpture that offers a sense of ownership pride that few other items can match.
Technical Highlights: Engineering Excellence
- Butane Power Source: Powered by readily available liquefied butane gas (lighter fluid), it offers a clean, consistent, and powerful heat source compared to messy alcohol lamps.
- High-Speed Performance: Capable of reaching speeds up to 2000 RPM, the engine generates significant torque. The sound of the 16 cylinders firing (via heat expansion) creates a unique "humming" drone that is music to a gearhead's ears.
- Dry Lubrication System: The pistons and cylinders are machined to such tight tolerances that they require no liquid lubrication. This ensures the engine stays clean and prevents the "gumming up" that ruins lesser models.
Specifications
- Model: 16 Cylinder Swashplate Stirling Engine (16stl-2.0)
- Material: Stainless Steel (Body), Aluminum Alloy, Bamboo (Base)

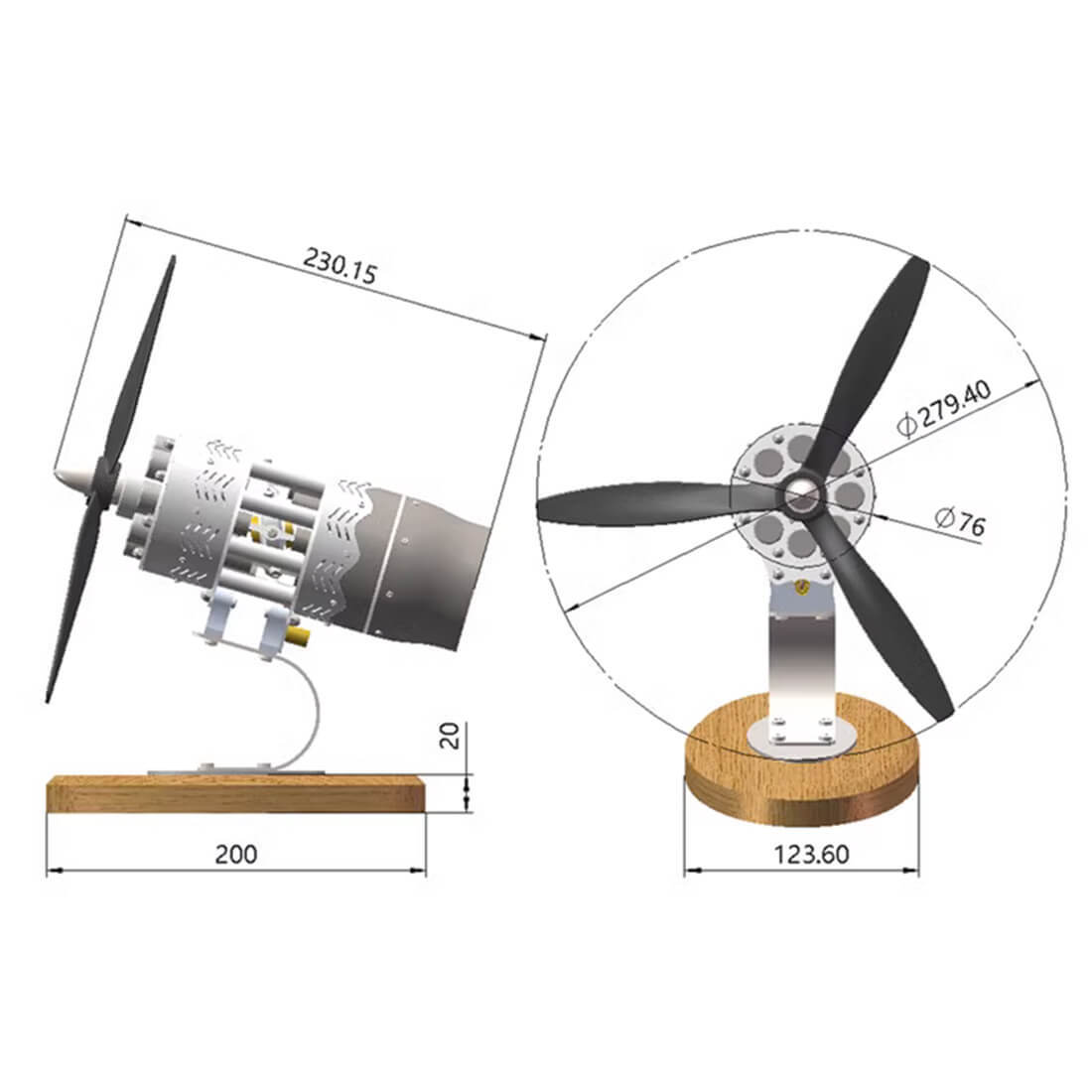

- Dimensions: 23.02 x 7.6 x 30 cm
- Cylinder Diameter: 12.7mm
- Stroke: 10mm
- Fuel: Liquefied Butane Gas
- Speed: Up to 2000 r/min
- Product Weight: 2150g (4.7 lbs)
- Package Weight: 4000g (8.8 lbs)

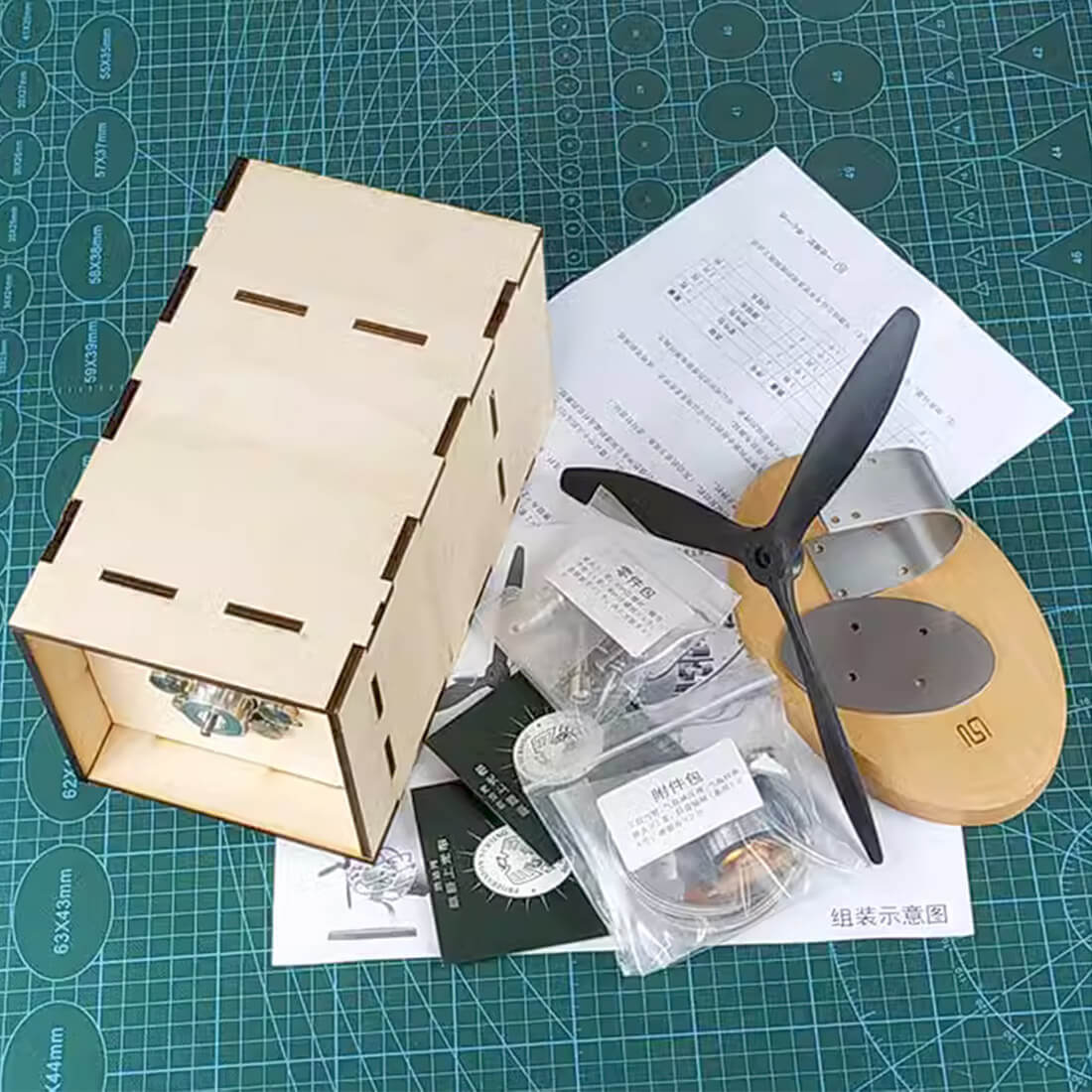

- Package Content: Engine, Propeller, Base, Maintenance Cloth, User Manual
Usage Scenario: The Executive's Zen
It’s late evening in your study. You connect the small butane tank and open the valve. You click the lighter. A brilliant blue flame erupts at the tail. You wait a minute for the heat to soak into the stainless steel headers. Then, you give the propeller a gentle counter-clockwise spin. Whoosh. The engine catches. The 16 pistons begin their hypnotic dance. The sound is a steady, powerful thrum. For the next ten minutes, you are lost in the rhythm, watching the interplay of fire and metal. It is the perfect way to decompress and refocus.
Important Tips from the Expert
- The "No Oil" Rule: Crucial: Never add oil or grease to the pistons or cylinders. Oil will mix with dust and heat to create a sticky paste that will seize the engine. If it gets dusty, simply blow it out with air or use a soft brush.
- Flame Management: Run the engine with a medium-to-small flame. A massive flame might look cool, but prolonged overheating can discolor the tail cover and accelerate wear on the swashplate rods.
- Polishing Care: If the stainless steel tail cover develops a yellow tint from heat (a natural reaction), use the included silver polishing cloth to restore its shine.
Customer Support
This is a complex machine, and we are here to support your journey with it. If you need maintenance advice or spare parts, our dedicated team is ready: service@helloworld7.com
