DIY 1/10 Scale Metal RC Car Chassis Kit for Toyan FS-L200 4-Stroke Engine
The Engineer's Playground: Build Your Dream 4-Stroke Crawler

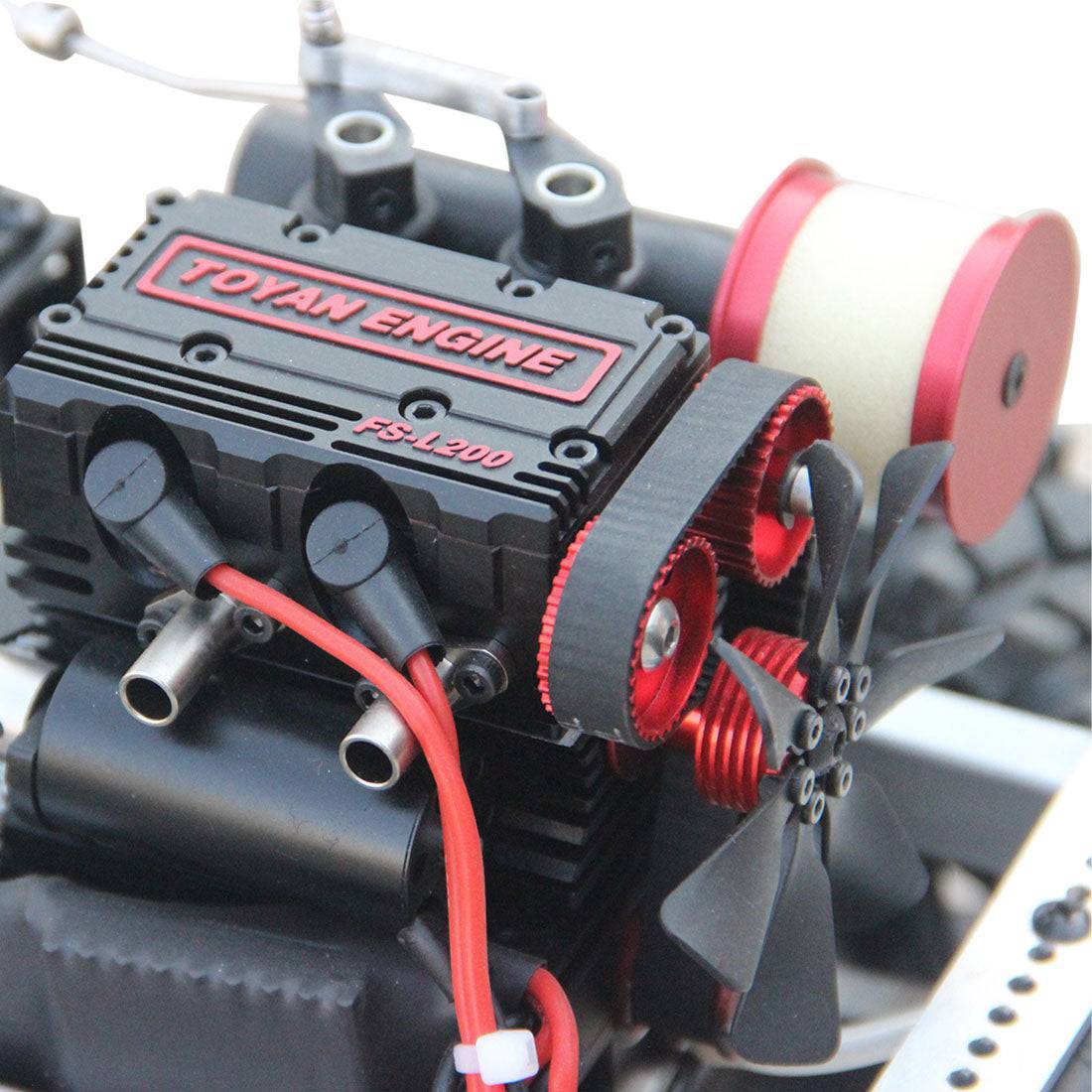

If buying a ready-made car feels like cheating, this is for you. This DIY Metal Chassis Kit is specifically engineered to house the magnificent Toyan FS-L200 Inline Two-Cylinder Four-Stroke Engine. It is not just a frame; it is a foundation for mechanical greatness.

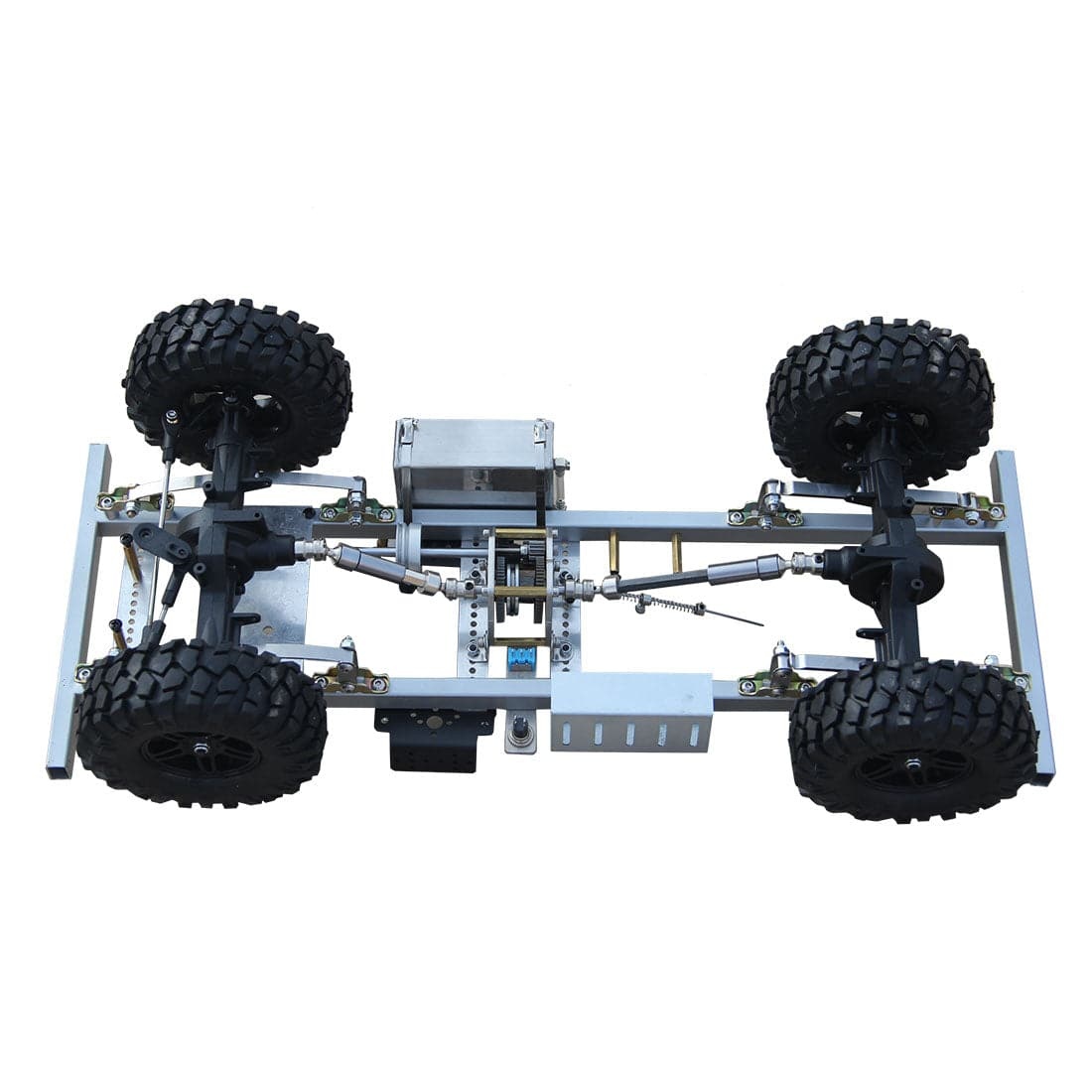

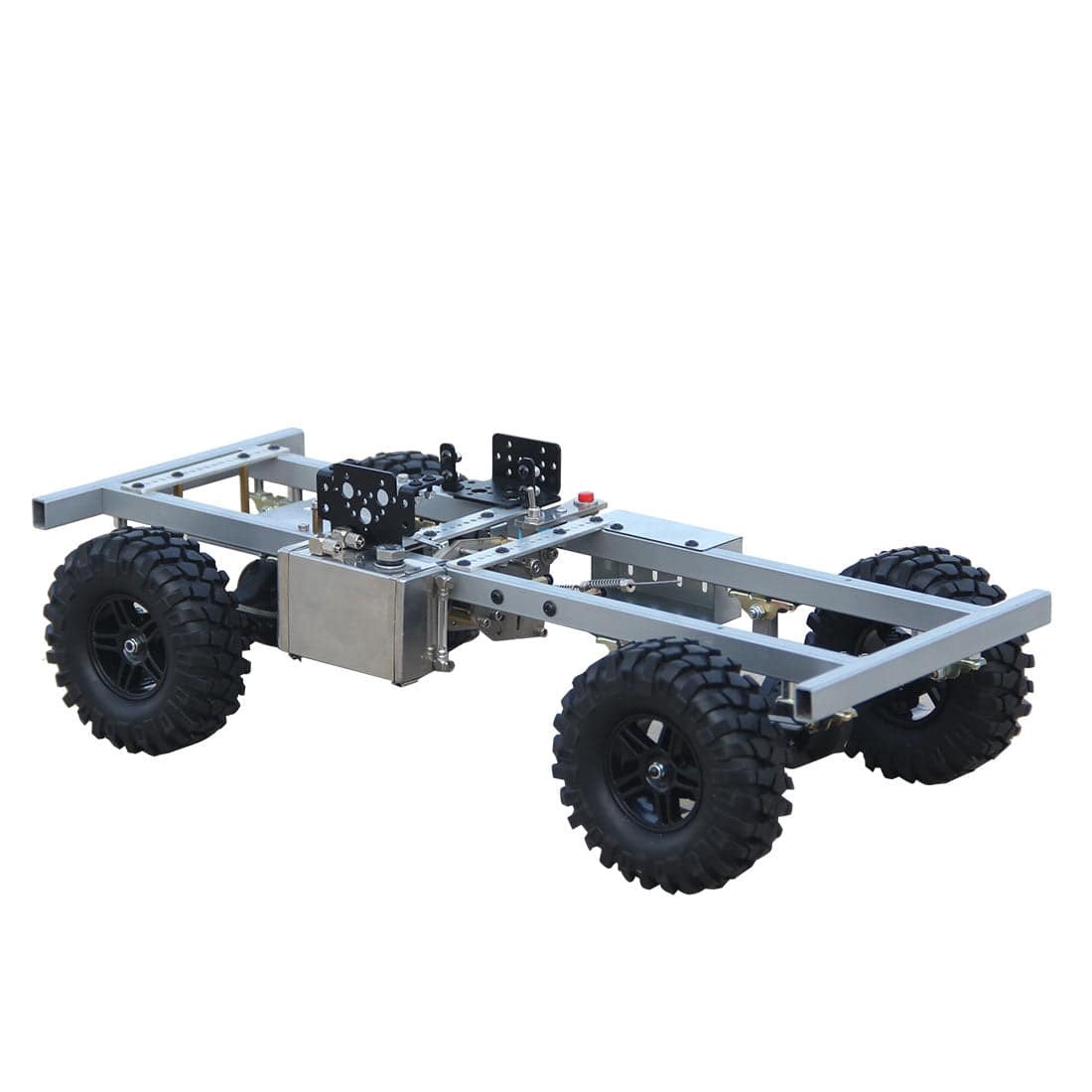

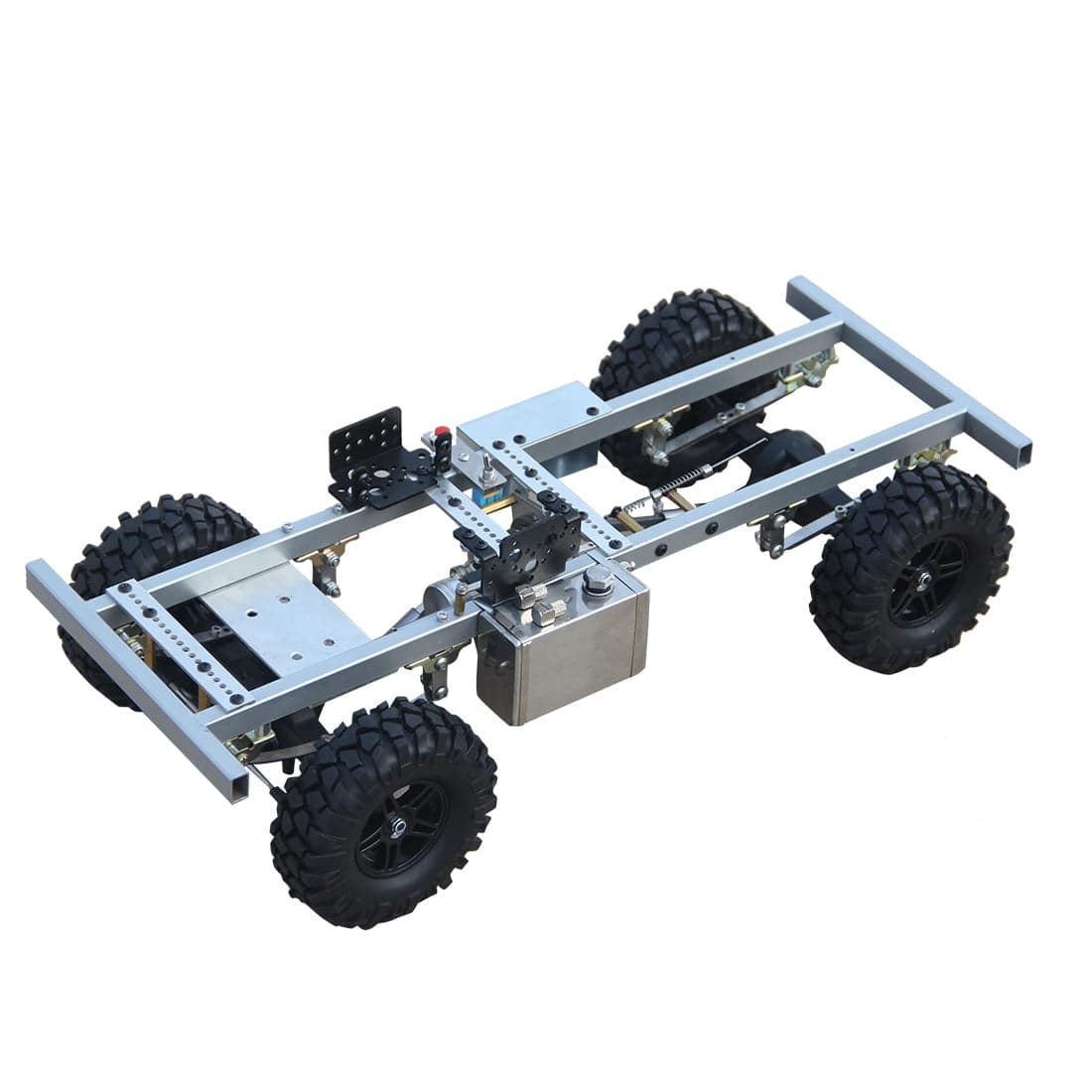

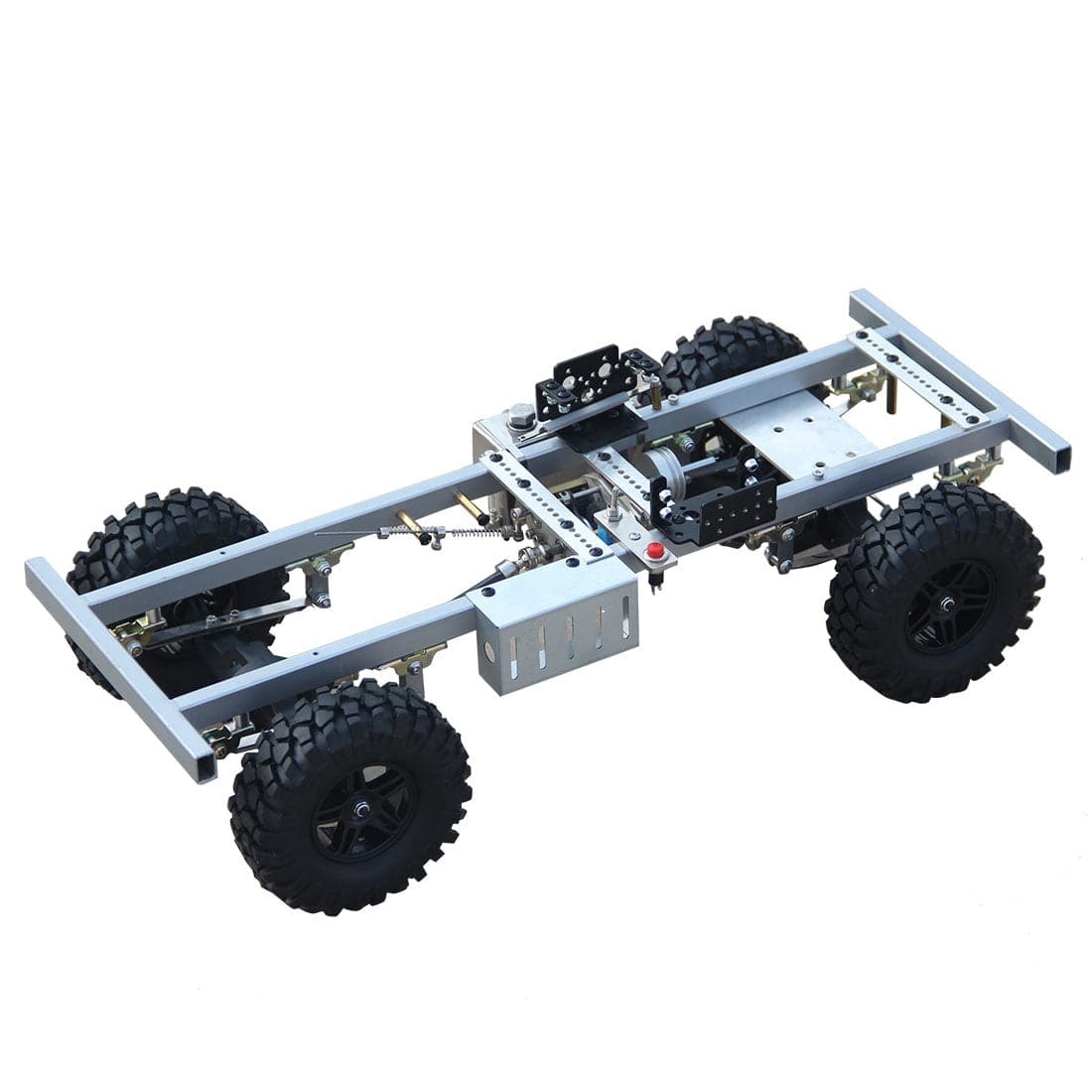

Designed for the expert modeler who possesses both the Toyan engine and the skill to integrate it, this kit provides the essential skeleton: a heavy-duty metal frame, axles, gearbox, and suspension. The rest—electronics, power systems, and final tuning—is up to you. It’s the ultimate project for those who want to build a custom, multi-cylinder RC vehicle from the ground up.
Why Choose This DIY Chassis Kit?
1. Custom-Designed for Toyan L200
Mounting a multi-cylinder engine requires a specific layout. This chassis comes with a dedicated engine mounting plate and drivetrain alignment optimized for the Toyan FS-L200. It saves you the headache of fabricating custom mounts, letting you focus on the assembly and tuning.
2. Heavy-Metal Construction
This is built to last. The kit features an All-Metal Main Frame, metal fuel tank, and an All-Metal Gearbox. The axles contain metal internal gears for durability, while the reinforced drive shafts handle the torque of a twin-cylinder engine.
3. Leaf Spring Suspension (Bow Plate)
For authentic truck realism, the chassis utilizes a reinforced metal bow plate (leaf spring) suspension. This setup mimics full-size heavy-duty trucks, providing realistic load-bearing capacity and suspension articulation for crawling.
4. Total DIY Freedom
This is a builder's kit. No electronics, no engine, no body shell. You choose your servos, your radio system, and your body style. Whether you want to build a vintage pickup or a military transporter, this chassis is the perfect starting point.
Technical Highlights: Engineering Excellence
- Adjustable Wheelbase: The wheelbase can be adjusted between 297mm and 313mm, making it compatible with a wide range of standard 1/10 scale crawler bodies.
- High-Performance Off-Road Tires: Includes aggressive 115mm diameter off-road tires that provide excellent grip on loose surfaces.
- Complete Mechanical Linkage: Comes with the necessary mounting points and levers for steering, throttle, brake, and shifting, ready for your servos to drop in.
- Integrated Battery Box & Switch: Thoughtful touches like the pre-installed battery box and power start switch simplify the wiring process.
Specifications
- Scale: 1/10
- Chassis Type: DIY Metal Frame Kit
- Compatible Engine: Toyan FS-L200 (Inline 2-Cylinder 4-Stroke)
- Frame Material: Metal
- Wheelbase: 297mm - 313mm (Adjustable)
- Dimensions: 470mm (L) x 220mm (W) x 100mm (H)
- Ground Clearance: 80mm
- Tire Diameter: 115mm
- Weight: 1.8kg (Frame only)
- Axles: Metal Gears / Plastic Housing
- Suspension: Metal Leaf Springs
Required to Complete (Not Included):
- Engine: Toyan FS-L200
- Power Components: Clutch, Start ESC, Glow Plugs, Exhaust, Fuel Lines.
- Electronics: 4-Channel Radio, Receiver, 4x Servos (Steering, Throttle, Brake, Shift).
- Body Shell: 1/10 Scale (313mm WB recommended).
Usage Scenario: The Master Class
It’s a long winter project. You have your Toyan L200 engine on the bench, polished and ready. You unpack this chassis kit. The metal rails clink together—the sound of quality.
You spend weekends mounting the engine, aligning the belt pulleys, and installing the servos. You fabricate a custom exhaust. Finally, you fit a vintage truck body. You take it outside, press the start button, and the twin-cylinder engine fires up with a unique, throaty roar. It crawls over rocks, the leaf springs flexing, the engine purring. You didn't just buy this; you engineered it.
Customer Support
This is an expert-level DIY kit. If you need advice on parts compatibility or have assembly questions, our technical team is here to assist: service@helloworld7.com
