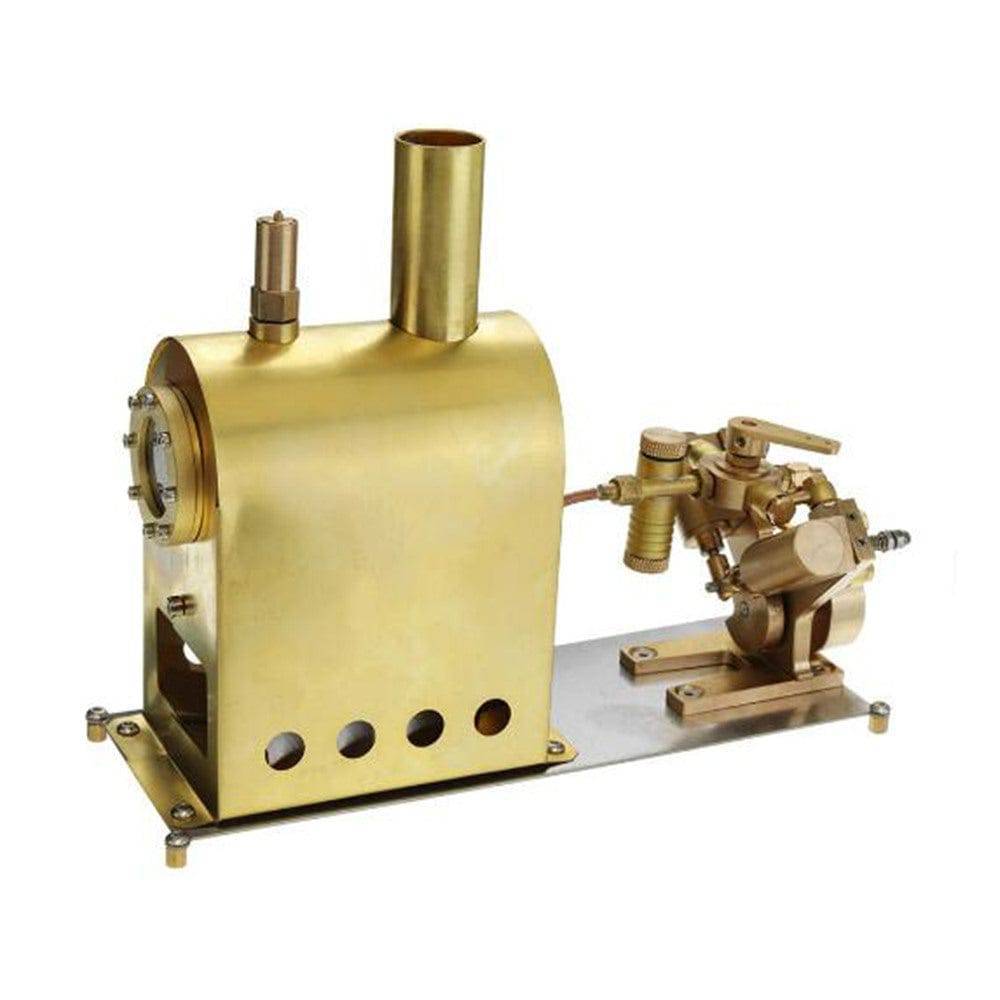

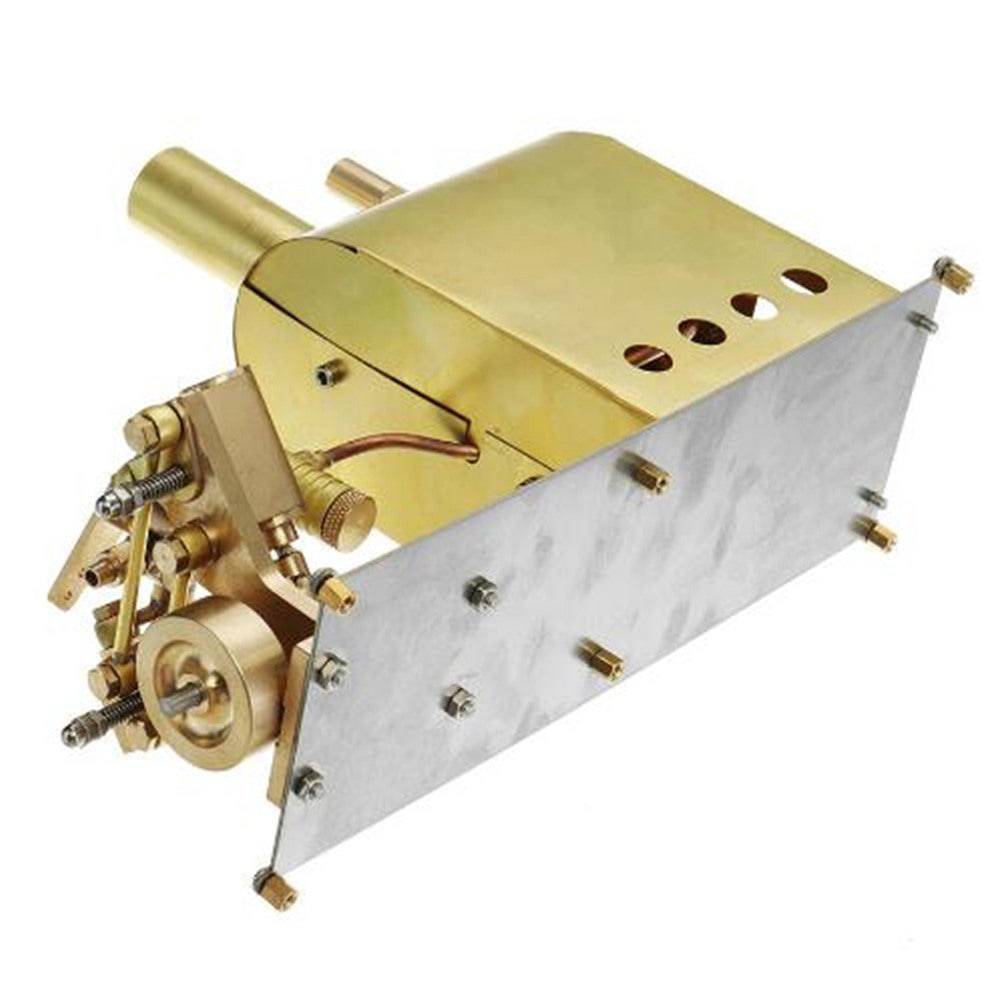

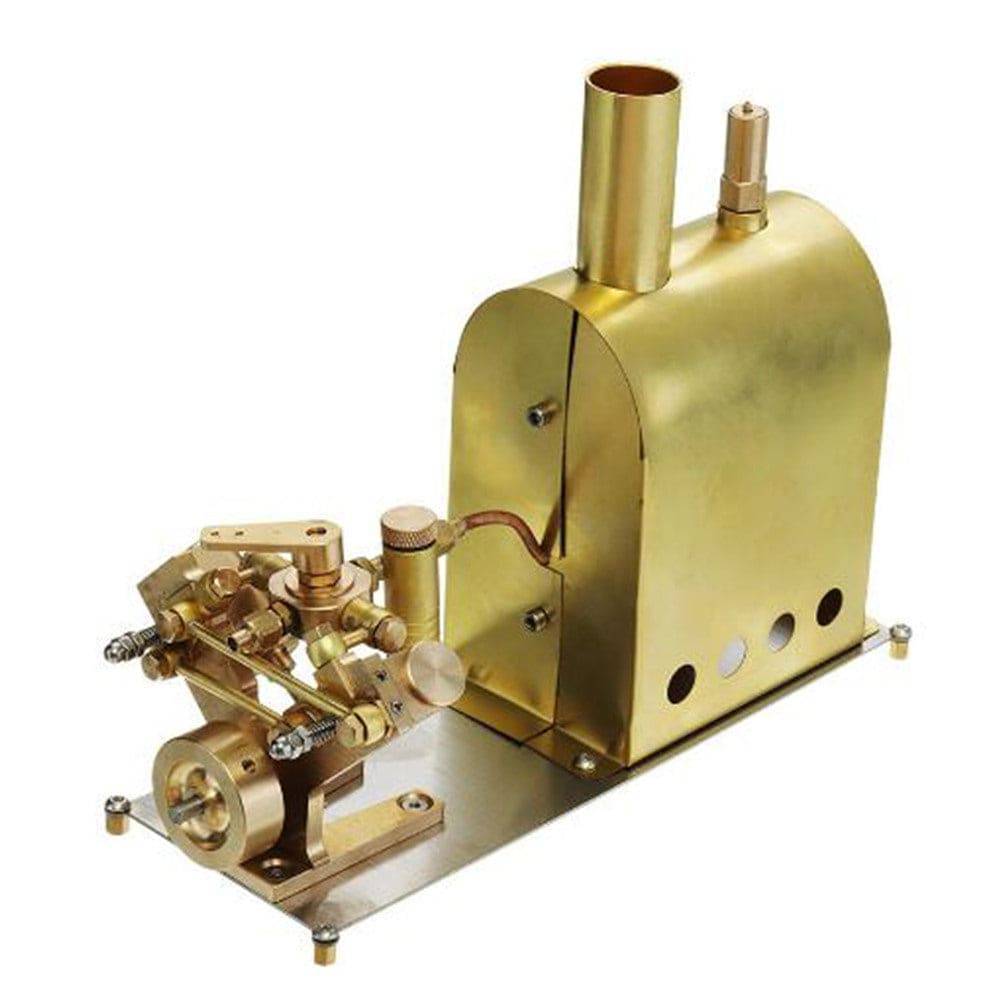

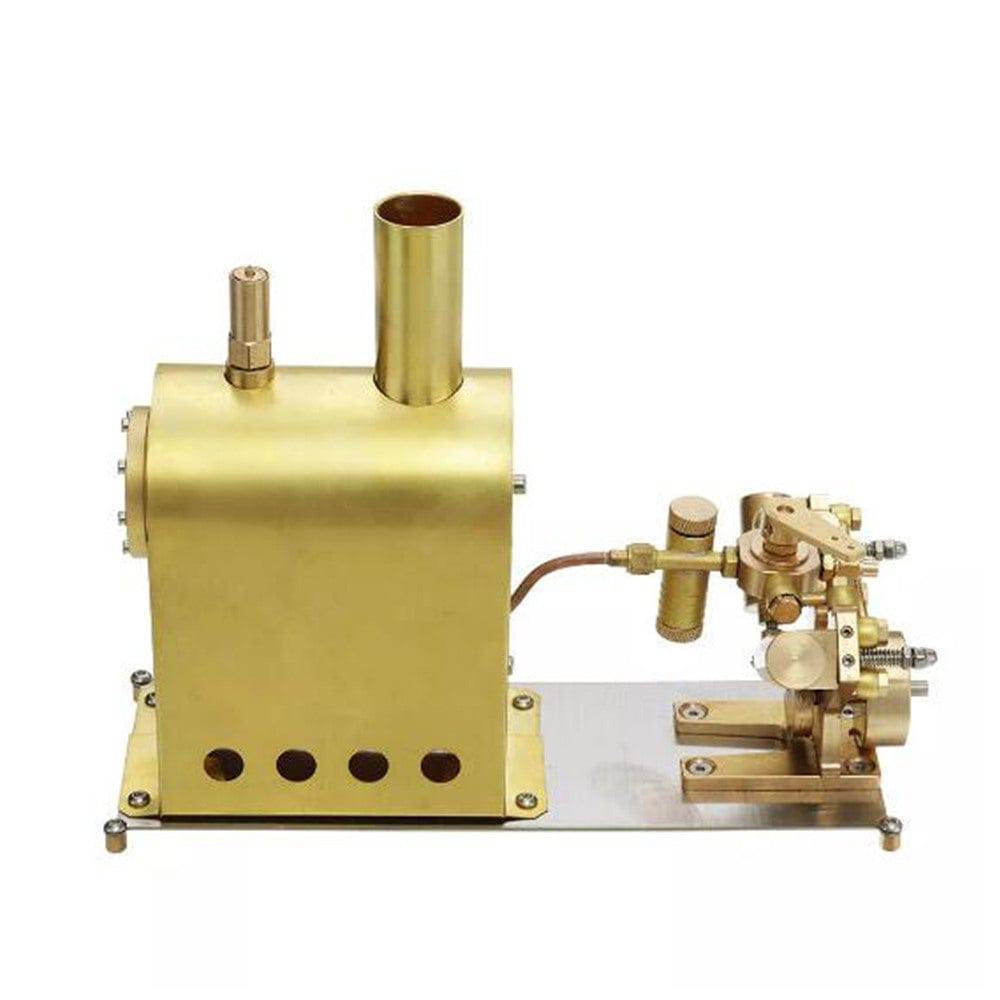

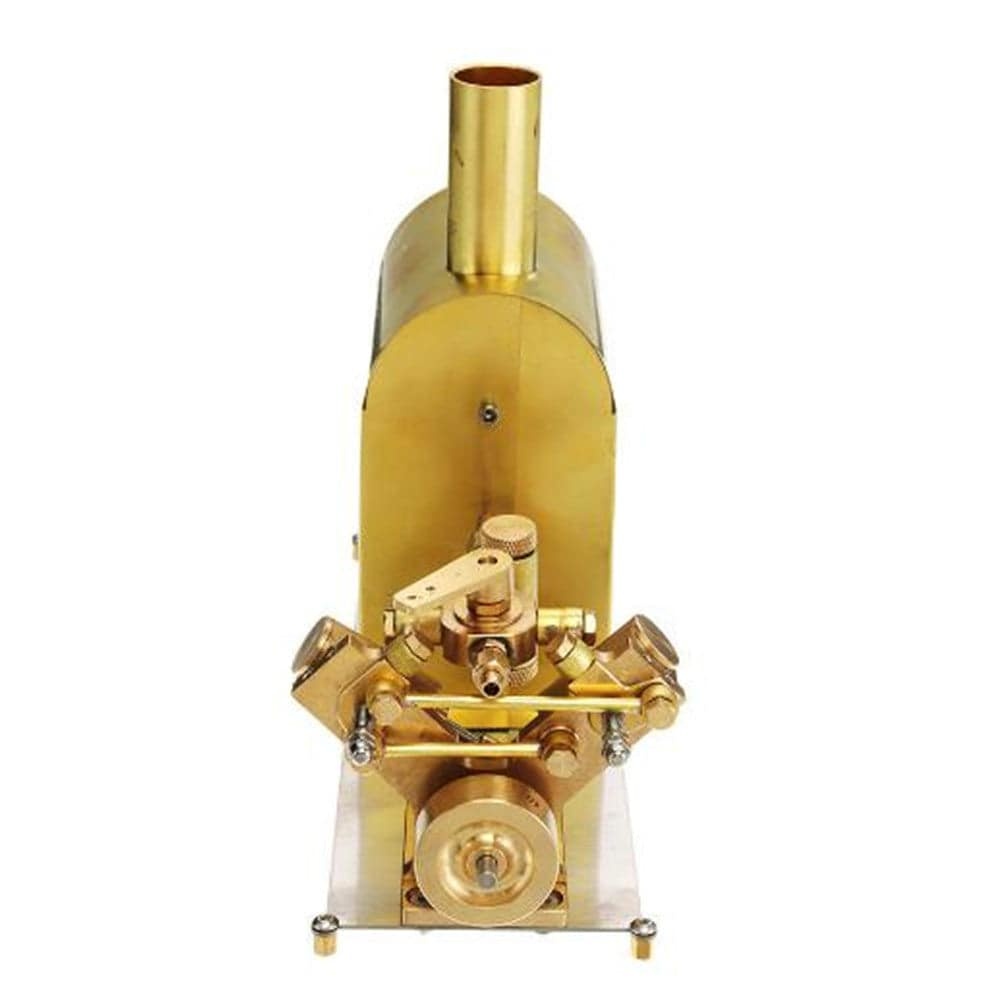

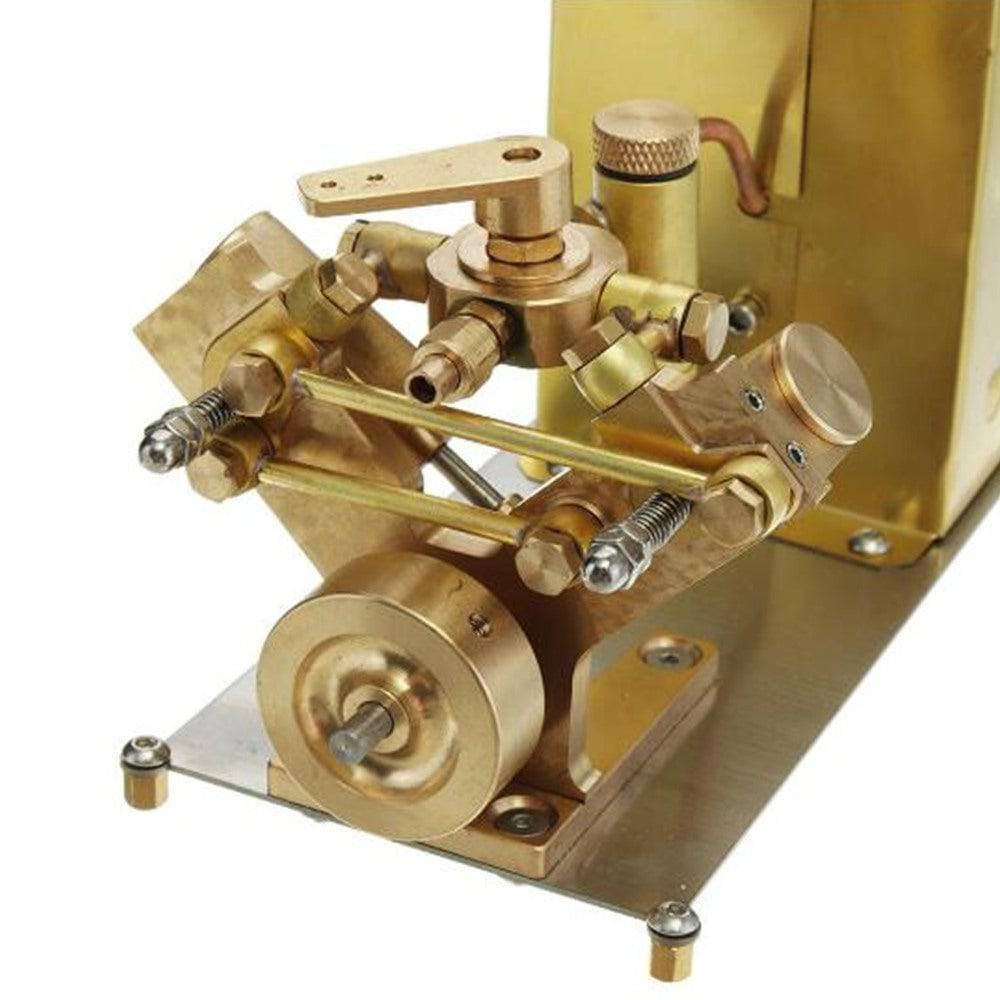

M2C All-Brass Mini Twin Cylinder Marine Steam Engine Kit with Boiler
Hero Section: A Jewel of the Industrial Age in Your Palm
There are models you build, and then there are models you treasure. The M2C Mini Twin Cylinder Steam Engine is the latter. Small enough to fit in the palm of your hand yet complex enough to captivate any engineer, this all-brass masterpiece is a celebration of mechanical beauty. It isn't just a static display; it is a fully functional kinetic sculpture. Imagine the golden glint of polished brass as the twin cylinders pump in perfect unison, powered by the hiss of real steam. It is the perfect desktop companion for the dreamer, the creator, and the collector.
Why Choose the M2C Mini Set?
This engine set is designed for those who appreciate the "finer things" in the world of mechanics.
- Exquisite Craftsmanship: Made entirely from high-quality brass, every surface is polished to a mirror-like finish. It feels substantial, heavy, and precious—like a piece of jewelry for men.
- Twin-Cylinder Power: Unlike simple single-cylinder engines, the twin-cylinder design offers smoother operation, higher torque, and a more complex, fascinating mechanical rhythm. It’s a joy to watch the dual pistons work in harmony.
- Complete & Ready: This is a turnkey set. It includes the engine, a matching brass boiler, and a solid fuel burner. No need to hunt for compatible parts; everything you need to run it is in the box.
- The Ultimate Desktop Gift: Whether for a father, a husband, or a mentor, this engine is a gift that speaks volumes. It’s a sophisticated educational tool that demonstrates the physics of thermal energy in the most elegant way possible.
Technical Highlights: The Expert’s View
- Solid Alcohol Heating: The system uses solid alcohol fuel (included in the design concept, fuel itself usually bought separately), which is clean-burning, easy to store, and safer for indoor/desktop use compared to liquid fuels.
- High-Safety Boiler: The 90ml brass boiler is pressure-tested and equipped with a safety valve set to release at 5kg (approx. 0.5MPa). This ensures that even if you get distracted, the system automatically vents excess pressure.
- Marine-Grade Design: With a 4mm output shaft and a compact footprint, this engine isn't just for display—it is fully capable of powering small model boats, offering a realistic "marine steam" experience.
Specifications
- Model: M2C Twin Cylinder Steam Set
- Material: Premium Brass
- Boiler Dimensions: 100mm (L) x 60mm (W) x 155mm (H)
- Boiler Capacity: 90ml
- Boiler Weight: 400g
- Engine Dimensions: 85mm (L) x 82mm (W) x 74mm (H)
- Engine Weight: 367g
- Cylinder Stroke: 15mm
- Cylinder Bore: 10mm
- Output Shaft: 4mm
- Fuel Type: Solid Alcohol
- Runtime: Approx. 20 minutes per fill
Usage Scenario: The "Unplugged" Break
It’s late evening. You step away from the computer screen and turn to your side table. You place a small block of solid fuel on the copper shovel, light it, and slide it under the boiler. For a minute, you just watch the flame. Then, a wisp of steam appears. You give the flywheel a gentle flick, and the engine springs to life—chug-chug-chug. For the next 20 minutes, there are no emails, no notifications—just the mesmerizing motion of brass pistons and the soothing sound of steam. It is a moment of pure mechanical meditation.
Important Tips
- Handling: This is a delicate, high-precision model. Handle with care to avoid bending the connecting rods.
- Heat Warning: The entire unit is made of metal, which conducts heat very well. Do not touch the boiler or engine cylinders during or immediately after operation.
- Maintenance: After use, ensure the boiler is drained and the alcohol flame is fully extinguished. A drop of light machine oil on the moving parts keeps it running smoothly for years.
