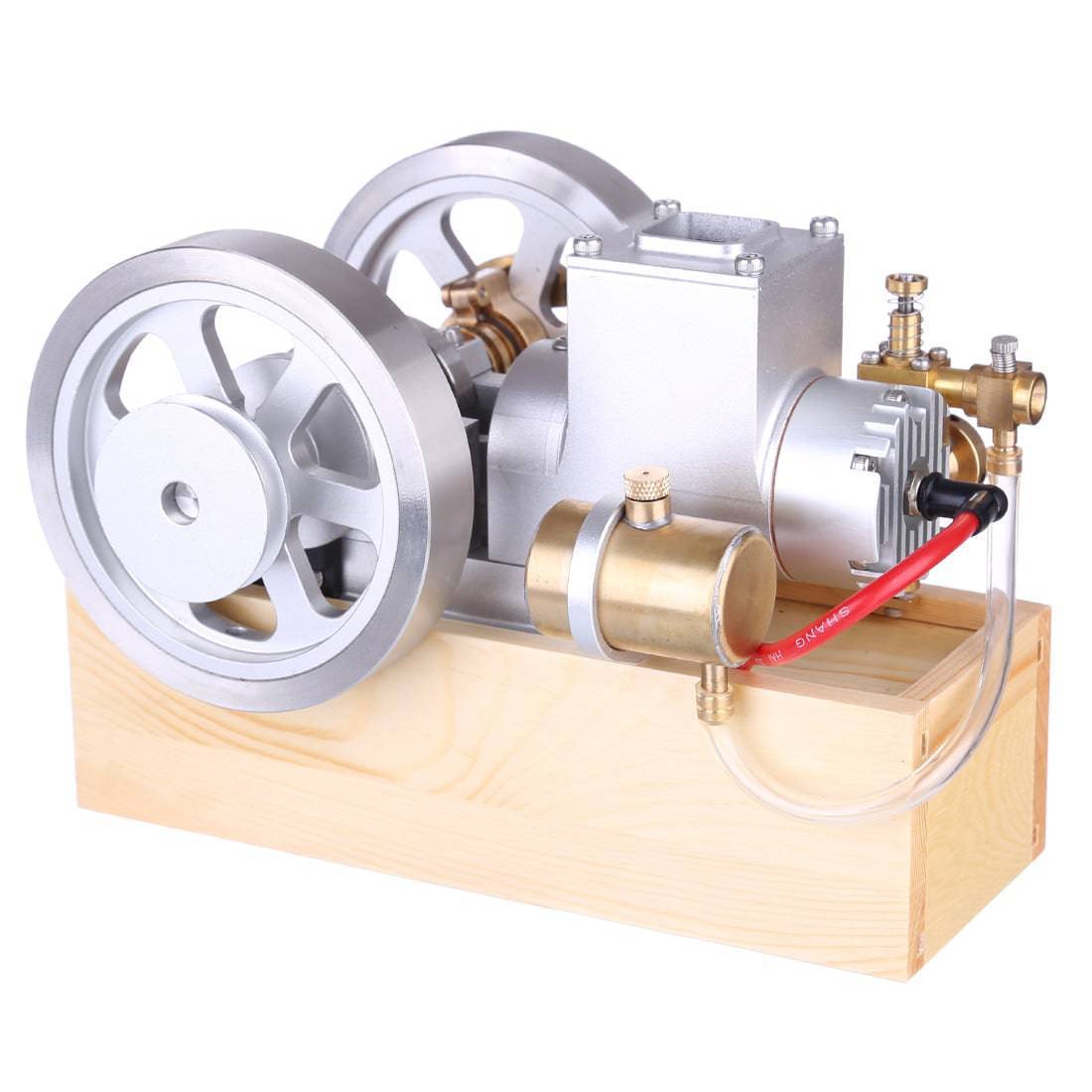

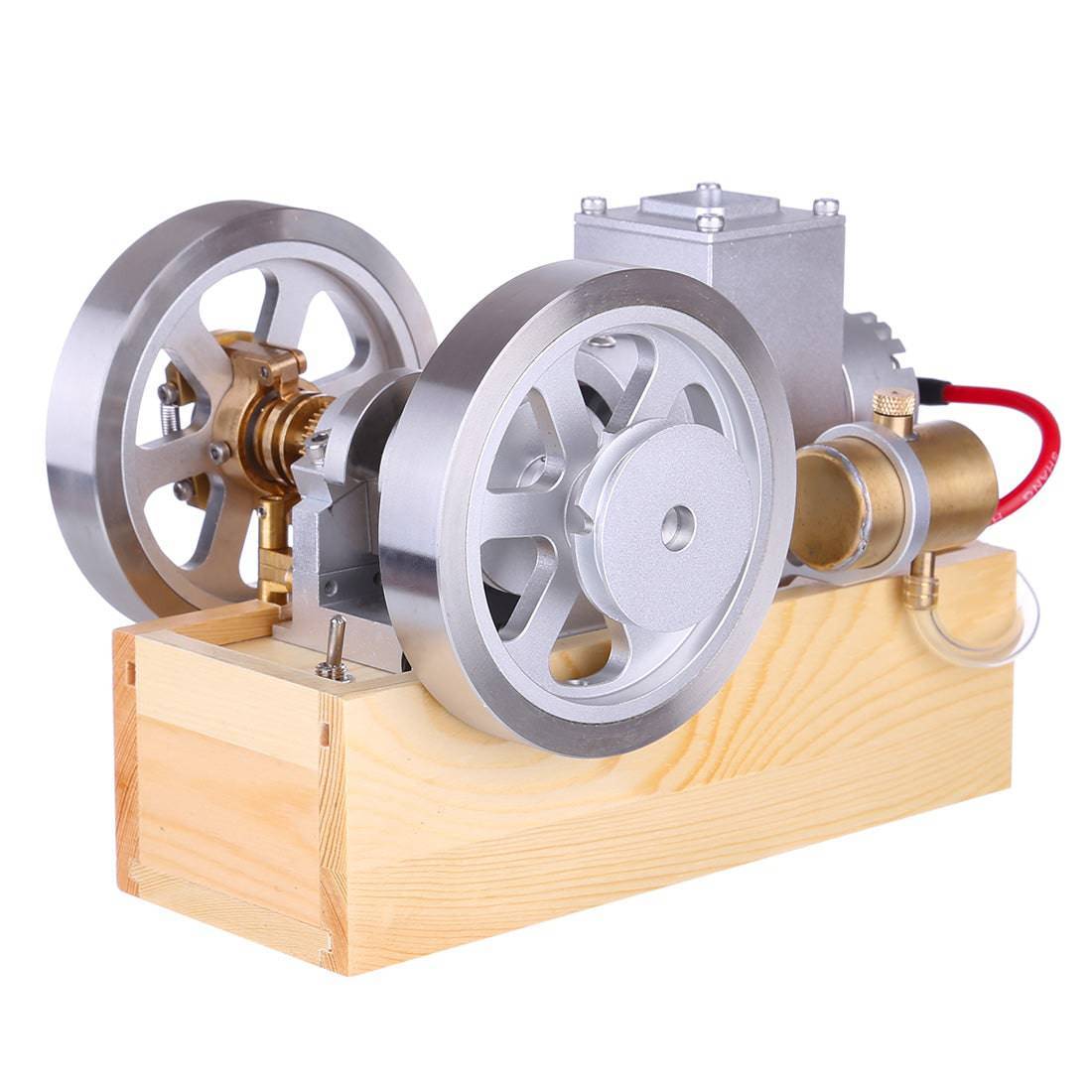

M94 Horizontal Hit and Miss Gas Engine Model Water Cooled 6cc 4 Stroke Internal Combustion Motor with Hand Starter
Hero Section: The Rhythm of a Bygone Era
There is a distinct, hypnotic rhythm to a Hit and Miss engine—Pop... coast... coast... pop. It is the heartbeat of the early industrial revolution. The M94 is not merely a model; it is a fully functional, water-cooled tribute to the mechanical ingenuity of the past. With its unique side-valve structure and mesmerizing flyball governor, this engine transforms your desktop into a living museum. Whether you are an engineer admiring the helical gears or a father teaching his son about the origins of power, the M94 offers a tactile, auditory experience that digital screens simply cannot replicate.
Why Choose the M94 Hit & Miss Engine?
- Unique Side-Valve Architecture: Unlike standard overhead valve models, the M94 features a complex side-valve mechanism controlled by a compact side gear drive. This rare design increases processing difficulty but results in a fascinating mechanical display.

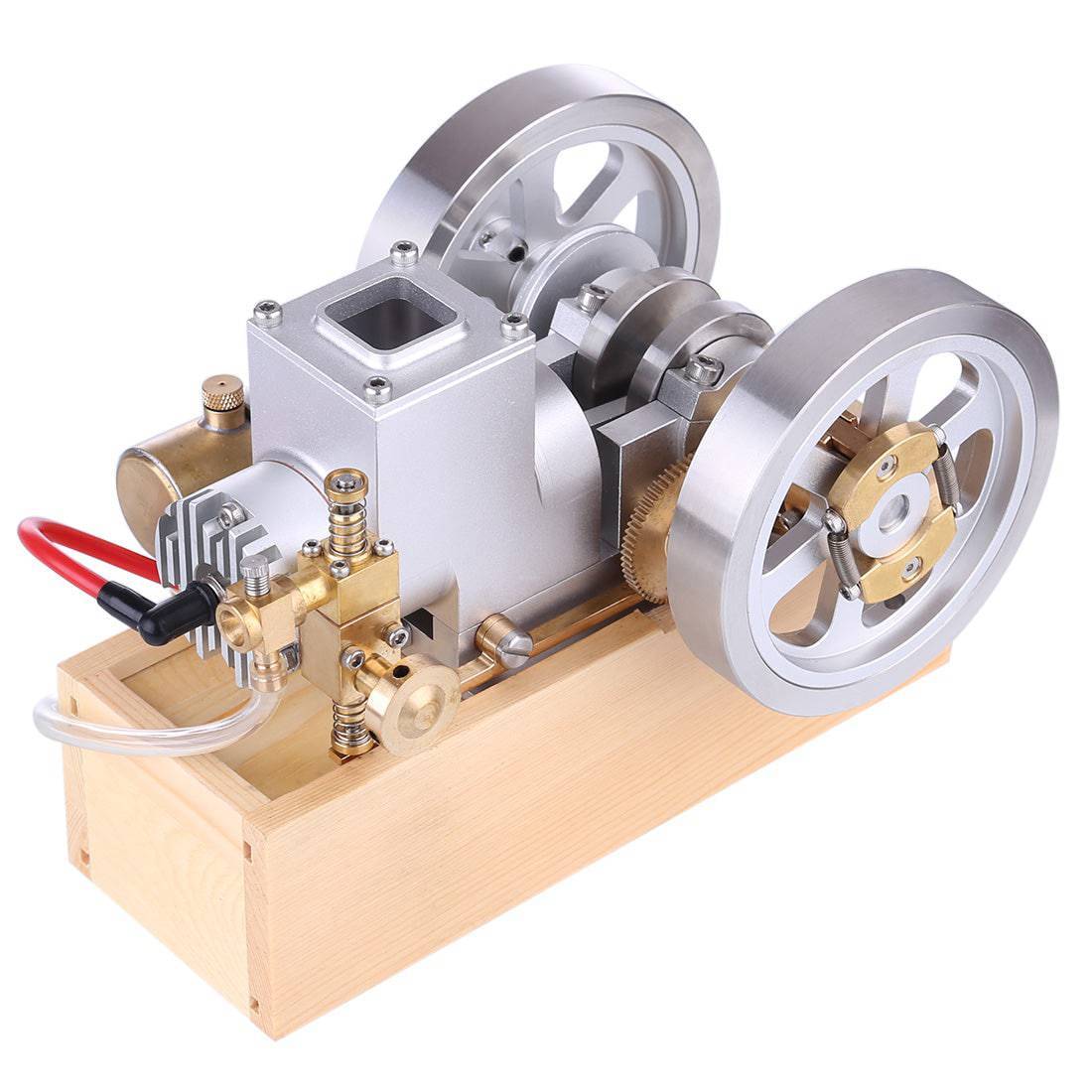

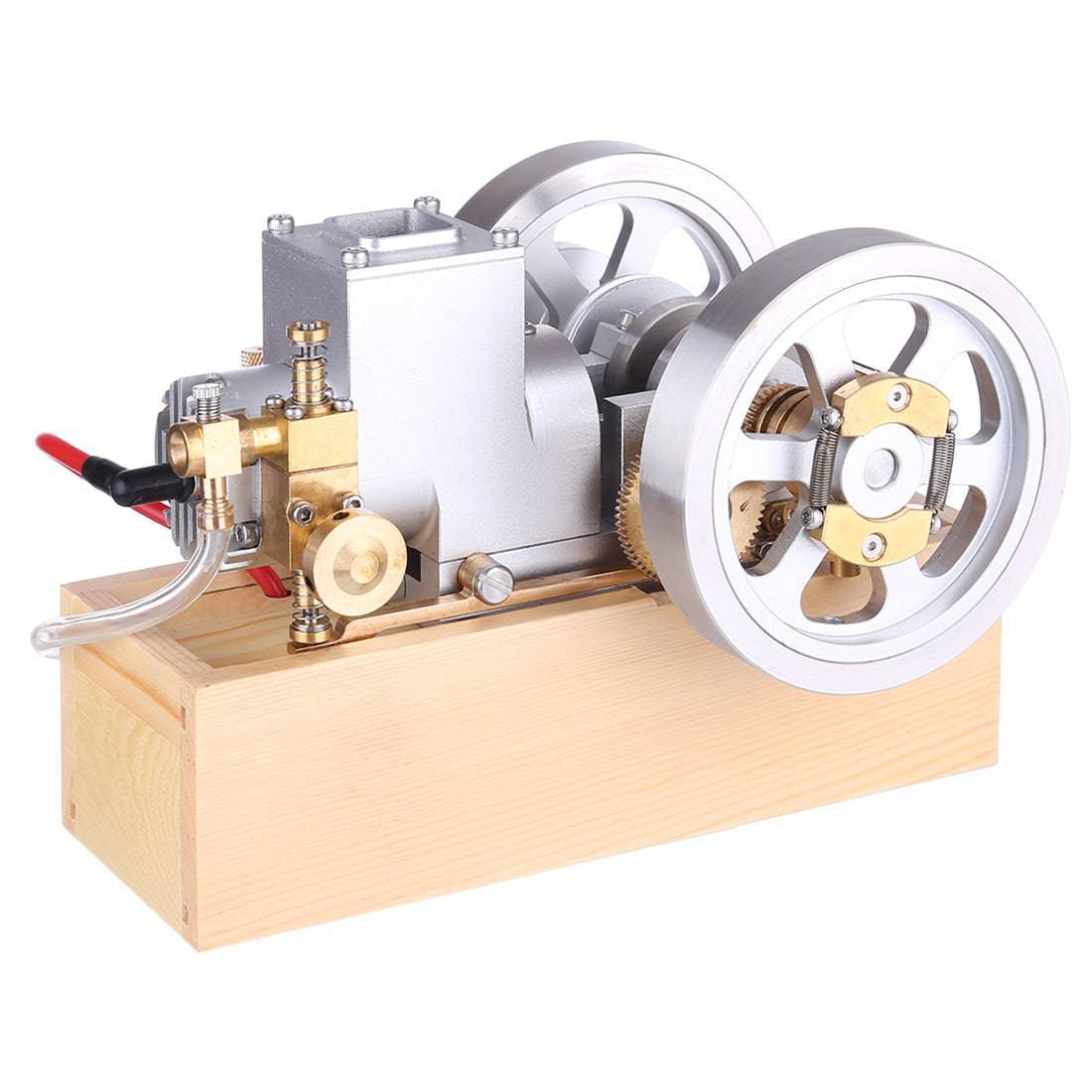

- Visual Speed Control (The Governor): The flywheel features a functional speed limiter (governor). Watch as the weights spin out via centrifugal force, mechanically engaging the exhaust valve to regulate speed. It is a brilliant demonstration of analog logic.
- Authentic Water Cooling: Equipped with a classic open water hopper, this engine manages heat just like its full-sized ancestors. As it runs, the water absorbs heat, allowing for extended operation times and adding to the realism.
- Premium Craftsmanship: Constructed from high-grade brass, stainless steel, and mounted on a solid wooden base, this engine exudes quality. It is heavy, substantial, and built to be a centerpiece in any collection.

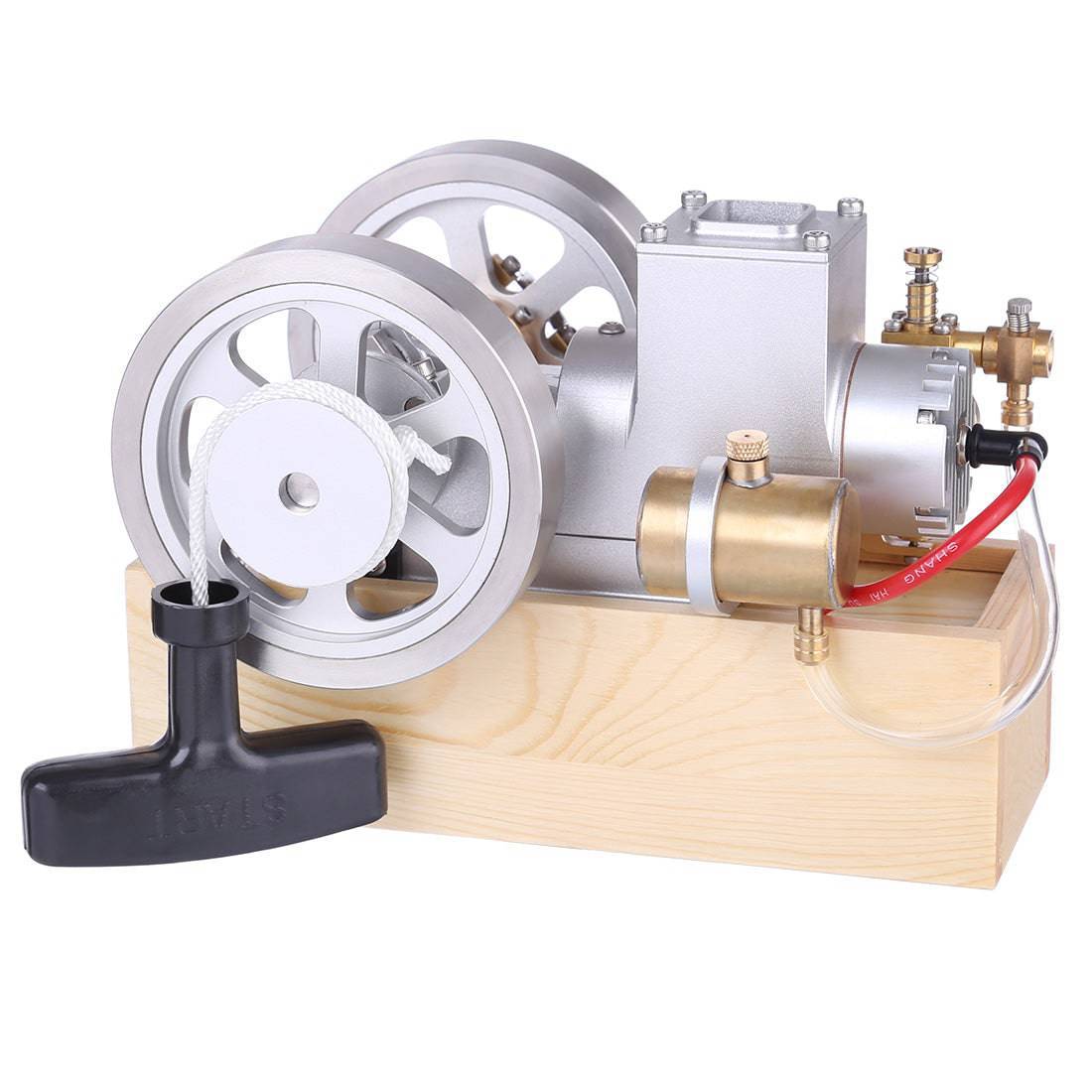

- Effortless Starting: We include a dedicated Hand Starter, making the ignition process smoother and more ceremonial.
Technical Highlights: Expert Analysis
- Helical Gear Drive: The engine utilizes precision-cut 90-degree helical gears for smooth power transmission and reduced noise, a step up from standard spur gears.
- 6cc Displacement: With a 22mm bore and 20mm stroke, the M94 generates significant torque at low RPMs (approx. 1200rpm), producing that deep, satisfying "thump" characteristic of hit-and-miss engines.
- Adjustable Carburetion: The carburetor allows for fine-tuning of the air-fuel mixture. Finding the "sweet spot" where the engine runs at its slowest, most rhythmic idle is a rewarding challenge for any mechanic.
Specifications
- Model: M94 Horizontal Hit & Miss Engine
- Type: 4-Stroke, Water-Cooled, Side-Valve
- Material: Brass / Stainless Steel / Wood Base
- Displacement: 6cc
- Cylinder Diameter: 22mm
- Stroke: 20mm
- RPM: ~1200rpm
- Fuel: 95# Gasoline

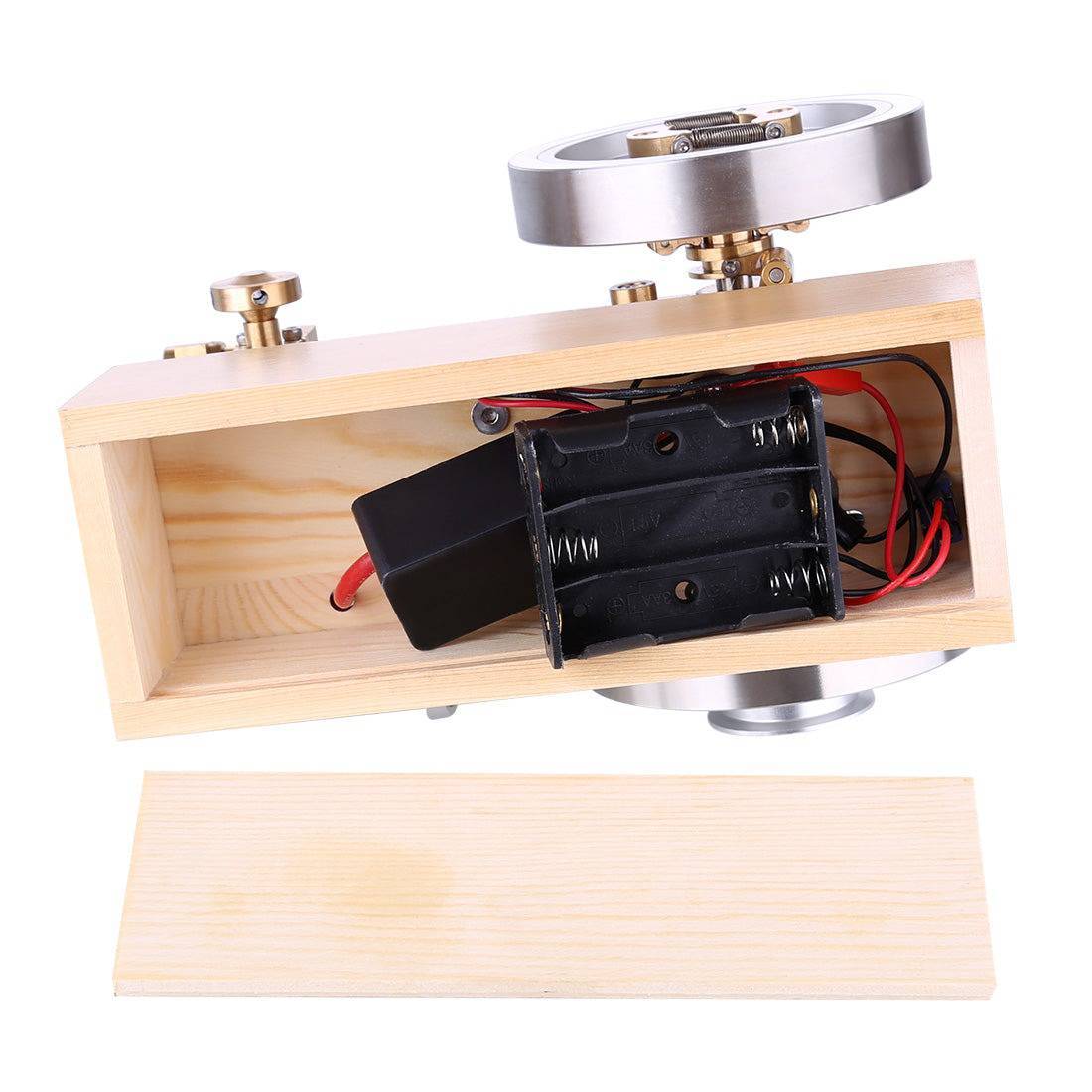

- Ignition Power: 3x AA Batteries (Not Included)
- Dimensions: 18cm x 12.5cm x 12.5cm
- Weight: ~1610g
Usage Scenario
It’s a quiet Sunday afternoon in the workshop. You place the M94 on the bench and fill the brass hopper with water. You check the fuel lines and flip the ignition switch. Using the hand starter, you turn the engine over. It coughs, then catches, settling into a slow, steady rhythm. You watch the governor weights dance, regulating the engine perfectly. It’s a moment of pure mechanical zen—a satisfying break from the modern world.
Important Tips
- Priming is Essential: Before starting, rotate the flywheel counter-clockwise manually a few times to draw the fuel mixture into the cylinder and expel air bubbles.
- Tuning: If the engine has compression but won't start, the carburetor needle likely needs adjustment. Tighten the screw gently, then loosen by 1/4 turn. This is usually the ideal starting point.
- Direction: Ensure you start the engine counter-clockwise (when facing the flywheel/governor side).
- Safety: The engine generates heat and exhaust. Always operate in a well-ventilated area.
