Mini Pure Copper Vertical Steam Engine Model with Boiler Physics Experiment Toy
Hero Section: A Pocket-Sized Industrial Revolution
There is something undeniably captivating about a live steam engine. This Mini Pure Copper Steam Engine captures the essence of the industrial age in a compact, vertical design. Standing just 120mm tall, it is a dignified, retro masterpiece. Watch as the alcohol flame heats the brass boiler, building pressure until the flywheel spins "madly" at 1500 RPM. It is a high-end handicraft that fits in the palm of your hand, perfect for collectors, educators, and anyone fascinated by the power of steam.
Why Choose This Mini Steam Engine?
- Exquisite Vertical Design: Unlike horizontal models, this engine features a space-saving vertical architecture. The dignified retro styling and fine workmanship make it a standout piece of decor for any desk or shelf.
- Premium Materials: We use Solid Brass for the boiler and cylinder, paired with a 304 Stainless Steel bracket. This combination ensures high thermal conductivity, corrosion resistance, and a stunning, jewelry-like appearance.

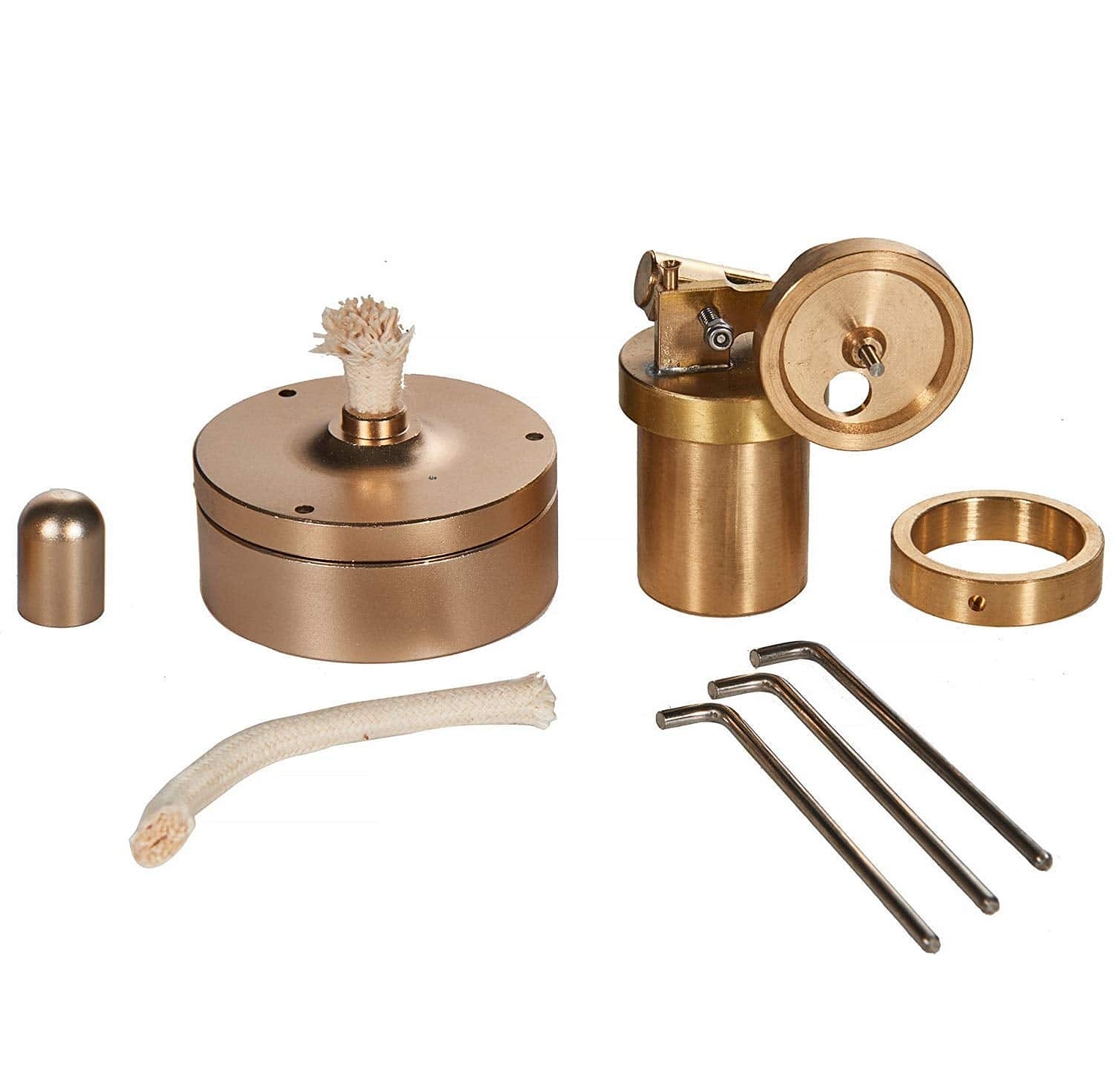

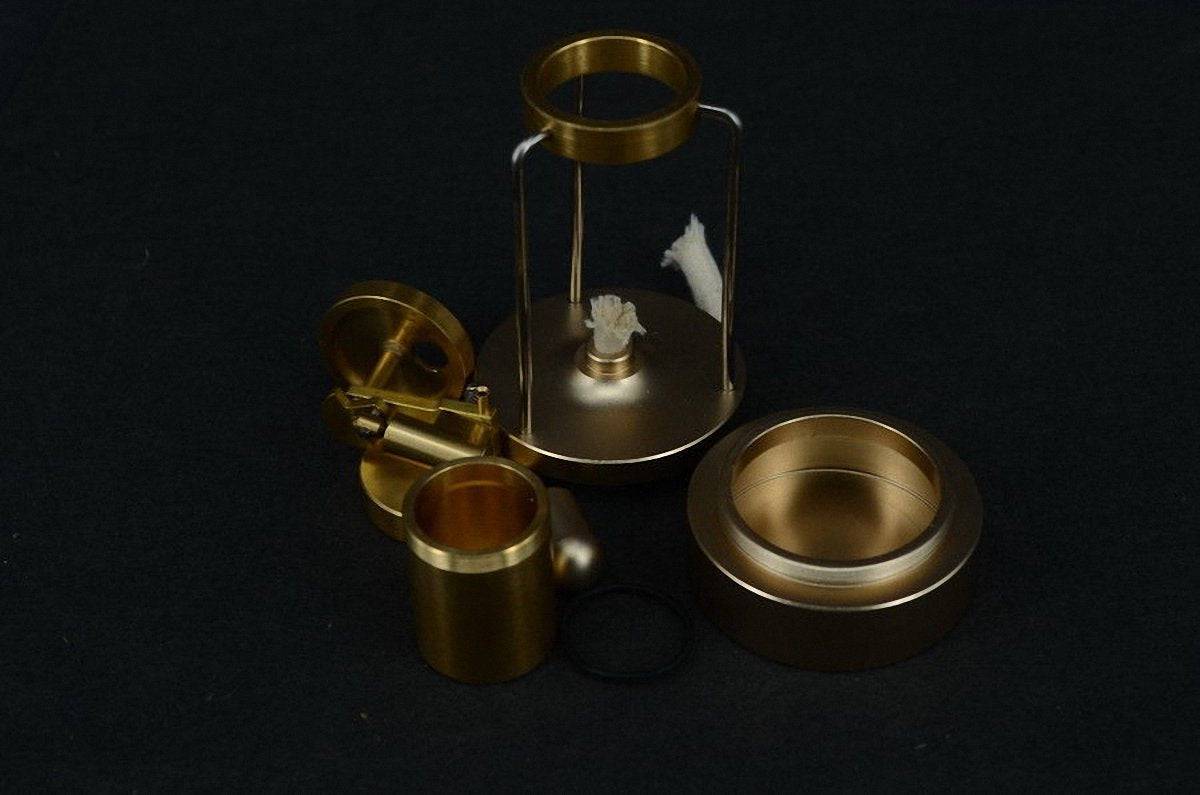

- Complete Steam Plant: This isn't just an engine; it's a complete system. It includes the boiler, the engine, and the alcohol burner. Everything you need to generate steam power is right in the box.
- Educational & Fun: It provides a visceral demonstration of how heat energy is converted into mechanical work. Watching the steam vent and the flywheel spin is a hands-on physics lesson that sparks curiosity in minds of all ages.
Technical Highlights: Engineering Insight

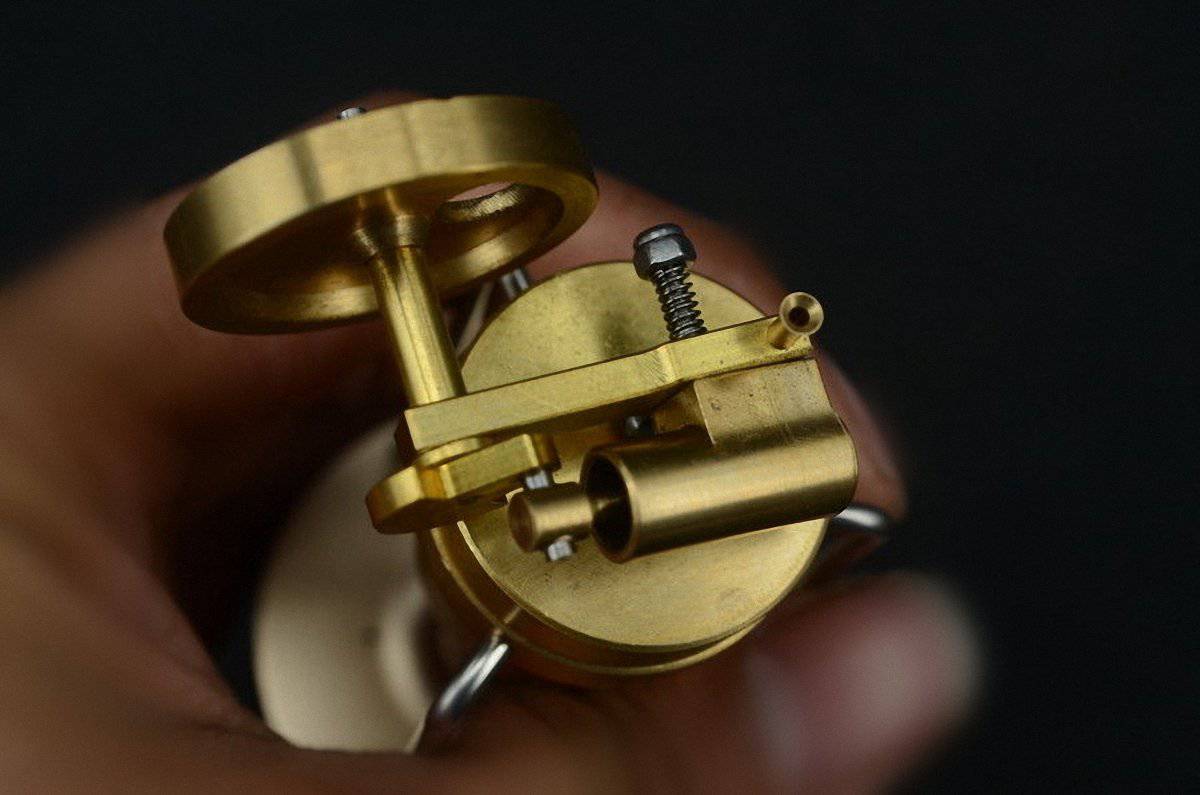

- Oscillating Cylinder: The engine uses a simple yet effective oscillating cylinder mechanism. As the cylinder pivots, it aligns with steam inlet and exhaust ports, eliminating the need for complex valves and ensuring reliable high-speed operation.
- Integrated Boiler: The brass boiler is designed for quick heating. Its small volume allows it to reach operating pressure in just about 2 minutes, providing instant gratification.
- Steam Distribution: The middle stand base features precision-drilled steam holes that connect the boiler to the cylinder. This efficient design minimizes heat loss and maximizes power delivery to the flywheel.
Specifications
- Model: BJ001
- Type: Vertical Oscillating Steam Engine
- Material: Brass + 304 Stainless Steel
- Speed: 1300 - 1500 RPM
- Dimensions: 60 x 55 x 120 mm (2.36 x 2.16 x 4.72 in)
- Weight: 260g / 9.17 oz
- Fuel: 95% Alcohol (Not included)
- Packing: Protective Box
Usage Scenario: The Desktop Demonstration
It’s a quiet afternoon. You place the mini engine on a heat-resistant coaster. You fill the boiler with water and the lamp with alcohol. You light the wick. For two minutes, you hear the water begin to boil. Then, a wisp of steam escapes. You flick the flywheel. Whirrr! The engine takes off, spinning furiously. It’s a mesmerizing display of power that turns a boring desk into a mini factory floor.
Important Tips from the Expert
- Water Level: Fill the boiler to 2/3 capacity. You must leave 1/3 of the space empty for steam to form. Overfilling will cause water to spray out of the engine.
- Fuel Requirement: Use 95% purity alcohol (not included). Lower purity fuels burn cooler and may not generate enough steam pressure.
- Condensation is Normal: At the start, the cold engine will condense the steam back into water. You may see water spraying from the exhaust. This is normal! Use a tissue to catch it until the engine warms up and runs on pure steam.
- Safety: Never dry burn the boiler. Always ensure there is water inside before lighting. The boiler gets extremely hot—do not touch it during operation.
