RETROL SE-02 DIY Horizontal Steam Engine Boiler Kit with Generator Streetlight Model
Hero Section: Illuminate Your Desktop with the Power of Steam
Step back into the 19th century, where the rhythmic chug of steam engines powered the world. The RETROL SE-02 isn't just a static display; it is a fully functional miniature power plant that you build with your own hands. Witness the magic of energy conversion as thermal energy transforms into mechanical motion, and finally, into electricity that lights up a vintage street lamp. Whether you are a seasoned engineer or a hobbyist looking for the ultimate weekend project, this kit offers a tangible connection to the golden age of industry.
Why Choose the RETROL SE-02?

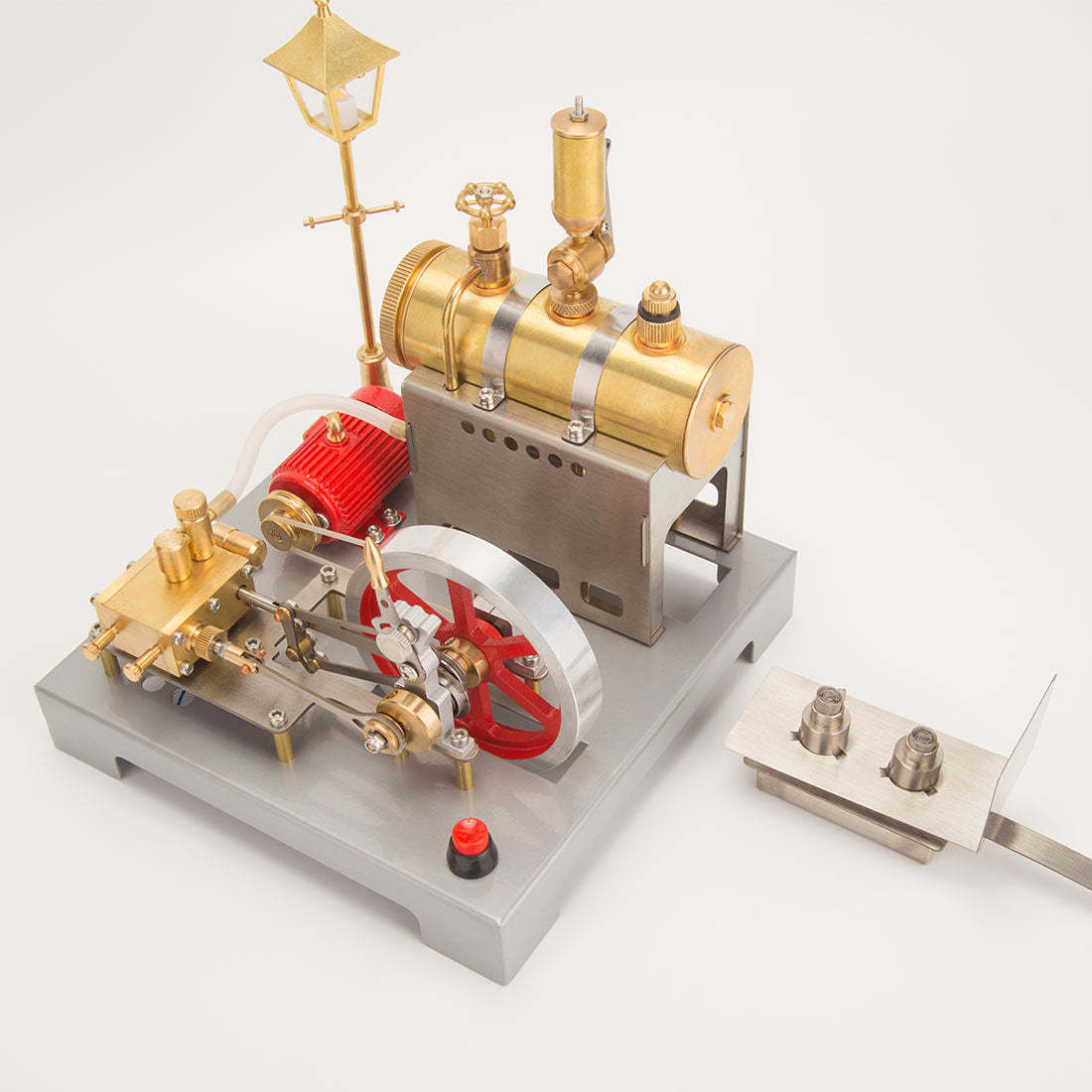

- A Complete Power Plant: Unlike standalone engines, this is a comprehensive scene. It features a high-polished brass boiler, a horizontal mill engine, and a functional generator connected to a retro streetlight. It’s a self-contained lesson in physics.

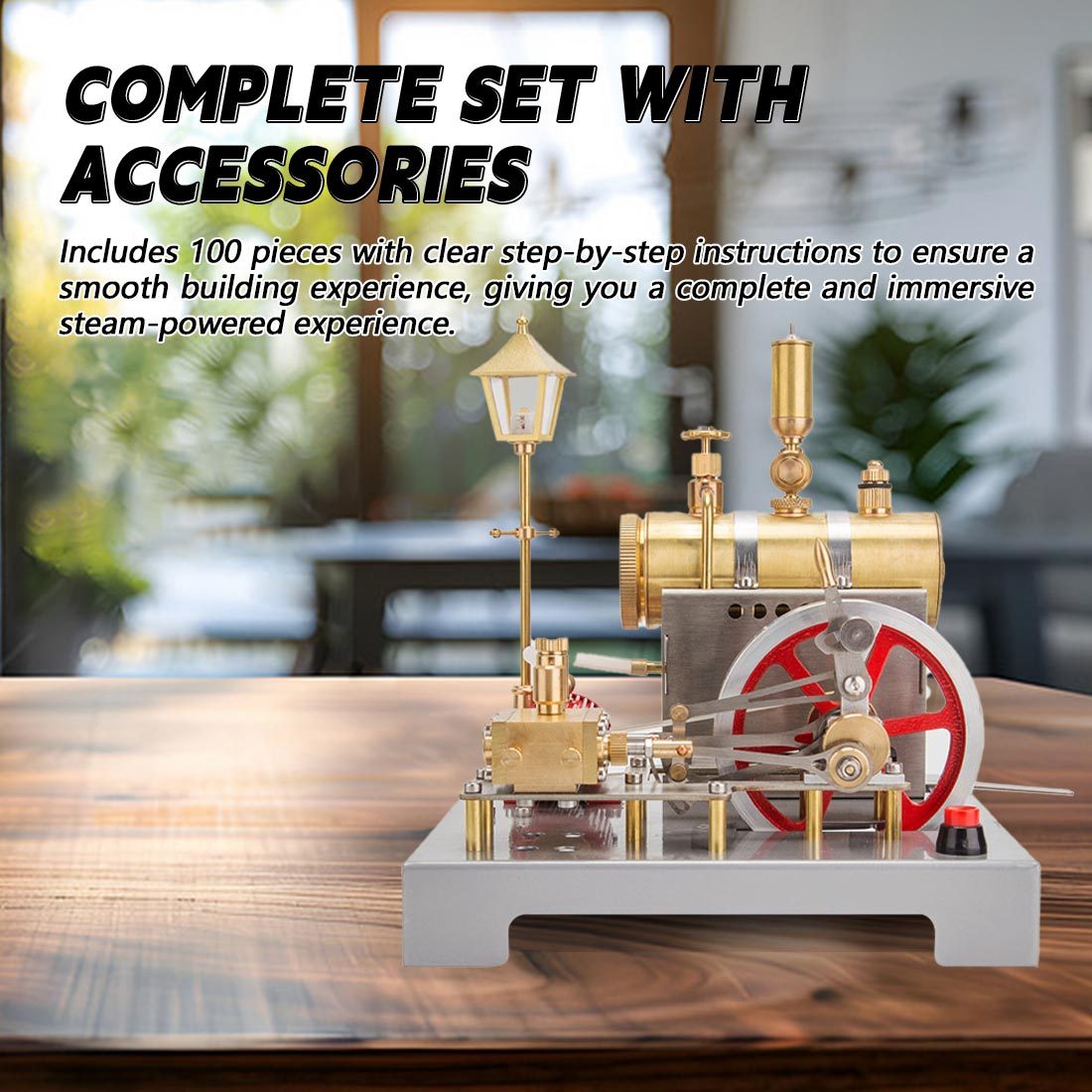

- The Joy of "The Build": With approximately 100 precision-engineered parts, this DIY kit strikes the perfect balance between challenge and relaxation. It’s not an impossible puzzle, but a satisfying engineering project that ends with the pride of saying, "I built this."
- Visible Energy Conversion: The "killer feature" of this model is the generator. Watching the flywheel spin and the streetlight flicker to life provides immediate, visual proof of your engine's power. It turns abstract thermodynamics into a glowing reality.

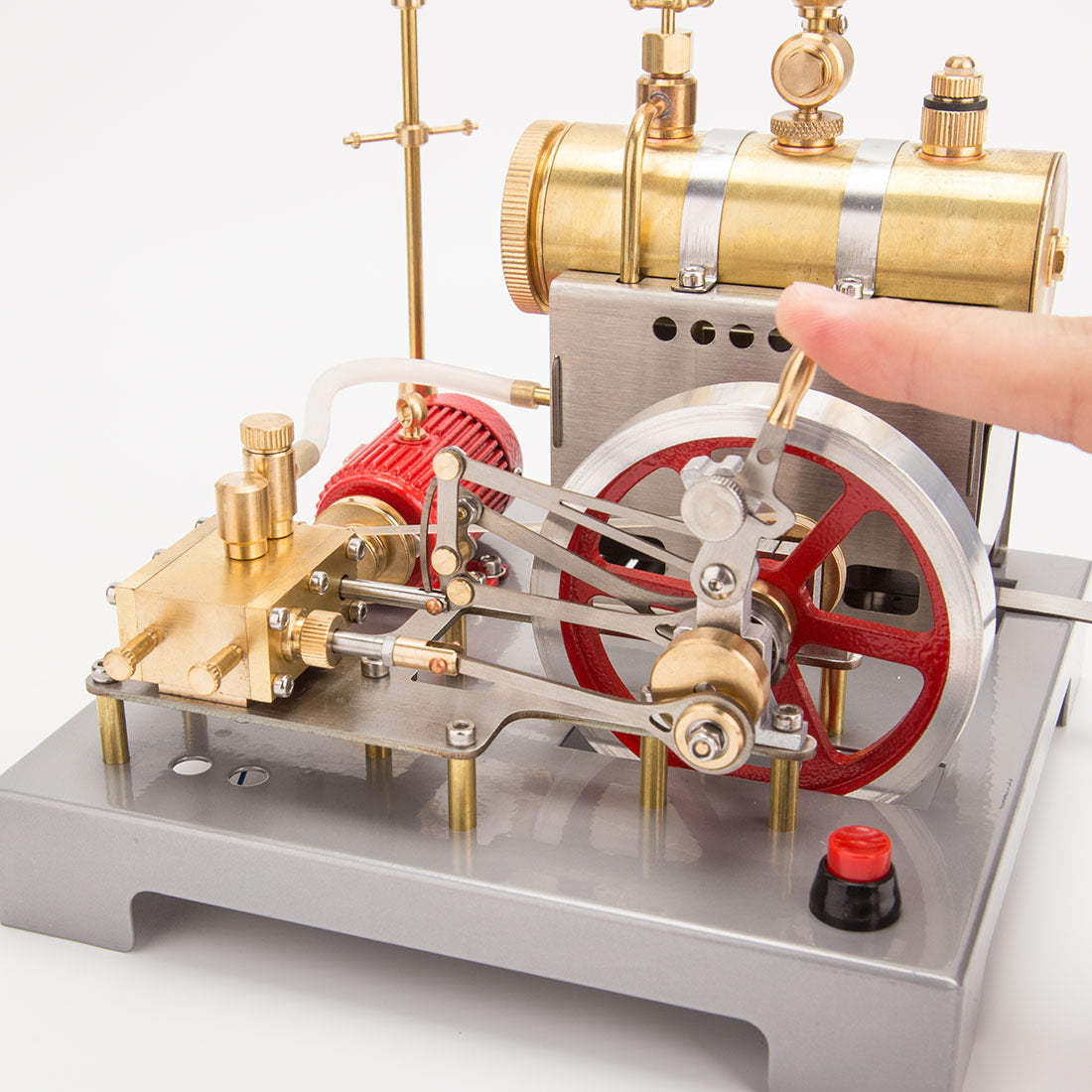

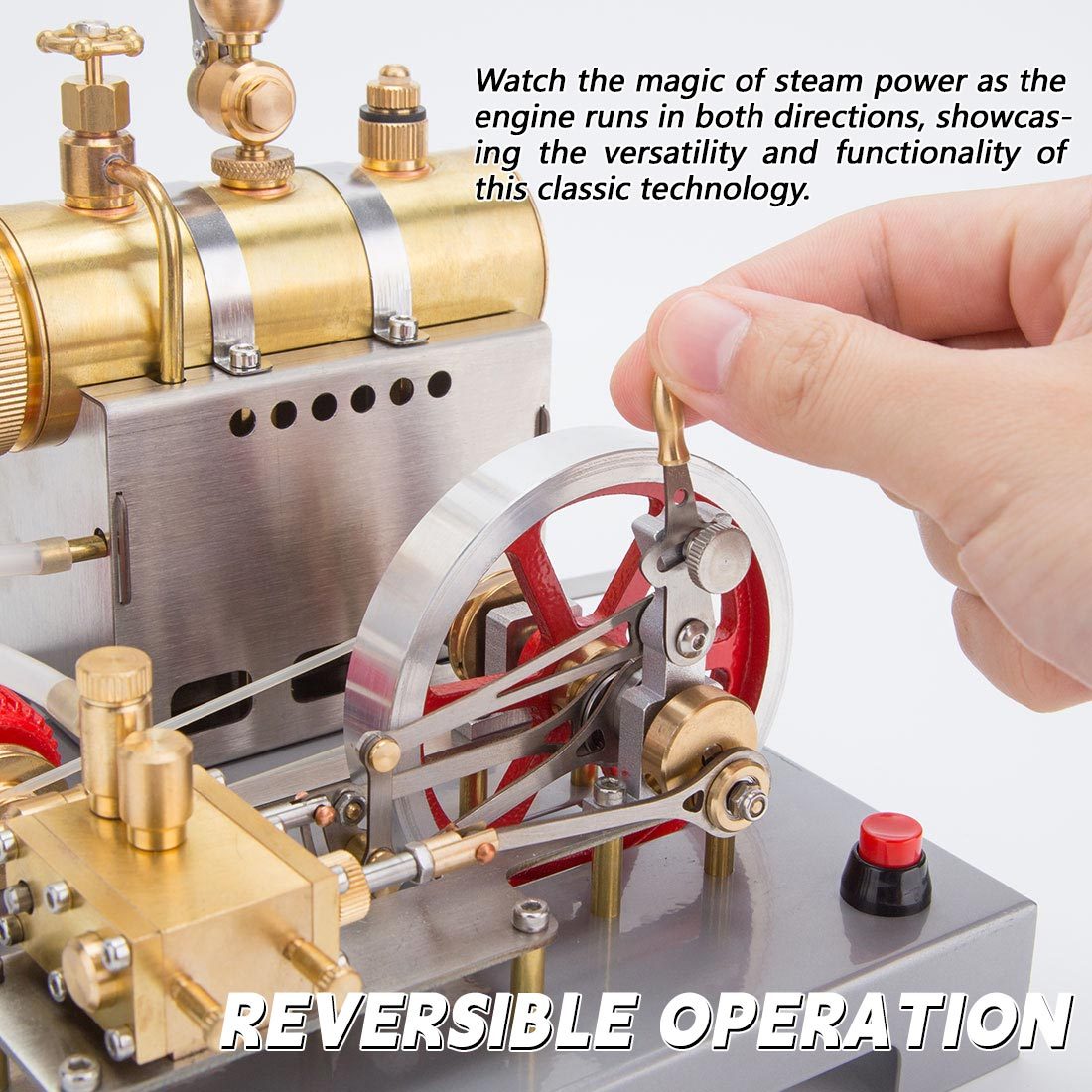

- Interactive Control: This isn't a "turn on and leave" toy. It features a forward/reverse gear mechanism and a steam throttle valve, giving you full control over the engine's speed and direction. You are the operator.
Technical Highlights: Engineering Simplified

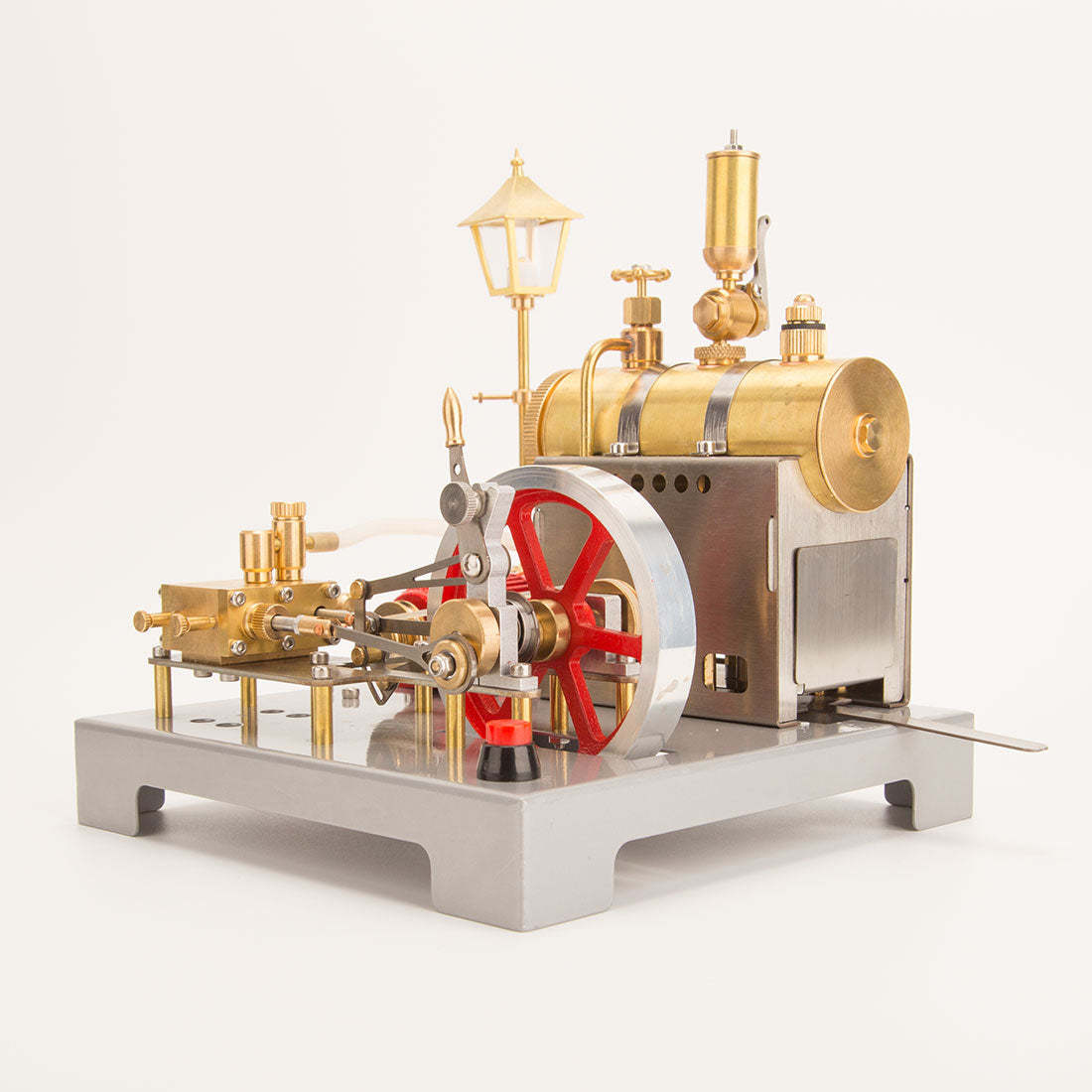

- Classic Horizontal Design: Modeled after the stationary mill engines of the Victorian era, the SE-02 features a low center of gravity and a heavy flywheel (2000g total weight) for stable, smooth operation between 500-1000 RPM.

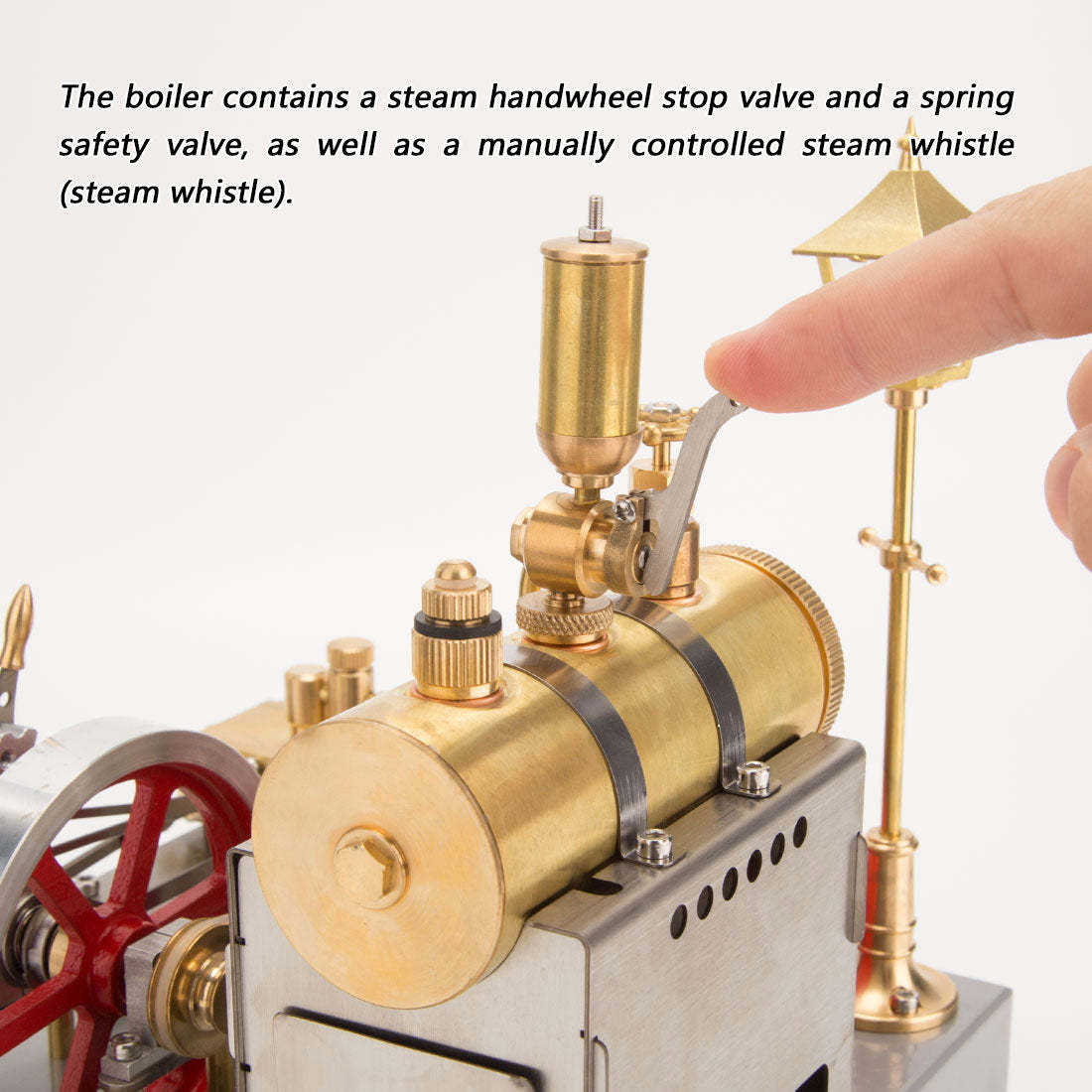

- Safety-First Boiler System: The boiler is equipped with a spring-loaded safety valve to automatically release excess pressure, along with a steam whistle for that authentic auditory experience.
- Premium Materials: The chassis and components are CNC-machined from aluminum alloy, brass, and stainless steel. The color scheme (Gold, Red, Gray) is professionally anodized and painted for a finish that resists corrosion and looks museum-quality.

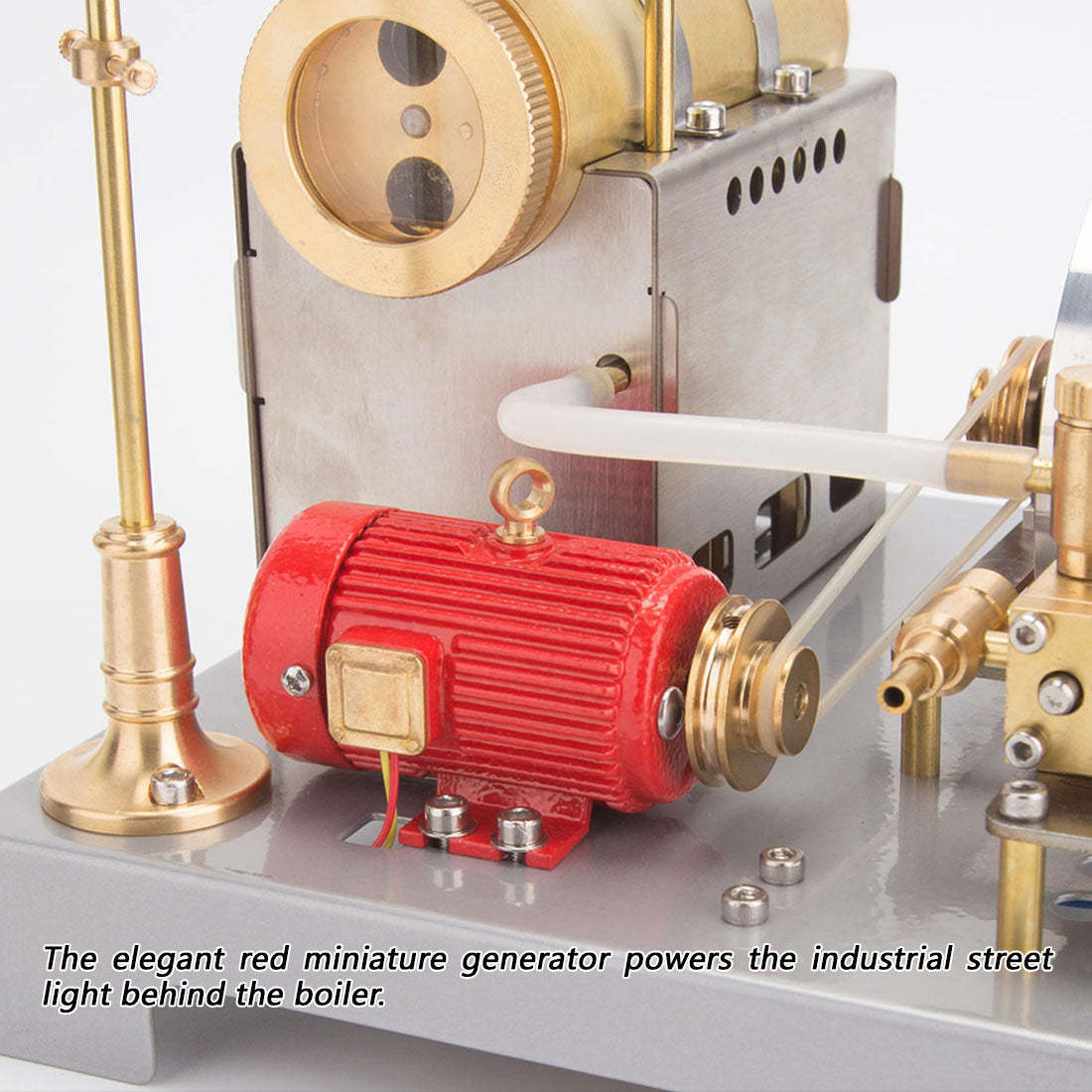

- Generator Mechanics: A belt drive connects the engine flywheel to the miniature generator, demonstrating the principles of electromagnetic induction in a way that textbooks simply cannot match.
Specifications
- Brand: RETROL ENGINE
- Model: SE-02
- Material: Aluminum Alloy / Brass / Stainless Steel
- Dimensions: 18 x 18 x 20cm
- Total Weight: 2000g
- Part Count: ~100 pieces
- Speed: 500-1000 RPM
- Fuel: Liquid Alcohol (Recommended 95%)
- Features: Forward/Reverse Gear, Steam Whistle, Generator, LED Streetlight
- Assembly Time: Approx. 2-4 Hours (depending on experience)
Usage Scenario: The Engineer’s Evening
Imagine a quiet evening in your workshop or study. You fill the boiler with water and the lamp with alcohol. You strike a match. As the water reaches boiling point, steam begins to hiss from the valve. You open the throttle and give the flywheel a gentle push. The engine catches—chug, chug, chug—picking up speed. You flip the switch on the base, and suddenly, the miniature street lamp glows warm and bright against the spinning brass flywheel. It’s a mesmerizing moment of mechanical harmony that you’ll want to share with friends and family.
Important Tips from the Workshop
- Lubrication is Crucial: Steam washes away oil. Before every run, apply a drop of high-temperature steam oil to the piston and crankshaft bearings to ensure smooth operation and prevent wear.
- Water Quality: Always use distilled water in the boiler. Tap water contains minerals that will scale up inside the boiler and valves, eventually clogging the system.
- Seal it Tight: During assembly, pay close attention to the gaskets and pipe connections. A steam leak means lost power. Take your time to ensure every joint is secure.
- Safety: The boiler gets very hot. Always allow the model to cool down completely before refilling water or touching the metal components.
Customer Support
We are dedicated to supporting your journey into steam engineering. If you need assistance with assembly, spare parts, or tuning advice, please contact our expert support team at service@helloworld7.com.
