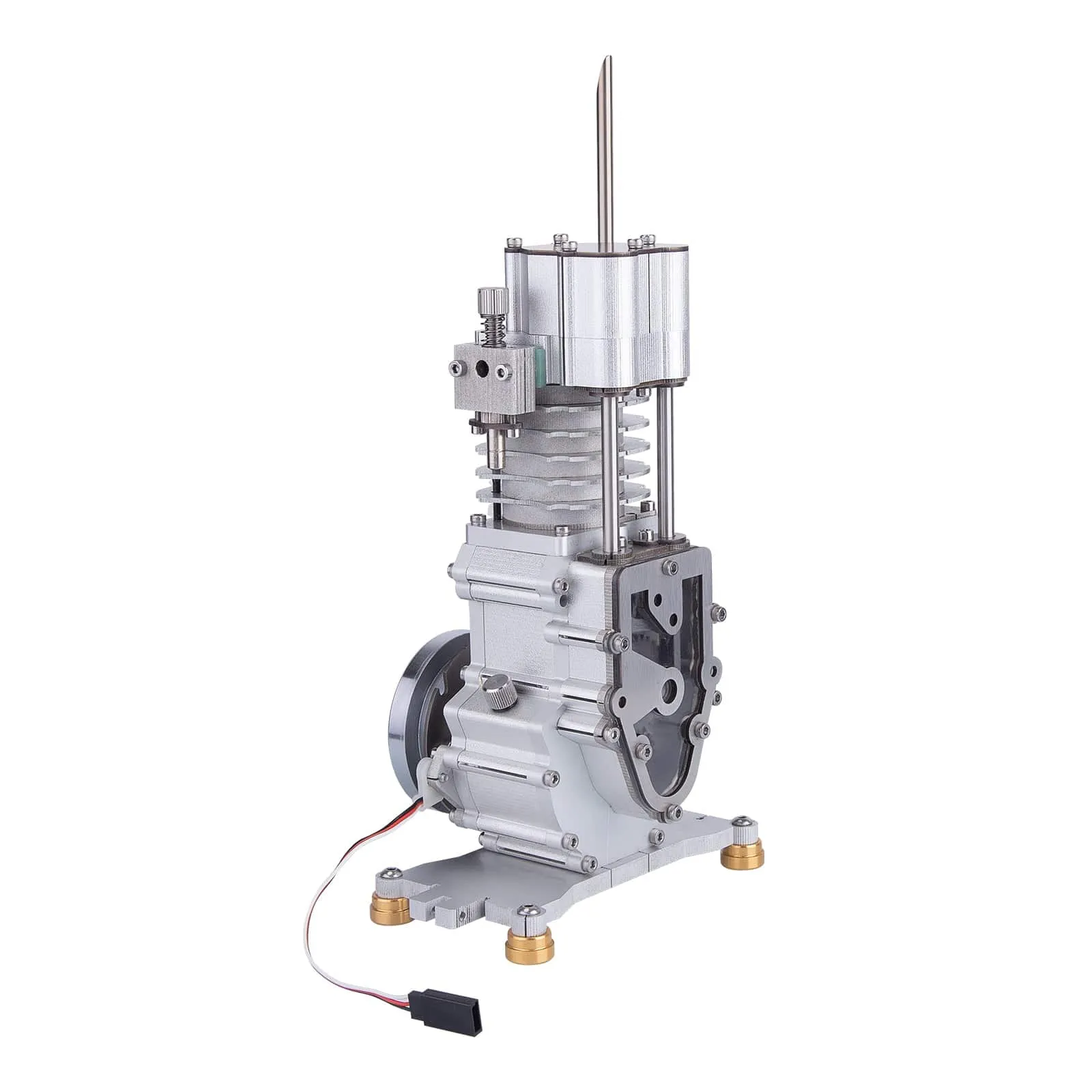

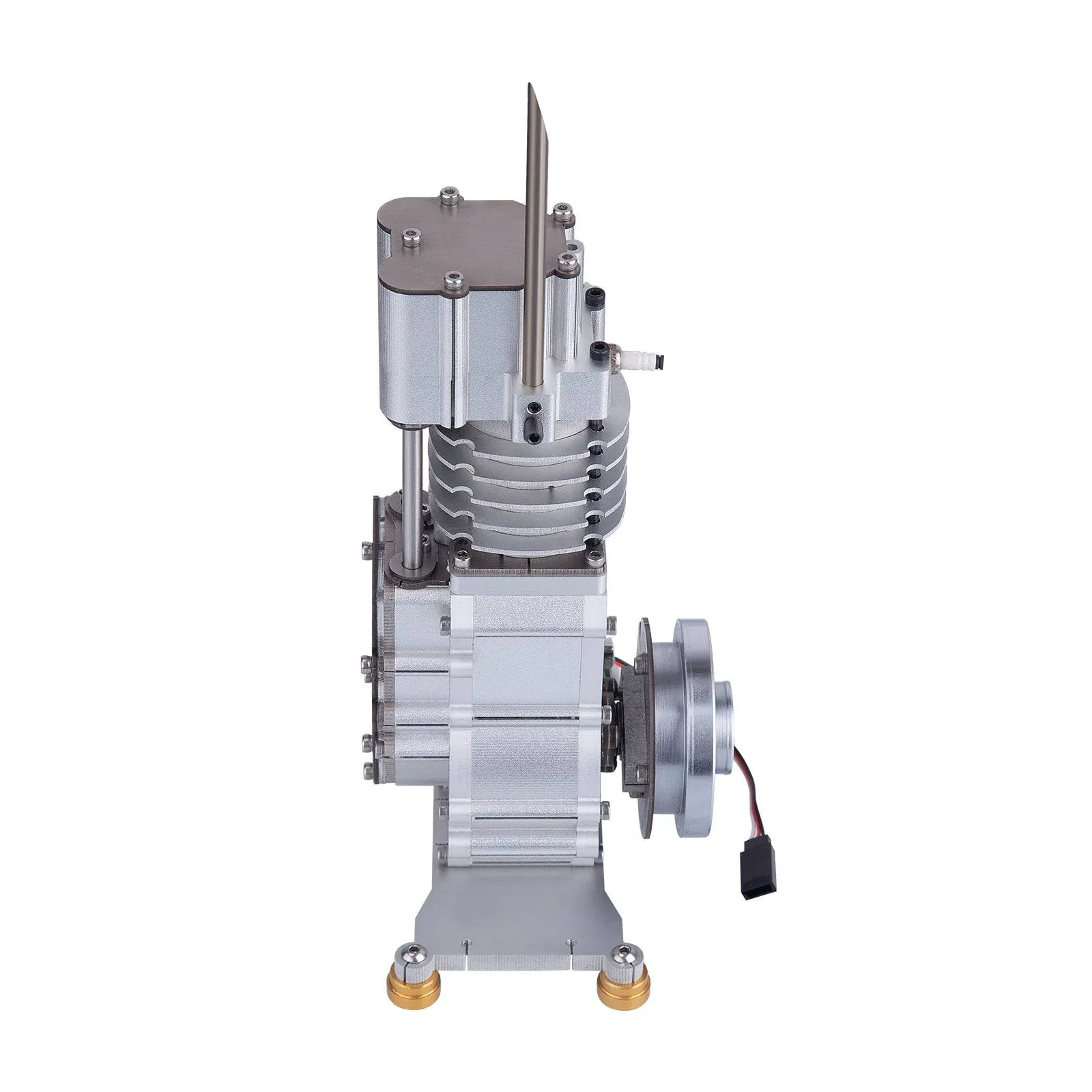

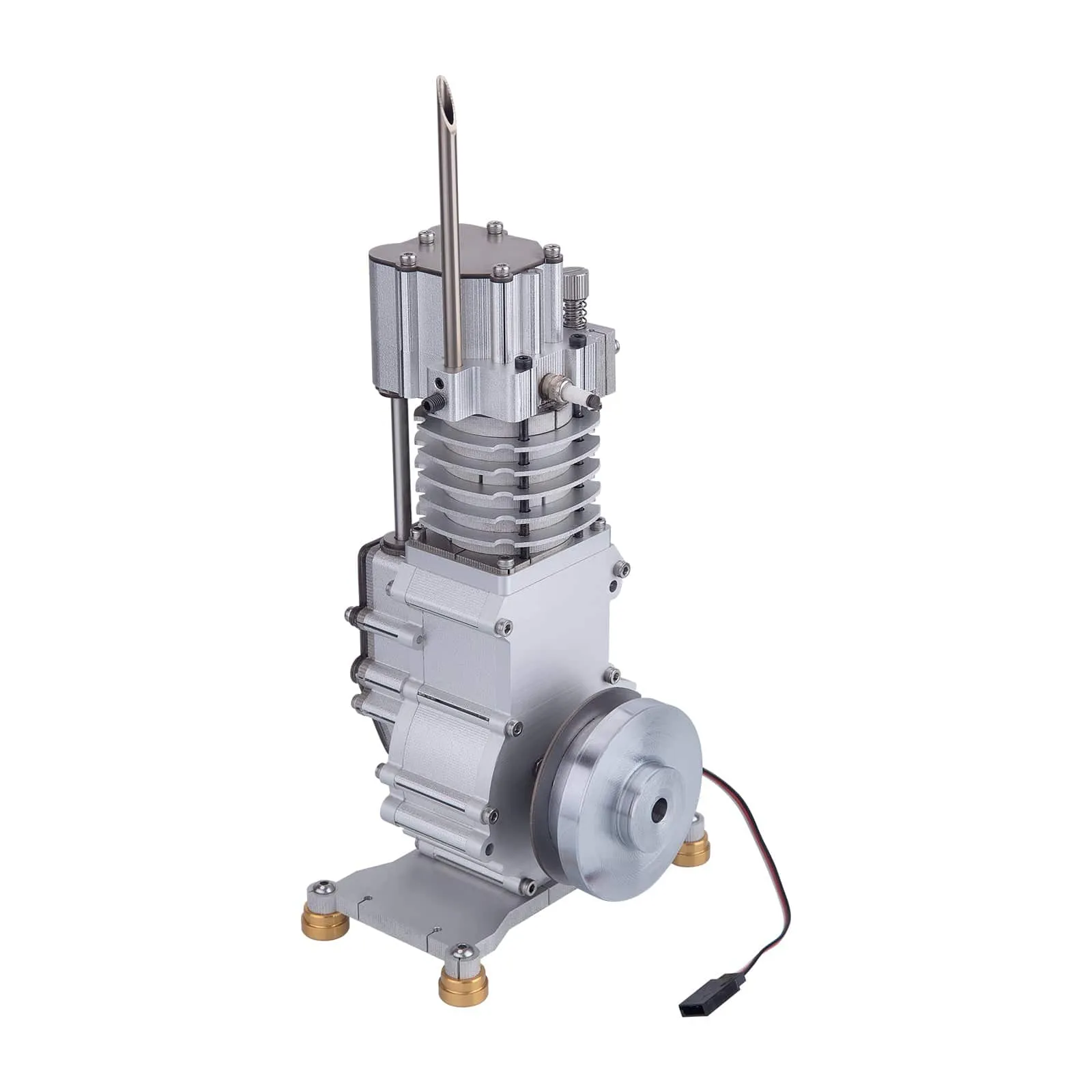

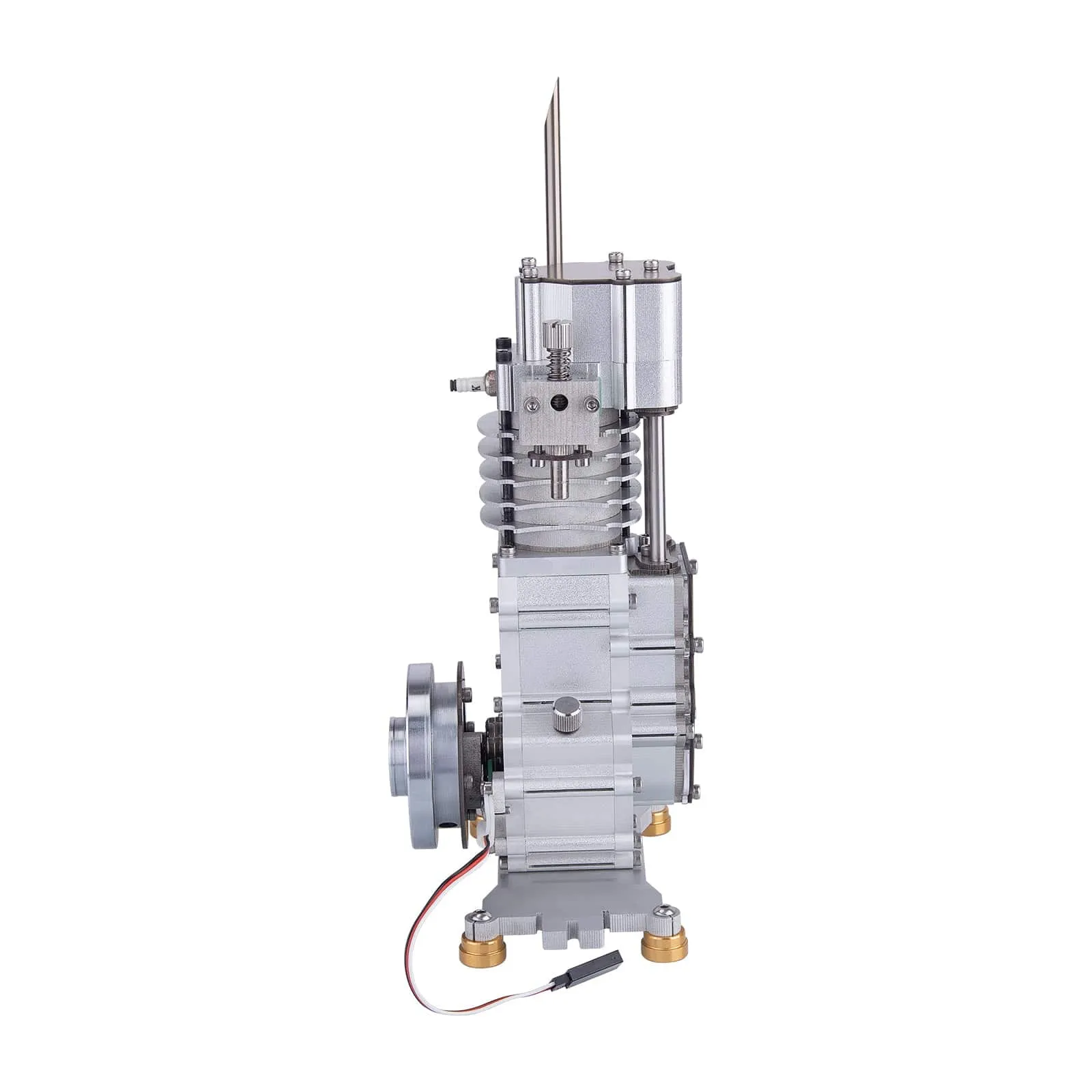

15cc Vertical 4 Stroke OHV Gasoline Engine Model with Visible Internal Mechanism
Hero Section: The Transparent Heart of Industry
Engineering is usually hidden behind metal covers, but the 15cc Vertical OHV Engine lays it bare. This isn't just a running engine; it is a window into the soul of the internal combustion cycle. Featuring a unique "half-perspective" design with visible internal components, this stationary engine combines the rugged aesthetics of the Industrial Revolution with modern CNC precision. Whether you are a teacher demonstrating the Otto cycle or a collector seeking a desktop centerpiece that captivates for hours, this engine offers an unrivaled visual and auditory experience.
Why Choose This 15cc Vertical Engine?

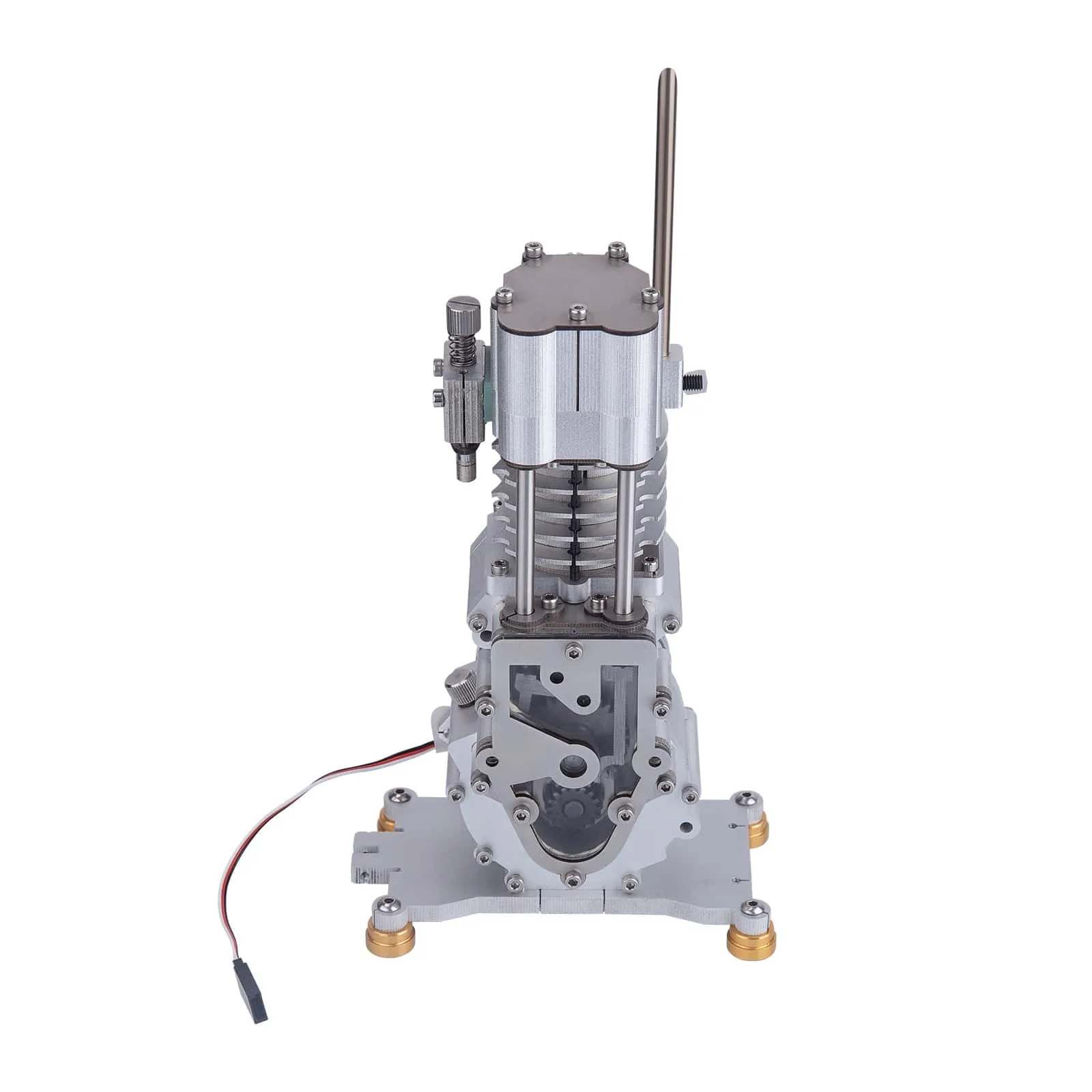

- Visible Mechanics: The standout feature is the half-perspective window. You don't just hear the engine run; you see it. Watch the crankshaft spin, the connecting rod dip into the oil, and the internal dance of mechanics that is usually hidden from view.
- True 4-Stroke Realism: Unlike simple 2-stroke models that burn oil, this engine features a genuine Wet Sump Lubrication System. You fill the crankcase with 4T oil, just like a real car. This results in a cleaner exhaust, a realistic sound, and a separate lubrication cycle that mimics full-sized industrial engines.
- Industrial Grade Durability: Built to run, not just to show. With a hardened crankshaft (55HRC) and CNC-machined aluminum alloy components (0.02mm precision), this engine is engineered for stability. It can run continuously for up to 30 minutes, a testament to its thermal management and build quality.
- The Educator’s Choice: There is no better way to explain how an engine works than to show it in action. The exposed OHV (Overhead Valve) train and visible internals make it the ultimate STEM teaching aid.
Technical Highlights: Engineering Deep Dive
- Precision Hardening: The crankshaft undergoes 40Gr quenching and tempering, followed by hard chrome electroplating. This ensures that the moving parts can withstand the stress of 5000 RPM without wear.

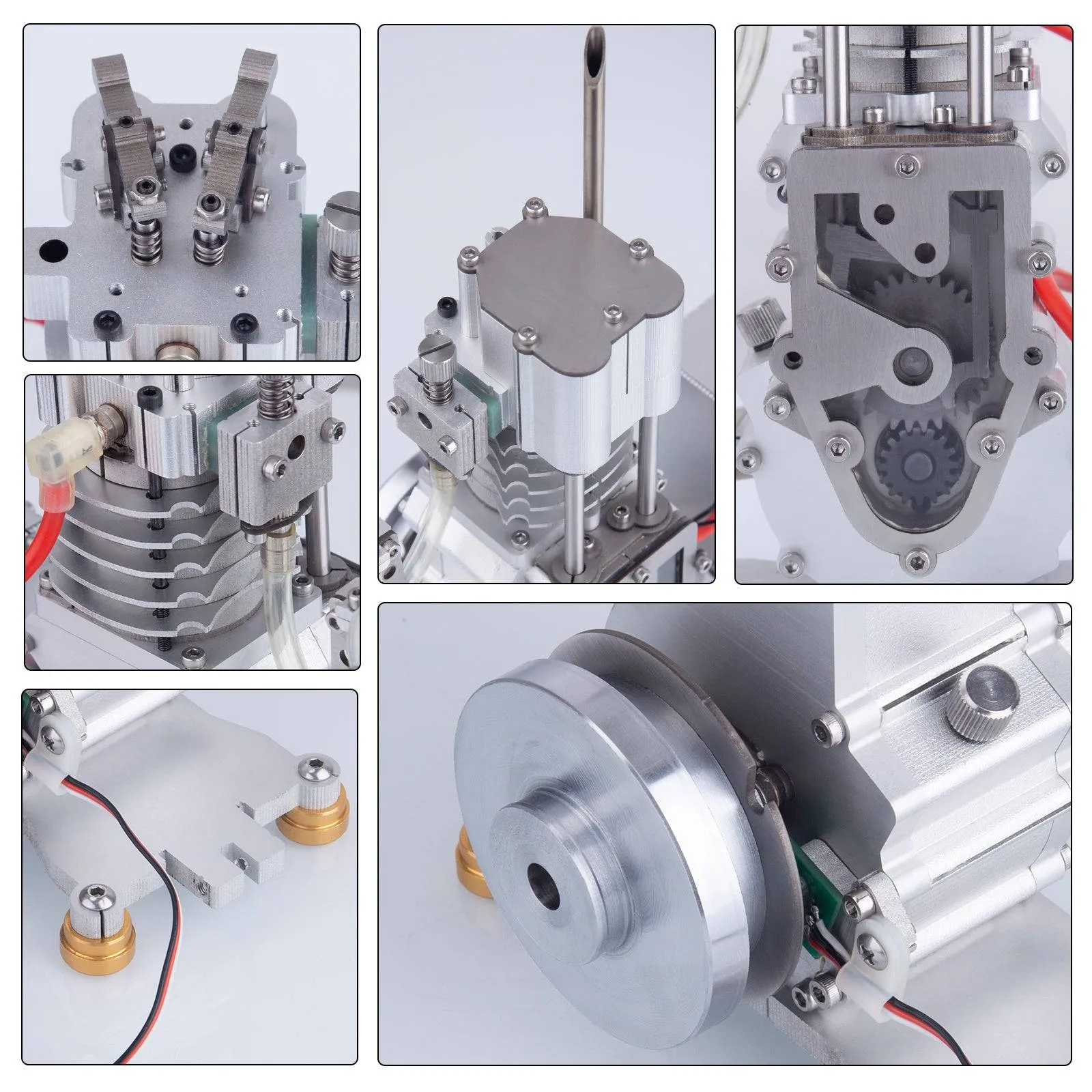

- Overhead Valve (OHV) Design: The classic pushrod and rocker arm design is fully exposed. You can observe the tappets lifting and the valves opening and closing in perfect sync with the engine's rhythm.
- Independent Lubrication: The engine utilizes a splash lubrication system within a wet sump. The connecting rod "dipper" splashes oil onto the cylinder walls and bearings, ensuring smooth operation without the need to mix oil into your fuel.
- Wide RPM Range: From a slow, rhythmic idle at 800 RPM to a buzzing 5000 RPM, the engine offers a dynamic range of operation, controlled by a precision carburetor.
Specifications
- Type: Vertical Single-Cylinder 4-Stroke Gasoline Engine
- Displacement: 15cc
- Bore: 25mm
- Stroke: 24mm
- Valve Mechanism: OHV (Overhead Valve)
- Compression Ratio: 5:1
- RPM Range: 800 - 5000 rpm
- Cooling: Air-Cooled
- Lubrication: Wet Sump / Splash Lubrication
- Oil Type: 5W40 (4T Engine Oil)
- Oil Capacity: 25mL - 35mL

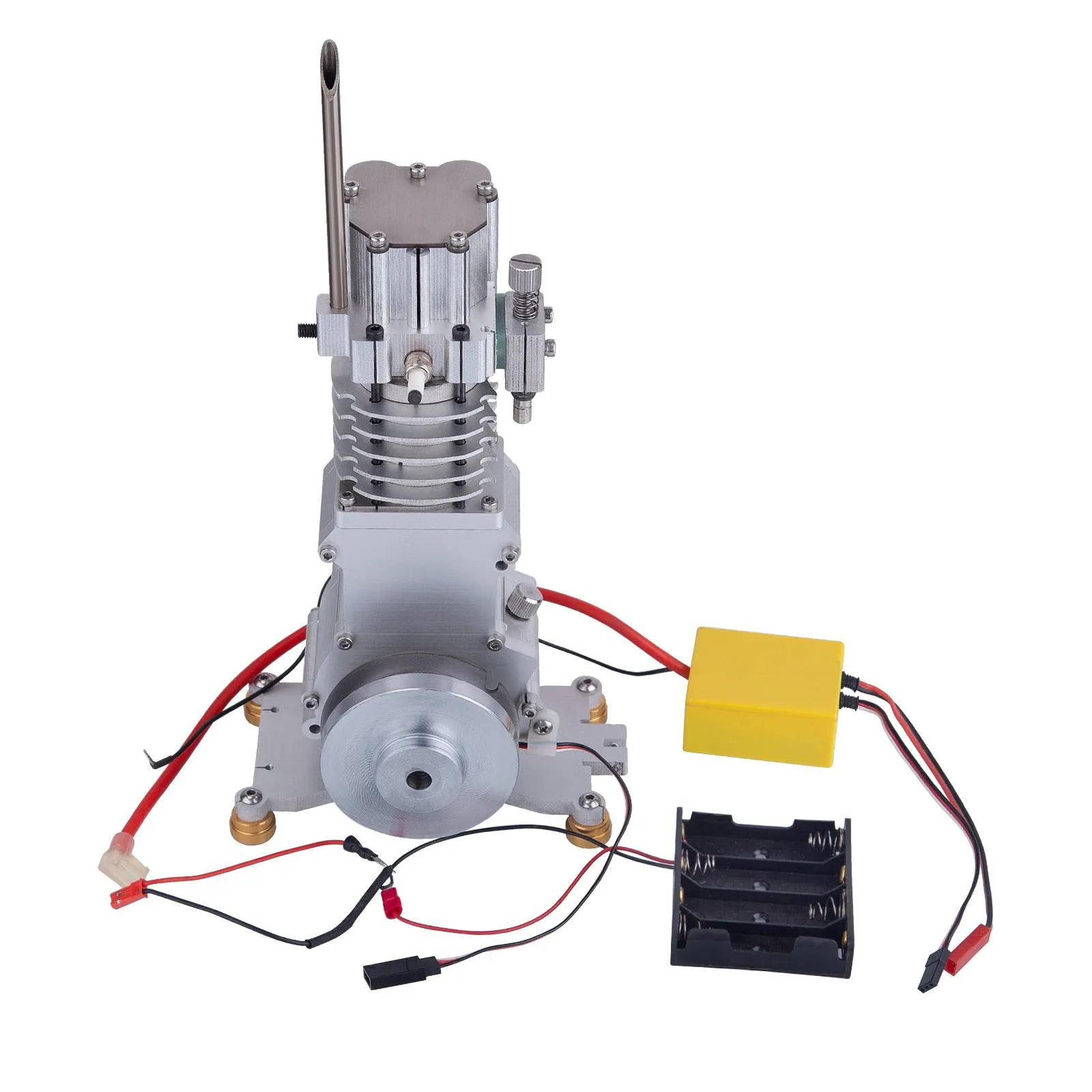

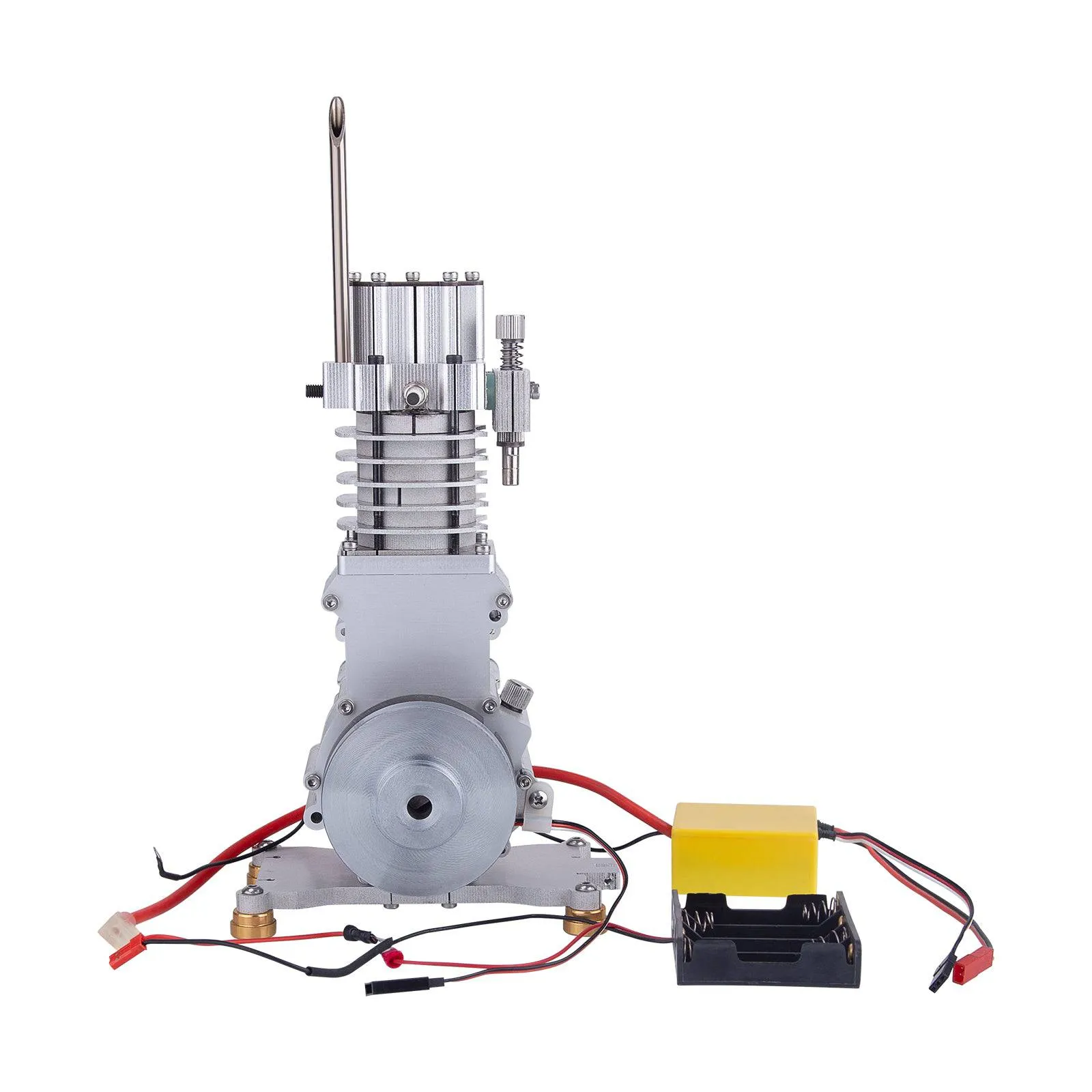

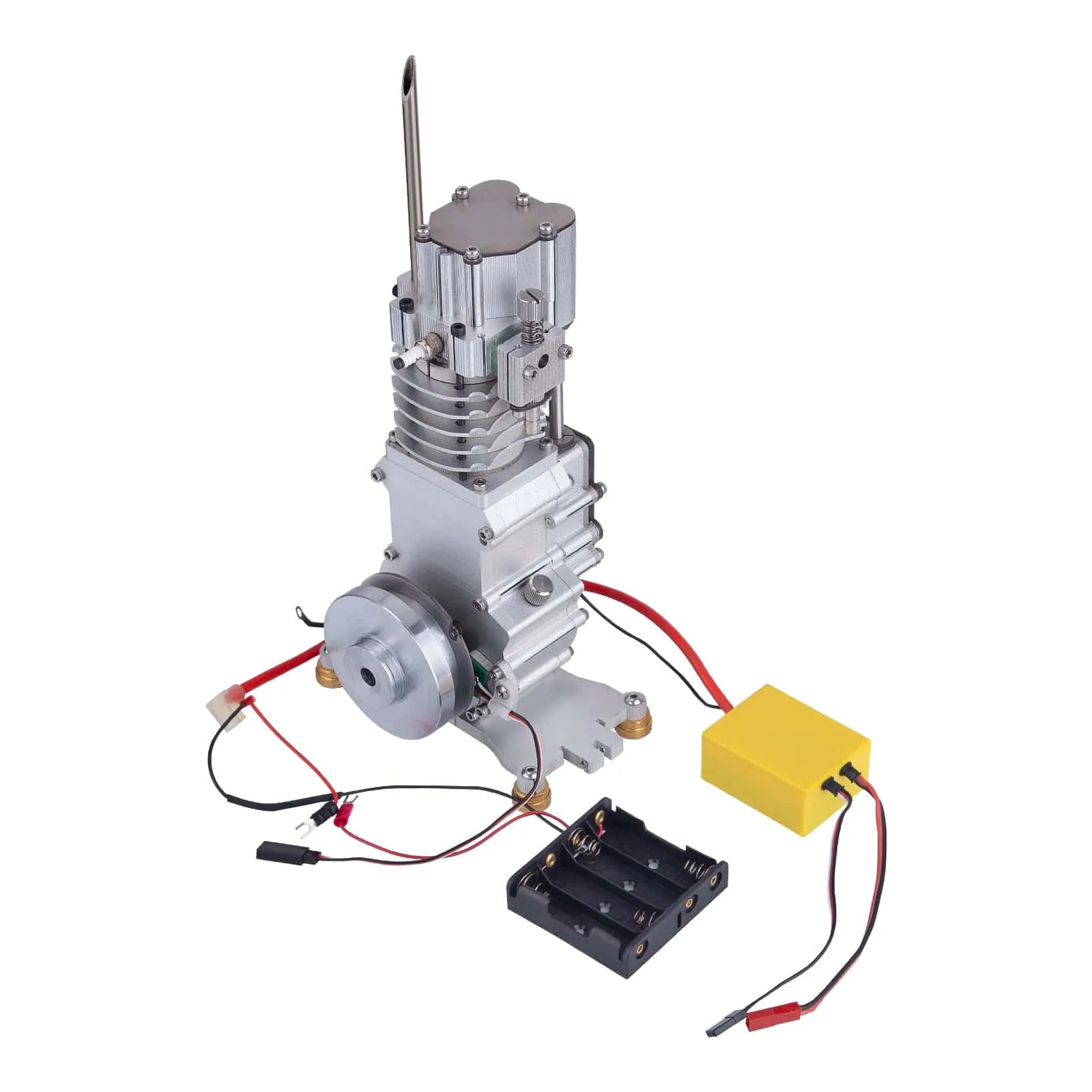

- Ignition: CDI Electronic Ignition (6V supply required)
- Starting: Manual Pull Rope
- Dimensions: 21 x 12 x 27cm
- Weight: 1900g
Usage Scenario: The Desktop Factory
You place the heavy metal engine on your desk. You unscrew the oil dipstick and fill the sump with golden 5W40 oil. You connect the battery to the CDI. You wrap the starting rope around the pulley. With a sharp pull, the engine coughs and then settles into a steady chug-chug-chug. Through the viewing window, you watch the oil splashing and the crankshaft spinning, mesmerized by the mechanical heartbeat you’ve just awakened.
Important Tips from the Workshop
- Lubrication is Critical: This is a 4-stroke engine with a wet sump. You must add engine oil (5W40) to the crankcase before starting. Running it without oil will seize the engine immediately.
- Fuel Requirement: Use clean gasoline. Do not mix oil into the fuel tank (unlike 2-stroke models). The lubrication is handled separately by the oil in the sump.
- Package Variations: Please note this engine is often sold in a "Simple Edition" (Engine + Igniter only) or a "High-End Edition" (Includes Base + Tank). If you purchase the simple edition, you will need to mount the engine and provide your own fuel tank and 6V battery source.
- Valve Maintenance: The exposed valve train is beautiful but can collect dust. Wipe it down occasionally and apply a drop of oil to the rocker arms for smooth operation.
Customer Support
We are passionate about precision mechanics. If you need assistance with oil filling levels, ignition wiring, or mounting advice, please contact our expert team at service@helloworld7.com.
