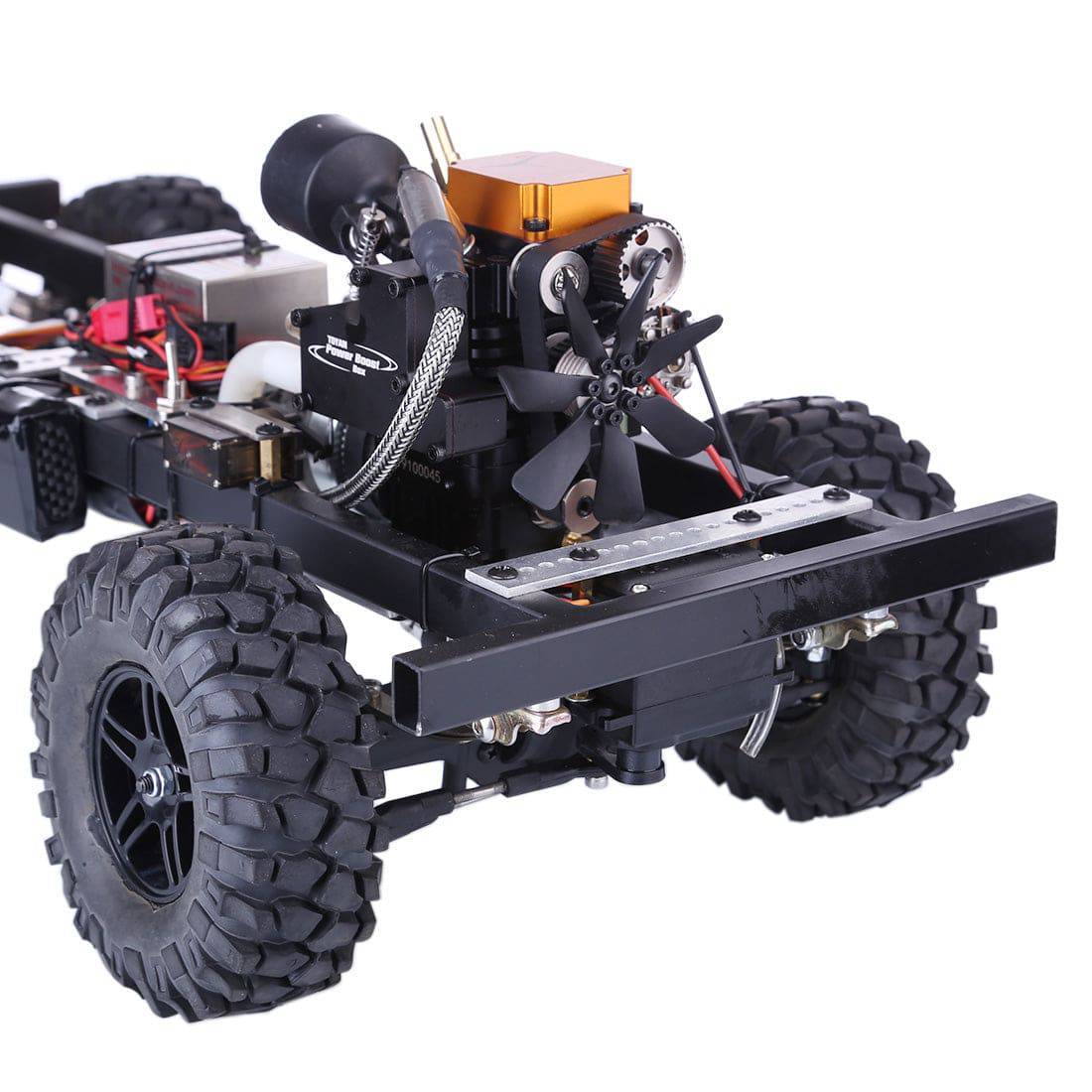

1/10 Scale Modified RC Car Chassis with TOYAN FS-S100G 4-Stroke Gasoline Engine One-Key Start
Gasoline Power Revolution: TOYAN FS-S100G Inside
This is where precision modeling meets real automotive engineering. This custom 1/10 scale chassis is powered by the remarkable TOYAN FS-S100G 4-Stroke Gasoline Engine. Unlike nitro engines, this unit runs on standard gasoline, providing a realistic, clean-burning power source with a distinct mechanical character.
This DIY Modified & Upgraded platform is a rolling laboratory for enthusiasts. It features a sophisticated One-Key Remote Start, a 3-speed transmission, and a robust metal drivetrain. Sold without a body shell, it invites you to admire the engine's operation or fit your own custom scale body to create the ultimate crawler or truck.
Why Choose This Custom Gasoline Chassis?
1. TOYAN FS-S100G Gasoline Engine

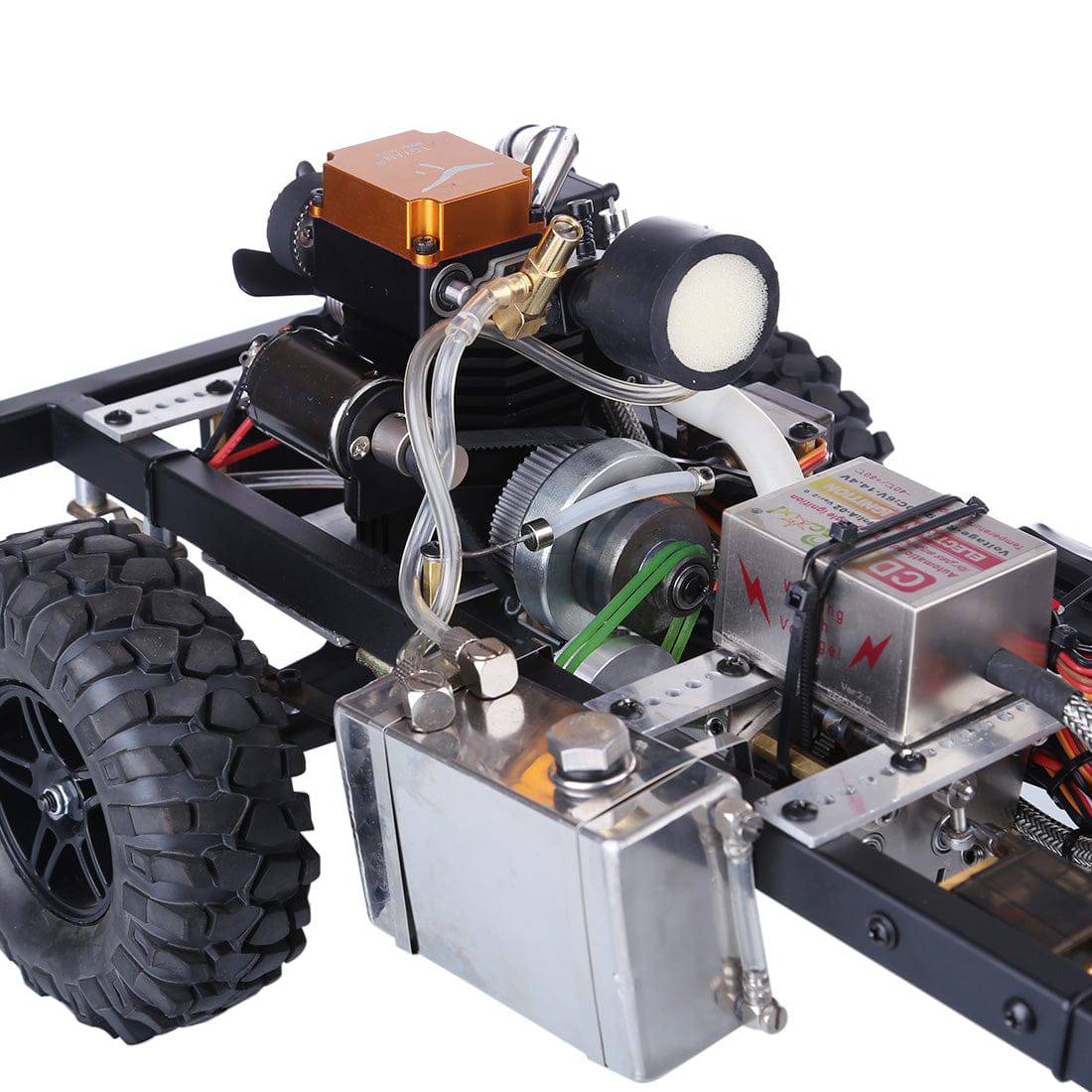

Experience the future of scale power. The FS-S100G is a true 4-stroke gasoline engine. It offers easier fuel sourcing (standard gas/oil mix) and a unique sound profile compared to methanol engines. It’s a marvel of miniaturization, featuring overhead valves and a precision carburetor.
2. Modern Convenience: One-Key Start

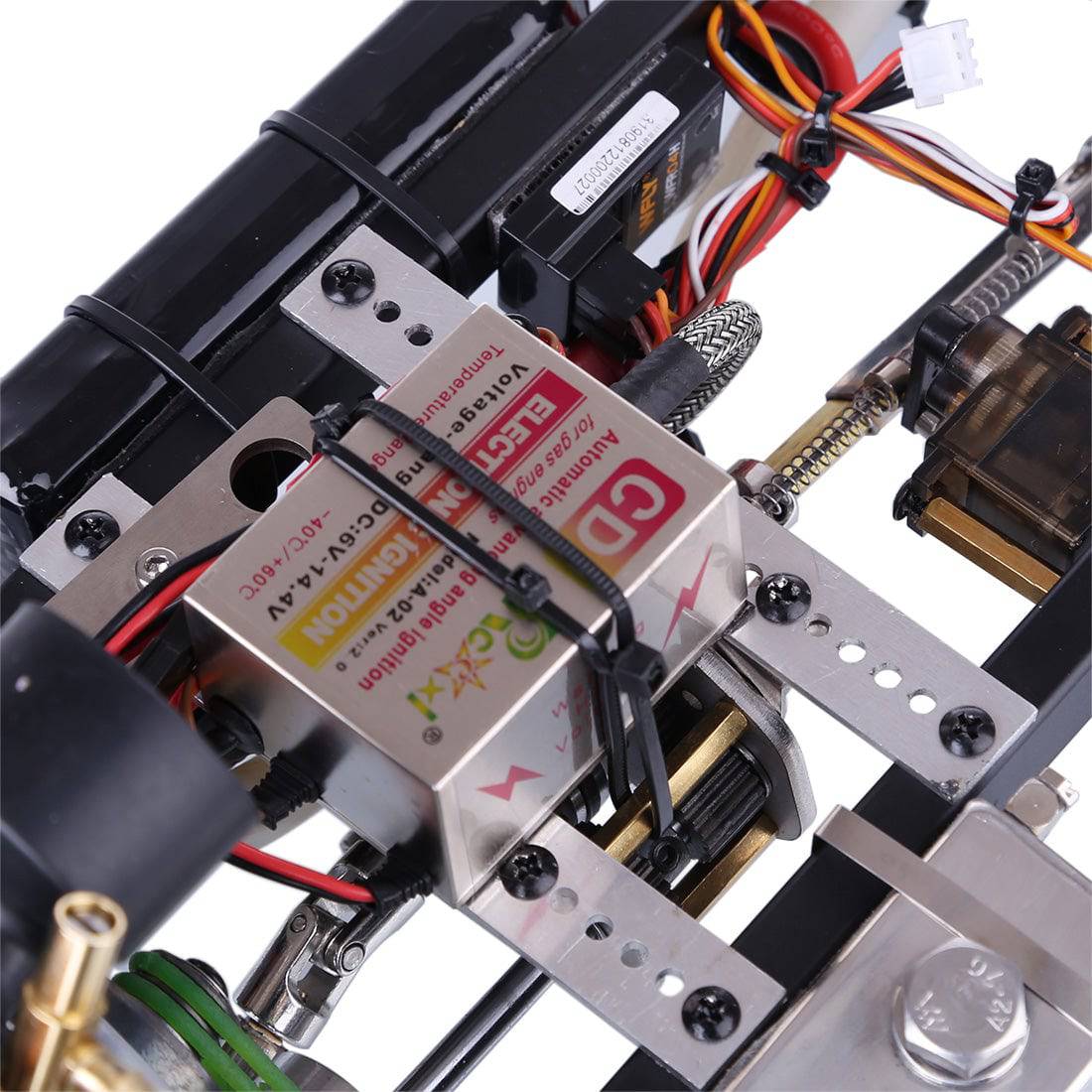

No more pull-cords. We've integrated a custom wiring harness that enables Remote Electric Starting. Simply press a button on the included 4-channel transmitter, and the starter motor engages, bringing the gasoline engine to life instantly. It’s seamless and impressive.
3. Full Tactical Control (3-Speed Transmission)
Drive with purpose. The chassis is equipped with a 3-gear transmission (Forward, Neutral, Reverse) controlled by a dedicated servo. This allows for complex maneuvering, parking, and realistic trail driving that single-speed cars can't match.
4. Heavy-Duty Metal Architecture

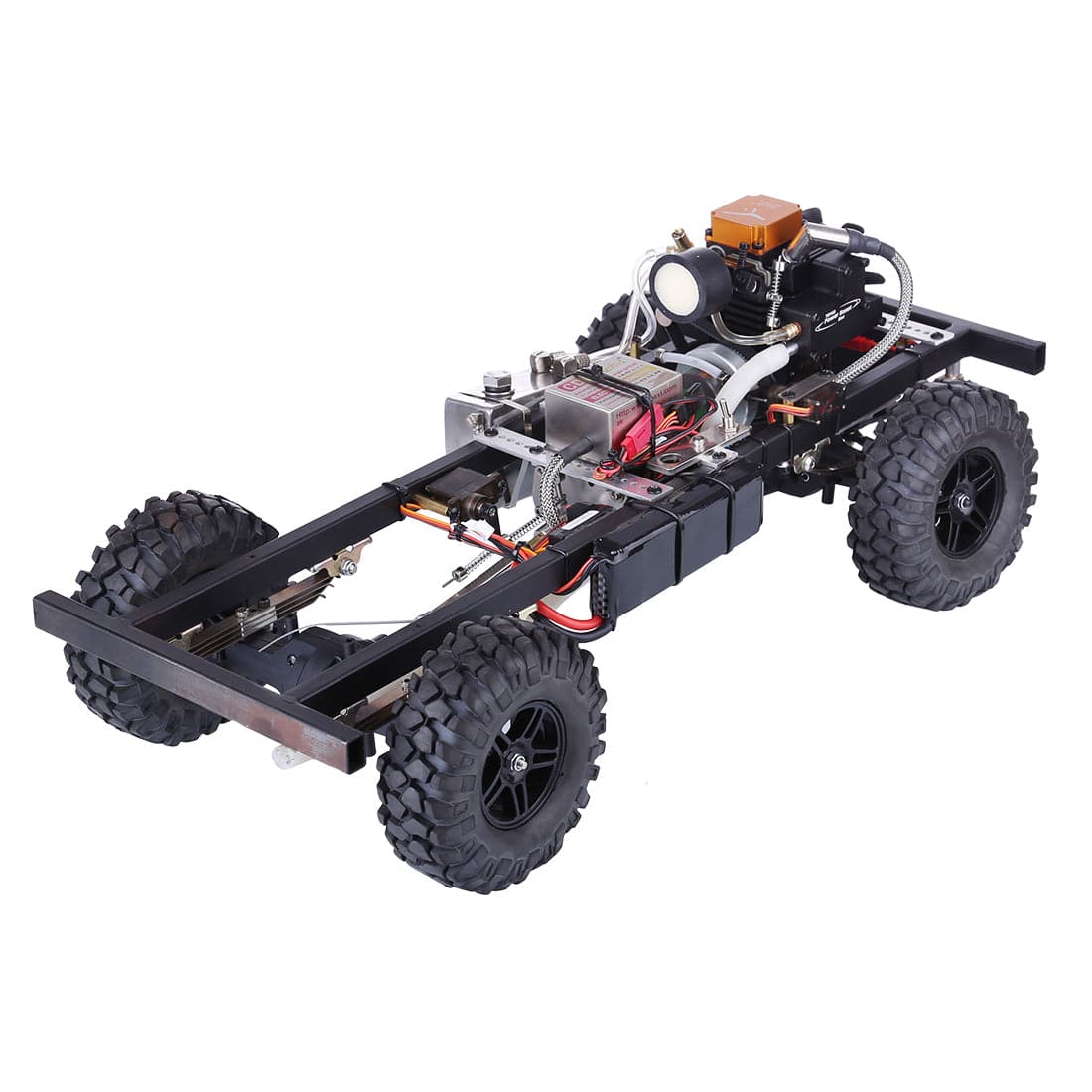

The chassis is built to last. It features a metal main frame, metal internal axle gears, and a reinforced drive shaft. The suspension uses a realistic bow plate (leaf spring) system for authentic load handling and articulation.
Technical Highlights: Engineering Excellence
- Automatic Clutch: A custom automatic clutch system prevents stalling at idle, allowing the engine to run smoothly while the car is stationary.
- Adjustable Geometry: The wheelbase is adjustable between 297mm and 313mm, ensuring compatibility with a vast array of aftermarket 1/10 scale bodies (like the SCX10 series).

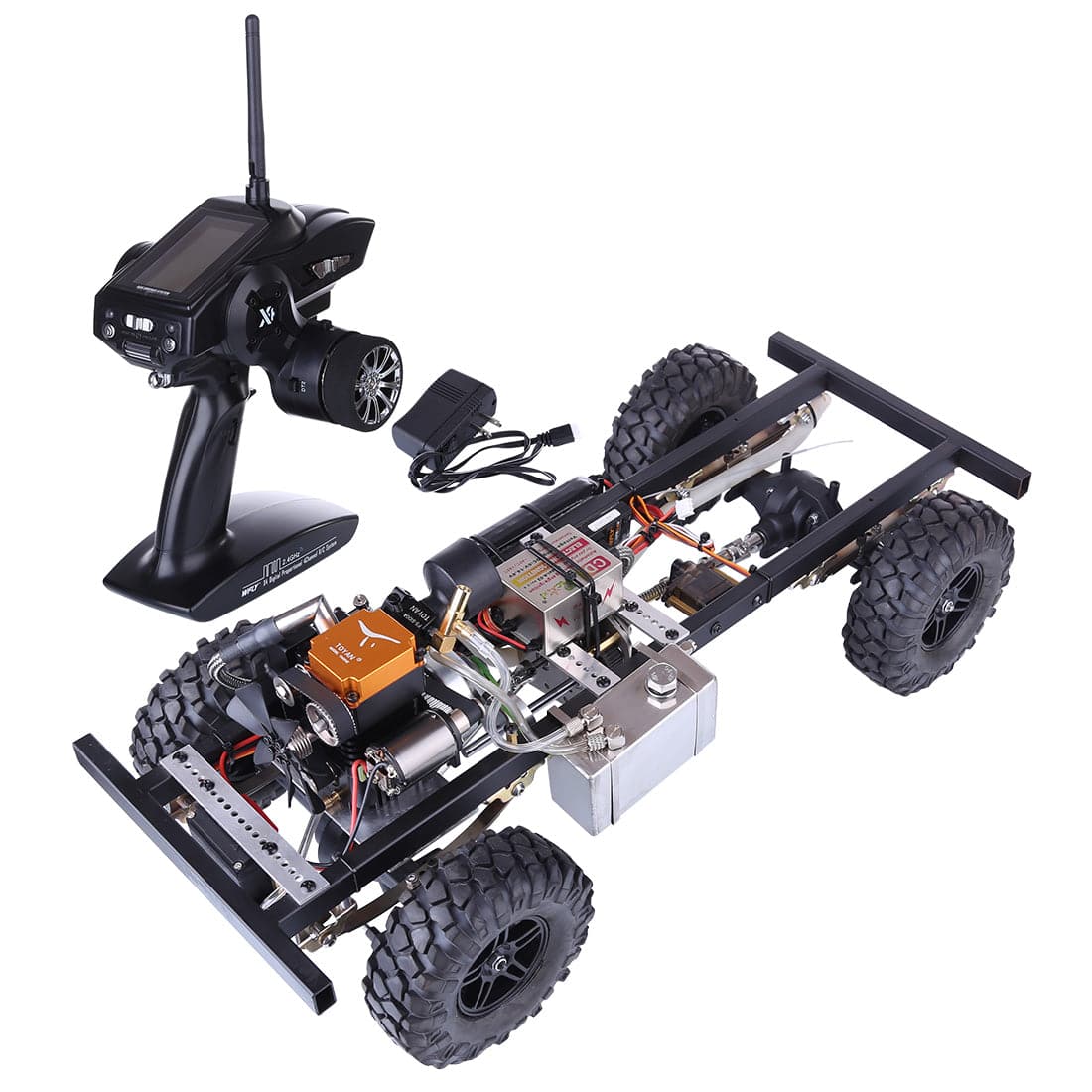

- Ready-to-Run (RTR) Core: The chassis comes fully assembled with the engine, servos, receiver, and remote installed. Just add batteries and fuel to start your adventure.
- Reduction Pulley System: Power is transferred via a belt reduction system, smoothing out the engine pulses and providing consistent torque to the wheels.
Specifications
- Scale: 1/10
- Engine: TOYAN FS-S100G Single-Cylinder 4-Stroke Gasoline Engine
- Start System: One-Key Remote Electric Start
- Transmission: 3-Gear (F/N/R)
- Remote: 4-Channel 2.4GHz System
- Wheelbase: 297mm - 313mm (Adjustable)
- Chassis: Metal Frame + Leaf Springs
- Dimensions: 44cm (L) x 22cm (W) x 10cm (H)
- Weight: 4000g (Approx. 4kg)
- Fuel: Gasoline mixed with 2-stroke oil (Ratio approx 25:1)
- Required: Batteries for Remote/Receiver, Gasoline.
Usage Scenario: The Scale Garage
It’s Saturday morning. You place the chassis on the ground. You fill the small tank with mixed gasoline. You switch on the remote and press the start button. The electric starter spins, and the TOYAN engine fires up with a crisp, clean idle.
You shift into "Forward" remotely. The clutch engages, and the chassis moves out. You navigate a backyard obstacle course, the leaf springs flexing over rocks, the 4-stroke engine purring. Later, you fit a custom-painted pickup body over it. It’s not just a model; it’s a miniature vehicle.
Customer Support
This is a sophisticated product for experienced hobbyists. For fuel mixing ratios, maintenance tips, or technical support, please contact our expert team: service@helloworld7.com
