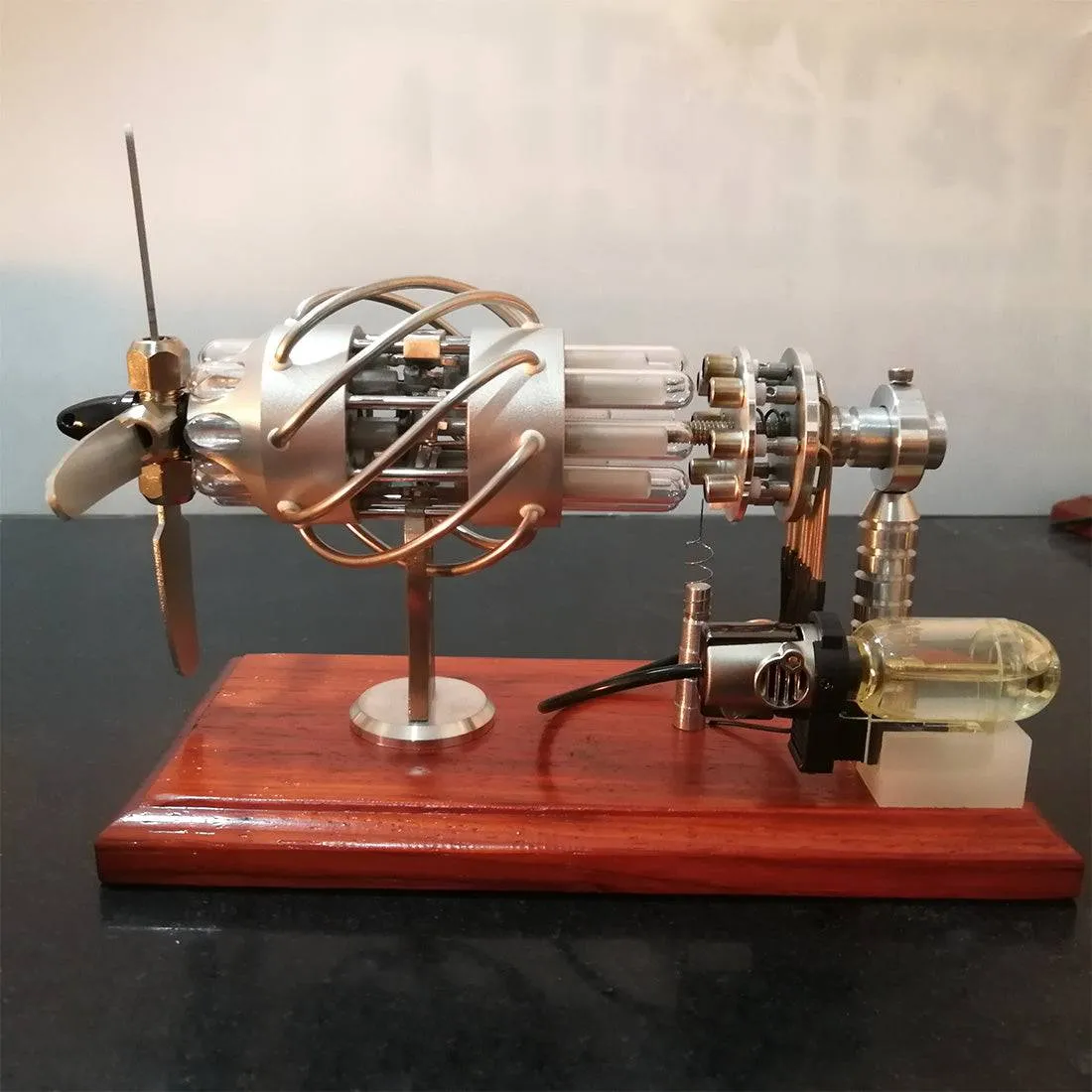

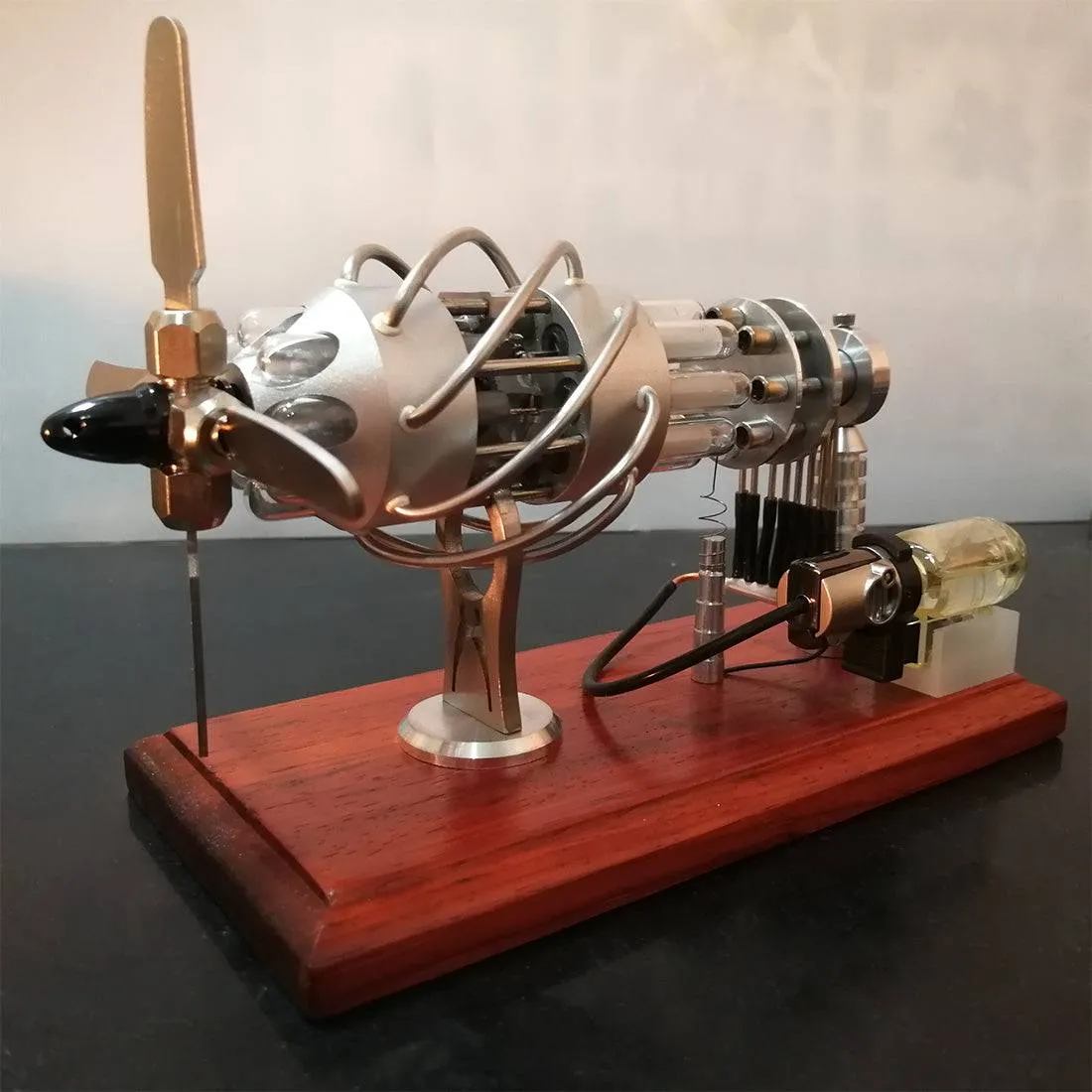

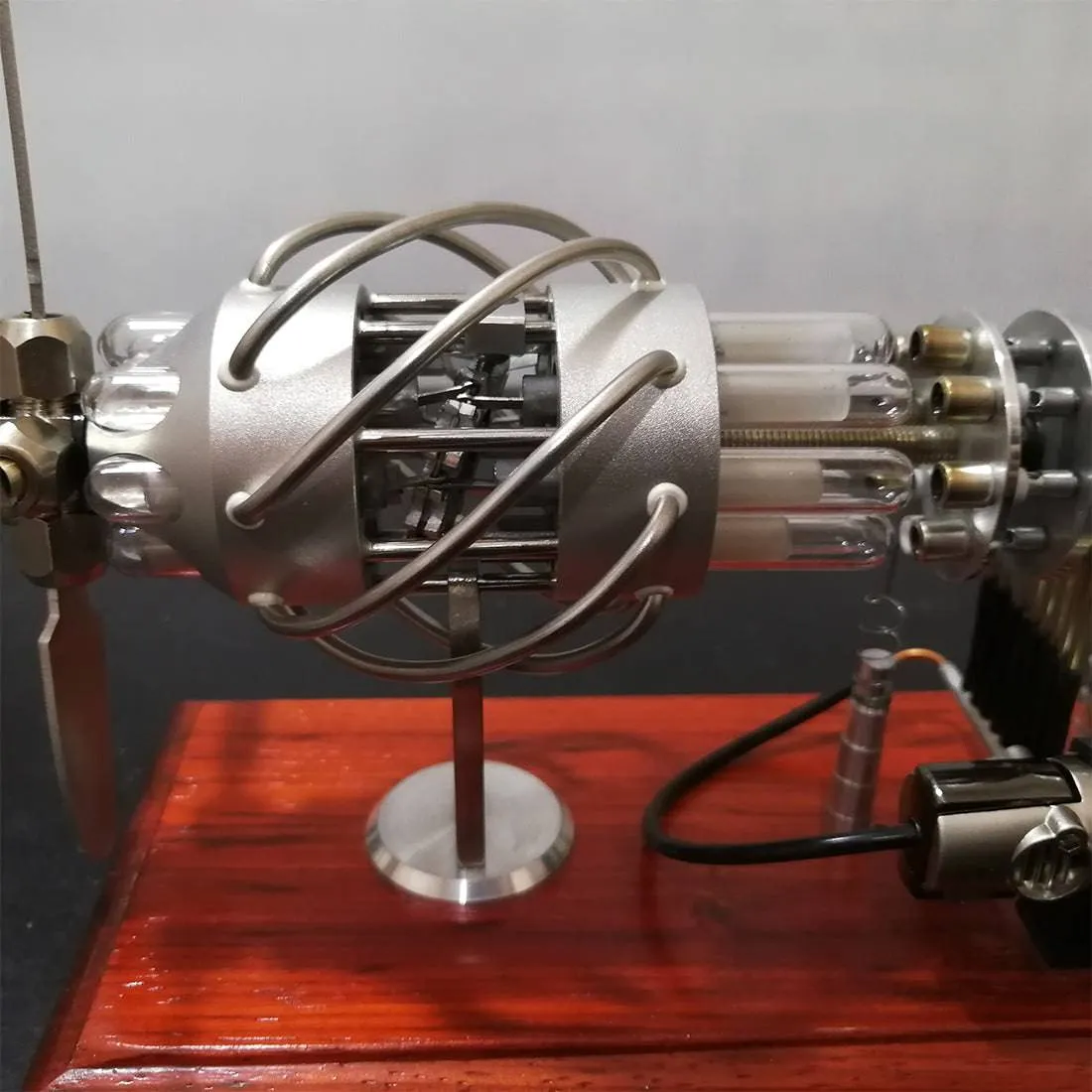

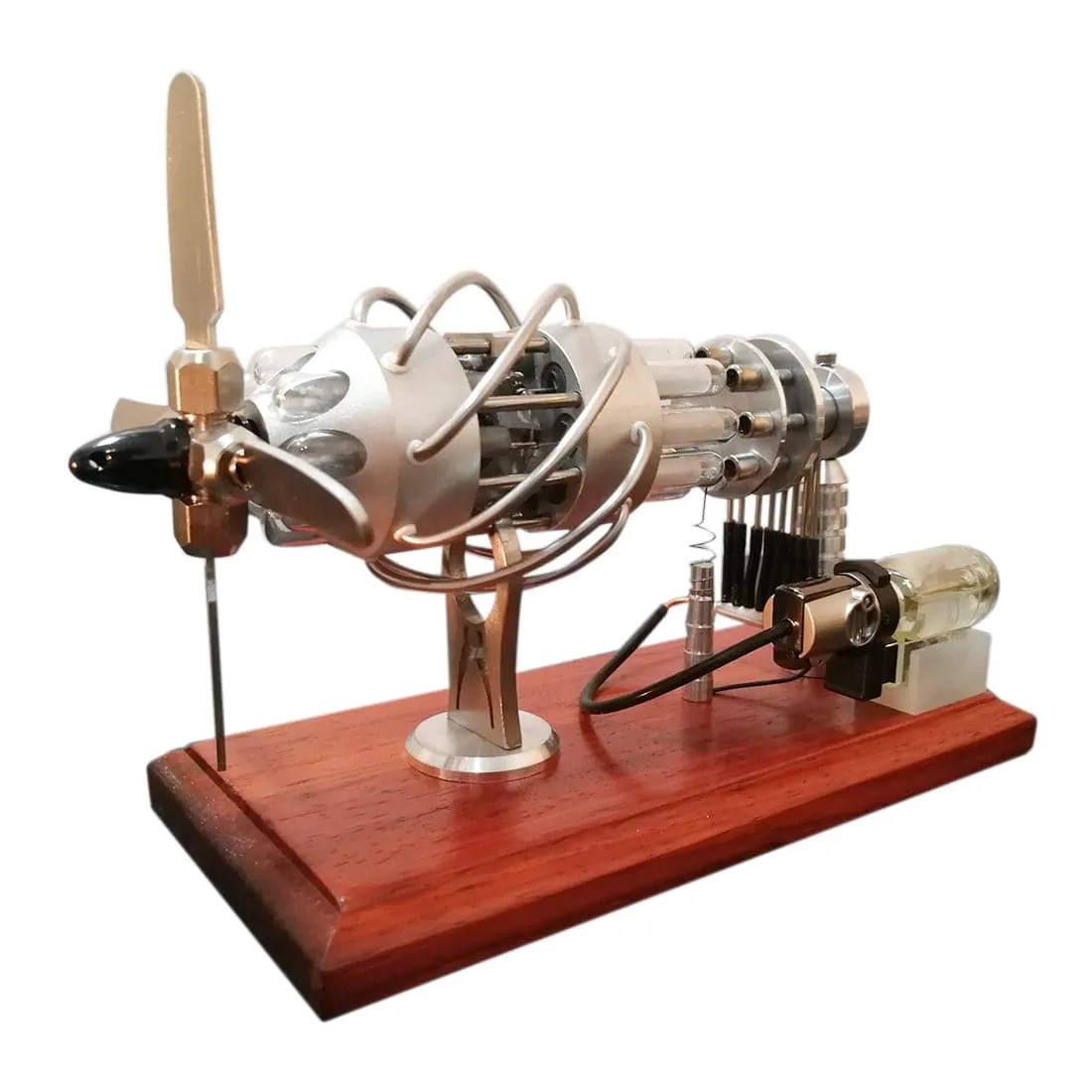

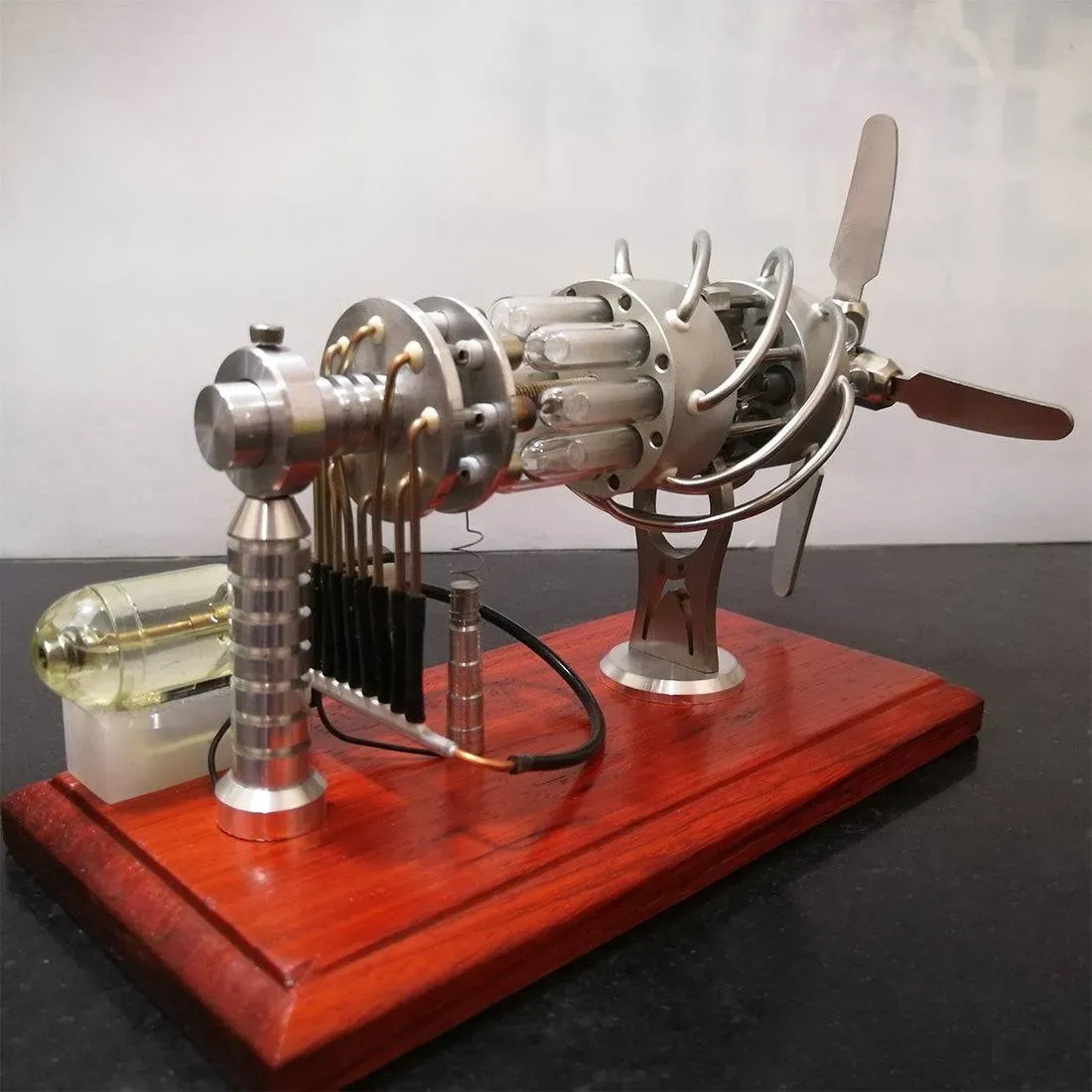

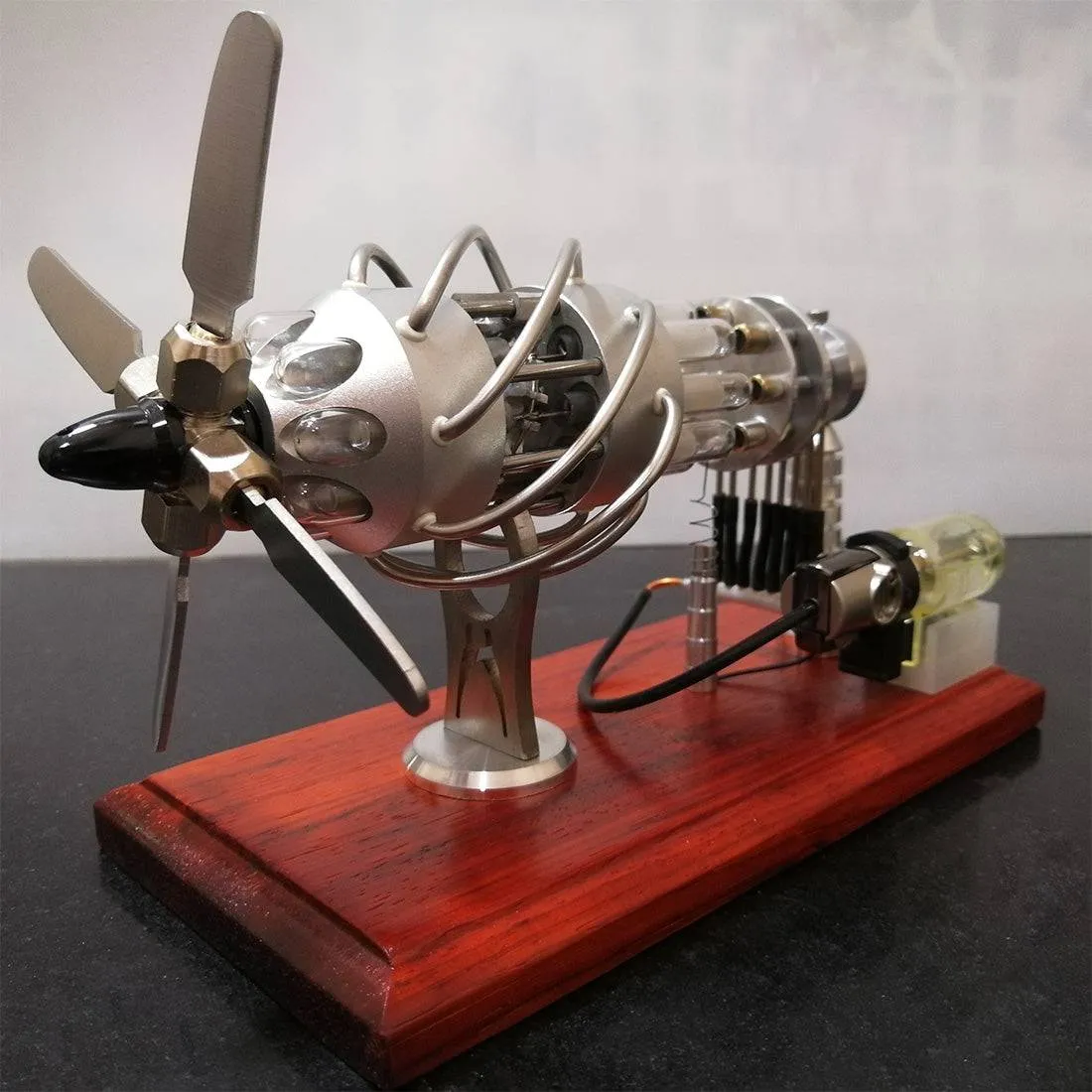

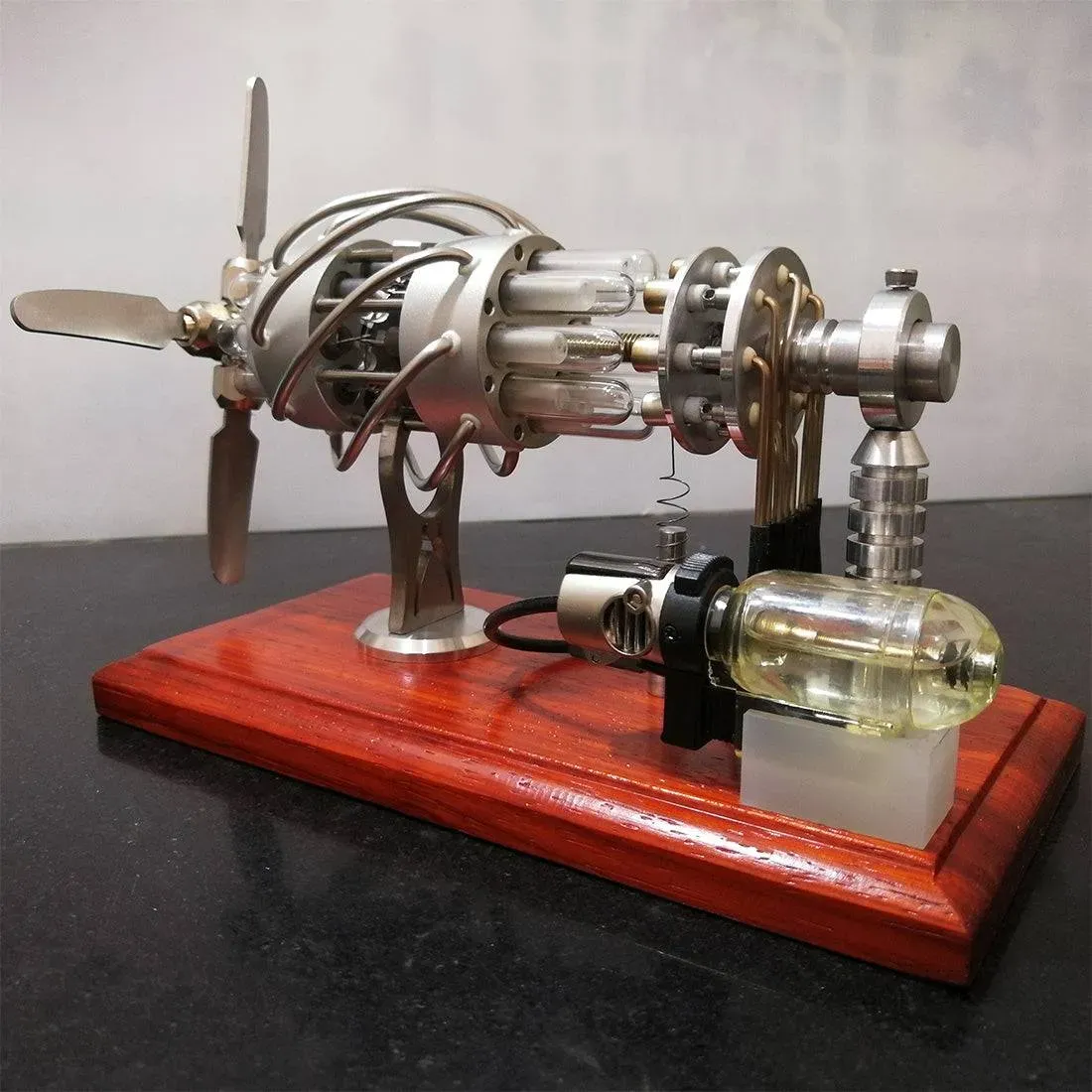

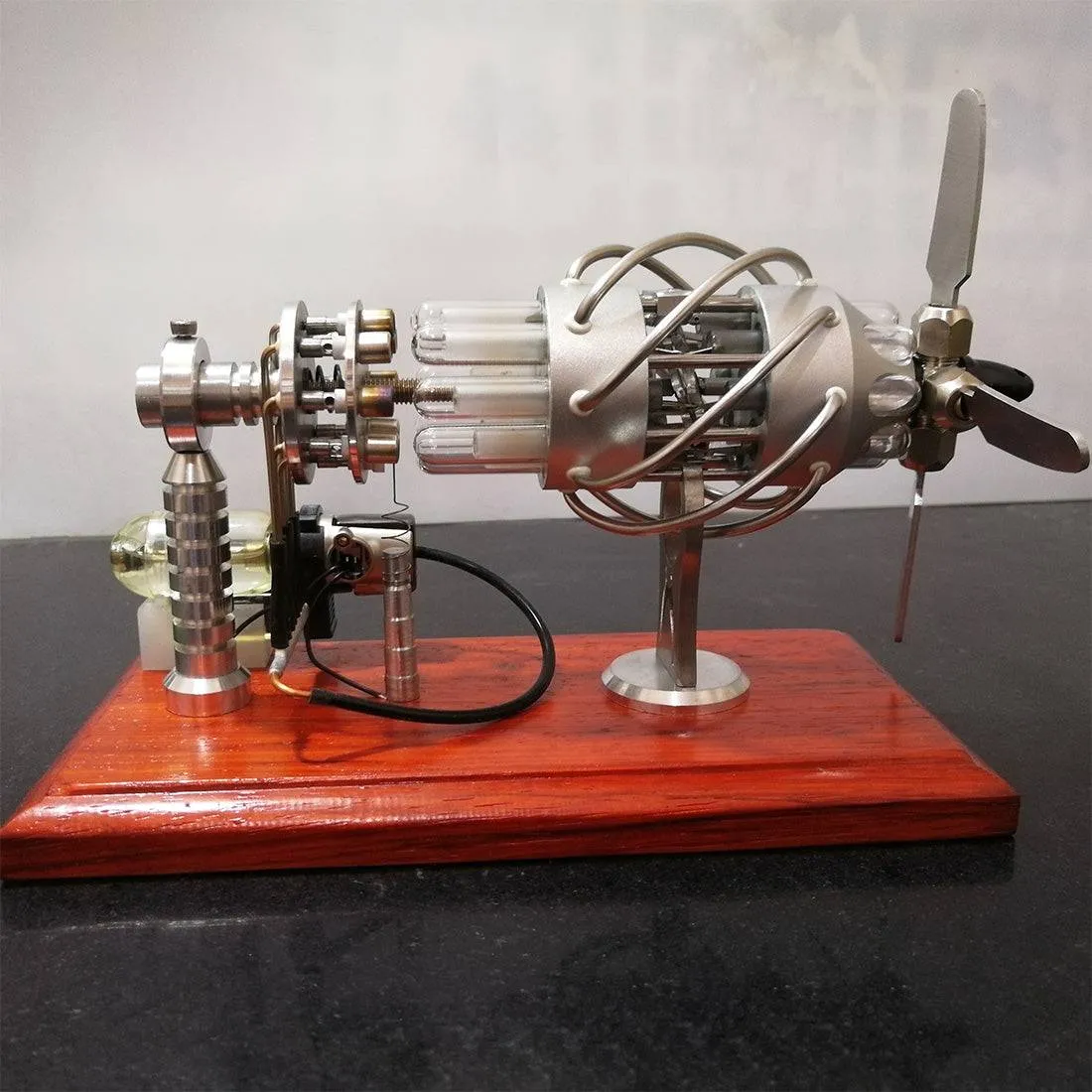

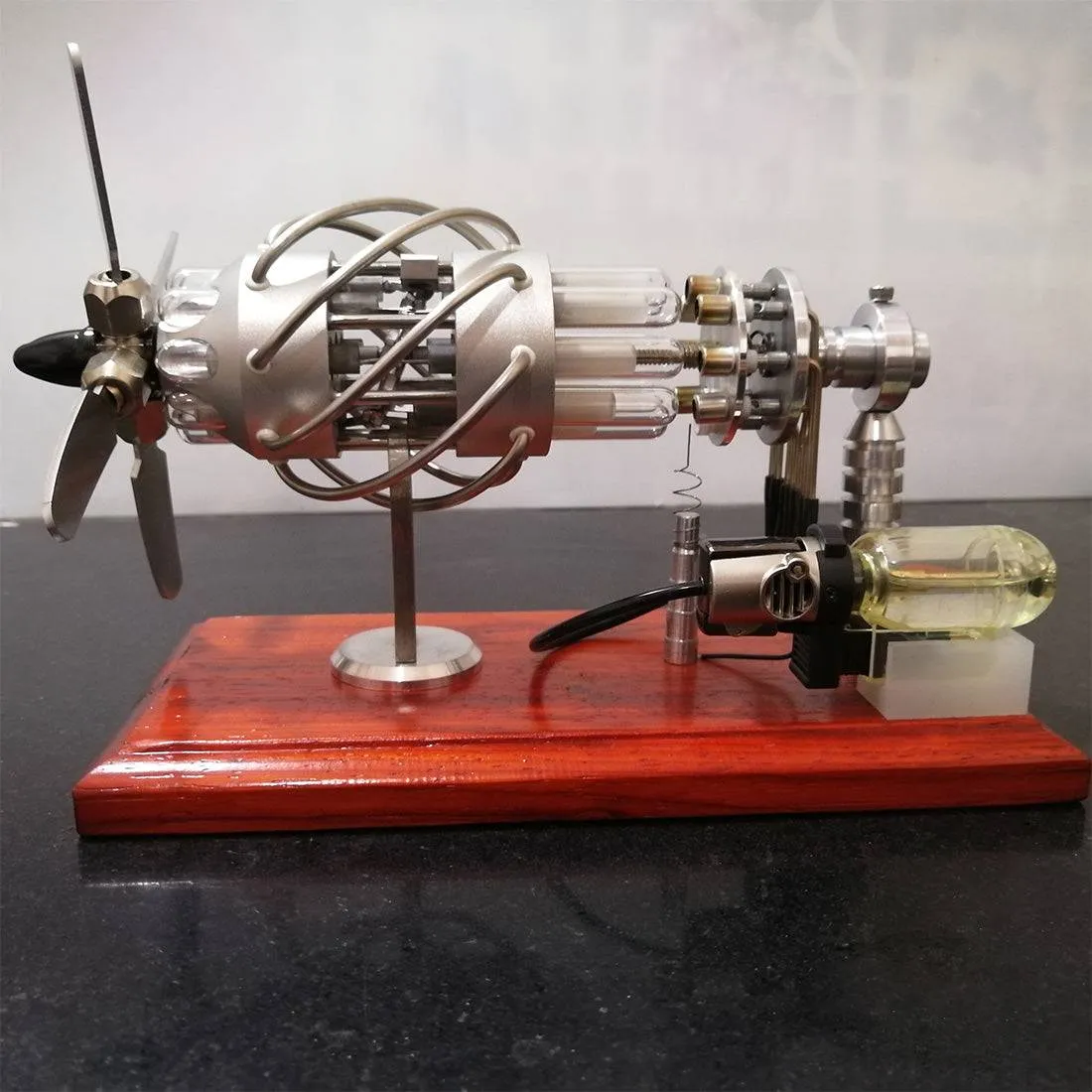

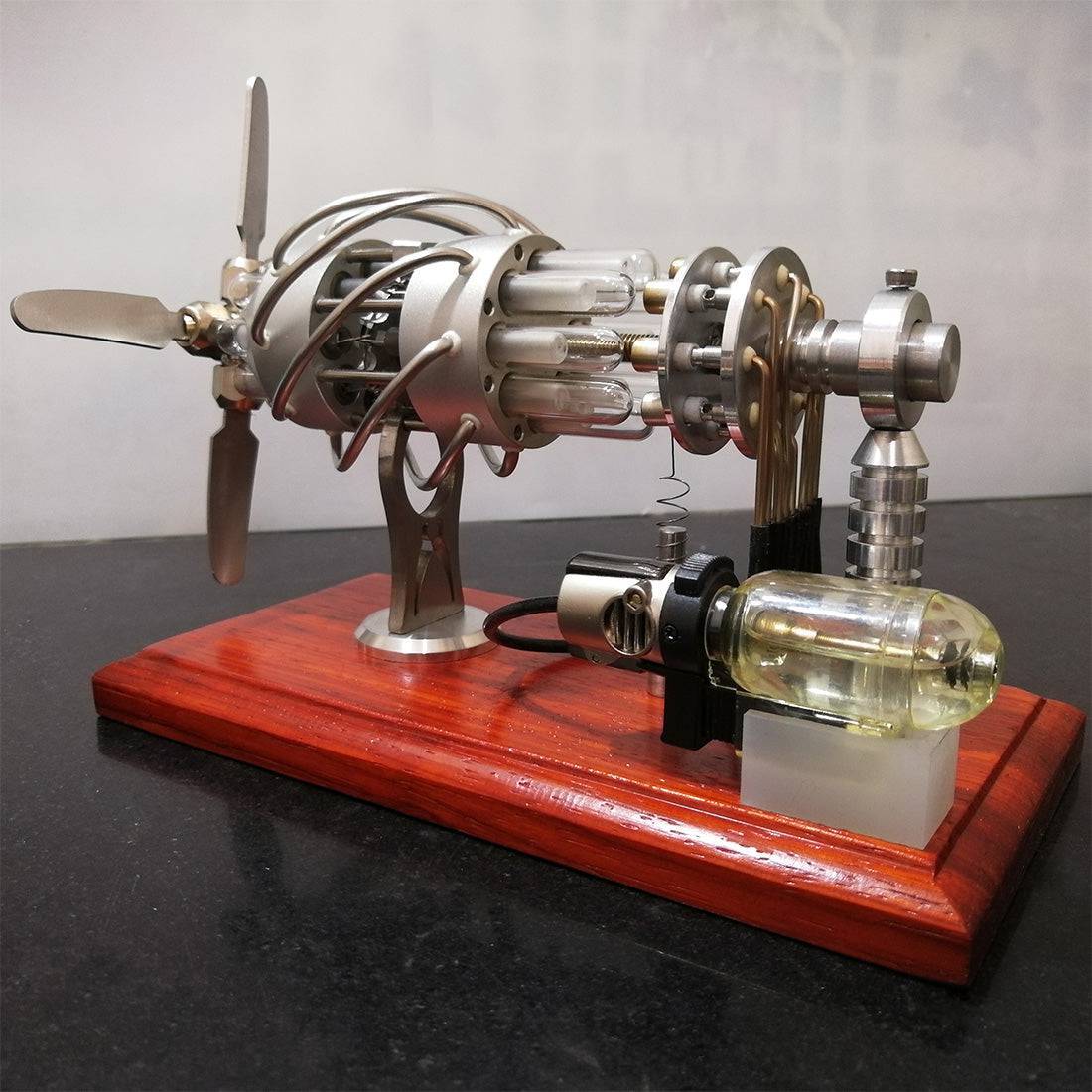

16 Cylinder Stirling Engine Model Quartz Glass Generator Swash Plate Kinetic Art
Hero Section: A Masterpiece of Mechanical Rhythm
Prepare to be mesmerized by the ultimate expression of thermodynamic beauty. The STARPOWER 16-Cylinder Stirling Engine is not just a model; it is a kinetic sculpture that brings the principles of physics to life. Imagine 16 pistons—8 hot and 8 cold—dancing in perfect synchronization, driven by a central swash plate mechanism. As the alcohol flame heats the quartz tubes, the engine spools up to high speed, generating electricity to power an LED light. It is a symphony of silver steel and fire, a conversation piece that commands attention on any desk or shelf.
Why Choose the STARPOWER 16-Cylinder Engine?
- Visual Spectacle: With 8 heating tubes and 8 cooling tubes arranged in a radial pattern, the visual impact of this engine is unmatched. The "floating bead" linkage system connects all cylinders, creating a fluid, wave-like motion that is hypnotic to watch.
- Upgraded Quartz Glass: Unlike standard glass, the heating tubes are made from high-purity quartz. This material withstands extreme thermal shock and high temperatures without bursting, ensuring durability and safety during long runs.
- Power Generation: It’s not just for show. The mechanical energy is converted into electricity via a small generator, capable of lighting up the included LED bead. It’s a tangible demonstration of energy conversion (Heat -> Mechanical -> Electrical).
- Educational & Elegant: Mounted on a solid wood base, this engine is a perfect blend of science education and industrial art. It intuitively demonstrates the Stirling cycle, making it an ideal gift for engineers, teachers, and technology enthusiasts.
Technical Highlights: Engineering Excellence
- Swash Plate Mechanism: This engine utilizes a sophisticated swash plate (wobble plate) design to convert the reciprocating motion of the 16 pistons into rotary motion. This results in incredibly smooth, low-vibration operation compared to crankshaft engines.
- External Combustion Efficiency: By burning fuel continuously outside the cylinder, this engine operates quietly and cleanly. It is unaffected by altitude, showcasing the unique advantages of external combustion technology.
- Precision Fit: The pistons and cylinders are machined to exacting tolerances to run without liquid lubrication. This "dry run" capability keeps the glass tubes clean and clear for viewing.
Specifications
- Brand: STARPOWER
- Model Type: 16-Cylinder Swash Plate Stirling Engine
- Material: Stainless Steel, Quartz Glass, Wood (Base)
- Dimensions: 21.5 x 10 x 16.5 cm (8.46" x 3.9" x 6.49")
- Cylinder Configuration: 8 Heating / 8 Cooling
- Fuel: 95% Industrial Alcohol (not included)
- Output: Drives LED Light
- Package Content: Engine Model, Alcohol Lamp, LED Bead
Usage Scenario: The Engineer's Zen
It’s a quiet evening. You place the engine on your desk and fill the central lamp with alcohol. You light the wick. The flame spreads to heat the 8 quartz tubes simultaneously. You wait two minutes for the heat to build. Then, you give the flywheel a gentle spin. Whirrr. The engine catches. The 16 pistons begin their rhythmic dance, faster and faster. The LED light flickers on. For the next ten minutes, you are lost in the mechanical beauty, a perfect way to decompress and marvel at human ingenuity.
Important Tips from the Expert
- Fuel Purity: Use 95% purity alcohol (or anhydrous industrial alcohol). Lower purity alcohol contains water, which prevents the engine from reaching the necessary temperature to run.
- No Oil Needed: Never lubricate the glass cylinders or pistons. Oil will mix with dust to create a sticky paste that will seize the engine. If they get dirty, simply wipe them with a dry cloth.
- Warm-Up Time: Be patient. The engine needs about 2 minutes of preheating before it will start. This allows the air inside to expand sufficiently.
- Safety: The quartz tubes get very hot. Do not touch them during operation or immediately after.
Customer Support
We are passionate about mechanical models. If you have questions about operation or maintenance, our team is ready to assist: service@helloworld7.com
