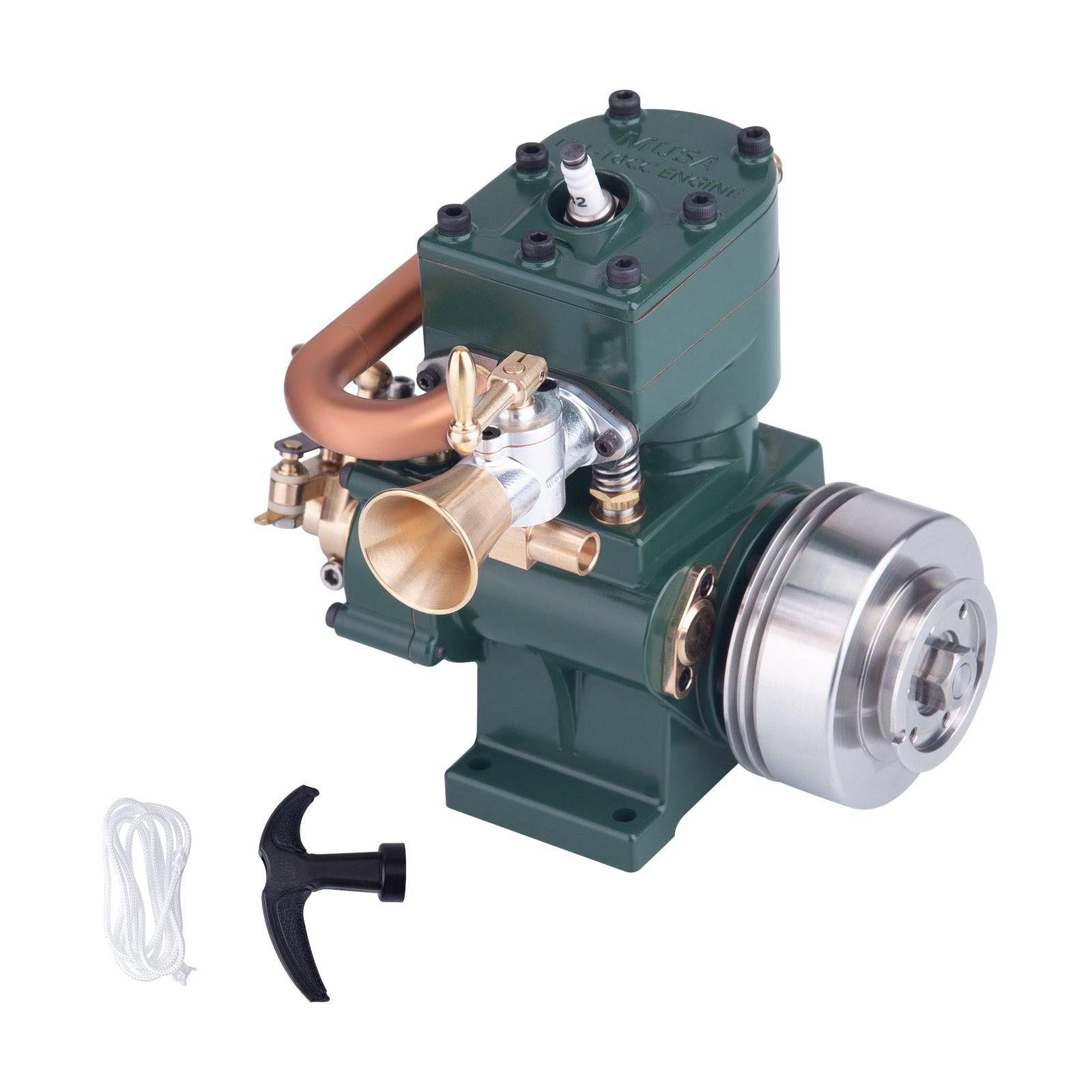

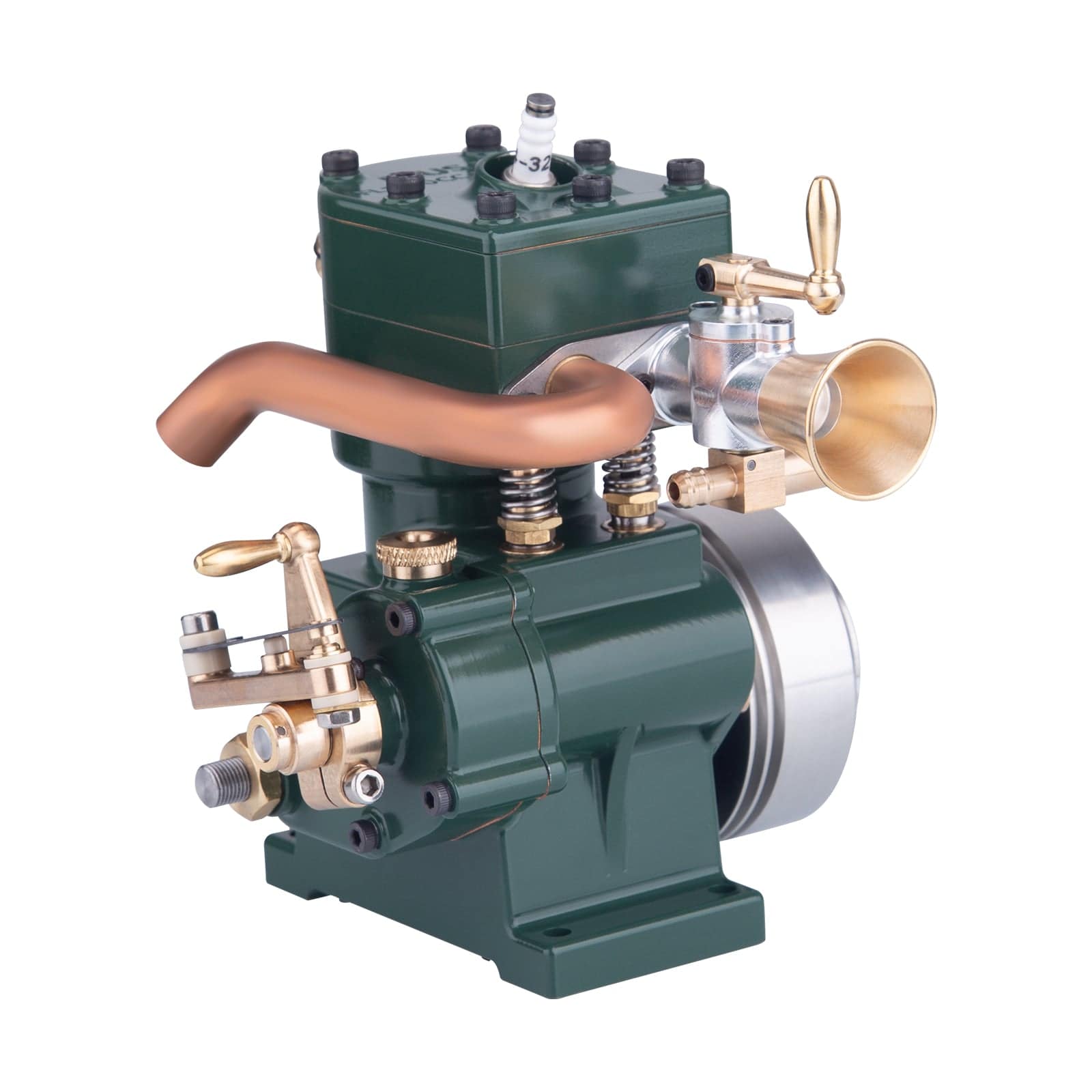

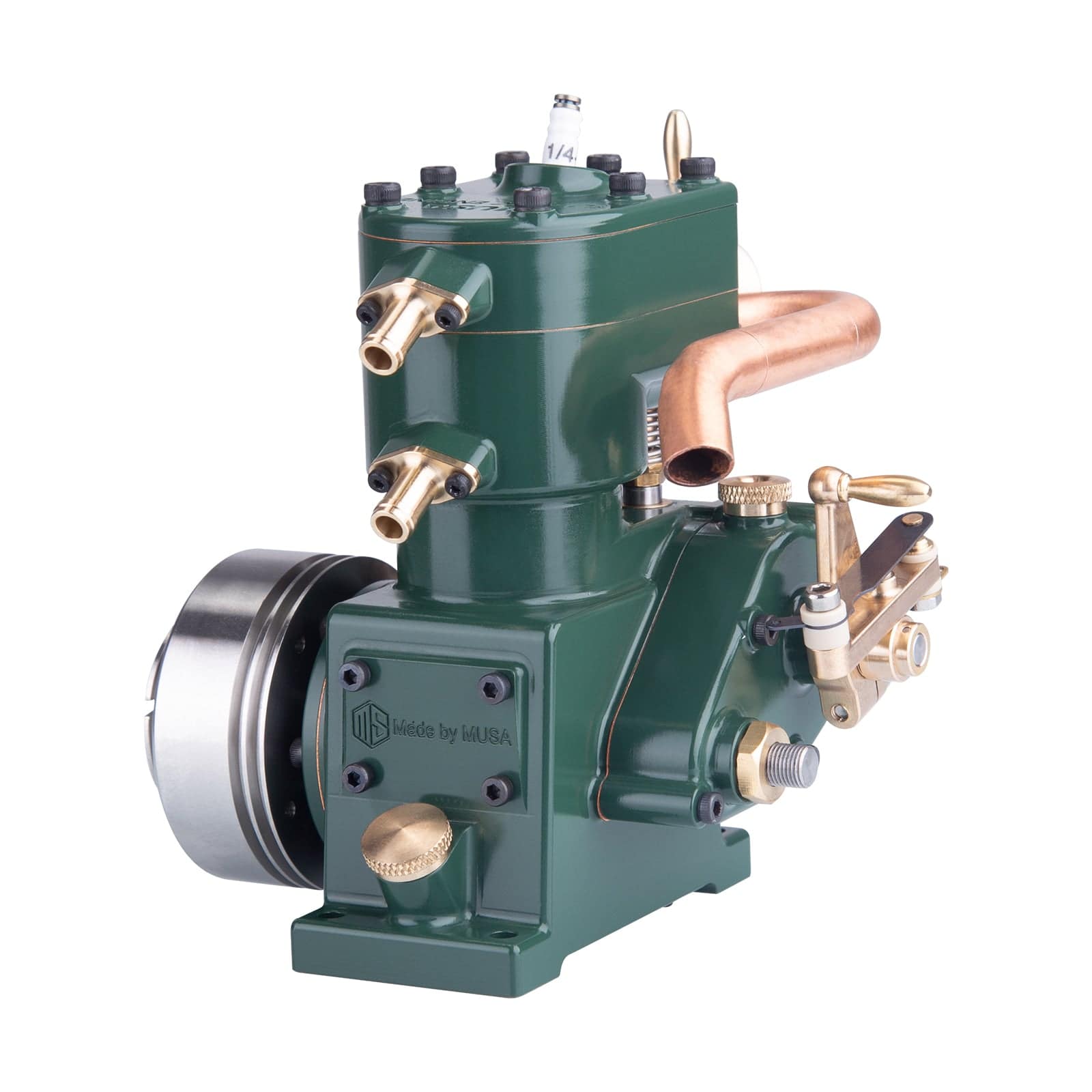

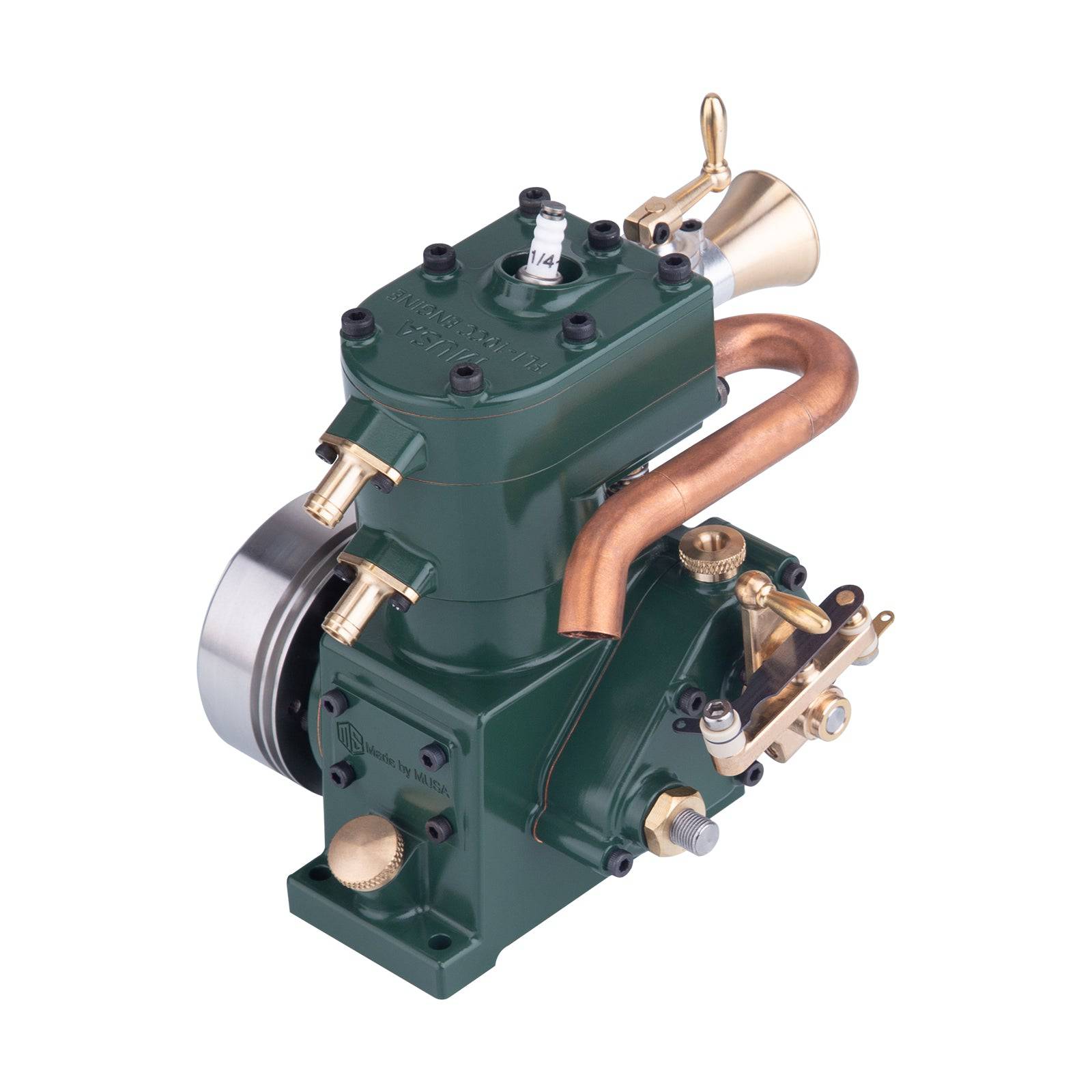

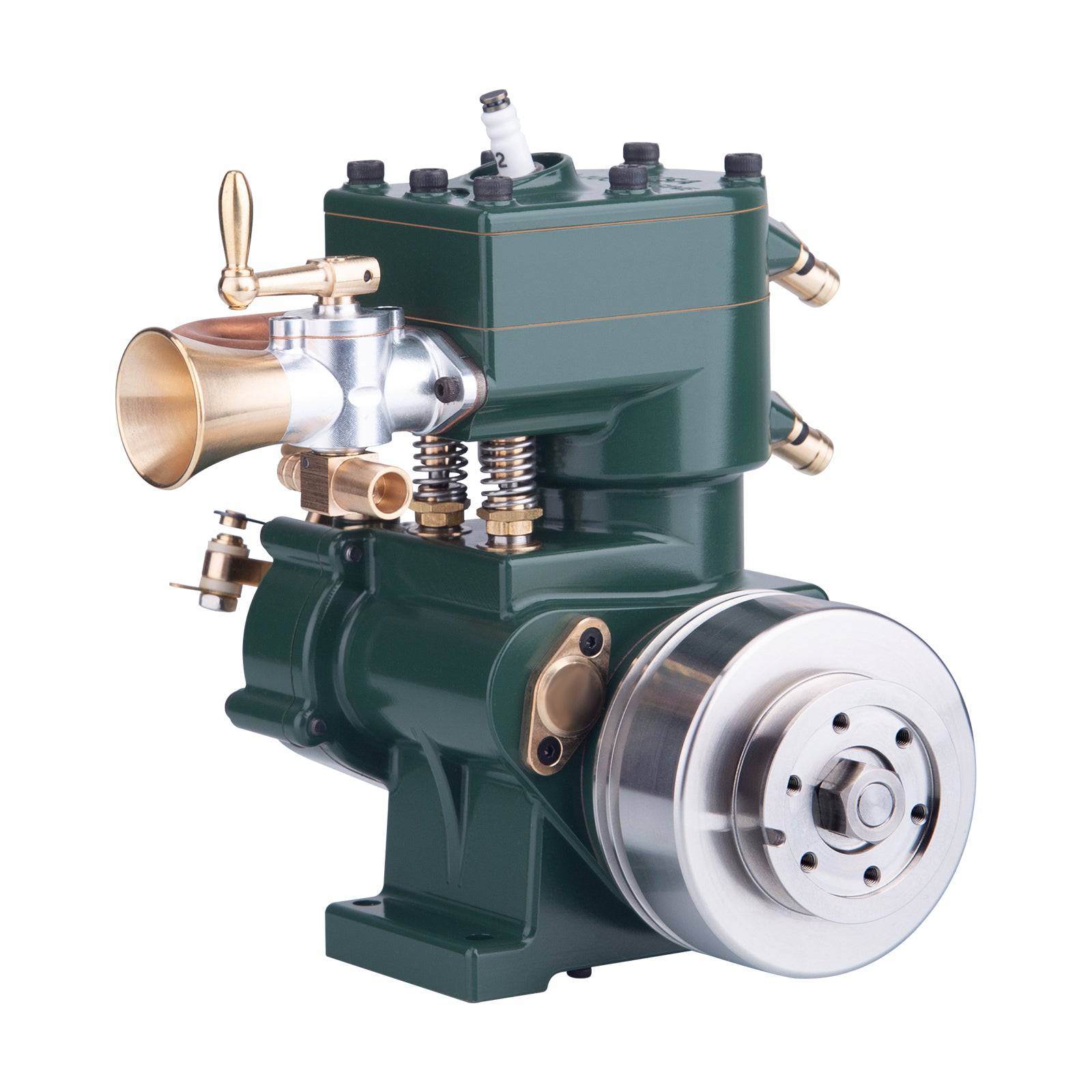

ENJOMOR 10cc Whippet Flathead Water Cooled Gas Engine Model ETW Tribute
Hero Section: The Return of the "Whippet" Legend
Travel back to 1963, the golden era of model engineering. The ENJOMOR 10cc Flathead Engine is a faithful tribute to the legendary "Whippet" designed by Edgar T. Westbury (ETW). Unlike modern overhead-valve engines, this "L-Head" beauty sits low, runs smooth, and exudes a vintage charm that is impossible to replicate. It isn't just a machine; it is a piece of industrial history brought to life in CNC-machined aluminum and hardened steel. Whether you are building a vintage RC boat or curating a museum-grade collection, this engine represents the pinnacle of retro simplicity and reliability.
Why Choose the ENJOMOR Whippet Tribute?
- A Masterpiece of Minimalism: The Flathead (Side Valve) design keeps the engine profile incredibly low and compact. This unique aesthetic not only looks stunning but makes it an ideal choice for scale RC boats where vertical space is limited.
- 10cc of Raw Torque: Don't let the vintage look fool you. With a massive 10cc displacement and a 25mm bore, this engine produces significant torque (0.5ps). It delivers a deep, rhythmic exhaust note that sounds like a heavy-duty industrial pump.
- Built for Endurance: Featuring a water-circulation cooling system and an independent lubrication system (oil sump), this engine is designed for prolonged operation. It doesn't just run for a minute; it runs until the job is done.
- Retro Industrial Aesthetics: Finished in a classic electrophoretic industrial green, the engine looks like it was pulled straight from a 1960s workshop. The finish is durable, oil-resistant, and timeless.
Technical Highlights: Engineering Excellence
- The L-Head Advantage: The valves are located alongside the cylinder rather than above it. This simplifies the valvetrain, reduces moving mass in the head, and provides that signature "flat" look that enthusiasts adore.
- Precision CNC Construction: While the design is retro, the manufacturing is modern. The body is precision CNC machined for tight tolerances, and the integrated crankshaft is hardened to withstand the stresses of a 10cc displacement.
- Independent Lubrication: Unlike 2-stroke engines that burn oil, this 4-stroke features a dedicated oil reservoir. This ensures the crank and cam are bathed in oil, significantly extending the engine's lifespan.
Specifications
- Model: ENJOMOR 10cc Flathead (Whippet Tribute)
- Type: Vertical Single-Cylinder 4-Stroke Side-Valve (L-Head)
- Displacement: 10cc
- Bore: 25mm
- Stroke: 19mm
- RPM Range: 2000 - 6000 rpm
- Power: ~0.5 ps
- Cooling: Water-Cooled
- Lubrication: Independent Oil Sump
- Fuel: Gasoline
- Starting Method: Pull Start

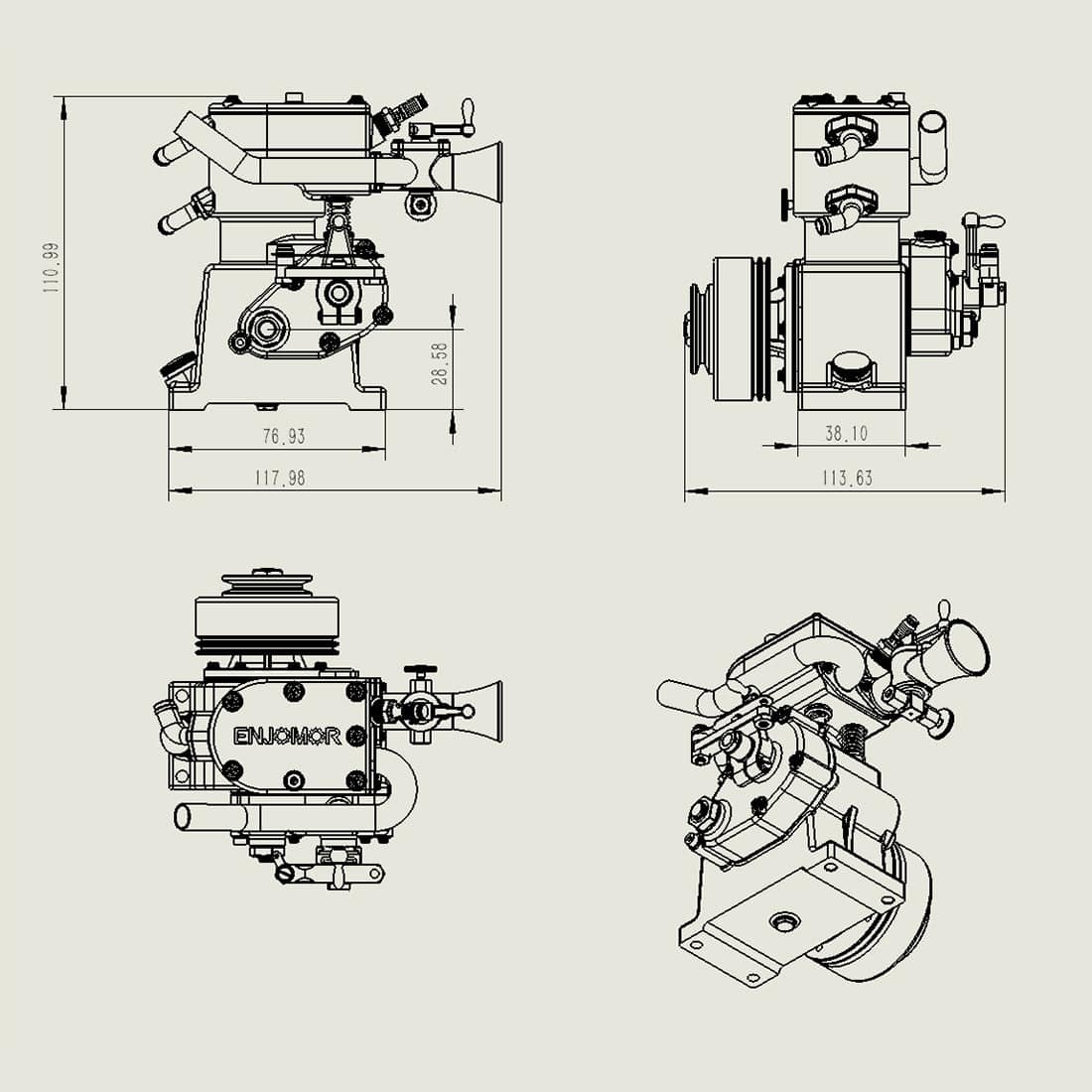

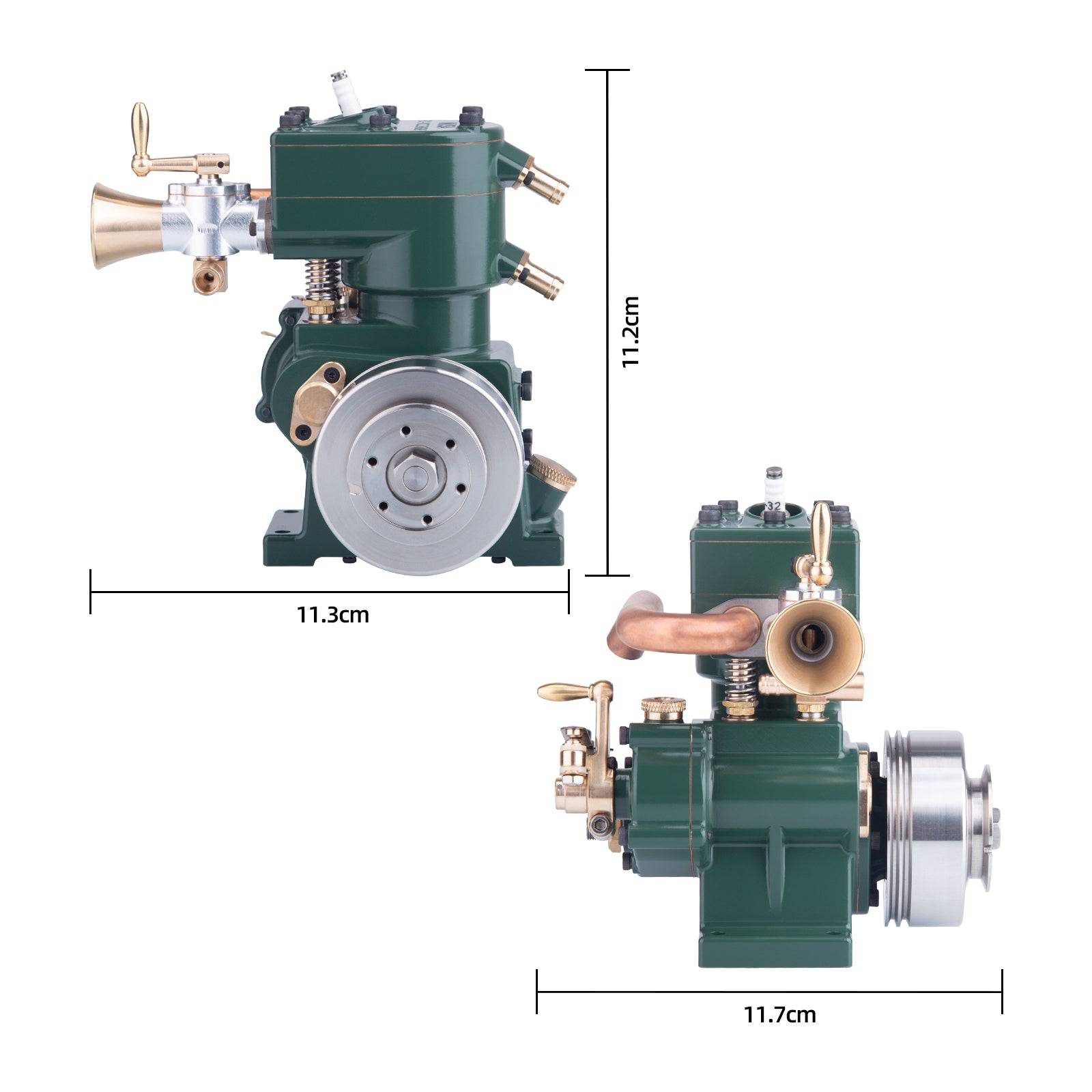

- Dimensions: 11.3 x 11.7 x 11.2cm
- Weight: 1000g
Usage Scenario: The Vintage RC Boat Project
Imagine a handcrafted wooden runabout sitting on the water. You open the hatch to reveal the green ENJOMOR Flathead. You prime the carburetor, give the pull starter a firm tug, and the engine settles into a low, reliable thrum. Water circulates through the jacket, cooling the block as you throttle up. The boat cuts through the water, powered not by a screaming electric motor, but by the torque of a classic combustion engine. It is the ultimate marriage of wood, water, and metal.
Important Tips from the Workshop

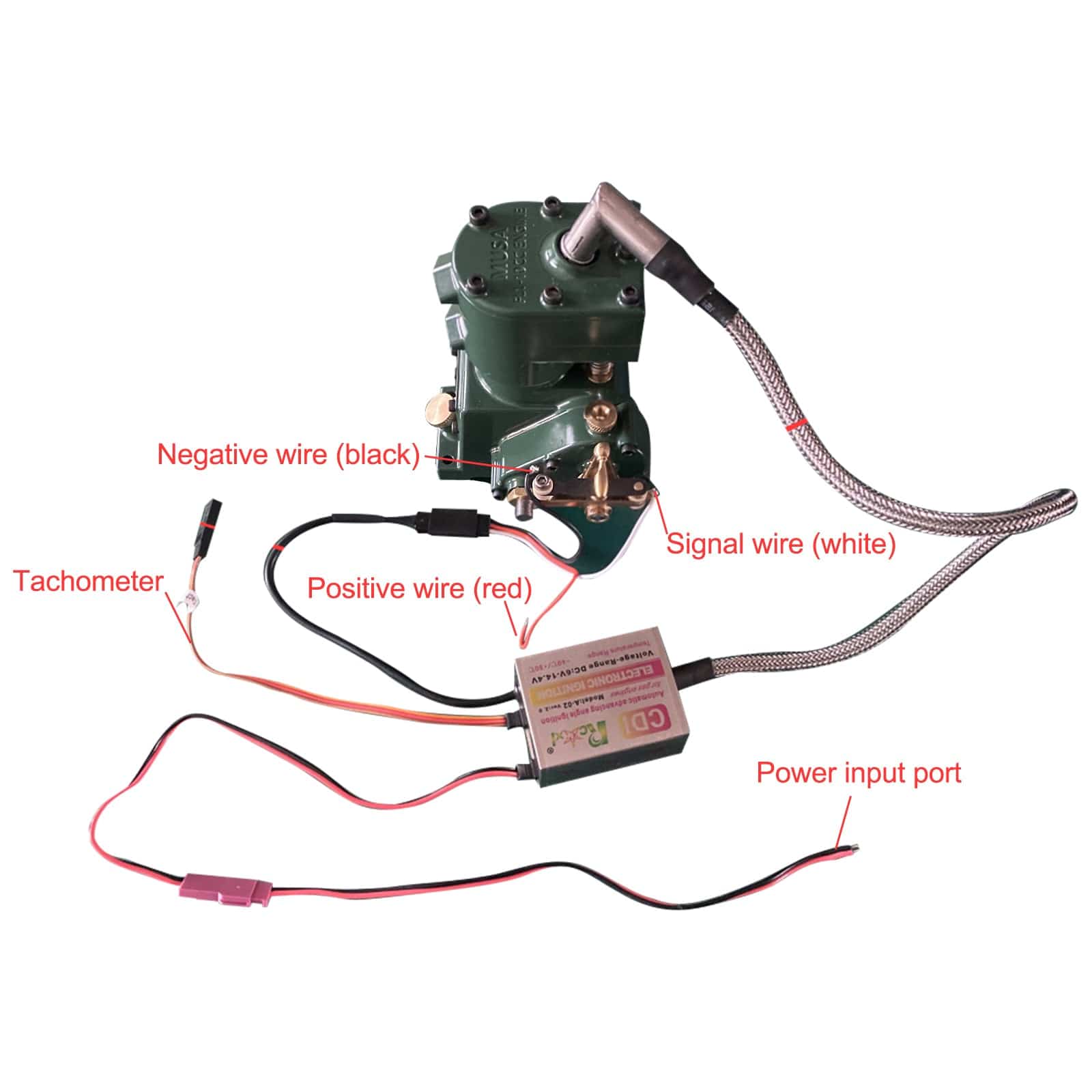

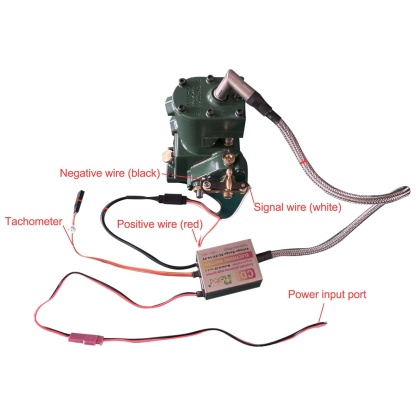

- Ignition Upgrade Recommended: Due to the large 10cc displacement and compression, we highly recommend using a high-quality Rcexl igniter (sold separately) for easier starting and a more stable idle. Standard glow drivers may struggle.
- Cooling is Mandatory: This is a water-cooled engine. Never run it without a water circulation loop (pump or motion-fed pickup), or it will overheat rapidly.
- Oil Level: Check the oil level in the independent lubrication system before every run. Use high-quality 4-stroke model engine oil.
- Break-in: Allow the engine to run rich at moderate RPMs for the first few tanks of fuel to seat the rings and valves properly.
Customer Support
We are passionate about keeping these classic designs alive. If you need assistance with ignition selection, mounting, or tuning, please contact our expert team at service@helloworld7.com.
