FD-4 Mini 12V DC Generator Dynamo Motor for Steam & Stirling Engine Models
Hero Section: The Spark Your Model Needs
A steam engine chugging away is satisfying, but a steam engine generating electricity is captivating. The FD-4 Mini Dynamo is the perfect entry-level accessory to transform your mechanical model into a working power plant. Weighing only 57g, this lightweight, compact unit won't bog down smaller engines. Whether you want to light up a miniature street lamp or simply demonstrate the conversion of mechanical energy into electrical power, the FD-4 delivers reliable performance in a package small enough to fit almost any layout.
Why Choose the FD-4 Dynamo?
This unit is a favorite among DIY modelers for its simplicity and versatility.
- Dual-Mode Functionality: It’s a two-in-one device. Drive it with your steam engine, and it acts as a Generator, producing up to 12V to power LEDs. Alternatively, connect a 12V DC power source, and it becomes a high-speed Motor to drive other mechanisms.
- Ultra-Lightweight Design: At just 57g, the FD-4 is significantly lighter than solid brass generators. This low mass makes it ideal for smaller or lower-torque engines (like Stirling engines or small bore steam engines) that might struggle to turn a heavy dynamo.
- Compact Footprint: Measuring only 7.1cm long, it fits easily onto crowded baseplates without dominating the visual aesthetic of your primary engine.
- Reliable Output: Capable of generating approximately 12V at 1A (at peak RPM), it provides ample power for standard model lighting applications or small resistive loads.
Technical Highlights: The Expert’s View
- Low-Friction Shaft: The 2mm shaft is designed to spin freely with minimal resistance. This is critical for model steam engines, as high internal friction in a generator can stall the engine.
- Standardized Voltage: The 12V output is the industry standard for model lighting accessories, making it easy to find compatible bulbs and LEDs without complex wiring.
- Open Frame Cooling: The open metal structure allows for excellent air circulation, keeping the armature cool during extended run times.
Specifications
- Model: FD-4
- Type: DC Motor / Generator Dynamo
- Material: Metal / Composite

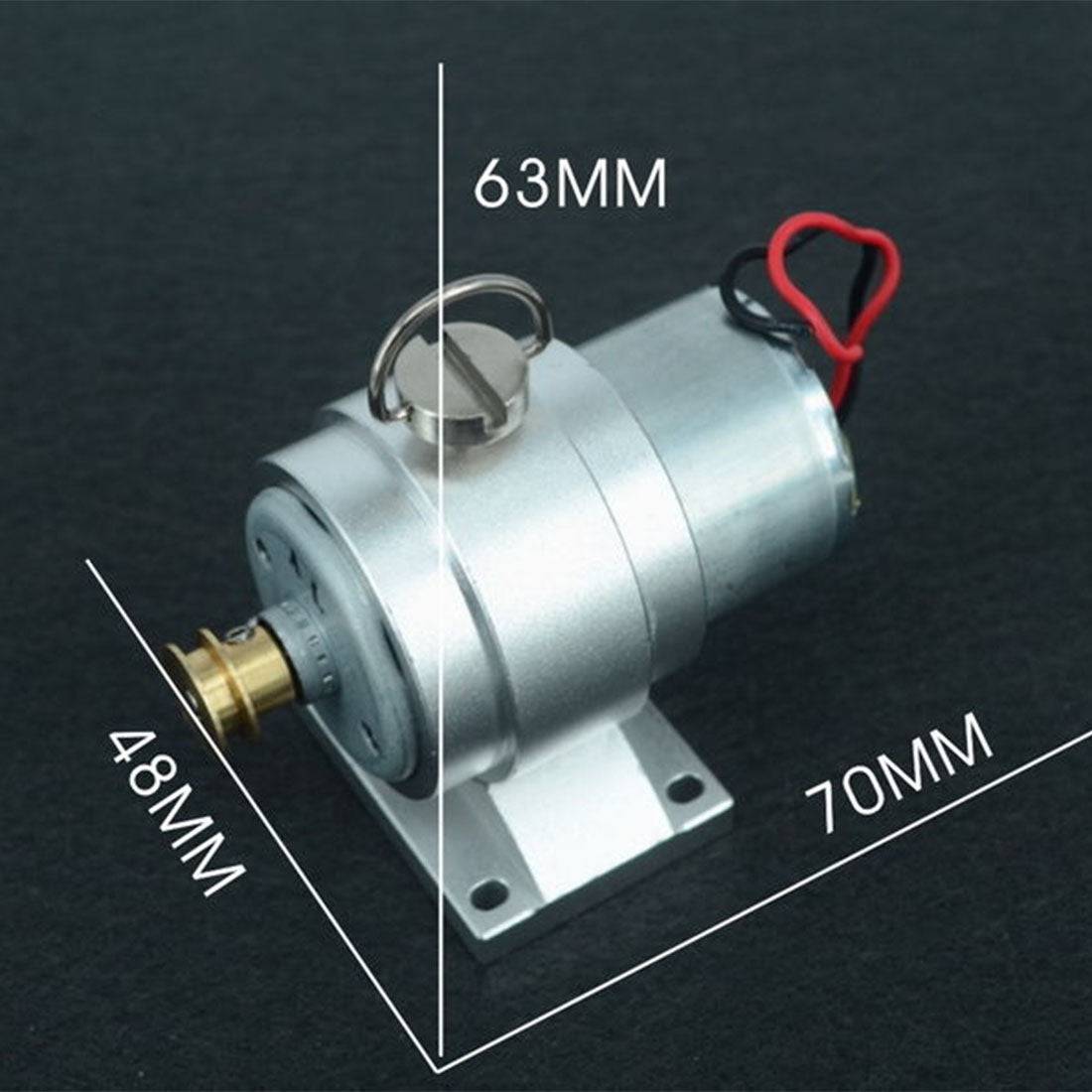

- Dimensions: 71mm (L) x 48mm (W) x 63mm (H)
- Weight: 57g
- Shaft Diameter: 2mm
- Generator Output: Up to 12V DC @ ~1A (RPM dependent)
- Motor Input: Up to 12V DC
- Application: Steam Engines, Stirling Engines, Science Experiments
Usage Scenario: The First Light
You have just finished tuning your single-cylinder steam engine. You mount the FD-4 nearby and connect a small rubber belt between the engine's flywheel and the dynamo's pulley. You wire up a single LED. As you open the throttle, the engine picks up speed. The FD-4 spins rapidly, and suddenly, the LED flickers and then glows a steady bright white. You’ve successfully bridged the gap between the age of steam and the age of electricity.
Important Tips
- Pulley Selection: The shaft is 2mm. Ensure you use a pulley with a matching 2mm bore. A pulley that is too large will slip, and one that is too small won't fit.
- Belt Tension: This is the key to success. The belt should be tight enough to spin the generator but loose enough not to stall your steam engine. Experiment with rubber bands or O-rings to find the "sweet spot."
- LED Polarity: If using LEDs, remember they have polarity (+ and -). If it doesn't light up when the engine spins, try reversing the wires or spinning the engine in the opposite direction.
