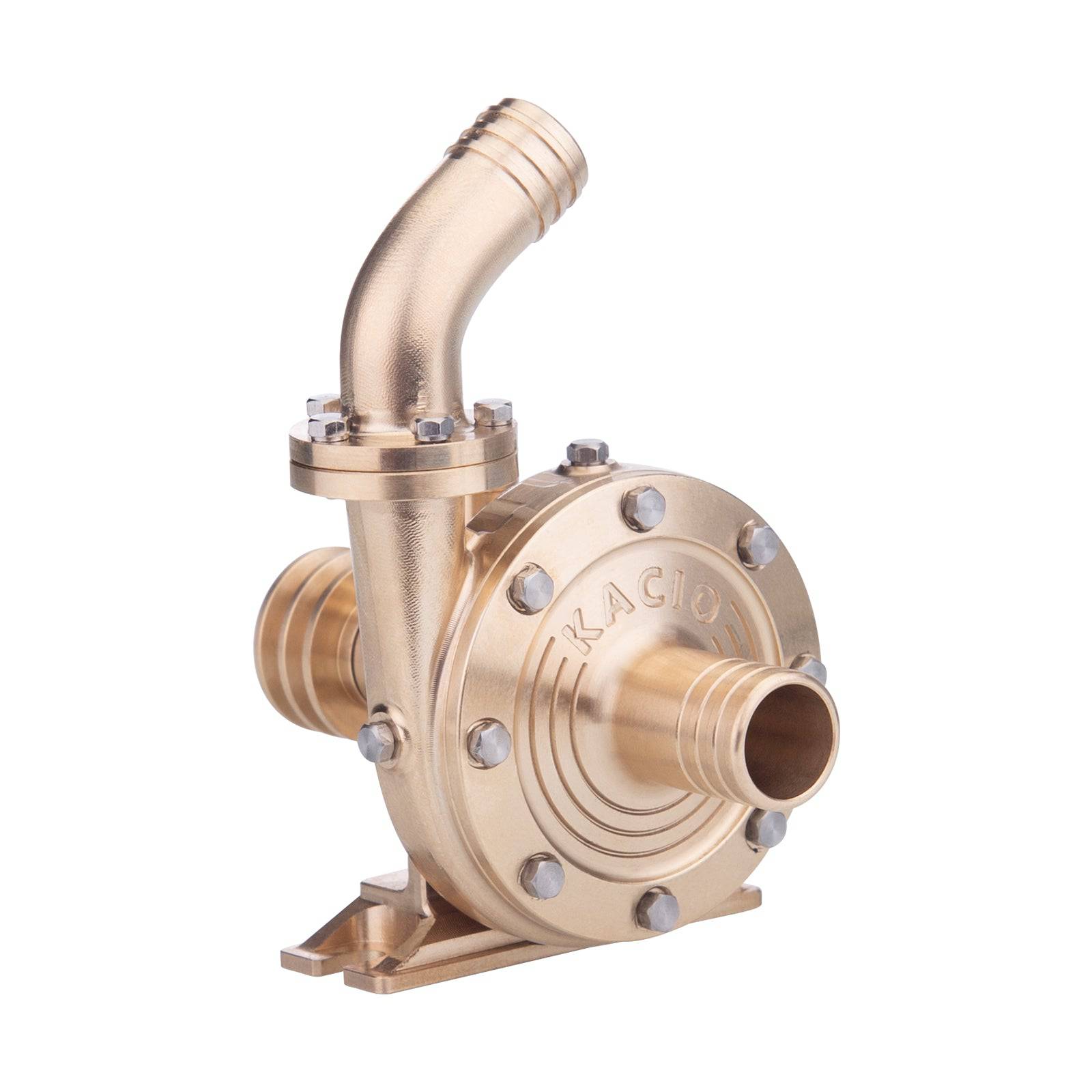

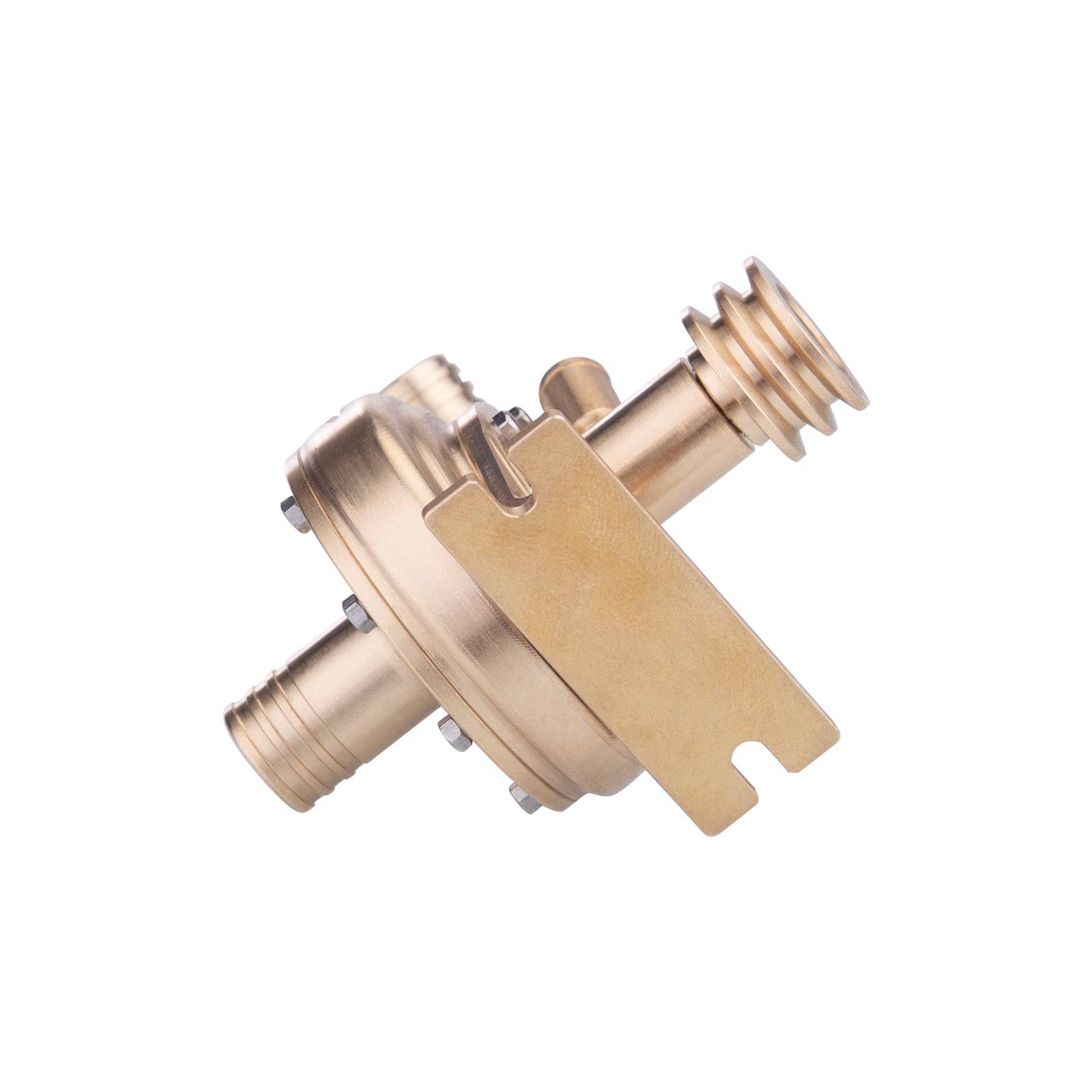

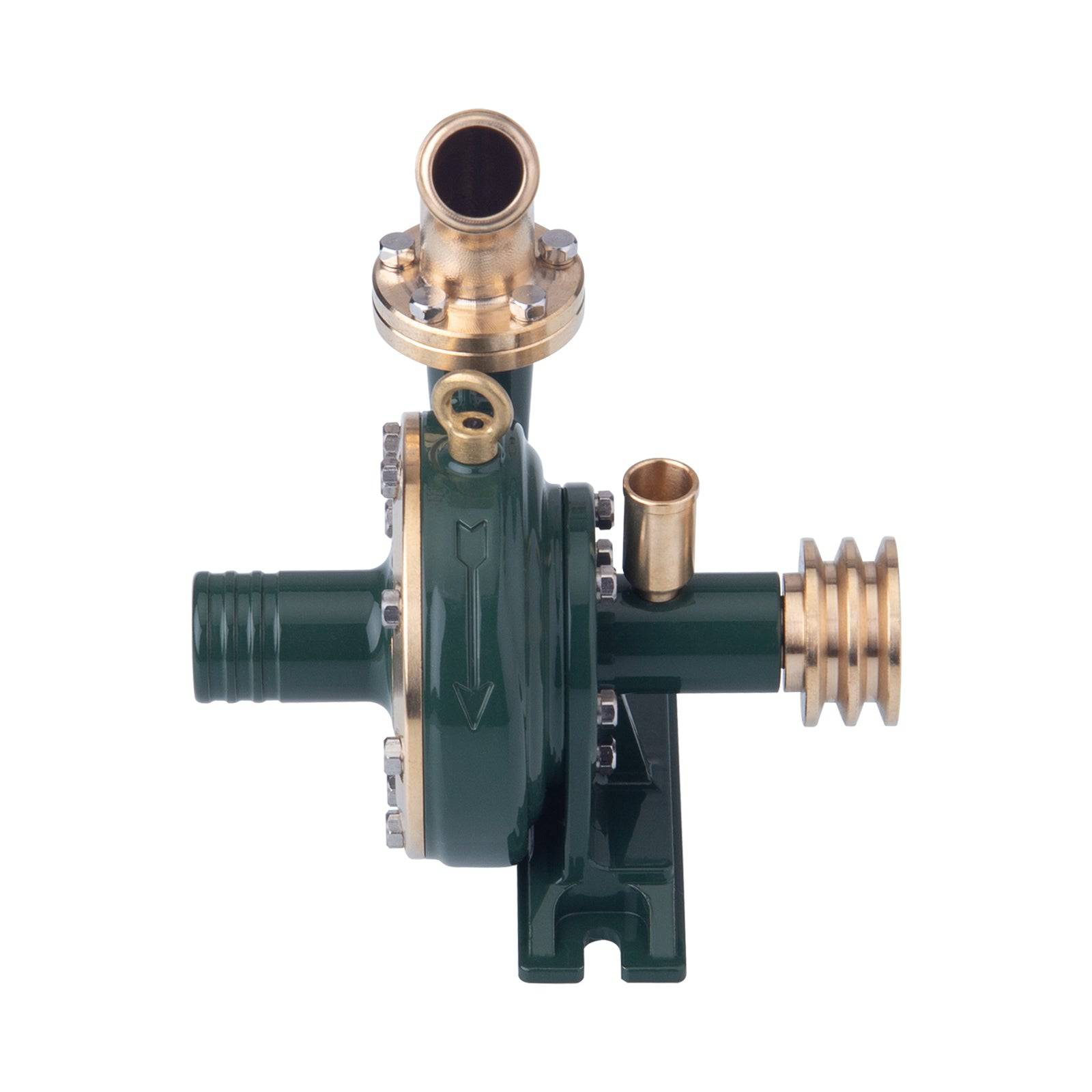

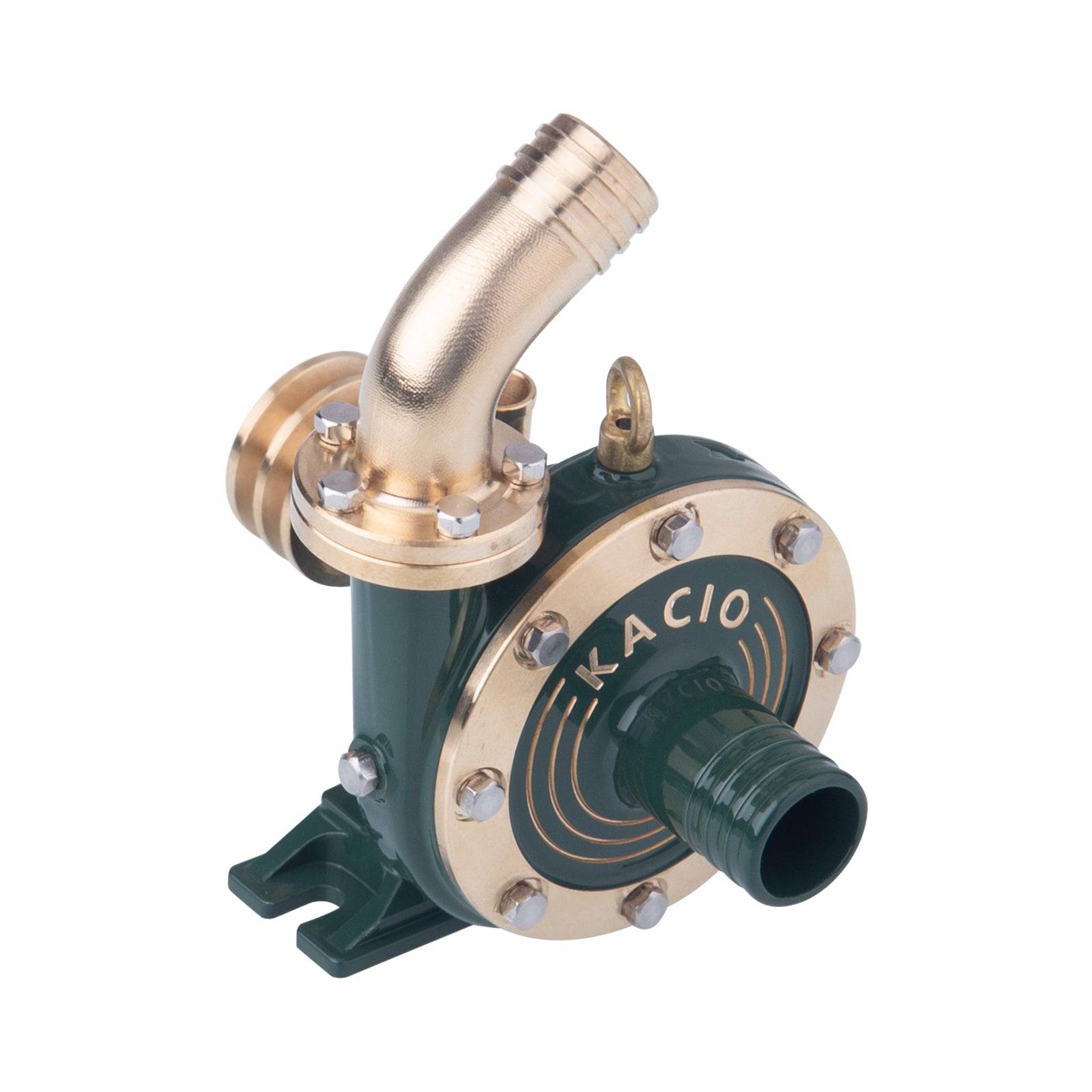

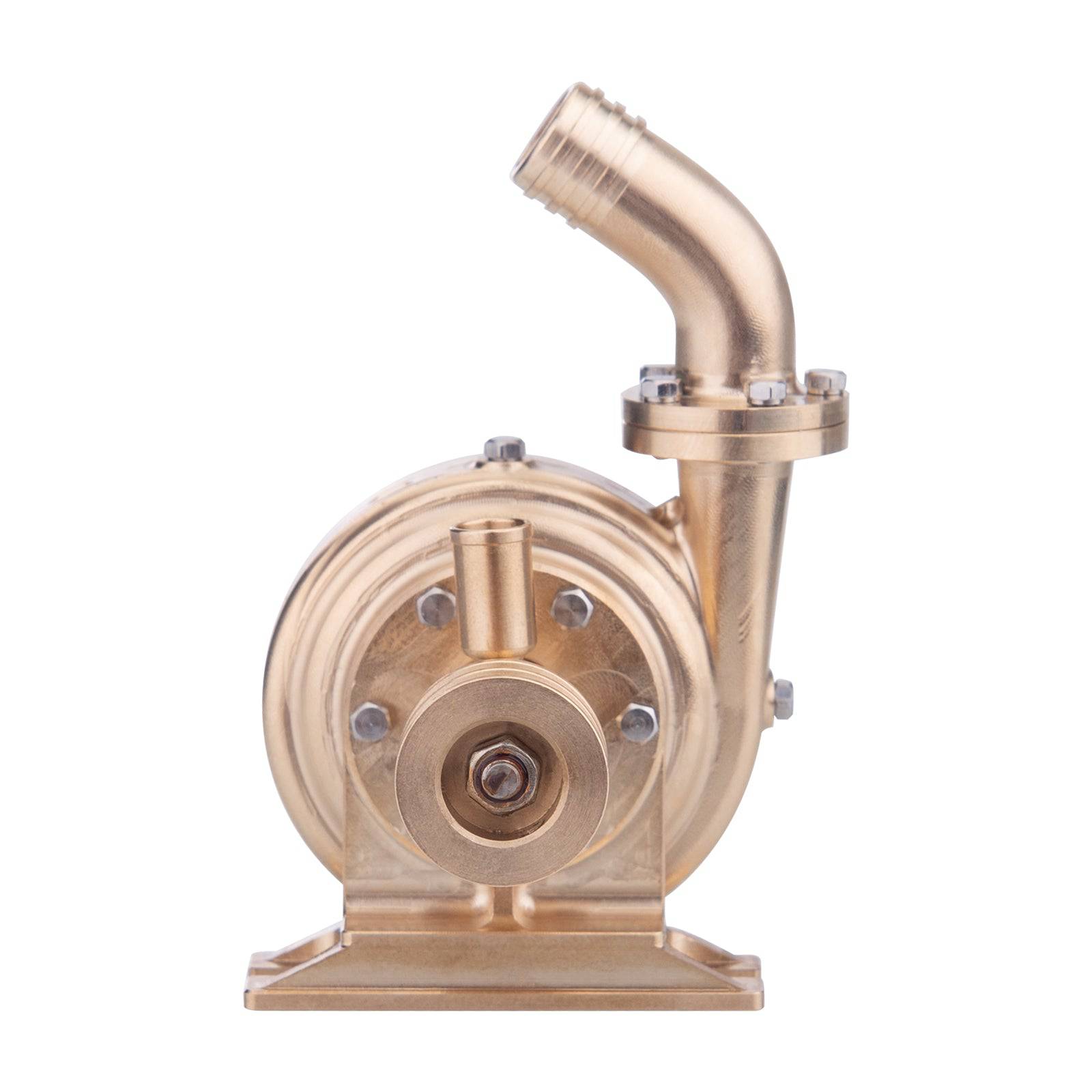

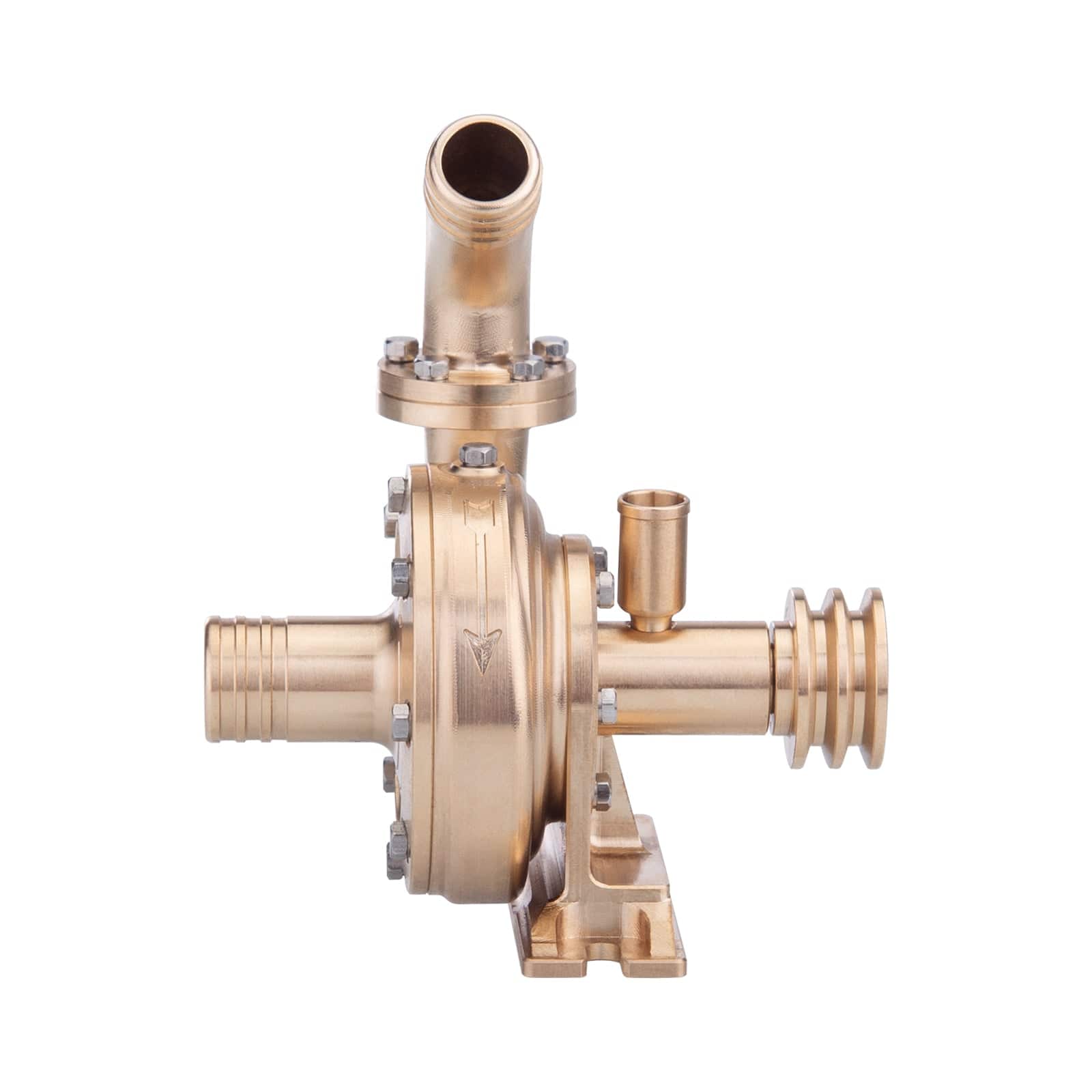

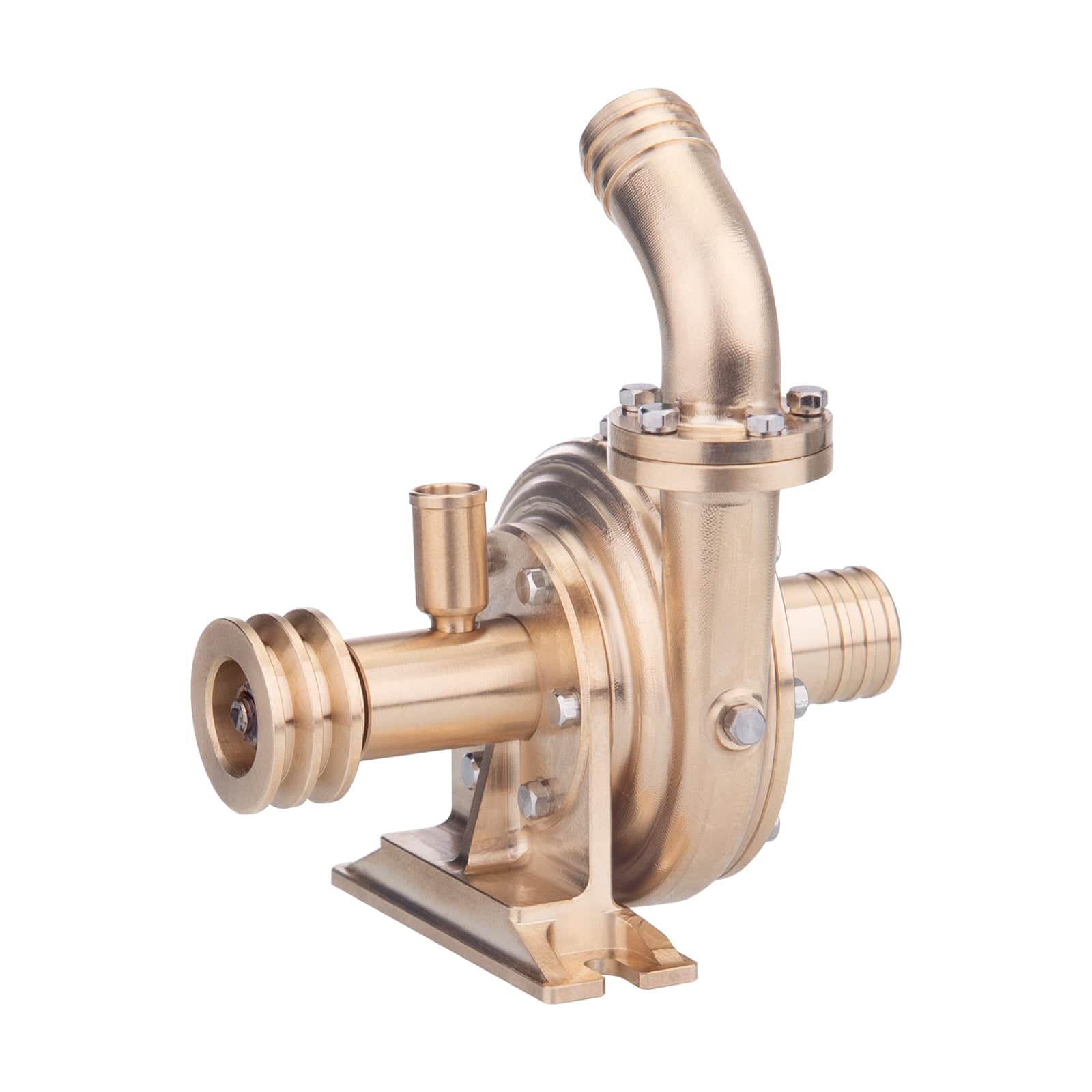

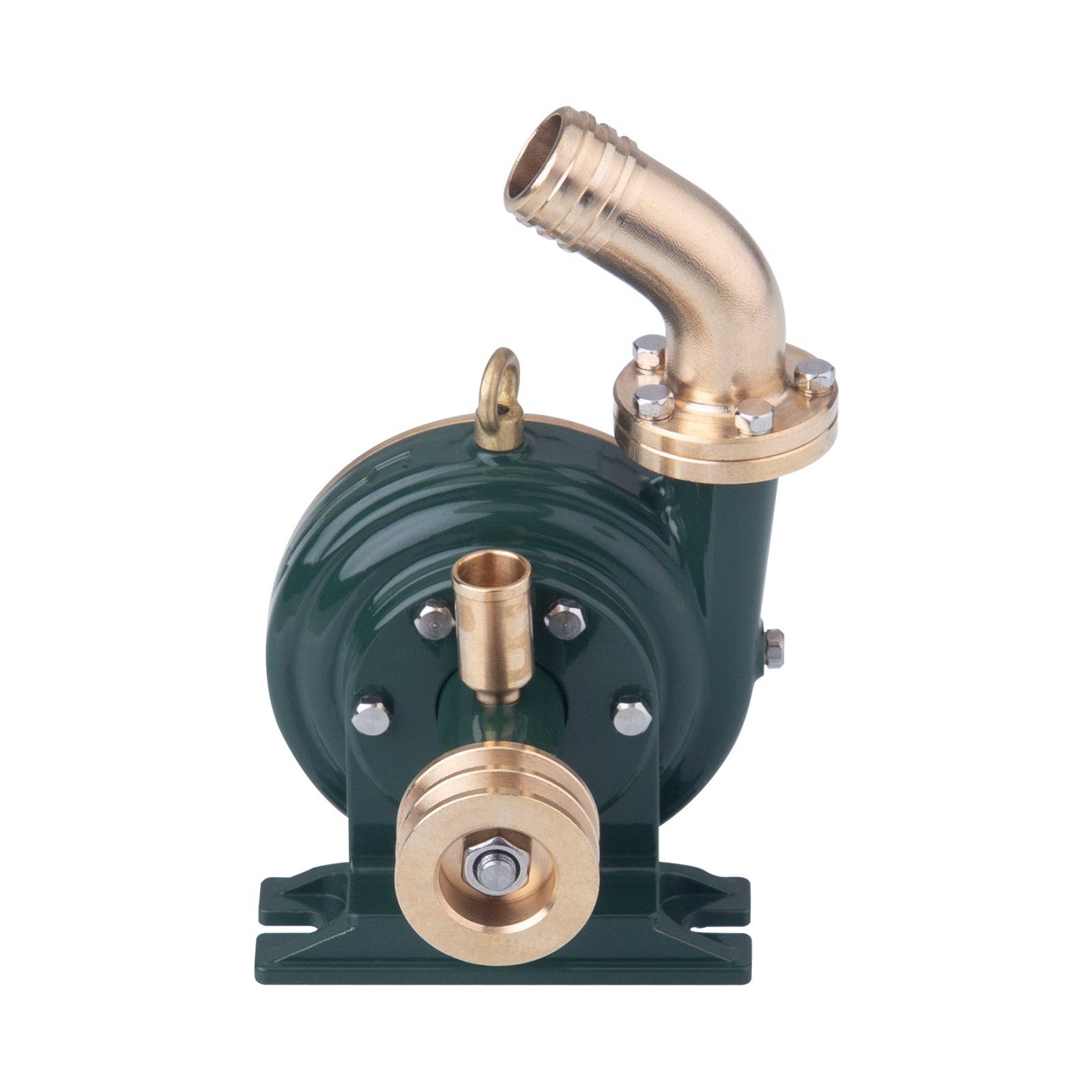

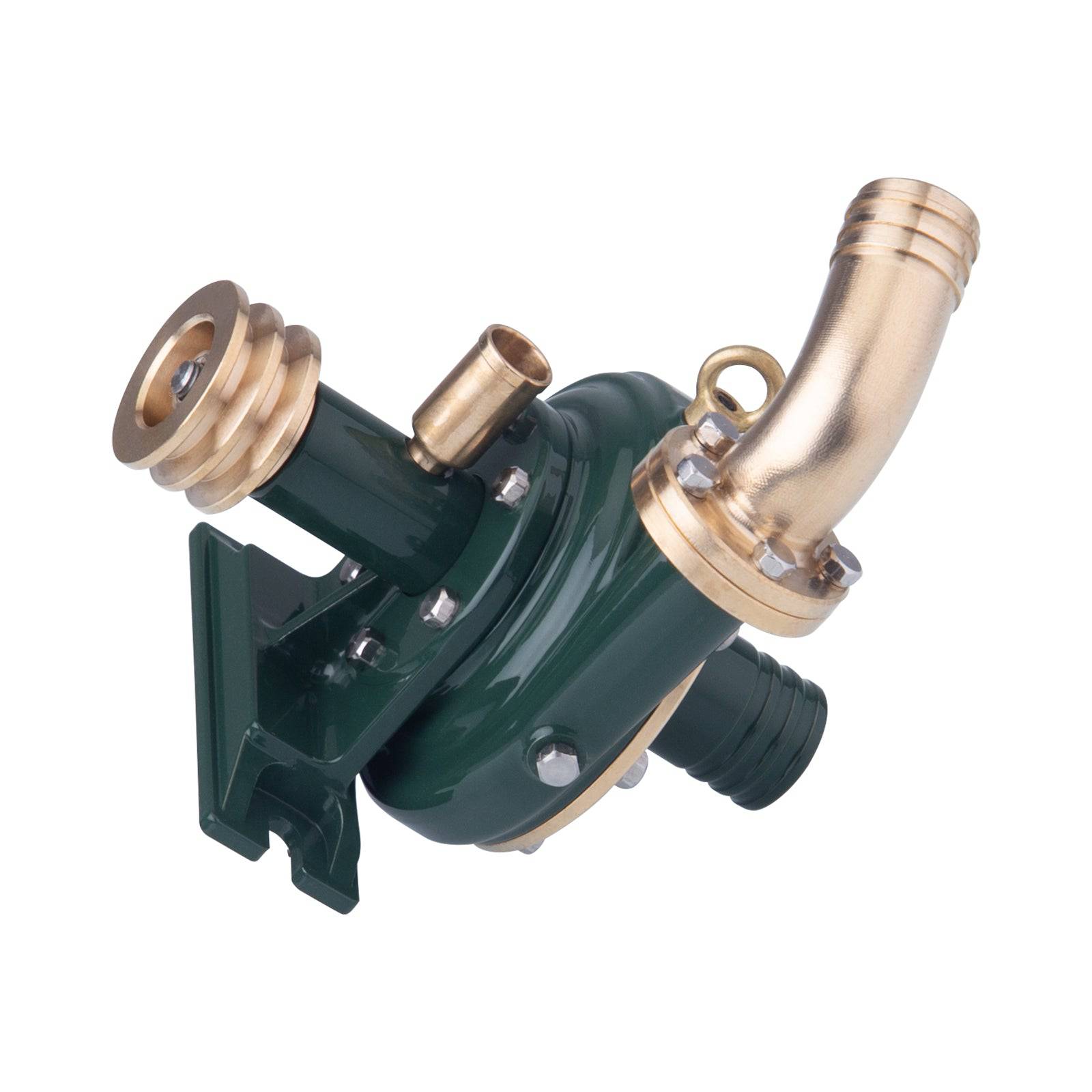

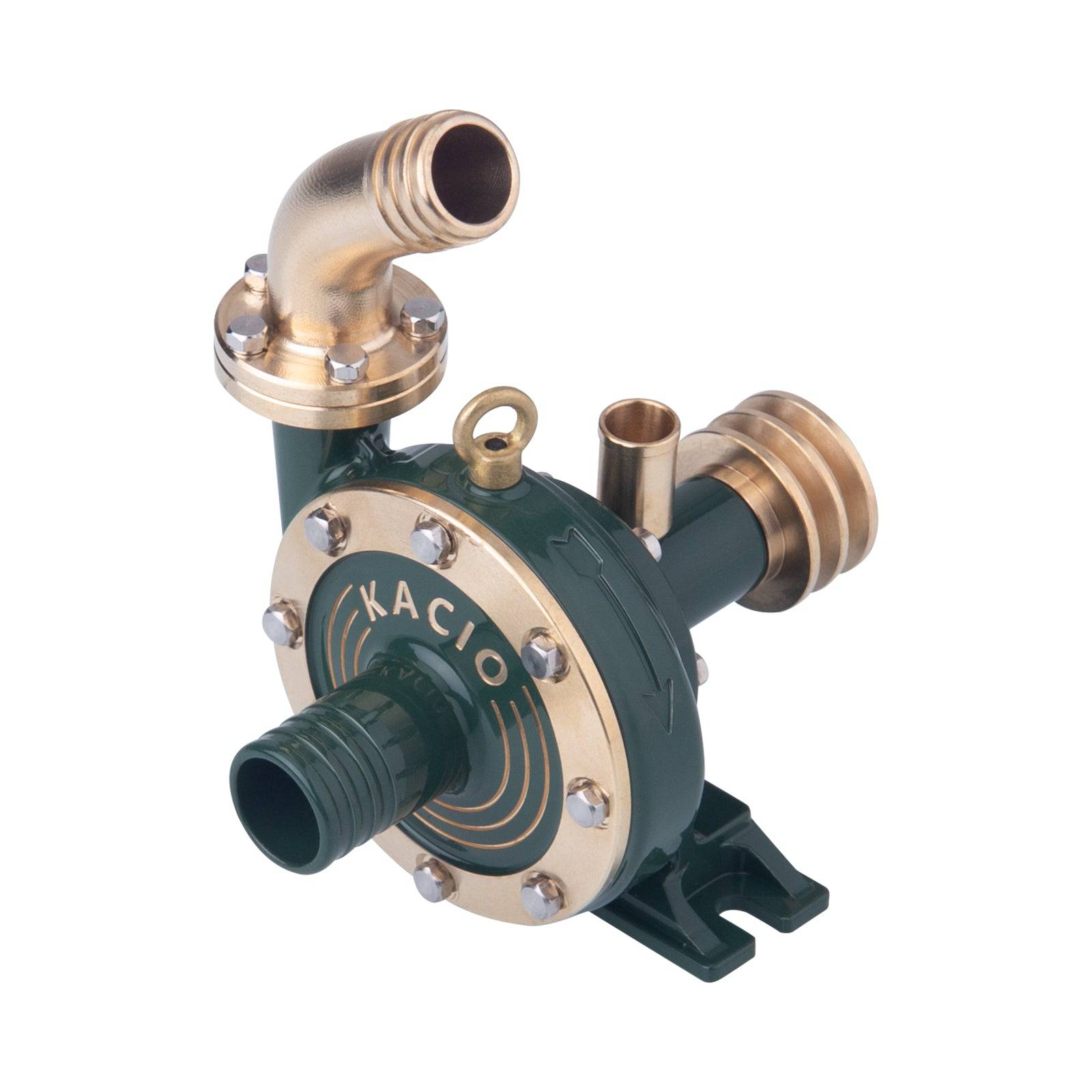

KACIO B30-1 Mini Brass Centrifugal Water Pump for Steam Gas Engine Model
Hero Section: Real Hydraulics for Your Model Engine
A model engine spinning a flywheel is impressive, but an engine moving water is captivating. The KACIO B30-1 is a fully functional miniature centrifugal pump, crafted from solid brass. It replicates the industrial pumps used in steam plants and factories of the 20th century. Whether you are building a working steam plant, cooling a gas engine, or creating a tabletop fountain, this pump transforms your engine's rotary power into fluid motion. It’s the perfect upgrade to give your mechanical collection a purpose.
Why Choose the KACIO B30-1 Pump?
- Solid Brass Construction: This isn't a plastic toy. Machined from high-quality brass, the B30-1 has a substantial weight (150g) and a beautiful golden finish that develops a natural patina over time, matching perfectly with vintage steam and gas engines.
- True Centrifugal Action: It operates on the same physics as full-sized industrial pumps. A rapidly rotating impeller creates a vacuum, drawing water in and casting it out with centrifugal force. It’s a brilliant, working demonstration of fluid dynamics.
- Versatile DIY Application: With standard 9.0mm inlet and 7.5mm outlet sizes, it’s easy to plumb into various setups. Use it to circulate cooling water for your "Whippet" engine or as a feed pump for a model boiler.

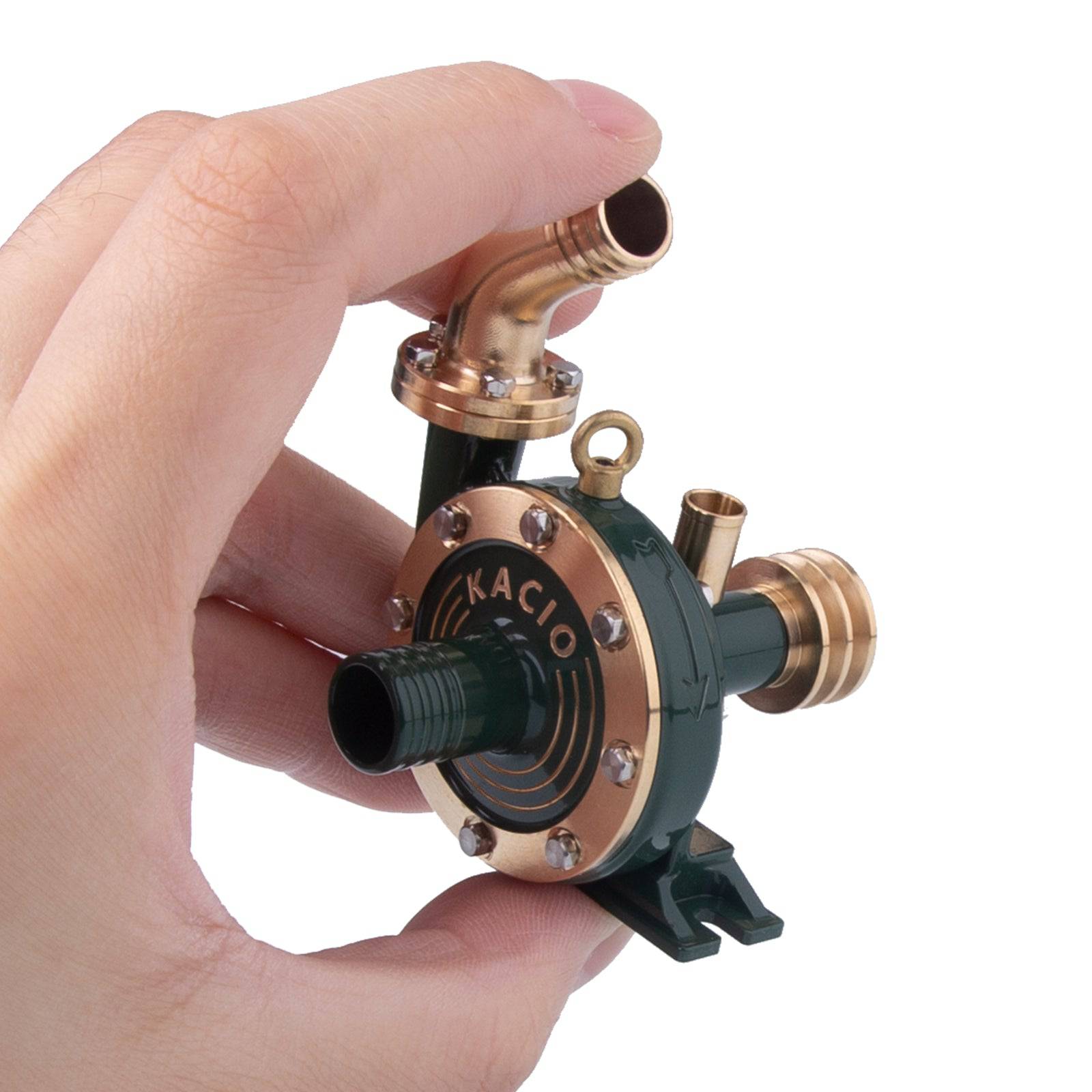

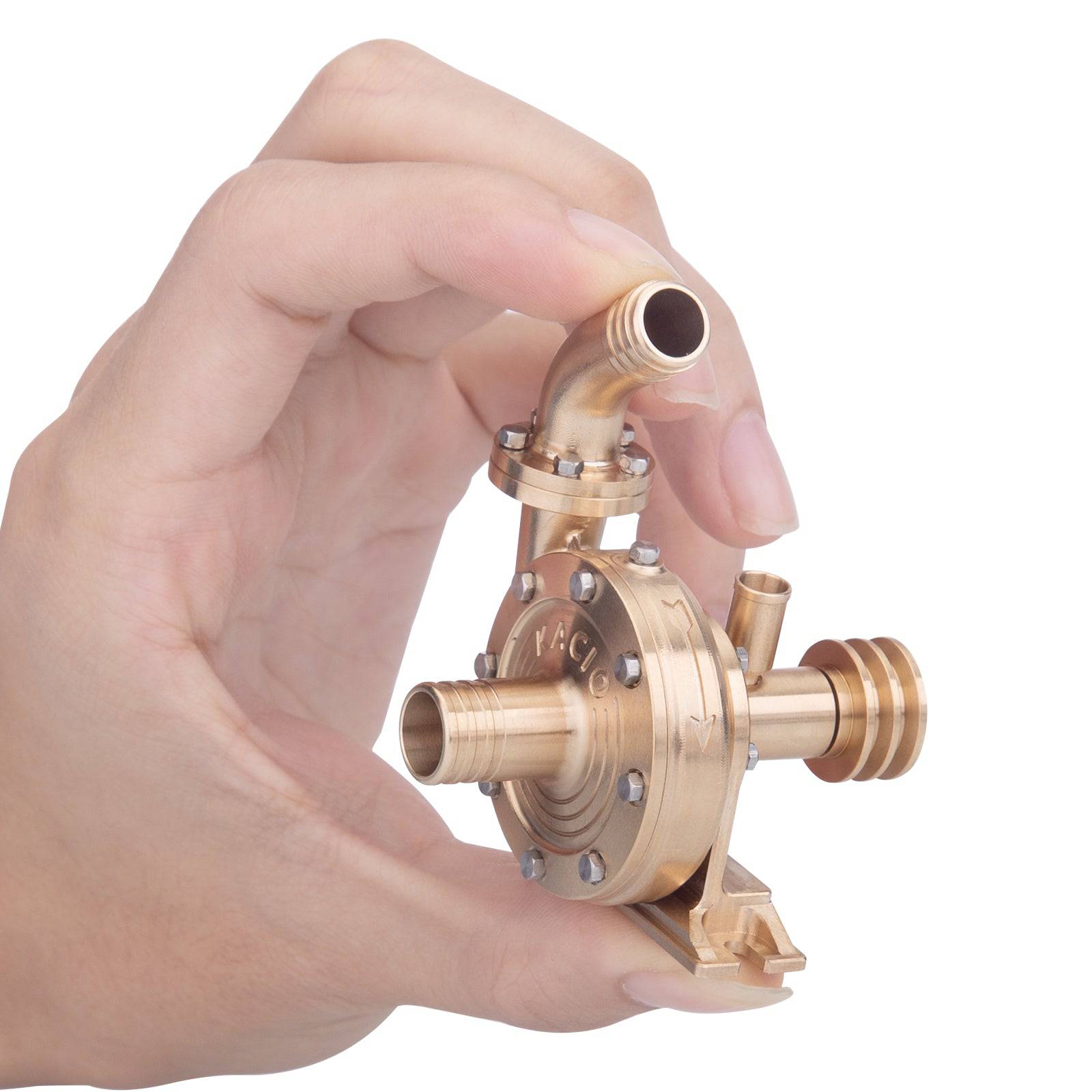

- Compact & Aesthetic: Measuring just 59x43x70mm, it fits neatly onto most engine baseplates without dominating the scene. Its industrial design adds a layer of complexity and realism to any mechanical display.
Technical Highlights: Engineering Simplified

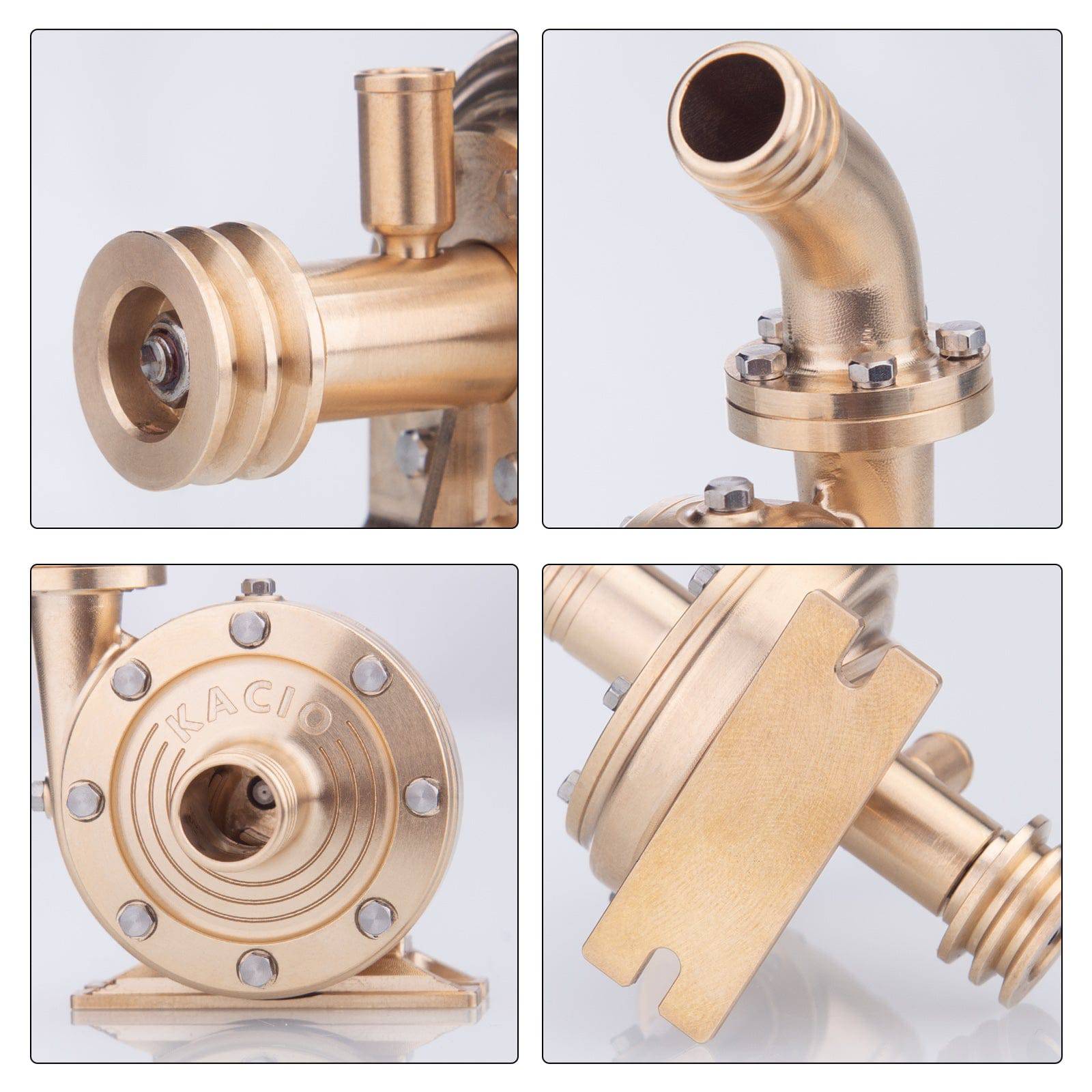

- Precision Impeller: Inside the brass casing lies a 29.4mm diameter impeller. Its precise vane geometry ensures efficient water movement when driven at speed.

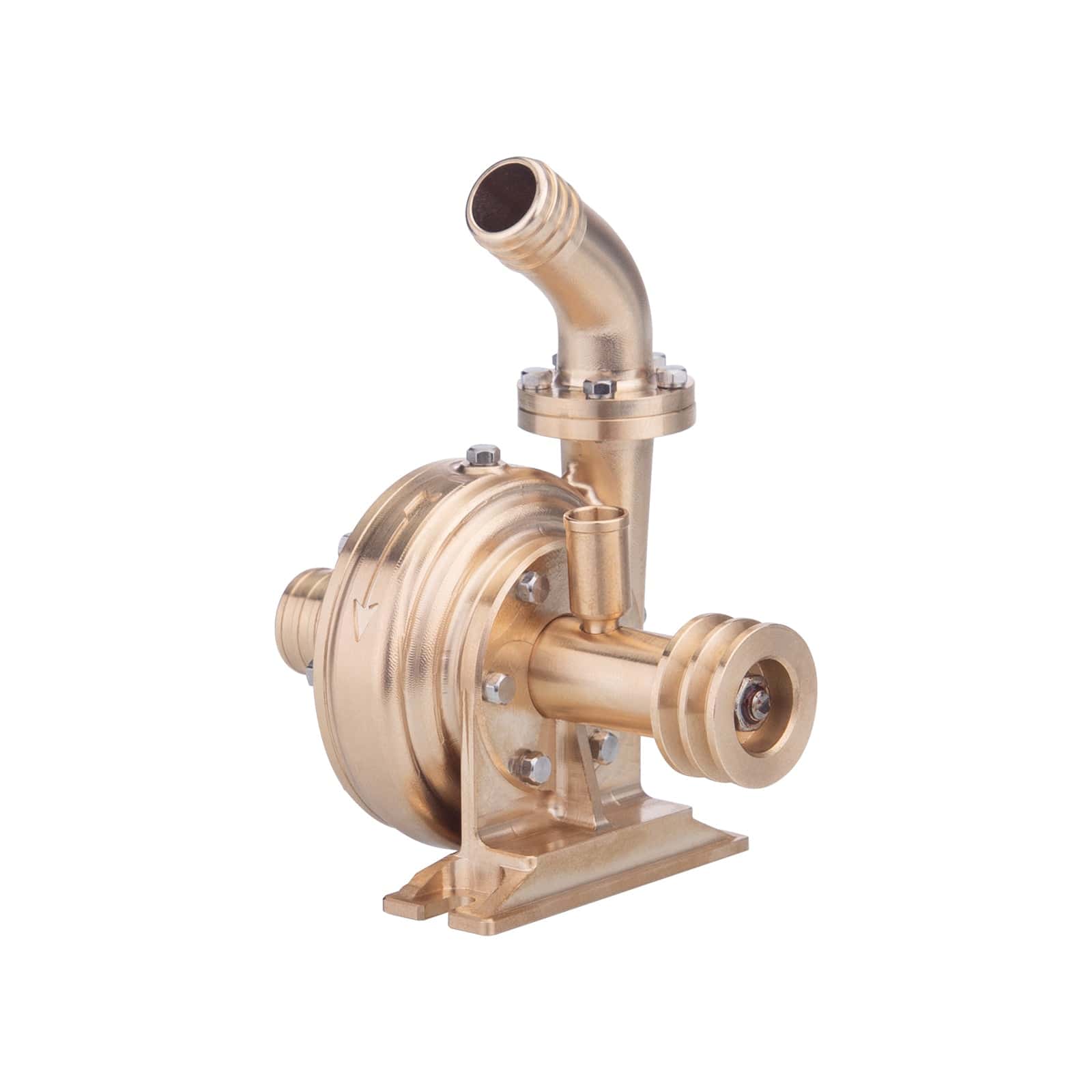

- Standard Drive Shaft: The 4.0mm spindle is robust and ready to accept a pulley (not included), allowing you to belt-drive it from your engine's flywheel.
- Physics in Motion: This pump requires priming (filling with water) before starting, just like the real thing. This quirk adds to the authenticity and educational value of operating the model.
Specifications
- Model: KACIO B30-1
- Type: Centrifugal Impeller Pump
- Material: Brass
- Dimensions: 59 x 43 x 70 mm
- Weight: 148g
- Inlet Diameter: 9.0mm (Internal)
- Outlet Diameter: 7.5mm (Internal)
- Impeller Diameter: 29.4mm
- Shaft Diameter: 4.0mm (M3 Thread)
- Drive Method: External Belt/Motor Drive
Usage Scenario: The Working Steam Plant
You fire up your steam engine. As pressure builds, the flywheel begins to spin. You engage the belt to the KACIO pump. You’ve already primed the line. Suddenly, a steady stream of water flows from the outlet tube, circulating back into the reservoir. The engine labors slightly under the load, chugging rhythmically. You have created a closed-loop system—a miniature industrial reality right on your workbench.
Important Tips from the Workshop
- Priming is Mandatory: Centrifugal pumps cannot pump air. You must fill the pump casing and suction line with water before starting. Running it dry will not move water and may damage the shaft seal.
- Drive Speed: Centrifugal pumps require high RPM to generate pressure. Ensure your pulley ratio spins the pump fast enough to overcome the head pressure.

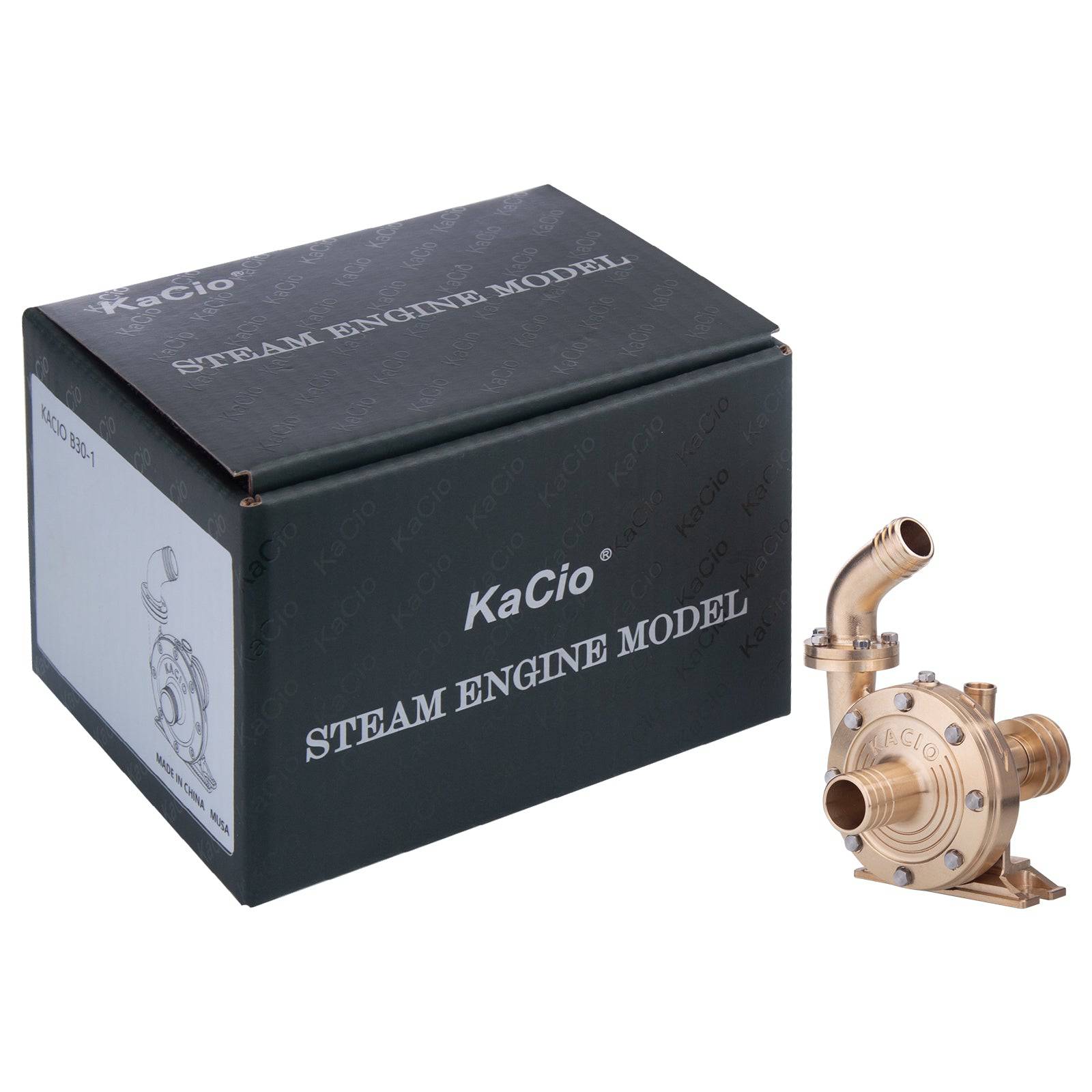

- DIY Required: This is a standalone pump unit. You will need to provide the mounting bracket, drive pulley, belt, and tubing to integrate it with your specific engine model.
- Lubrication: A drop of water-resistant grease on the shaft bearing will ensure smooth operation and prevent leaks.
Customer Support
Planning a custom pumping station? If you need advice on tubing sizes, pulley ratios, or mounting ideas, our expert team is ready to assist. Contact us at service@helloworld7.com.
