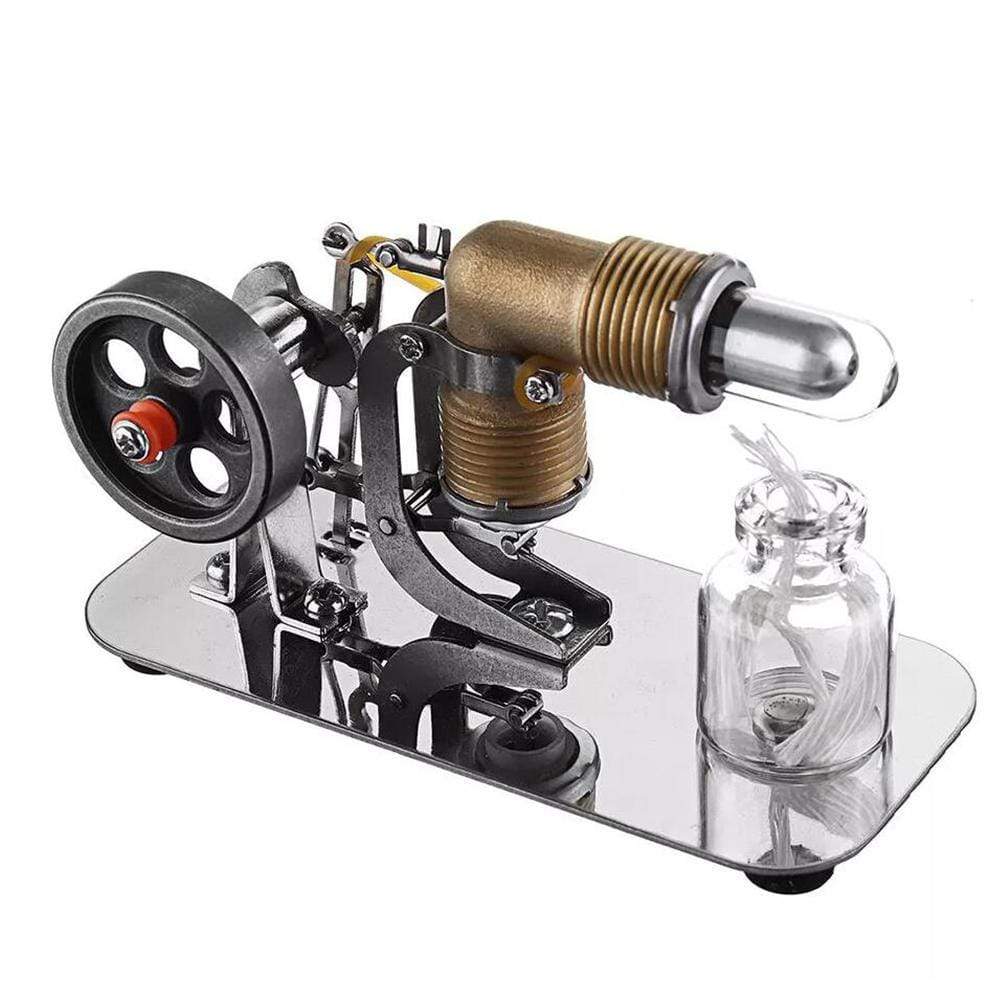

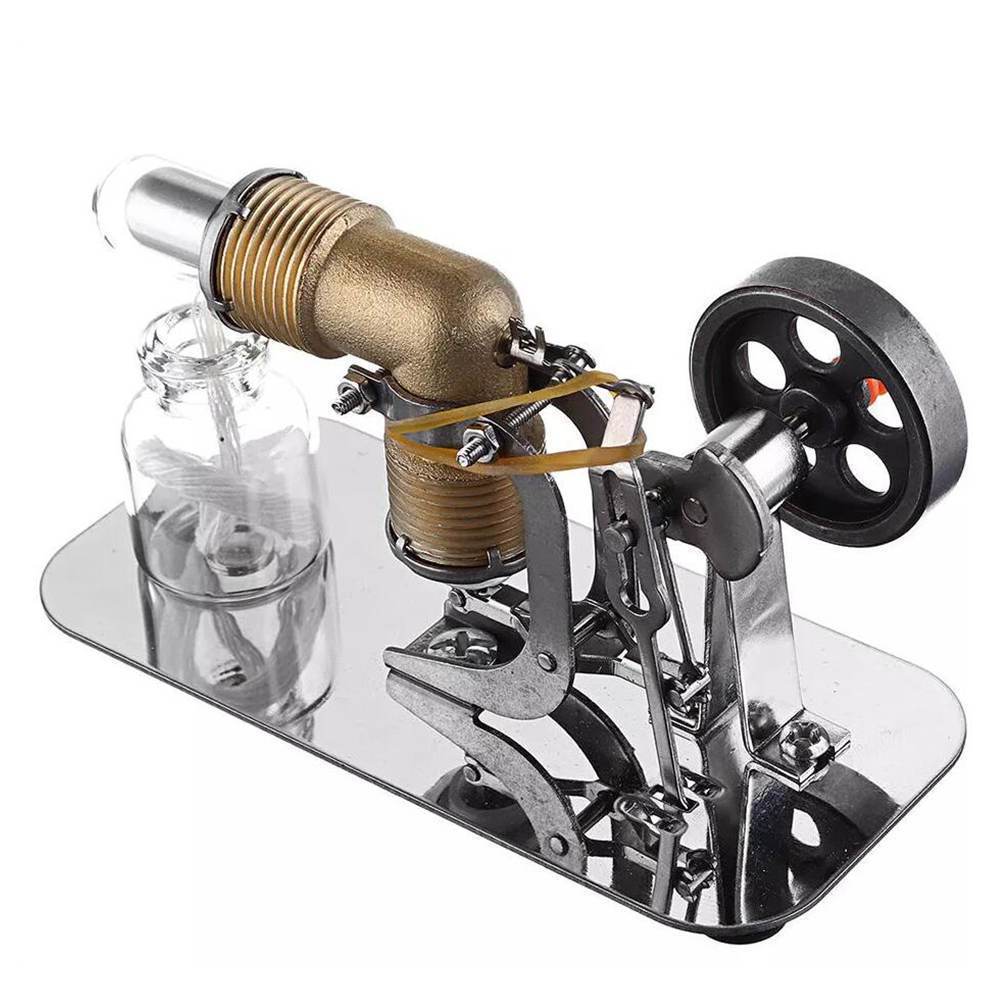

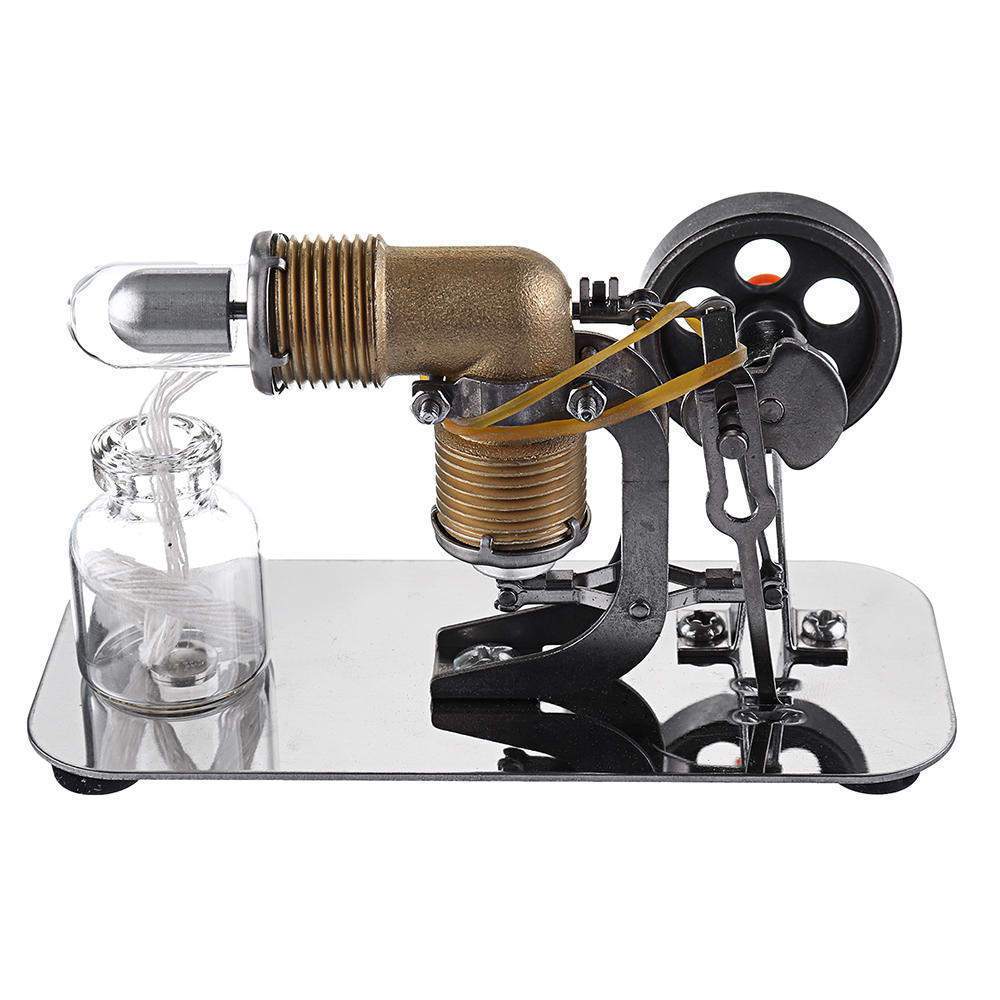

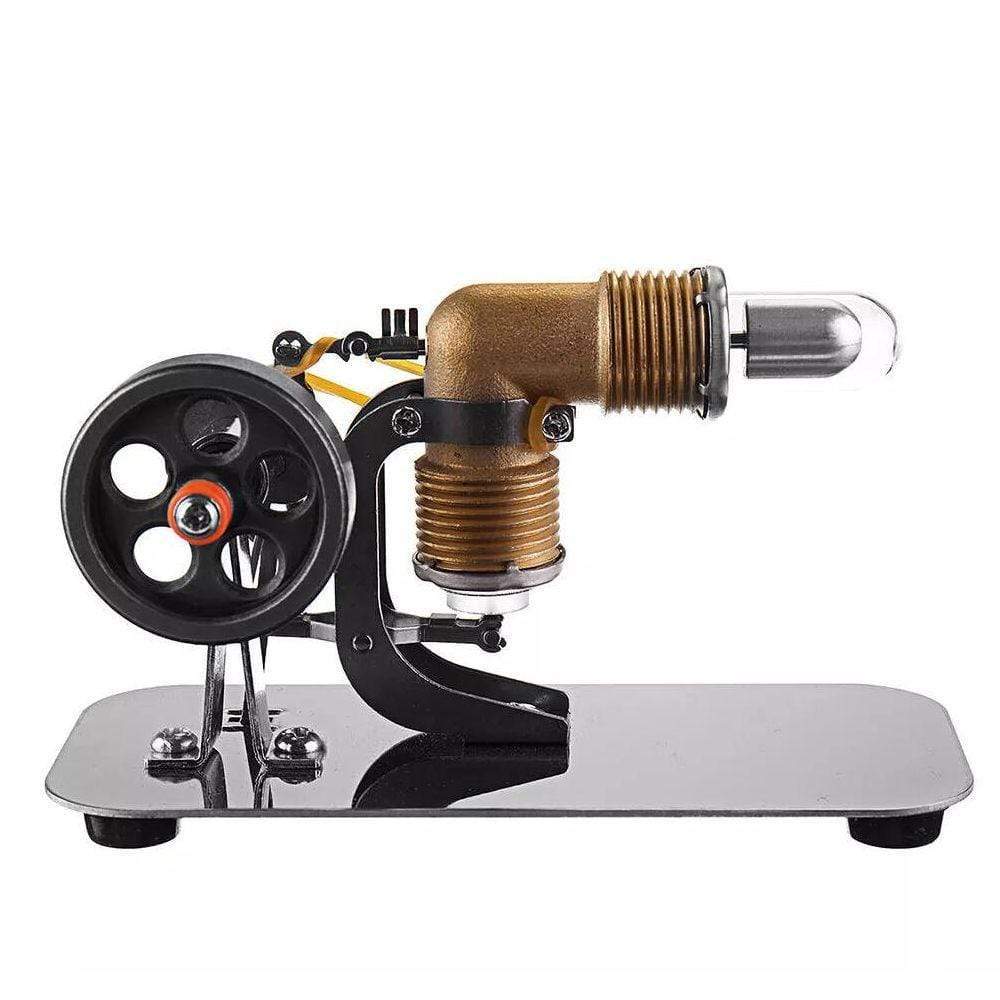

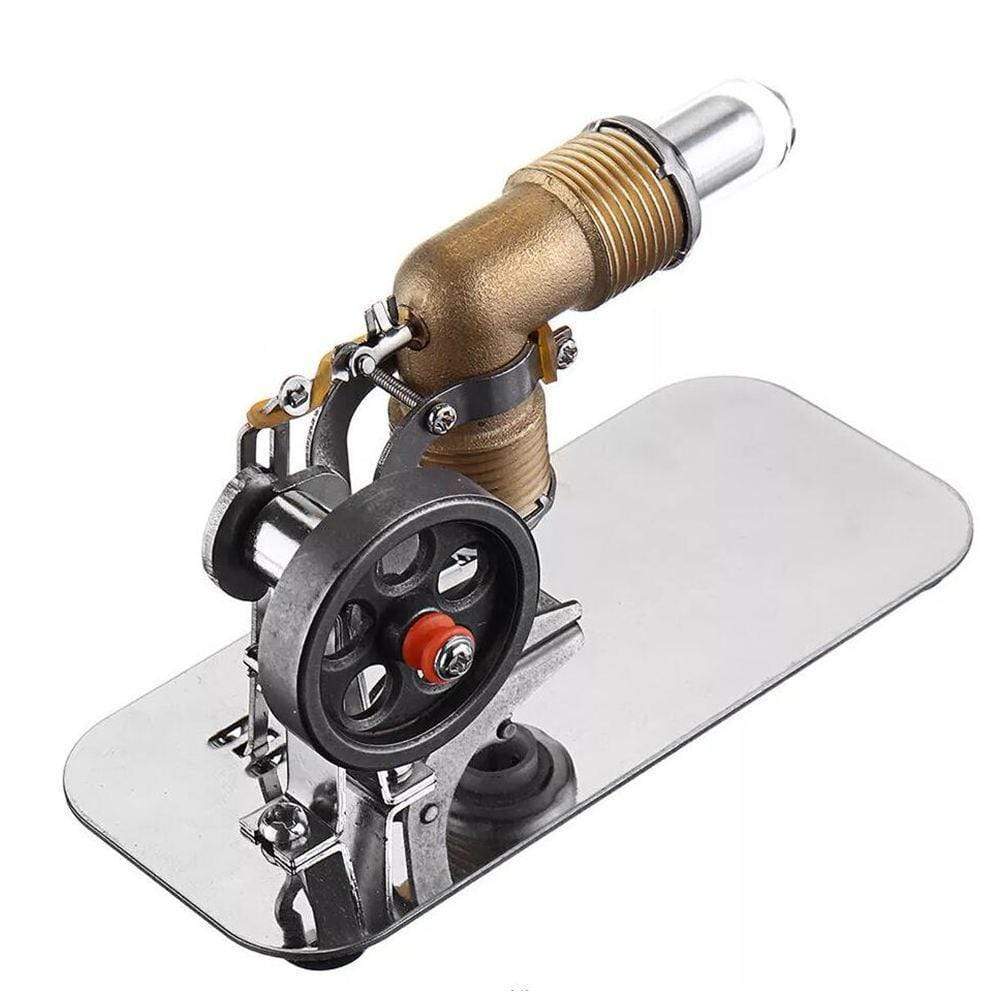

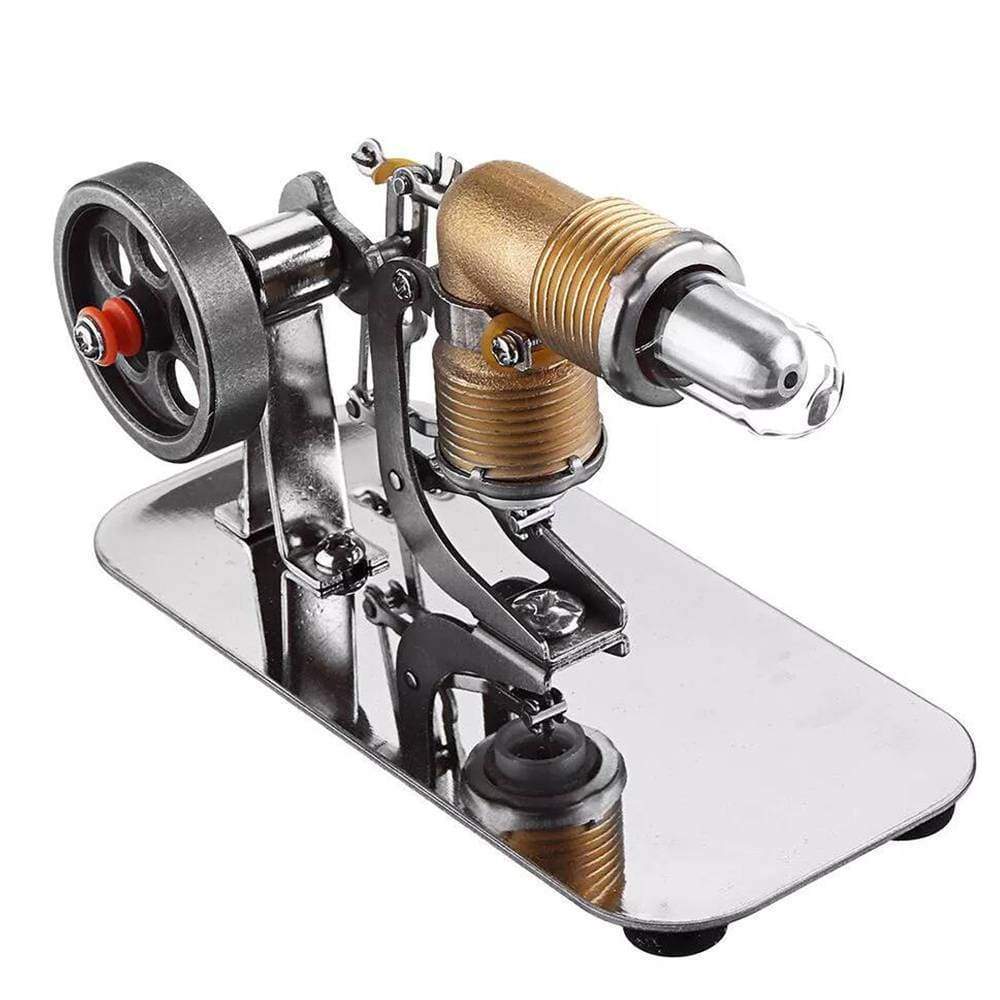

Mini Rocker Stirling Engine Model Brass Cylinder High Speed Physics Experiment Toy
Hero Section: A Pocket-Sized Powerhouse
Don't let the size fool you. This Mini Rocker Stirling Engine is smaller than a soda can, yet it packs a punch of pure mechanical energy. Capable of reaching speeds up to 2000 RPM, it transforms a simple flame into a blur of motion. Featuring a unique crank-rocker mechanism and a solid brass cylinder, it is a marvel of miniaturization. Whether you are a collector looking for a portable piece of kinetic art or a teacher needing a captivating demonstration tool, this engine delivers big performance in a compact package.
Why Choose This Mini Rocker Engine?
- Unique Mechanical Linkage: Unlike standard engines, this model combines a Lever Mechanism with a Crank-Rocker Mechanism. This complex linkage gives the engine a distinct, sophisticated look and a fascinating motion that is a joy to analyze and watch.
- Pocket-Sized Portability: Weighing just 112g and measuring only 4 inches long, this is a true "pocket engine." It takes up minimal space on a desk but commands maximum attention when running.
- Premium Material Selection: We spared no expense. The base is mirror-polished stainless steel. The stand is heat-treated HRC55 spring steel for high strength. The flywheel is zinc alloy, and the cylinder is thickened quartz glass. It is built to last and look good doing it.
- Ready-to-Run Fun: No assembly required. Just unbox it, fill the lamp, and light it. Within seconds, you have a high-speed engine running on your table. We even include a DIY fan kit to attach to the flywheel for added interactivity.
Technical Highlights: Engineering Insight
- High-Speed Performance: The lightweight design and low-friction bearings allow this engine to hit speeds between 1700-2000 RPM. The rapid cycle of air expansion and contraction is a powerful demonstration of thermodynamic efficiency.
- Robust Construction: The use of bearing steel rods and bronze components ensures that the moving parts can withstand high speeds without rapid wear. The surface treatments prevent rust and fading, maintaining the engine's aesthetic appeal.
- Stable Operation: Despite its small size and high speed, the engine remains stable thanks to the heavy stainless steel base and four rubber anti-slip pads.
Specifications
- Speed: 1700 - 2000 RPM
- Material: Stainless Steel + Bronze + Zinc Alloy + Quartz Glass
- Dimensions: 101 x 46 x 60 mm (3.98 x 1.81 x 2.36 in)
- Flywheel Size: 30 x 7 mm
- Net Weight: 112g / 3.95 oz
- Included: Engine, Lamp, Pipette, Spare Tubes (x2), Spare Seals (x2)
Usage Scenario: The Coffee Shop Demo
Imagine meeting a friend for coffee. You pull this tiny engine out of your bag. You fill the small lamp with a few drops of alcohol and light it. In seconds, the flywheel is spinning at 2000 RPM, a blur of silver and brass. People at nearby tables turn their heads. "What is that?" they ask. It’s the ultimate icebreaker—a pocket-sized science lesson that brings a smile to everyone's face.
Important Tips from the Expert
- Fuel Requirement: Use 95% purity alcohol (not included). This high-speed engine needs intense heat. Lower purity fuels contain water and will not generate enough power.
- Do Not Modify: This engine is precision-tuned for demonstration. Do not attempt to modify the linkage or piston, as this can damage the delicate balance required for high-speed operation.
- Lubrication: The piston is designed for a dry fit. Do NOT add oil to the glass cylinder. Oil will gum up and stop the engine. Only use a tiny amount of dry graphite powder if absolutely necessary.
