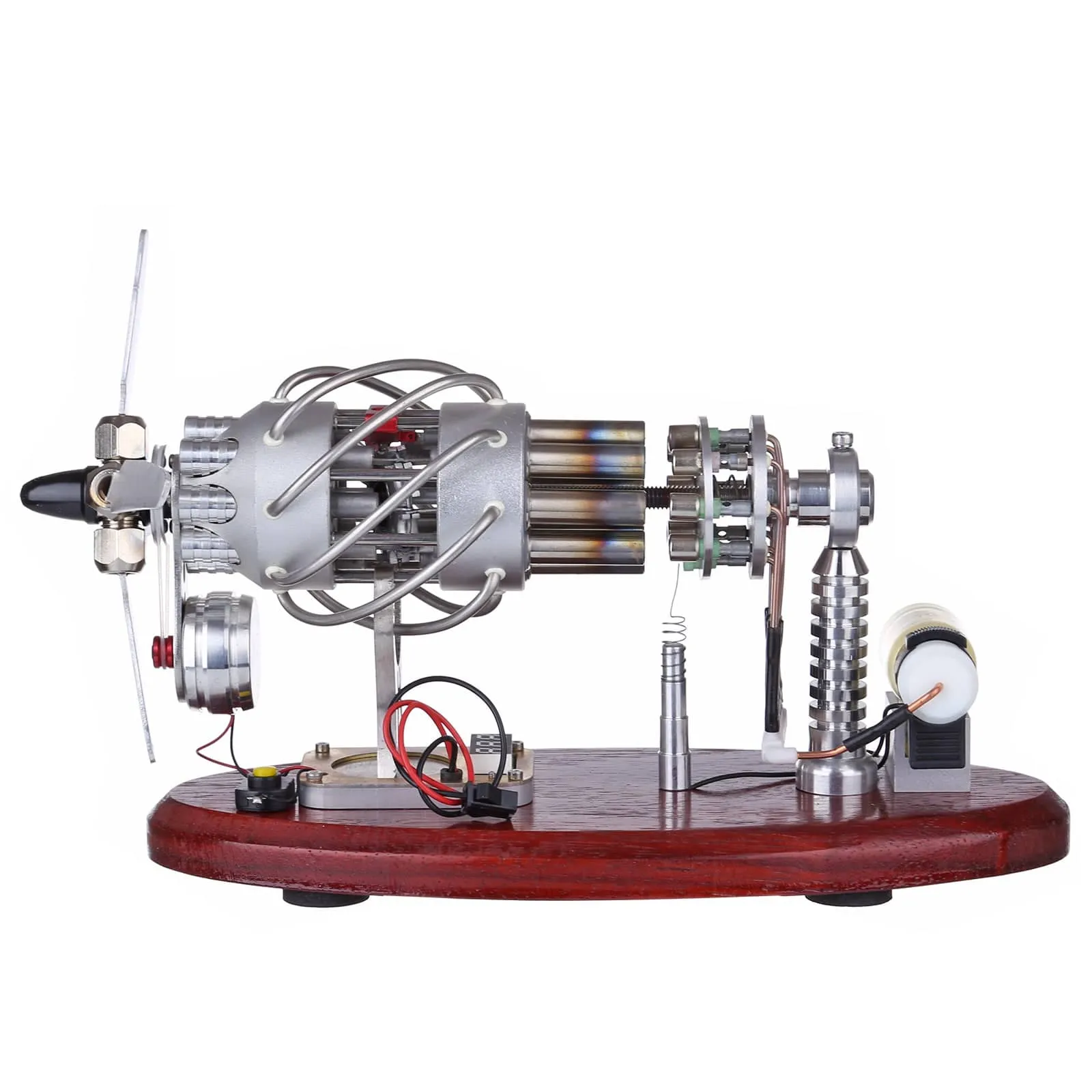

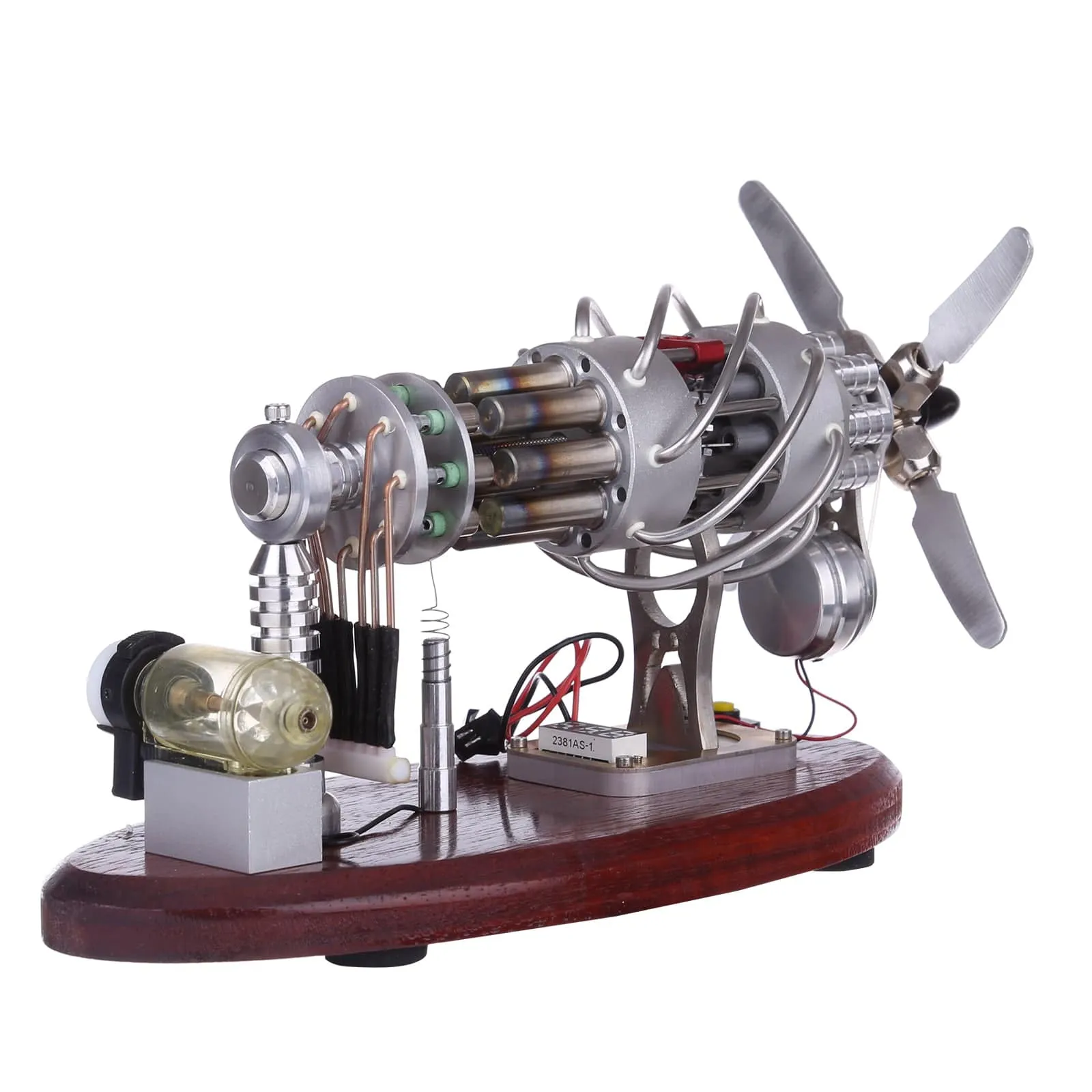

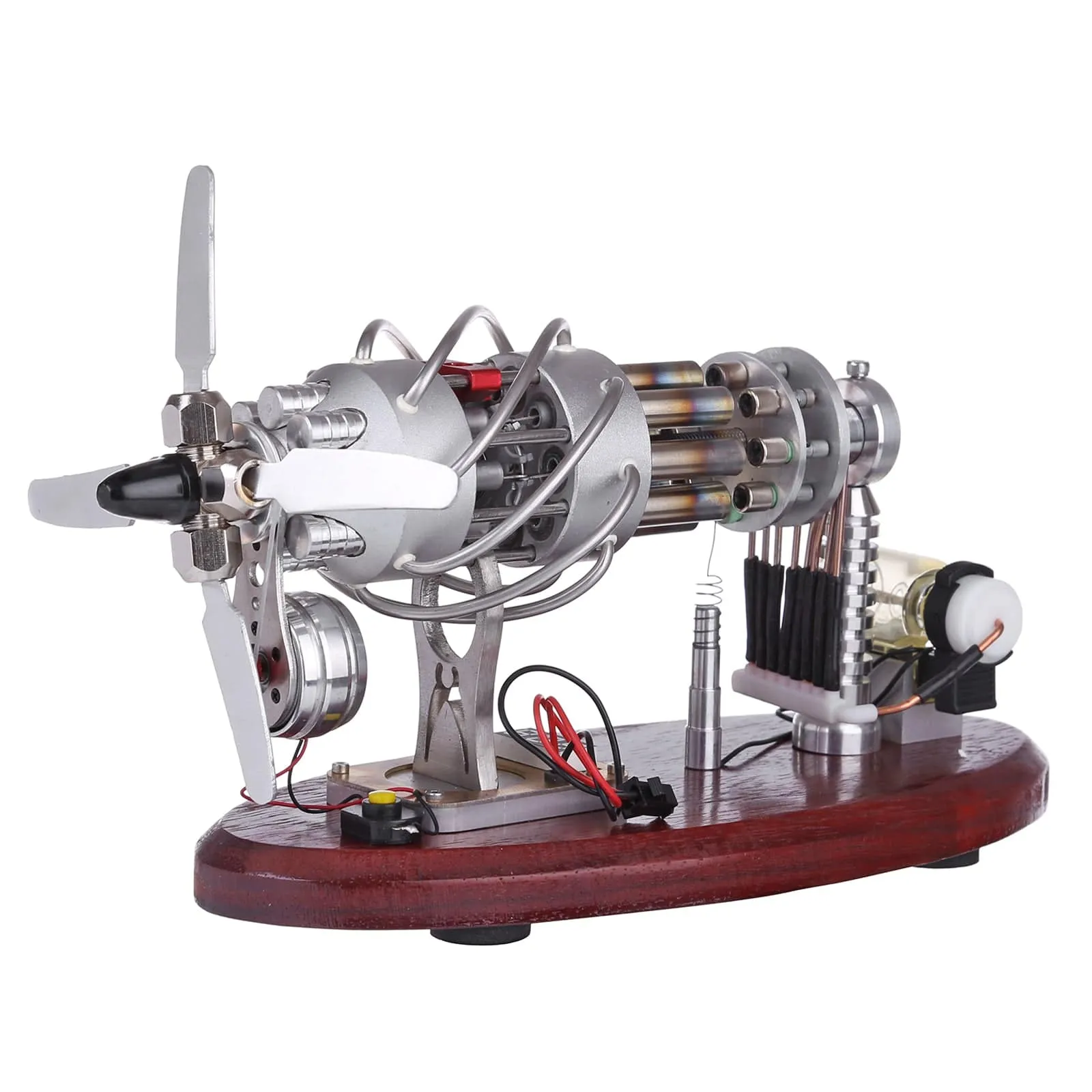

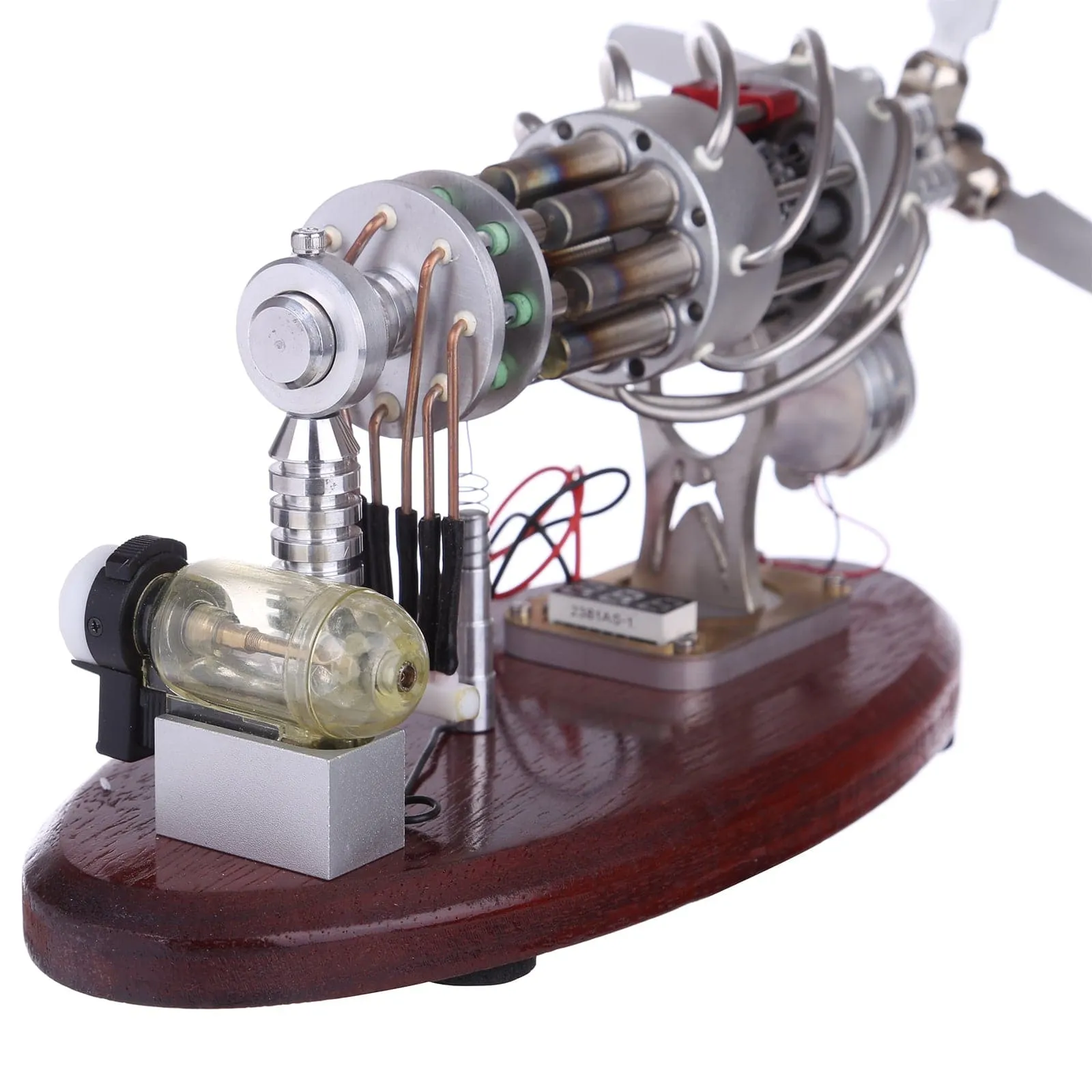

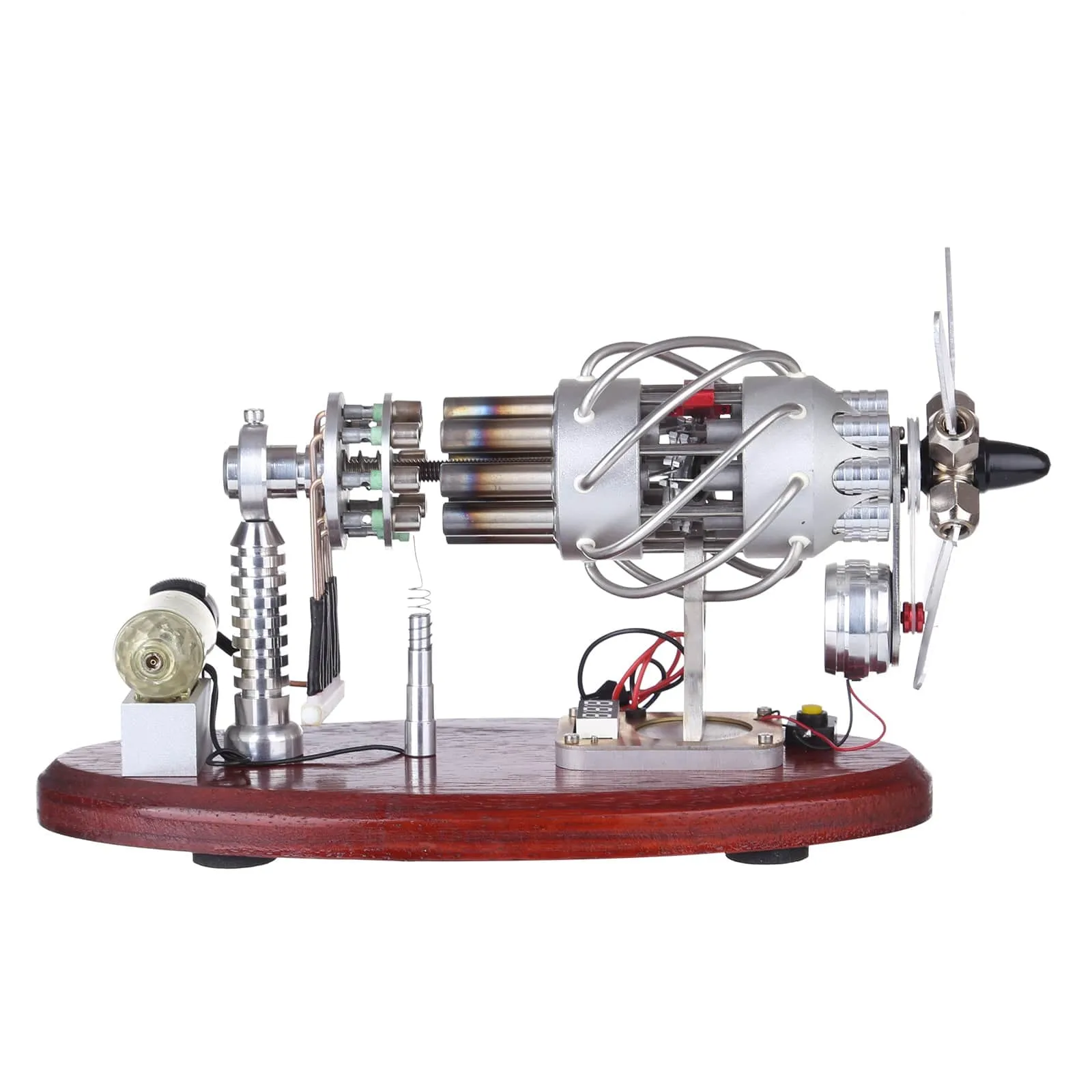

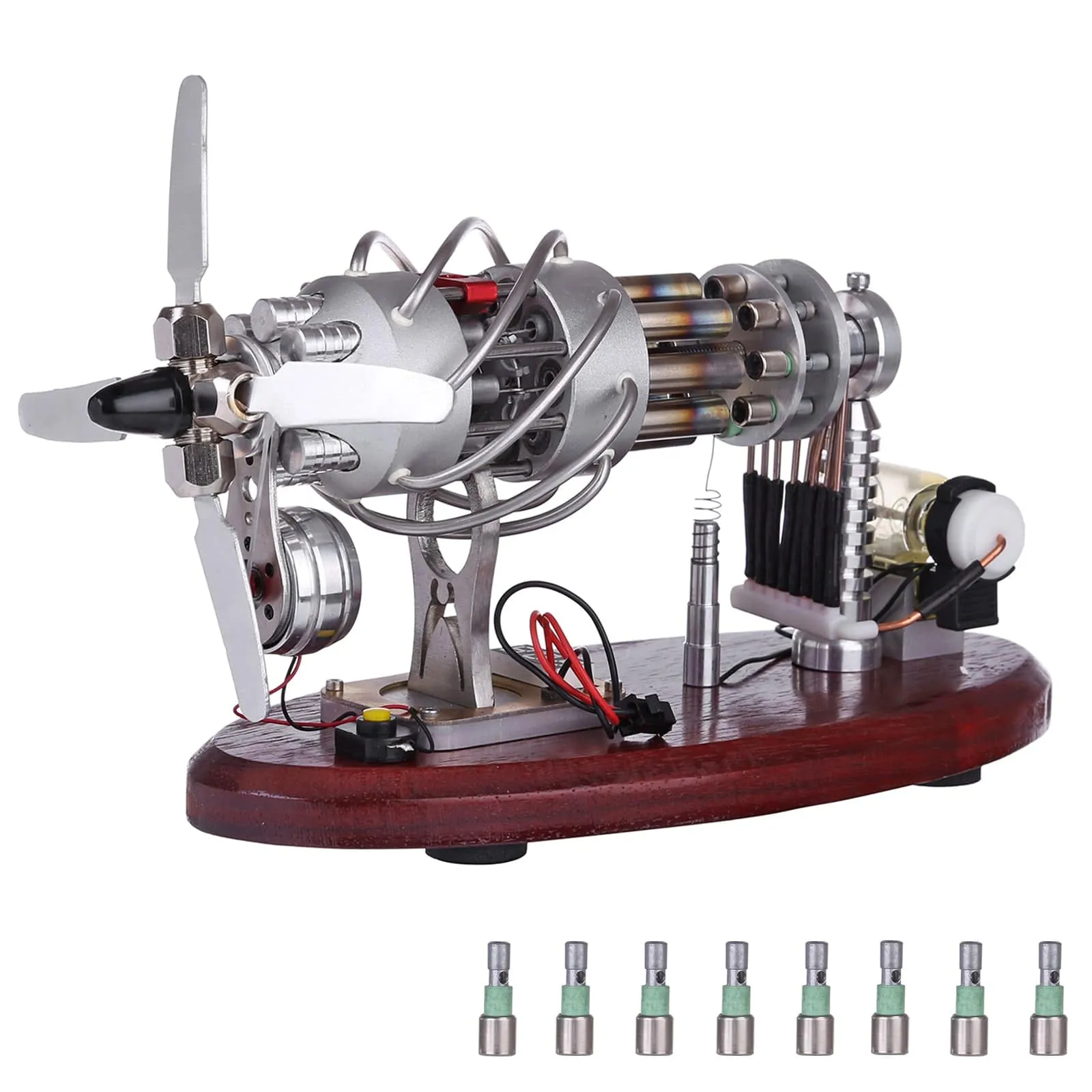

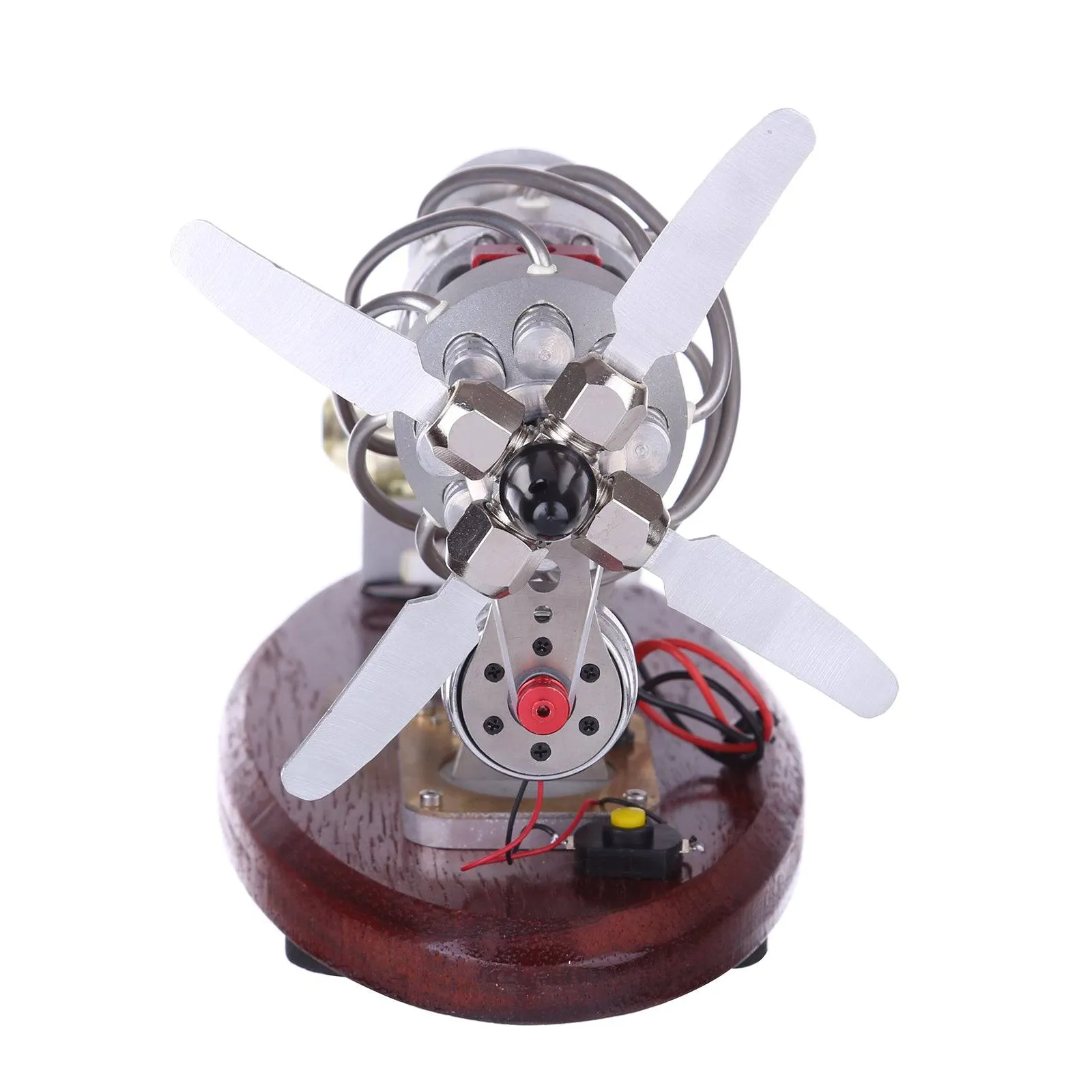

16 Cylinder Swash Plate Stirling Engine Generator Model Butane Powered with Voltage Display
Hero Section: A Miniature Power Plant on Your Desk
Prepare to be mesmerized by the ultimate fusion of mechanics and electricity. The 16-Cylinder Swash Plate Stirling Engine is not just a kinetic sculpture; it is a fully functional power generator. Imagine the scene: you ignite the butane burner, and within seconds, 16 pistons begin a rhythmic, hypnotic dance. As the RPMs climb to 2000, the integrated digital voltmeter lights up, displaying the real-time electricity generation. It is a symphony of steel, fire, and physics that transforms your desktop into a showcase of industrial elegance.
Why Choose the 16-Cylinder Generator Model?
- Visualizing Power: Unlike standard engines that just spin, this upgraded model features a built-in generator and a digital voltage display. You don't just hear the power; you see it. Watch the voltage climb as you adjust the throttle, powering the onboard LED beads.

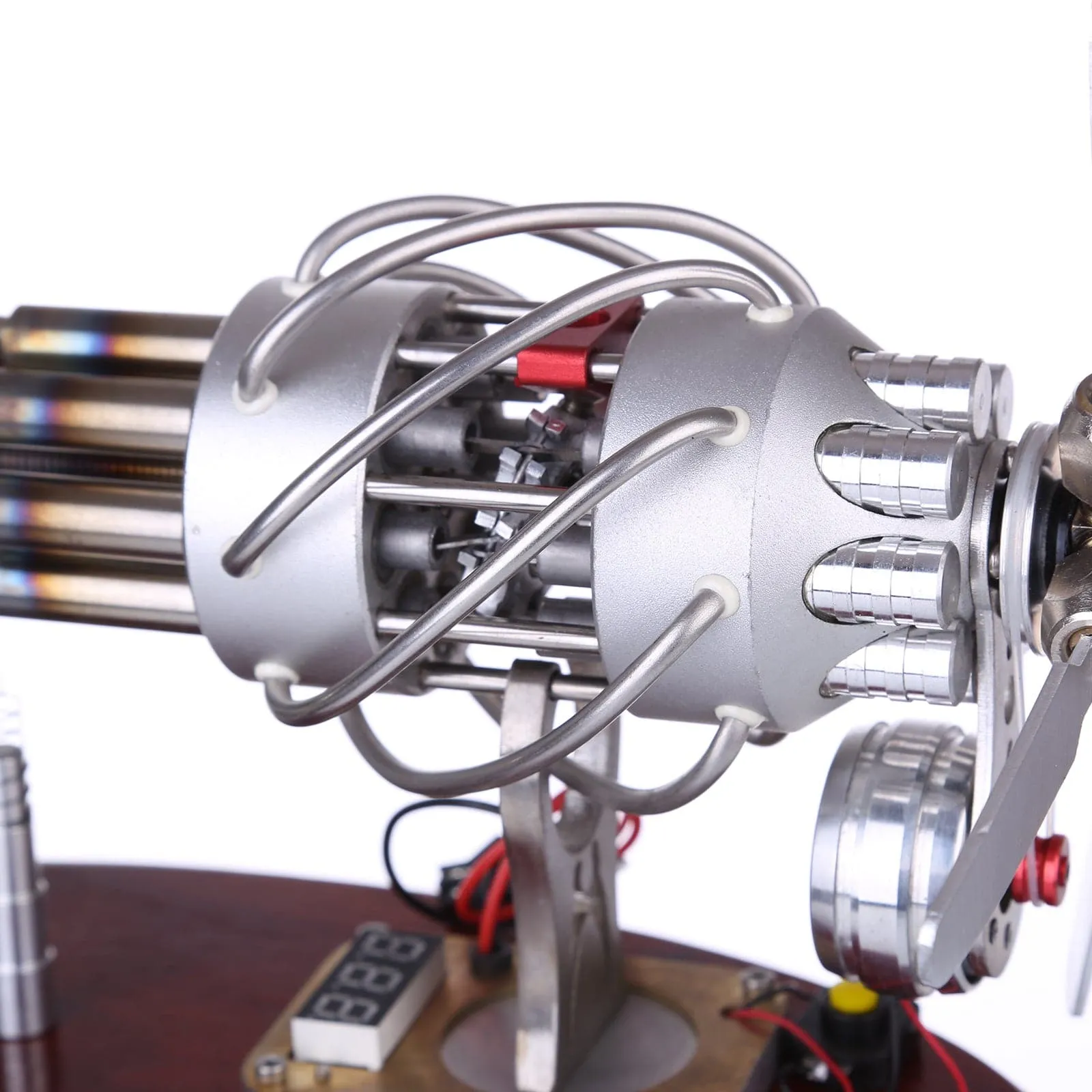

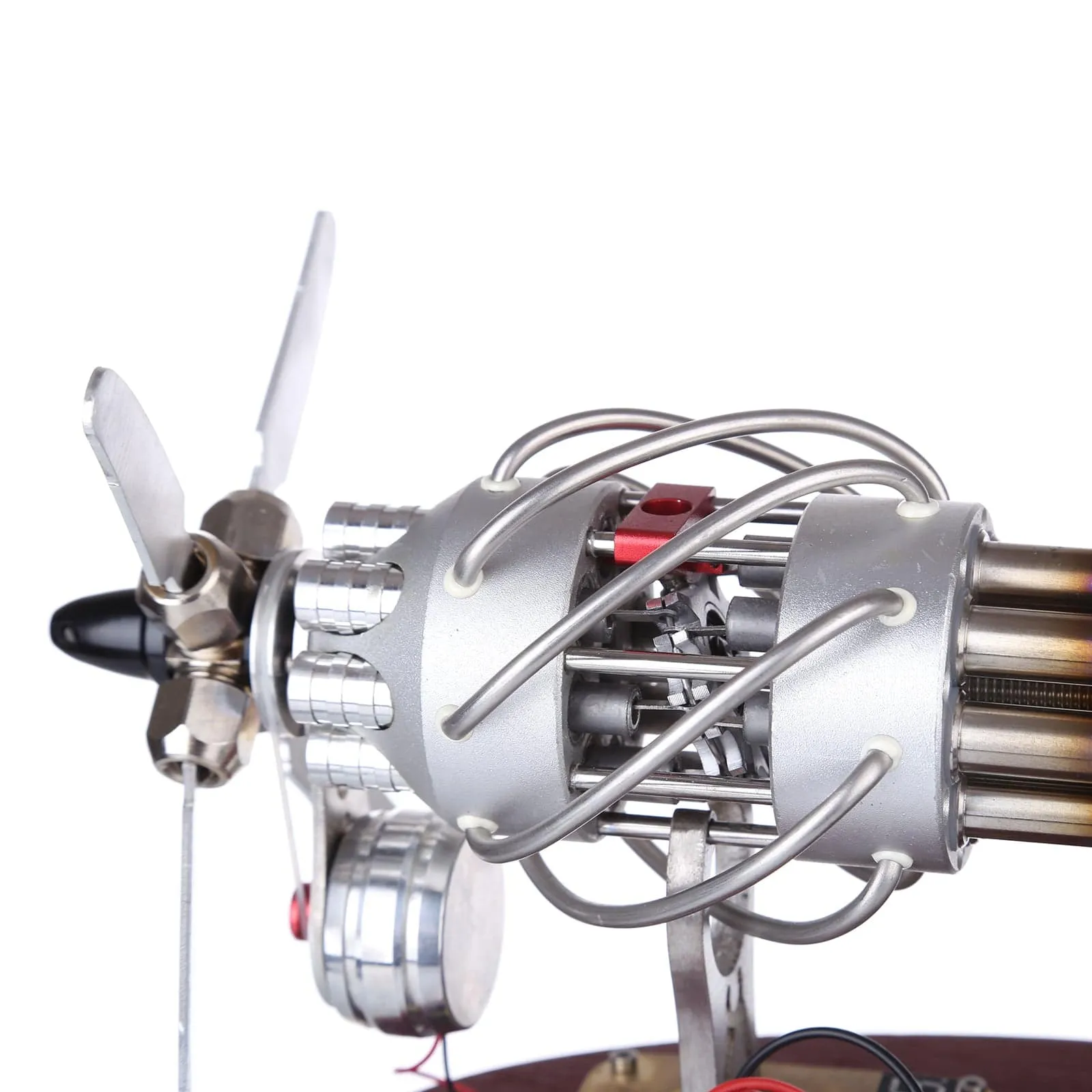

- The Swash Plate Advantage: This engine utilizes a rare and complex swash plate mechanism (often found in helicopter rotor controls) to drive the 8 hot and 8 cold cylinders. This results in incredibly smooth operation and a compact, circular design that is fascinating to watch from every angle.
- Premium Materials: Built to last and designed to impress. The body is crafted from aluminum alloy, the hot cylinders from durable stainless steel, and the entire assembly sits on a luxurious solid Mahogany wood base. It exudes quality before you even turn it on.
- Clean & Powerful Energy: Powered by butane gas (lighter fluid), it burns cleaner and hotter than alcohol models, providing consistent performance and easier flame control via the adjustable valve.
Technical Highlights: Engineering Excellence
- Low-Friction Glass Pistons: The pistons are made from super-hard, wear-resistant glass. This material choice is critical because it is self-lubricating and expands very little with heat. This ensures the engine runs freely at high speeds without the need for messy oil.

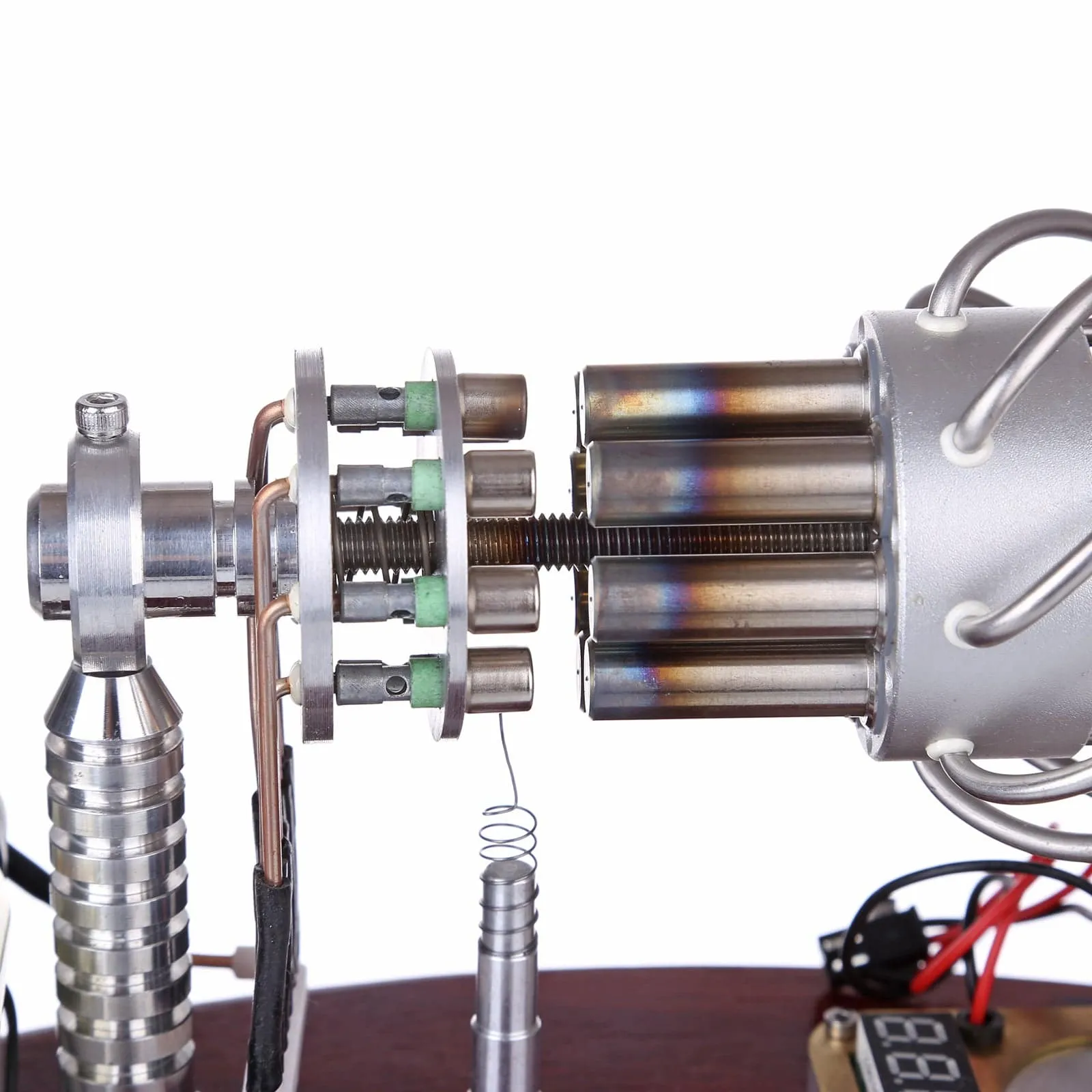

- Thermodynamic Balance: The engine features 8 "hot" cylinders (heated by the flame) and 8 "cold" cylinders (cooled by ambient air). The swash plate perfectly synchronizes the expansion and contraction phases, converting thermal energy into rotary mechanical work with high efficiency.
- Integrated Electrical System: The mechanical energy is transferred to a DC generator, which powers the LED load and the real-time voltage meter, providing a tangible lesson in energy conversion.
Specifications
- Model Type: 16-Cylinder Swash Plate Stirling Engine Generator
- Material: Aluminum Alloy, Stainless Steel, Quartz Glass, Mahogany Wood
- Cylinder Configuration: 8 Hot / 8 Cold
- Piston Stroke: 12mm
- Speed: 1300 - 2000 RPM
- Output Voltage: 3 - 6V (Displayed on Digital Meter)
- Fuel: Butane Gas (Standard Lighter Gas - Not Included)
- Dimensions: 24 x 15 x 15 cm
- Product Weight: 750g
- Package Content: Engine, Base, Generator, Voltage Meter, Manual
Usage Scenario: The Engineer's Evening
It’s a quiet evening in your study. You fill the tank with butane and click the igniter. The central flame roars to life. You watch the digital meter: 0V... 1.5V... then, with a gentle spin of the propeller, the engine catches. The meter jumps to 4.5V, the LEDs glow bright, and the 16 pistons blur into a rhythmic hum. It’s a moment of pure satisfaction—controlling a complex machine and generating your own electricity. It is the perfect way to disconnect from the digital world and reconnect with physical reality.
Important Tips from the Expert
- The "No Oil" Rule: Crucial: Never add oil or grease to the glass pistons or cylinders. Oil will mix with dust and heat to create a sticky paste that will seize the engine. If they get dirty, simply wipe them with a dry cloth.
- Warm-Up Time: Allow the engine to preheat for about 15 seconds after ignition before attempting to spin the propeller. This allows the internal air to reach the necessary pressure differential.
- Gas Safety: Ensure the room is ventilated when using butane. Always close the gas valve completely after use.
