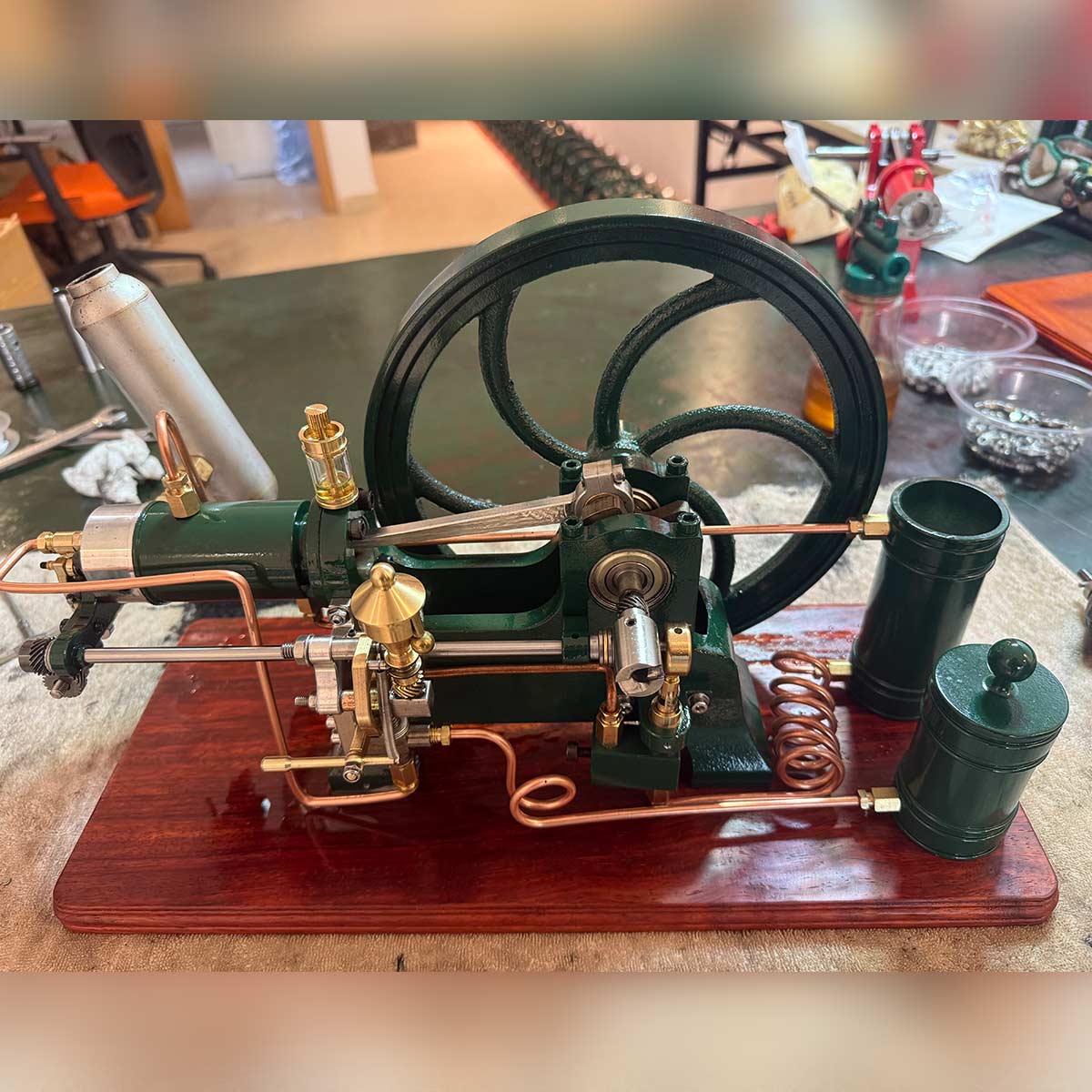

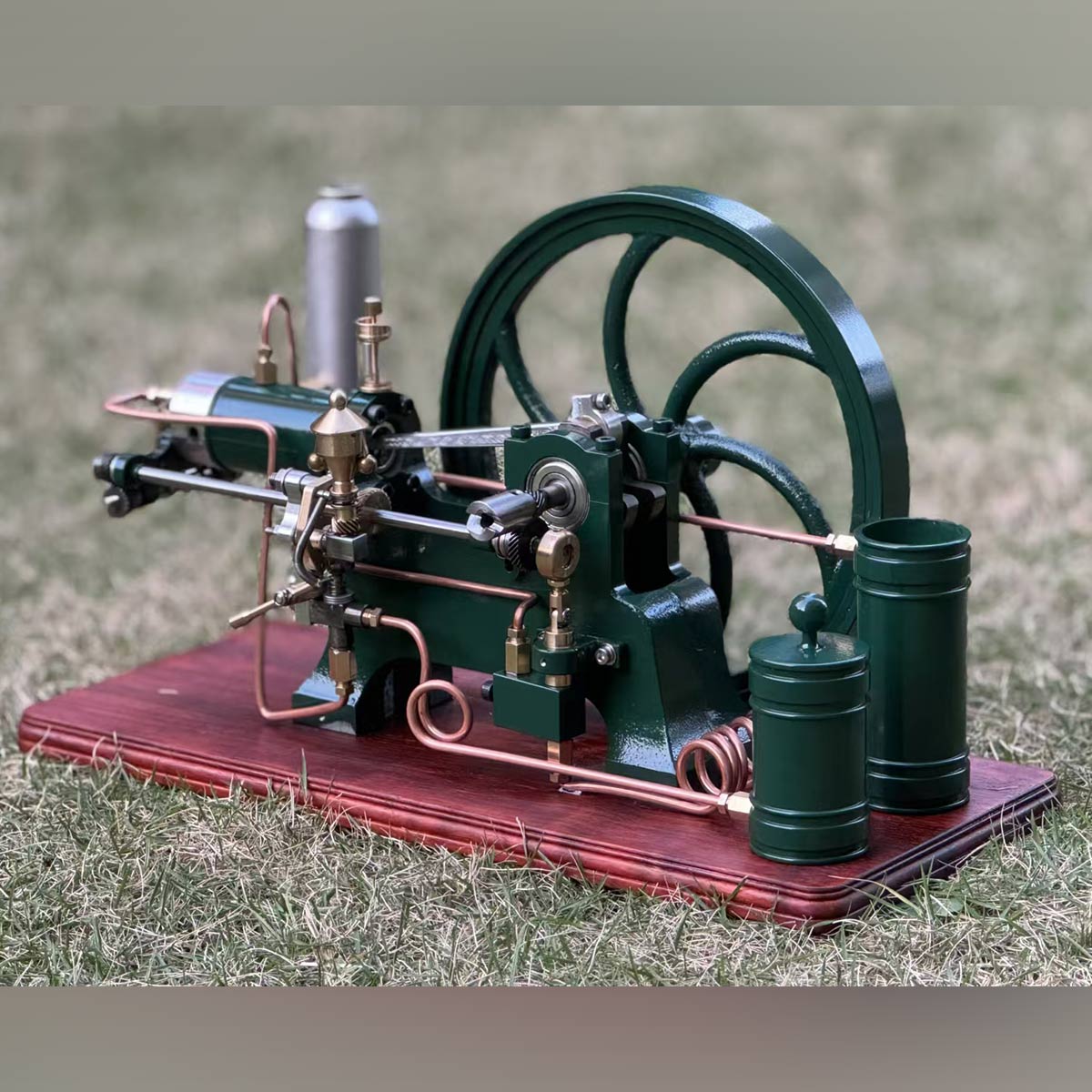

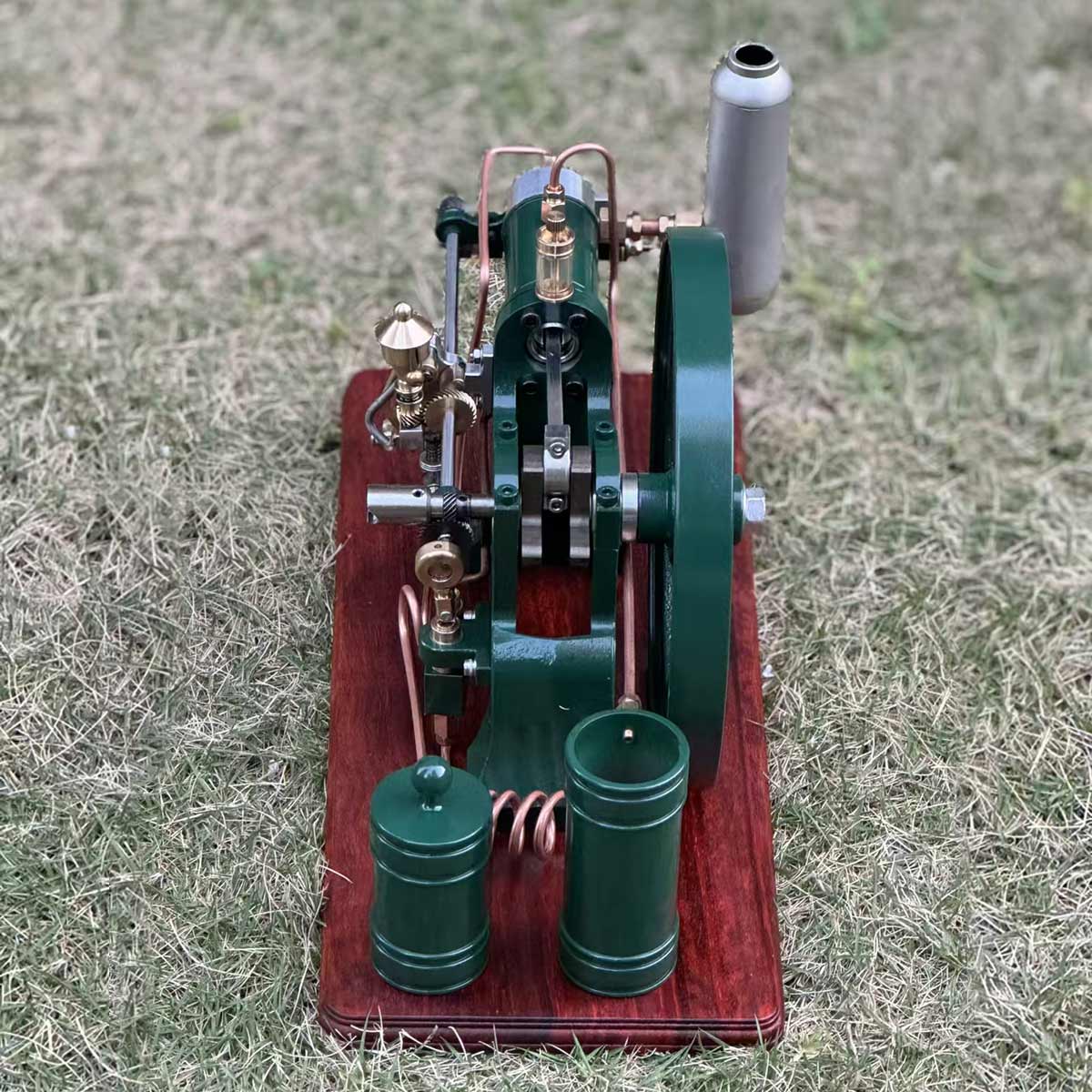

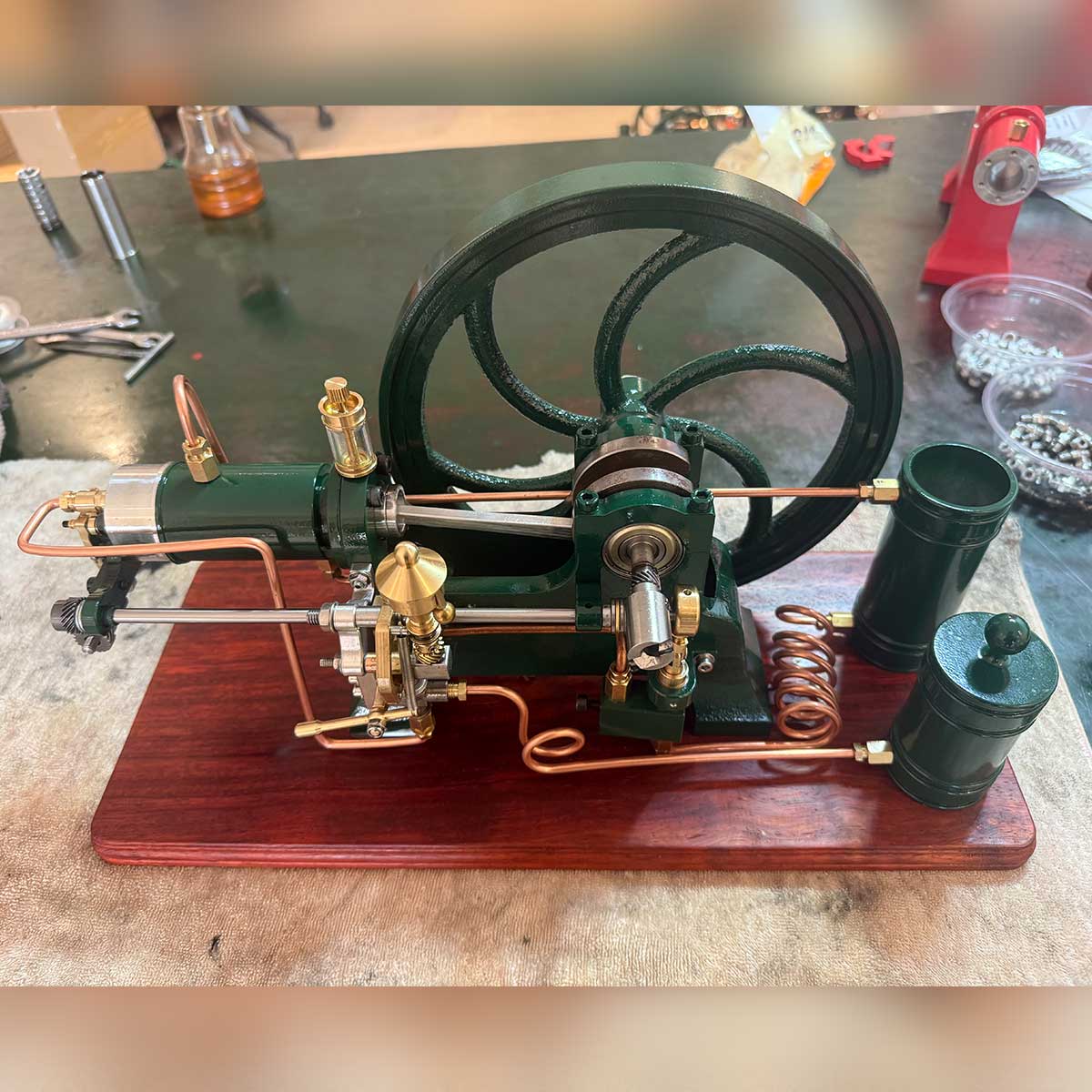

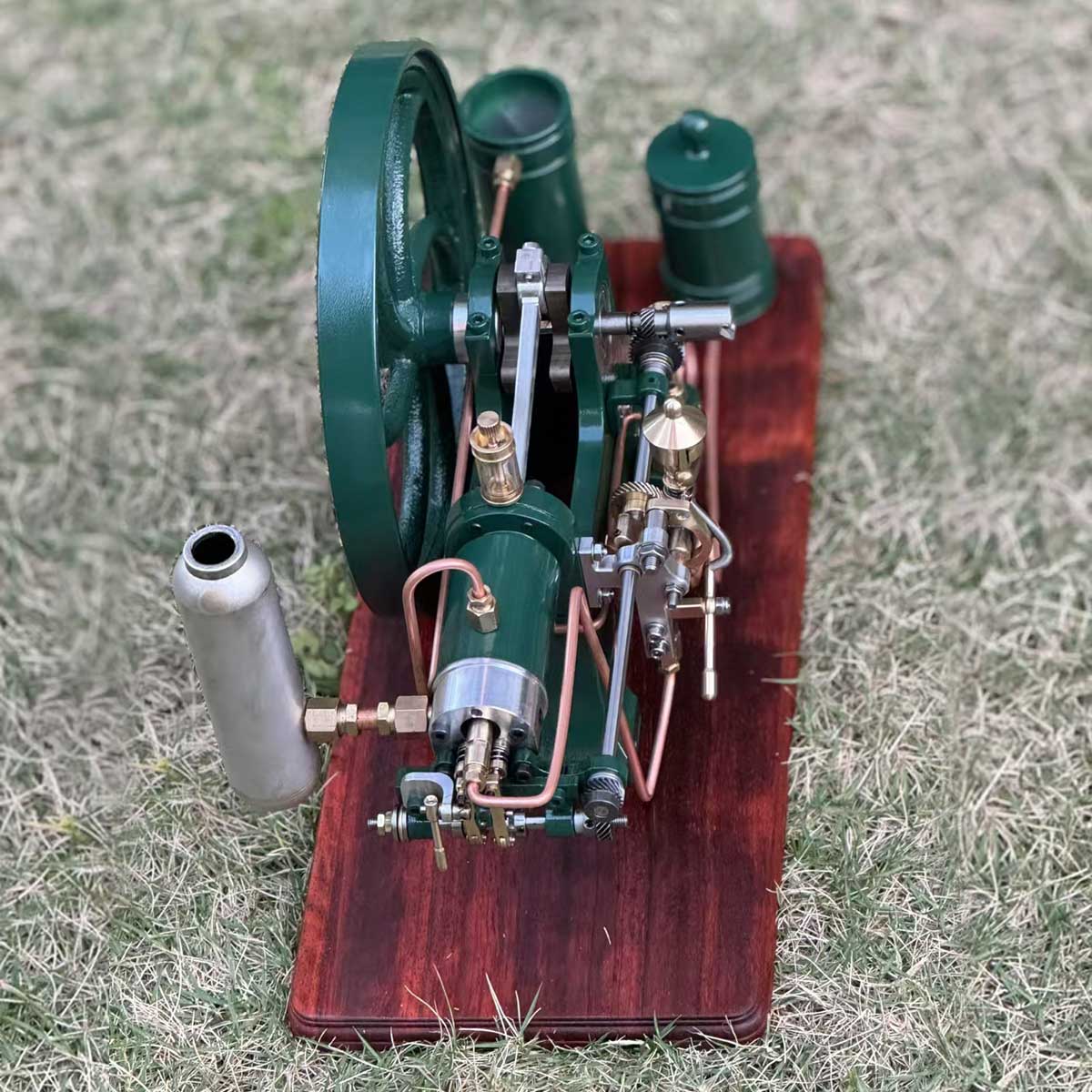

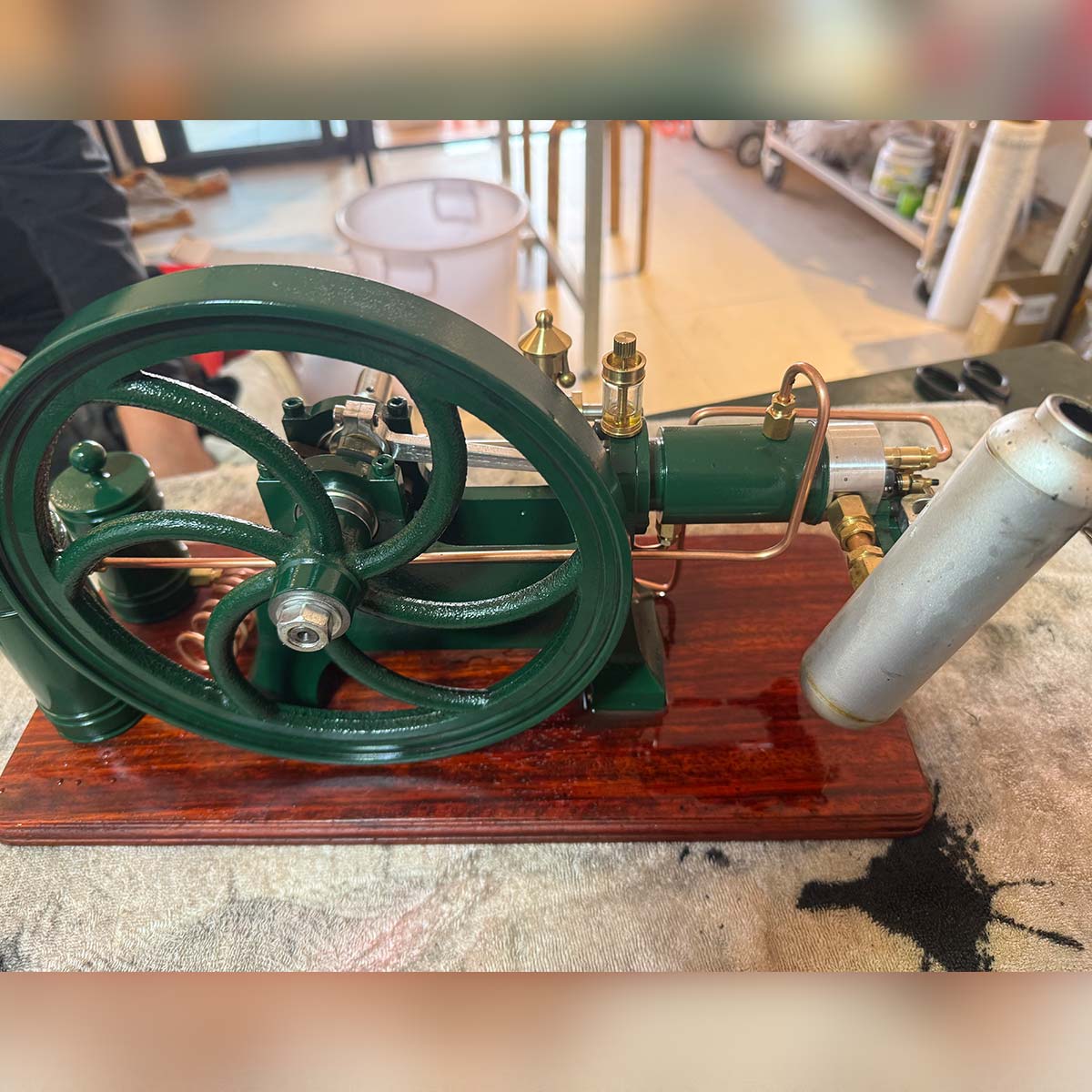

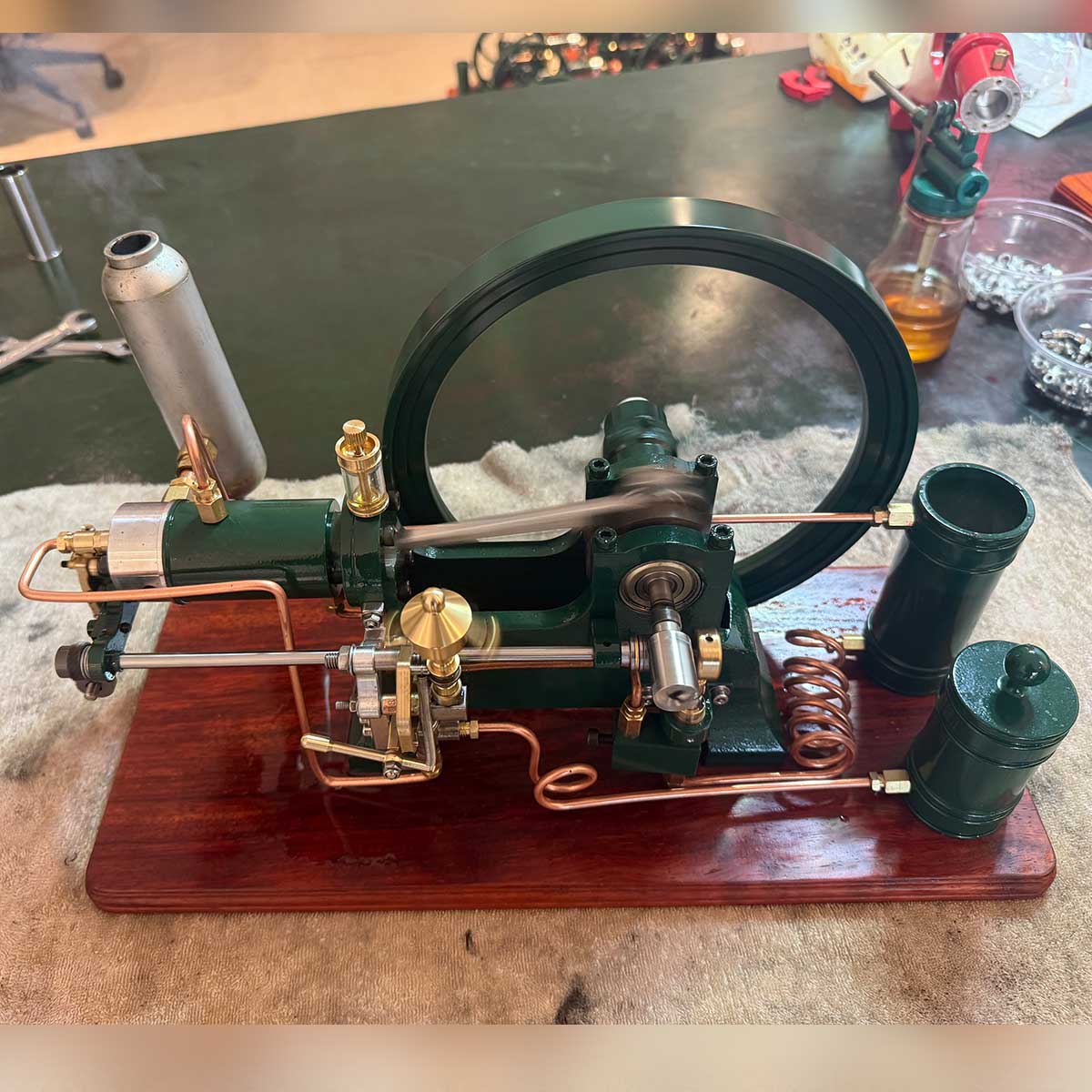

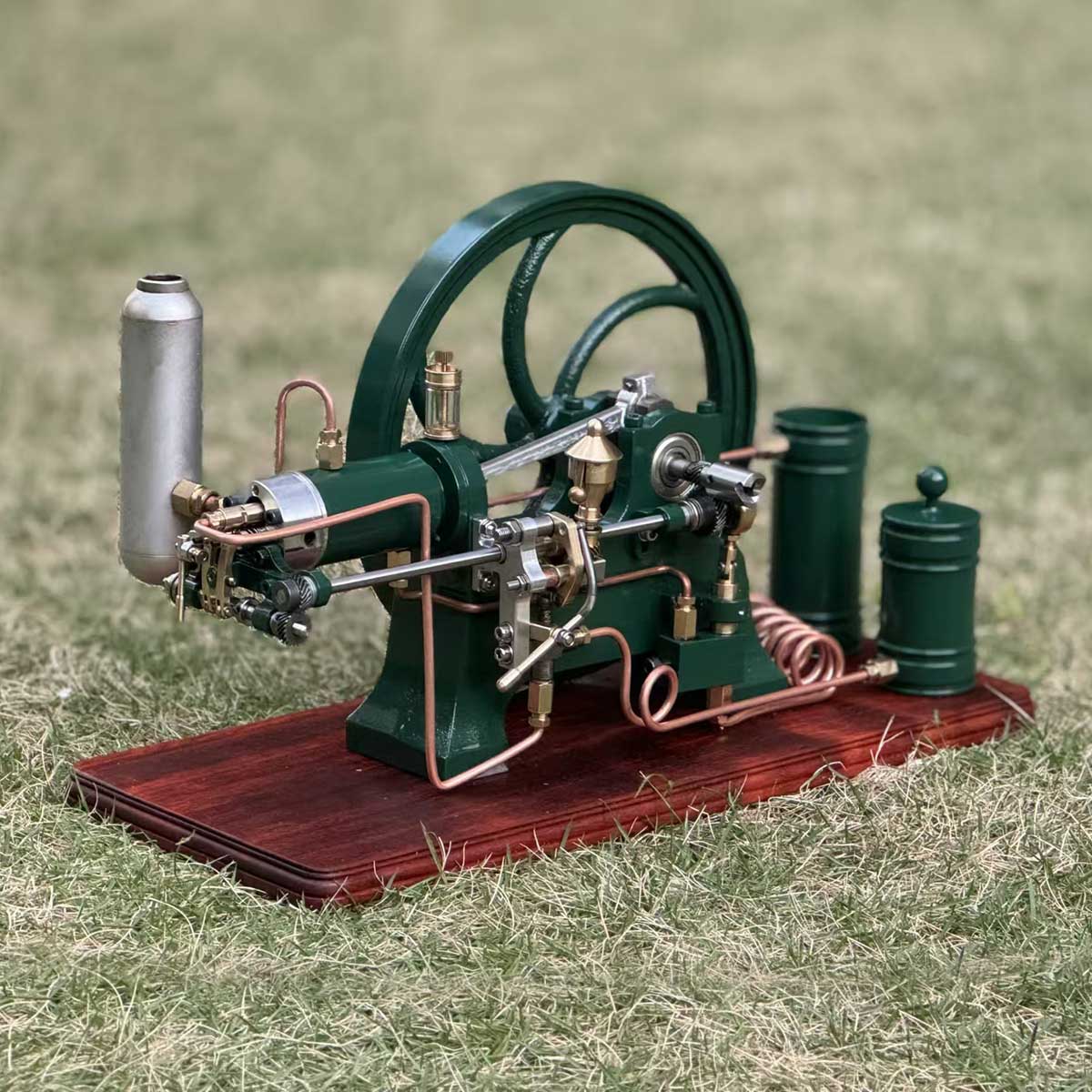

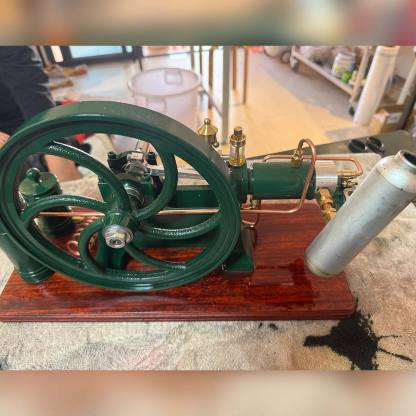

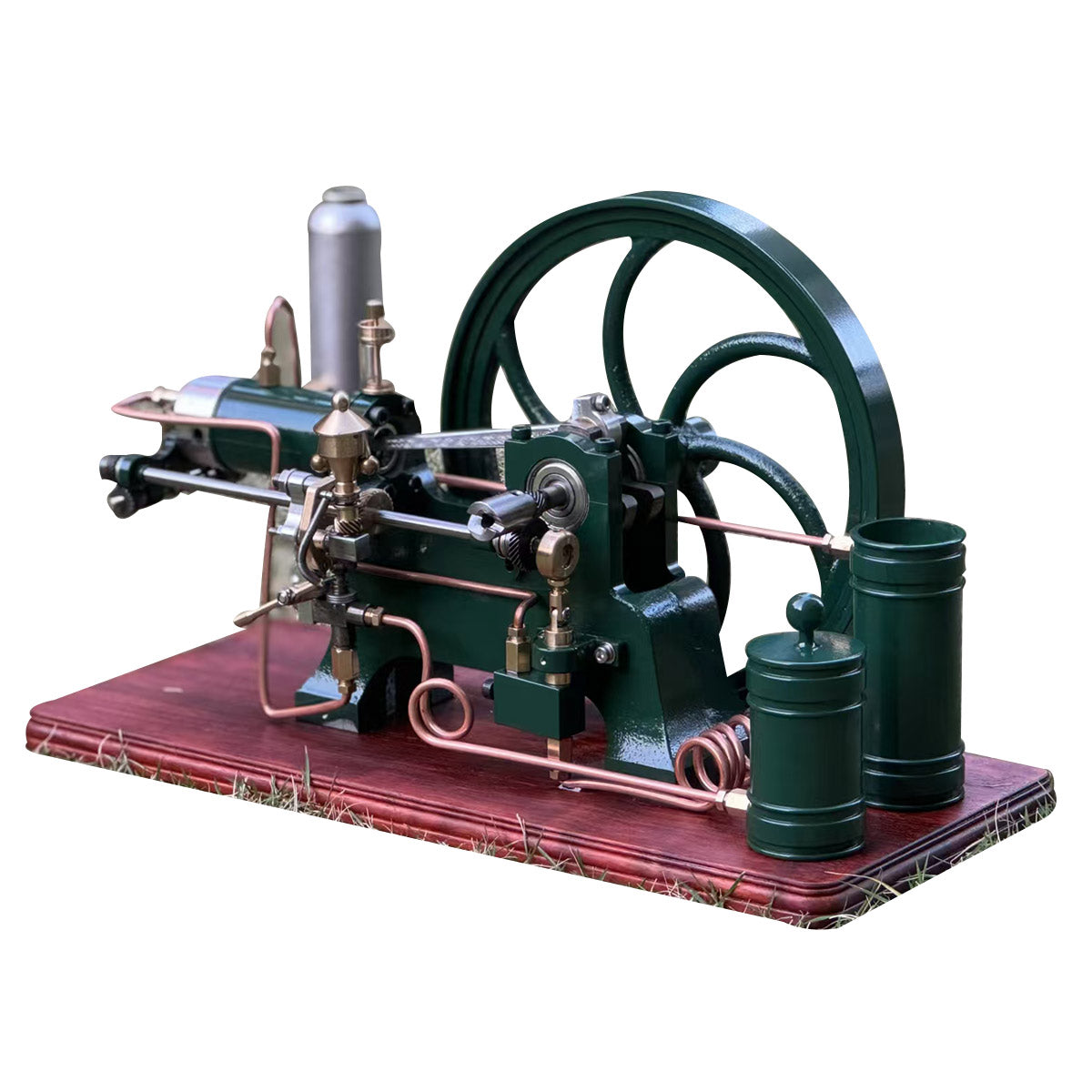

RETROL D16 16cc Horizontal 4 Stroke Water Cooled Stationary Diesel Engine Model
Hero Section: The Holy Grail of Model Engineering
In the world of scale models, the miniature diesel engine is often considered the "Holy Grail." Why? Because miniaturizing a fuel injector to atomize diesel fuel within a micro-combustion chamber is an engineering challenge that few have mastered—until now. The RETROL D16 is not a glow-plug engine running on methanol; it is a true compression-ignition diesel engine. Based on the legendary designs of Rudolf Diesel and the industrial giants like Sulzer and Krupp, this 6.5kg behemoth brings the thumping heart of the 19th-century Industrial Revolution to your workbench. It is heavy, it is loud, and it is unapologetically mechanical.
Why Choose the RETROL D16 Diesel?
- True Compression Ignition: This is the real deal. There are no spark plugs and no glow plugs. The engine runs purely on the heat generated by compressing air, just like a full-sized truck or ship engine. It offers a unique challenge and satisfaction that gas engines simply cannot match.

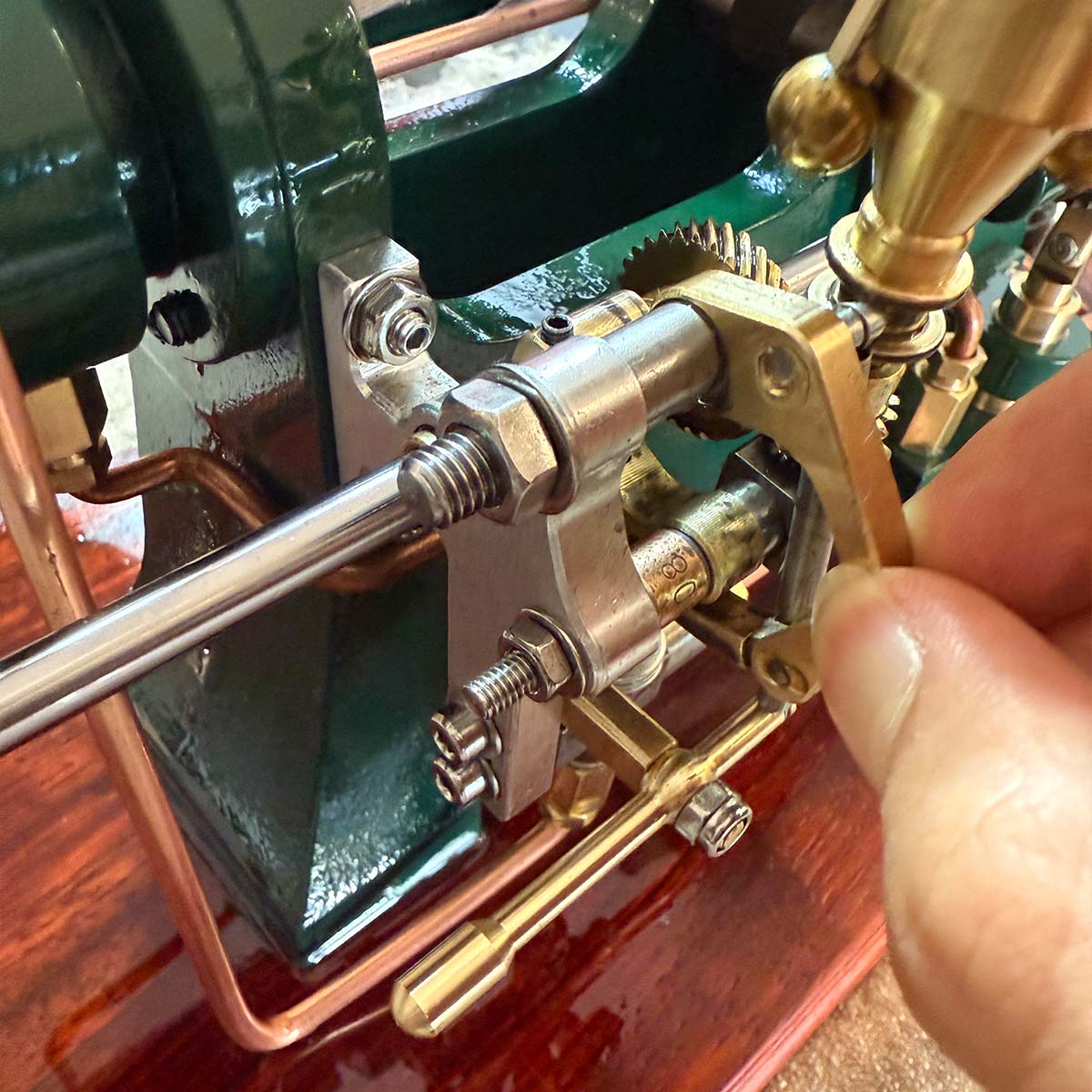

- Upgraded Injection System: We have solved the biggest headache of mini diesels. The D16 features a newly optimized high-pressure injector and injection pump. This upgrade ensures finer fuel atomization, precise volume control, and significantly improved reliability and starting ease.
- Heavy Industrial Build: Weighing in at over 6kg with the package, this model features a massive 225mm cast iron flywheel and a cast alloy body. The sheer mass provides incredible inertia, allowing the engine to maintain a slow, rhythmic "thump-thump" idle that shakes the soul.
- A Living Museum Piece: Mounted on a stained wooden base, this green giant looks like it was pulled straight out of a 1920s factory. It is a perfect educational tool for demonstrating the Otto cycle and diesel principles to students or fellow enthusiasts.
Technical Highlights: Engineering Excellence
- High-Pressure Atomization: The redesigned injector nozzle creates a microscopic mist of fuel, allowing for efficient combustion even in a 16cc chamber. This solves the common issue of "dribbling" injectors found in lesser models.
- Massive Torque: Thanks to the long 48mm stroke and the heavy flywheel, this engine produces significant torque. It doesn't just spin fast; it pulls hard, making it capable of driving larger dynamos or pumps.
- Robust Cooling: A large water jacket surrounds the cylinder. You can set up an evaporative cooling tank or a circulation system to keep the engine running at optimal temperatures during long sessions.
- Dual Lubrication: To ensure longevity, the engine uses a combination of independent oil cups for the crankshaft/bearings and splash lubrication for the piston, requiring a mix of oil in the fuel.
Specifications
- Brand: RETROL
- Model: D16 Stationary Diesel
- Type: Horizontal 4-Stroke Compression Ignition
- Displacement: 16cc
- Bore: 22mm
- Stroke: 48mm
- Flywheel: Cast Iron (225mm Diameter)
- Dimensions: 41 x 18 x 25cm
- Net Weight: ~5500g (Package ~6500g)
- Cooling: Water-Cooled
- Fuel: Diesel, Kerosene, or Paraffin (Mixed with oil)
- Lubrication: Independent Cups + Mixed Fuel (2% ratio)
- Starting: Electric Drill (High Torque required)
Usage Scenario: The Cold Start Ritual
Starting a diesel is an event. You fill the oil cups and the fuel tank. You grab your heat gun and warm the cylinder head to aid combustion. You attach your high-torque drill to the starting shaft. As you spin the engine, you hear the intake of air. Suddenly—BANG... BANG... THUMP-THUMP-THUMP. Black smoke puffs from the exhaust, and the massive flywheel takes over. The smell of diesel fills the air. You are now the operator of a miniature power plant.
Important Tips from the Workshop
- Fuel Mix: You must mix 2% mineral 2-stroke oil into your Diesel or Kerosene. This is critical for lubricating the injection pump and the piston.
- Starting Technique: Miniature diesels require high compression speed to start. A hand crank is often insufficient. Use a high-quality electric drill with a clutch to spin the engine over until it fires. Pre-heating the cylinder head with a hair dryer or heat gun significantly reduces starting difficulty.
- Break-in: The new injector needs time to settle. Run the engine at moderate speeds for the first few tanks to ensure the piston rings and injector seat properly.
- Safety: Operate in a well-ventilated area. Diesel exhaust is real!
Customer Support
This is an advanced model for skilled enthusiasts. If you need advice on fuel mixtures, starting techniques, or replacement parts, our expert team is ready to assist. Contact us at service@helloworld7.com.
