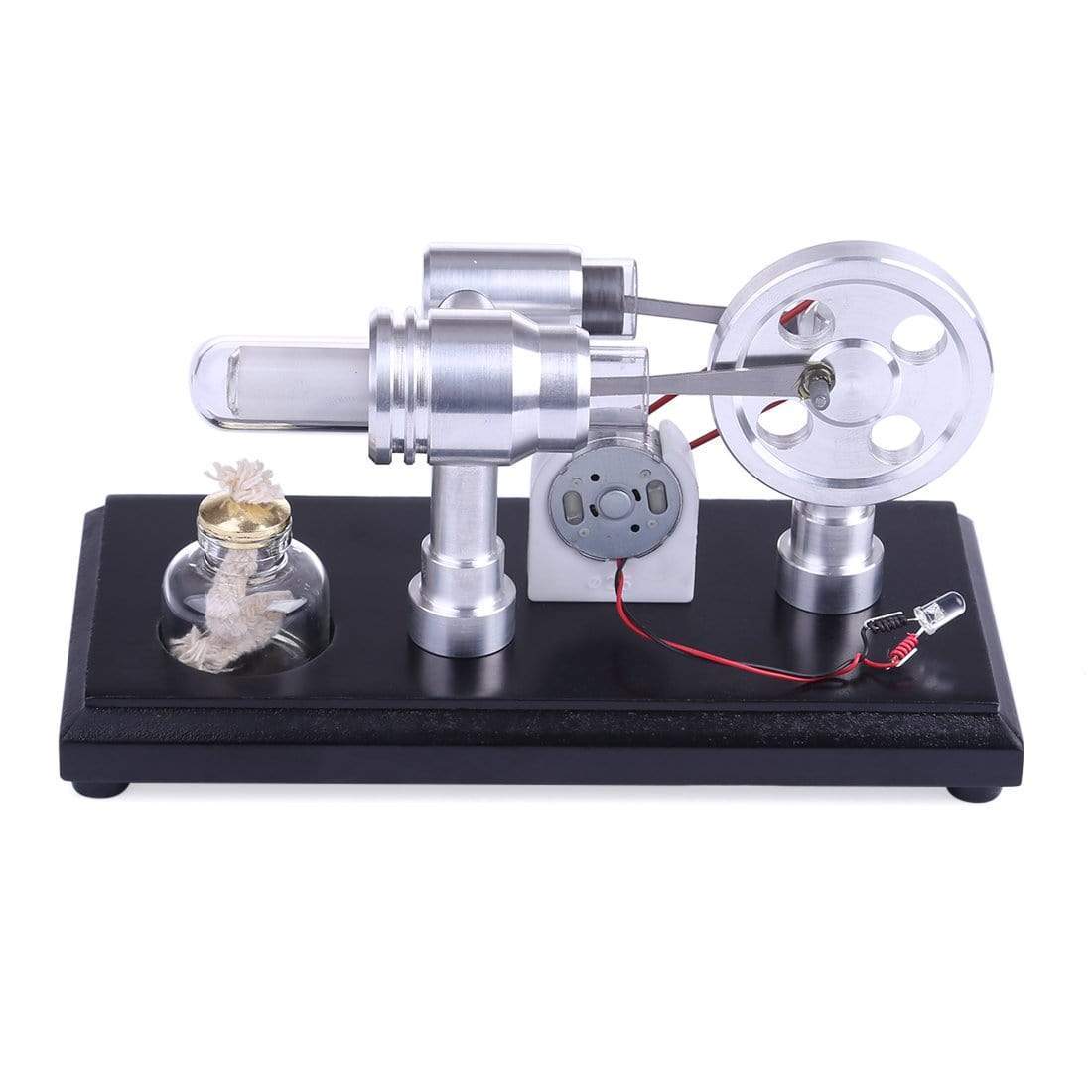

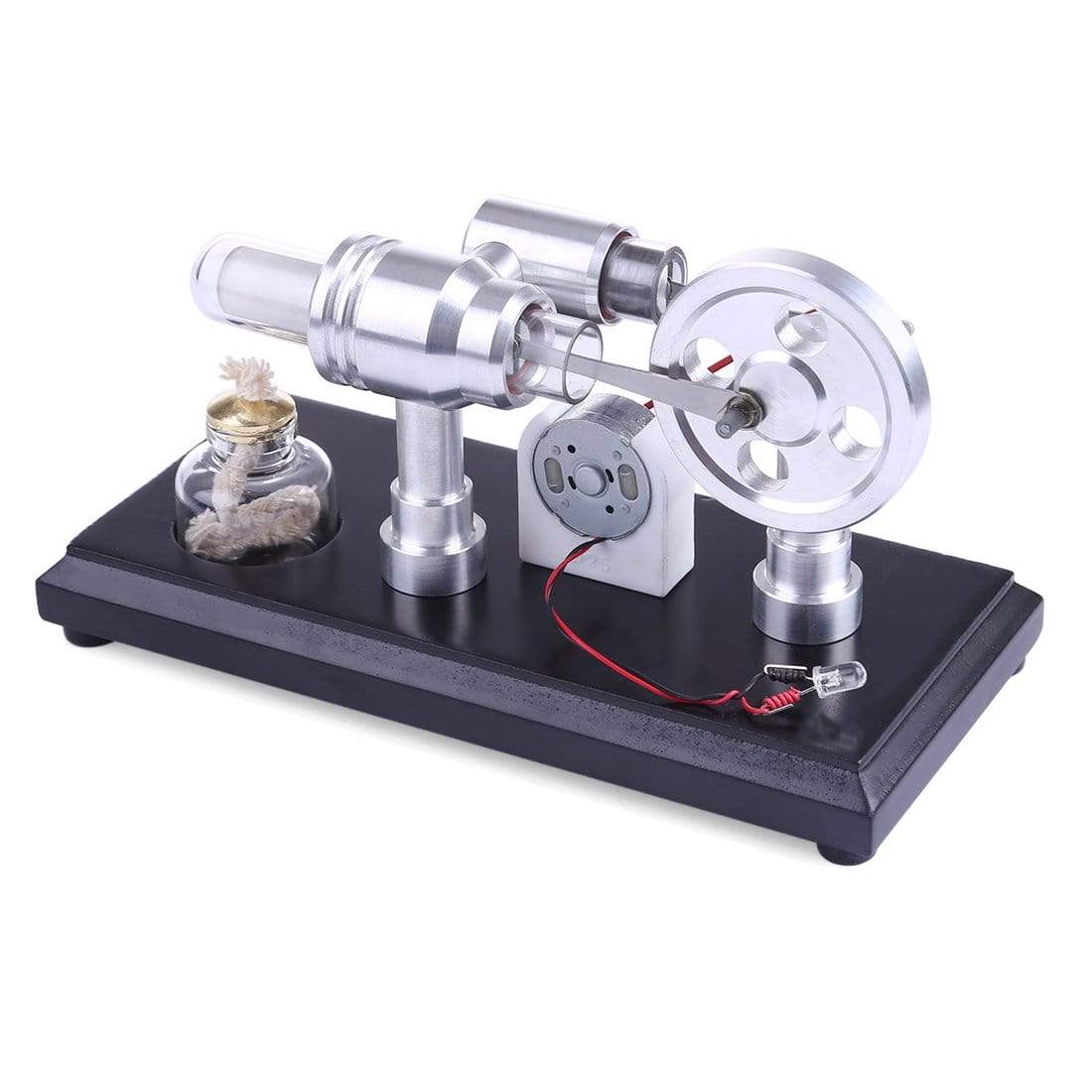

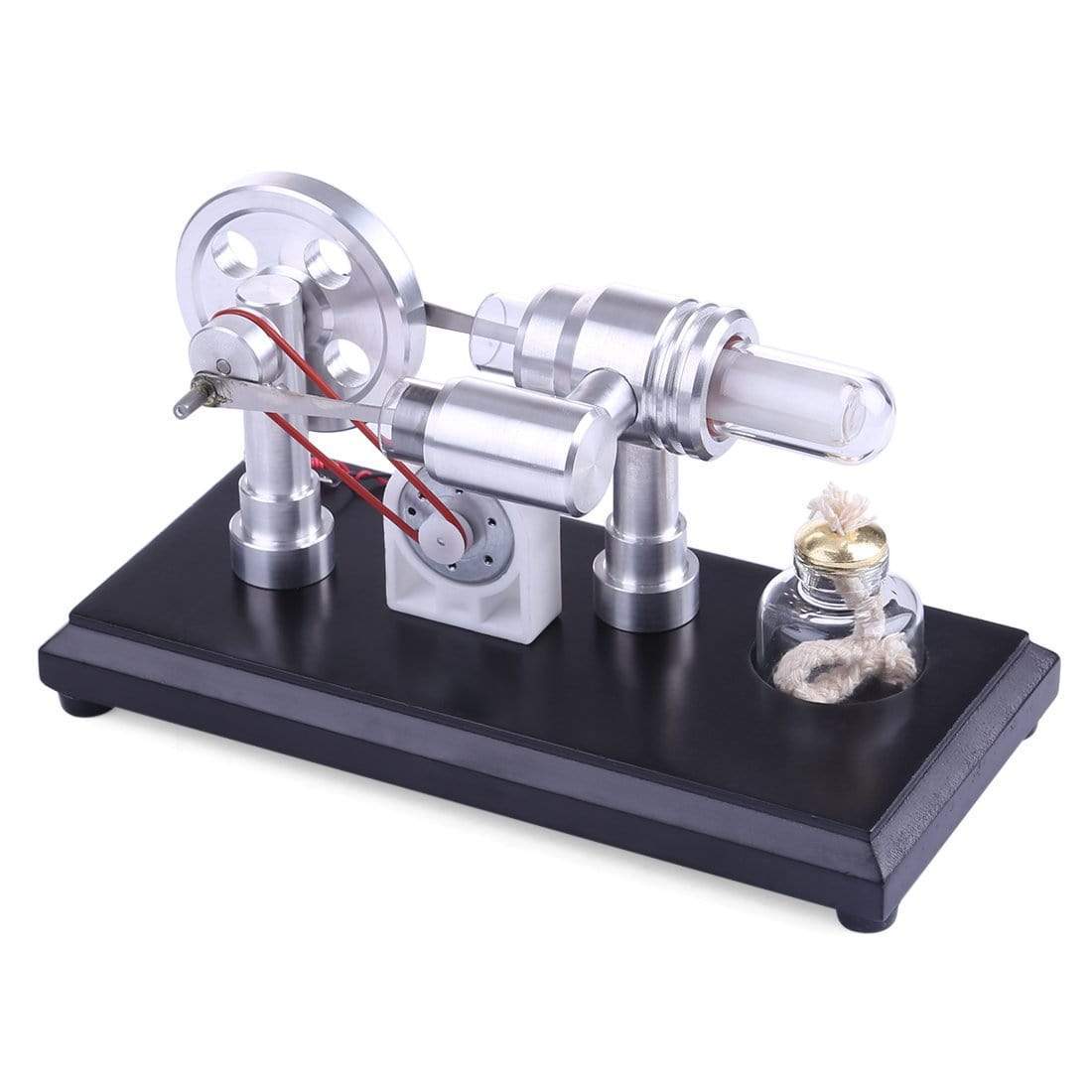

DIY Stirling Engine Generator Model Kit with LED Lights Physics Experiment Toy
Hero Section: Build Your Own Desktop Power Plant
There is a unique satisfaction in building a machine that generates its own electricity. This DIY Stirling Engine Kit isn't just a model; it's a hands-on journey into the world of thermodynamics. You start with a box of precision parts and end with a fully functional generator capable of powering colorful LED lights. It combines the joy of assembly with the wonder of physics. Once built, light the lamp, spin the flywheel, and watch your creation transform heat into light. It is the perfect project for makers, students, and anyone curious about how engines work.
Why Choose This DIY Generator Kit?
- The Builder's Experience: In a world of ready-made gadgets, this kit invites you to be the engineer. With included tools and clear instructions, you'll assemble the engine, understanding every connection and movement. It’s a rewarding challenge that improves manual dexterity and mechanical insight.

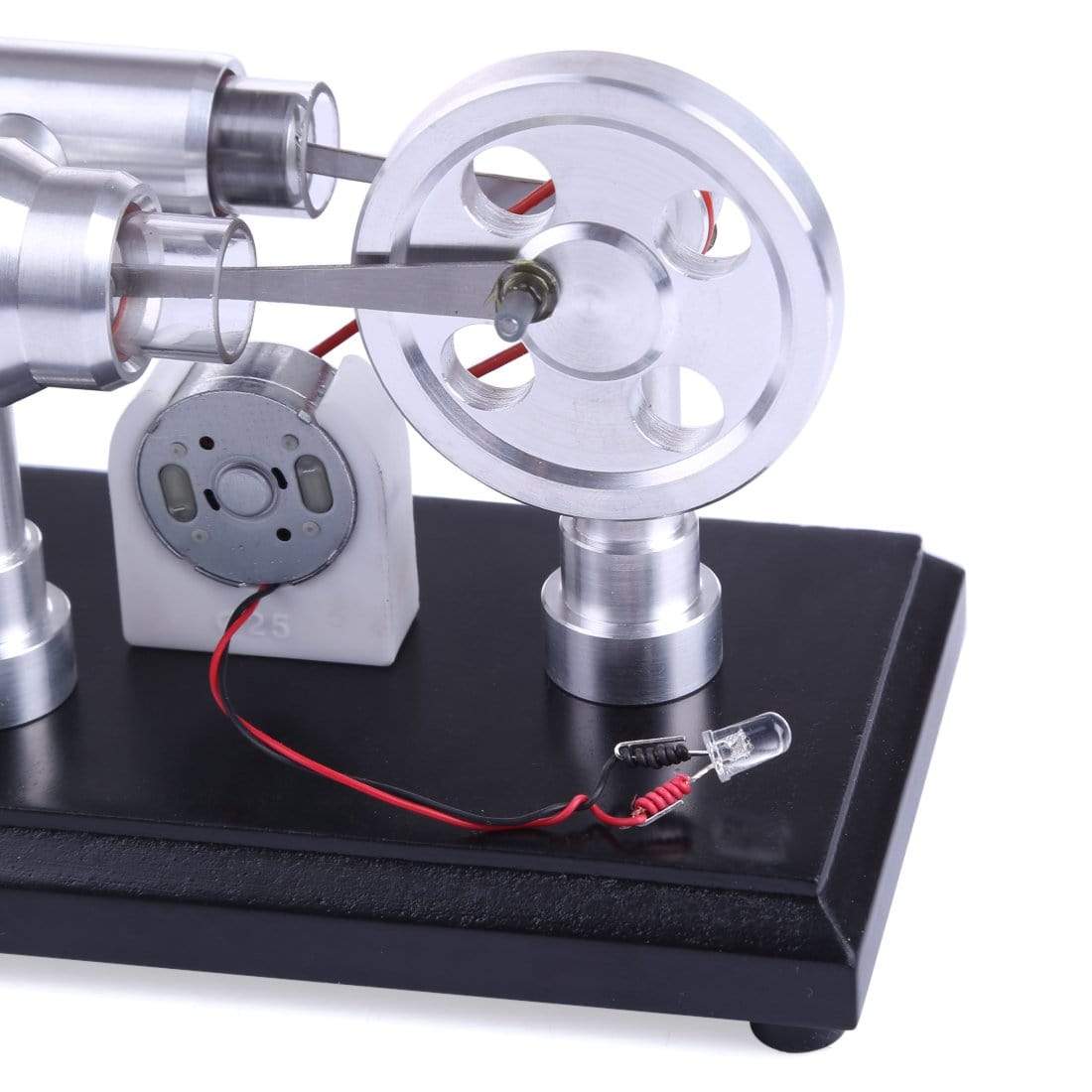

- Visible Power Generation: This isn't just a spinning toy. It features a micro-generator connected to 2 Colorful LED Lights. Seeing the lights glow brighter as the engine speeds up provides immediate, satisfying visual feedback of the energy conversion process.

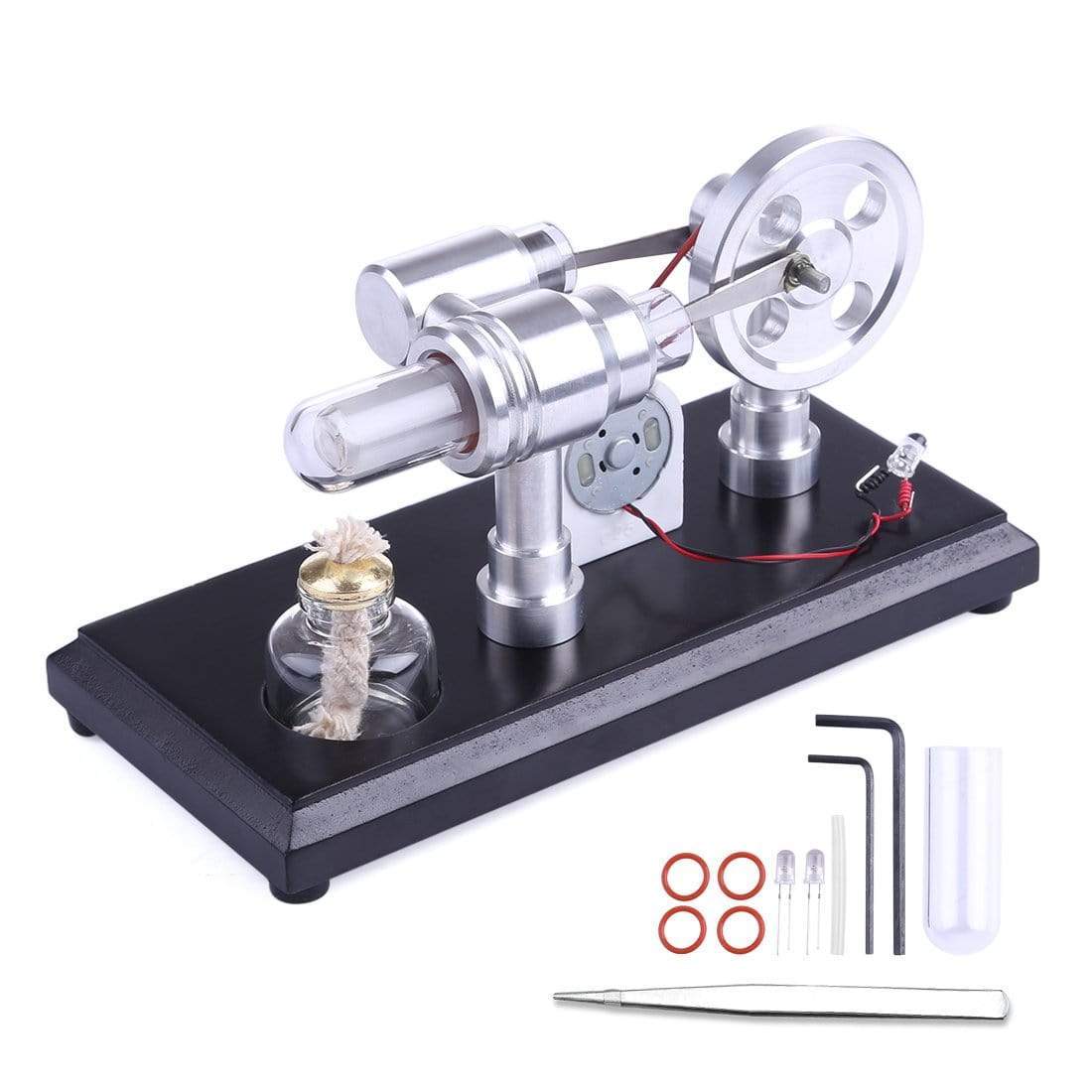

- Complete Peace of Mind: We know accidents happen. That’s why this kit includes a Spare Heating Cylinder and a Spare Alcohol Burner. You can build and run your engine with confidence, knowing you have backup parts ready.
- Premium Materials: The kit features a robust MDF base, stainless steel connecting rods, and aluminum alloy components. The heating cylinder is made from high-grade quartz glass, ensuring durability and safety under high temperatures.
Technical Highlights: Engineering Insight

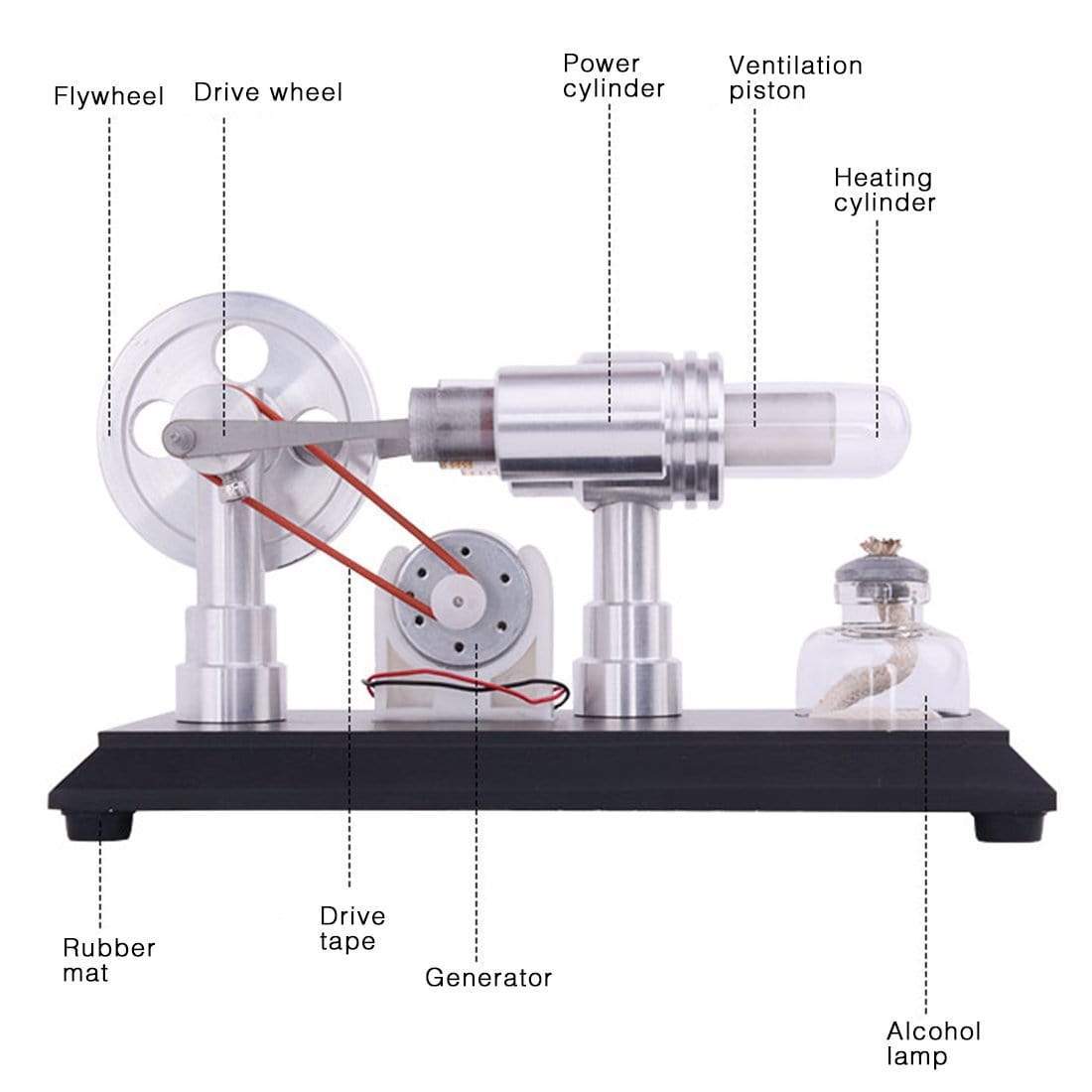

- External Combustion Principle: The engine operates on the Stirling cycle. The alcohol lamp heats the air in the quartz glass cylinder, causing it to expand and push the piston. This linear motion is converted into rotary motion by the crankshaft, which drives the generator.

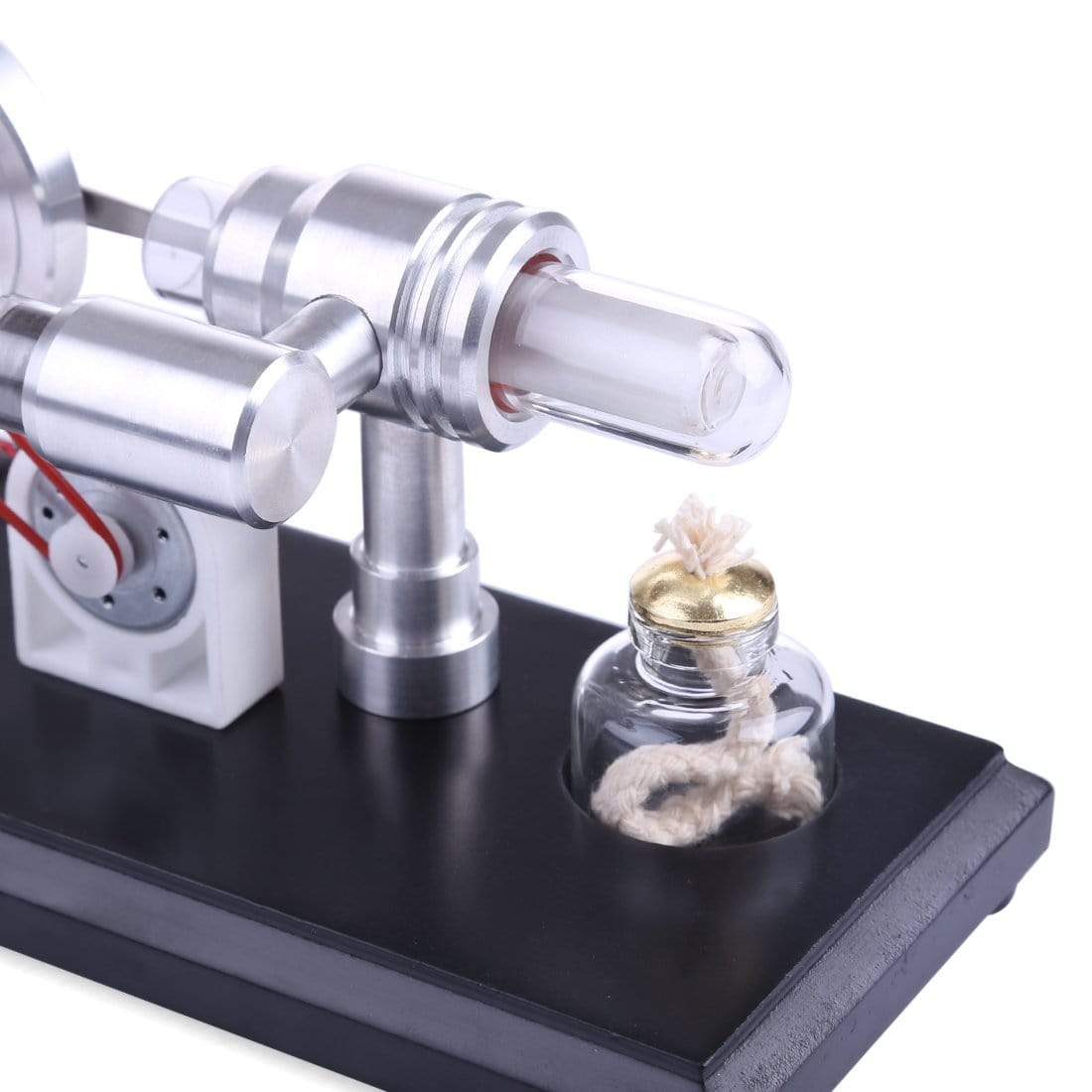

- Quartz Glass Resilience: We use quartz glass for the heating tube because of its extreme thermal shock resistance. It can withstand the direct flame of the alcohol lamp without cracking, while offering a crystal-clear view of the internal piston movement.
- Low-Friction Assembly: The kit is designed with precision tolerances. The assembly process teaches the importance of alignment and low friction, as the engine relies on a smooth, dry fit to operate efficiently.
Specifications
- Model Type: DIY Assembly Kit
- Material: Quartz Glass + Stainless Steel + Aluminum Alloy + MDF Base
- Output: Drives 2 Colorful LED Lights
- Product Dimensions: 16 x 8 x 9 cm
- Product Weight: 320g
- Package Dimensions: 20 x 10 x 16 cm
- Package Weight: 350g
- Packing: Protective Carton Box
Usage Scenario: The Weekend Workshop
Clear the kitchen table on a Saturday morning. Lay out the metal parts, the screws, and the glass cylinders. For the next hour, you are an engineer. You follow the logic of the machine, connecting the pistons to the crankshaft. Finally, the moment of truth. You fill the lamp, light it, and wait 30 seconds. You flick the flywheel. The engine catches—chug, chug, chug—and the LEDs flicker to life. You didn't just buy this; you created it.
Important Tips from the Expert
- Fuel Requirement: Use 95% purity alcohol (not included). Lower purity fuels contain water, which creates steam and prevents the engine from reaching the necessary temperature to run efficiently.
- Assembly Patience: Take your time. Ensure the connecting rods move freely and are not overtightened. A Stirling engine relies on low friction to operate.
- Strictly No Oil: The piston is designed for a precision dry fit. Never add oil or grease to the glass cylinder or piston. Oil will gum up when heated and stop the engine.
- Safety First: The quartz tube becomes extremely hot during operation. Allow the model to cool down naturally before touching.
